R13-507 16mm Round Cap Push Button Switch – 2-Pin SPST Momentary Switch

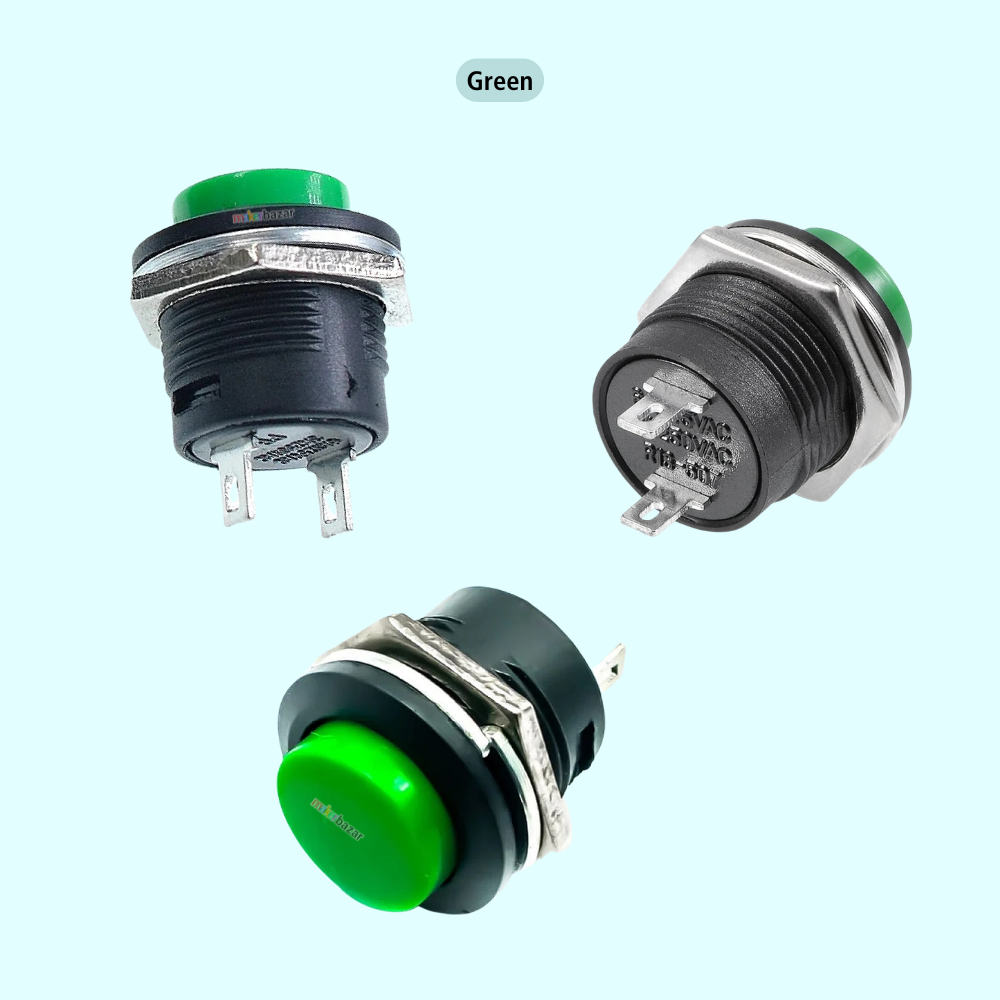

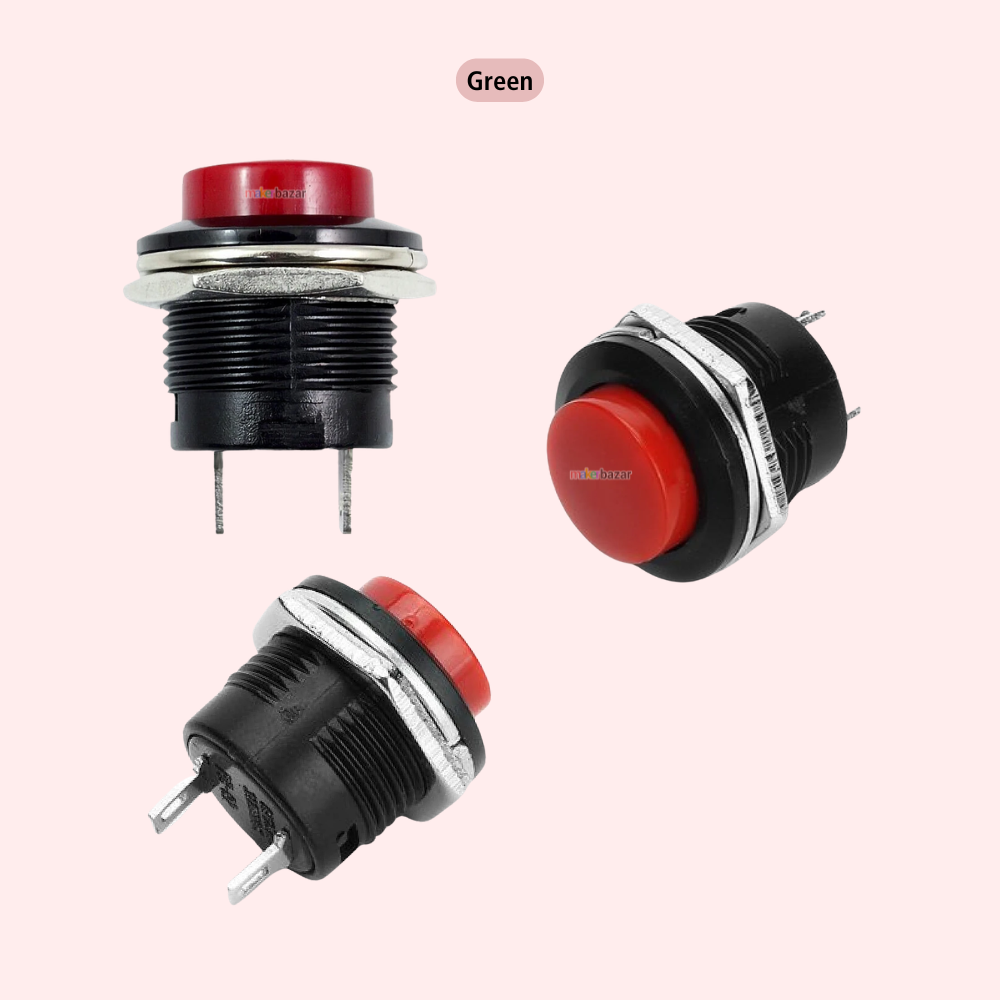

The R13-507 16mm 2-Pin Push Button Switch is a compact panel-mount switch designed for circuit control in DIY electronics, electrical projects and equipment panels. It features a round cap and fits a 16mm mounting hole.
The switch has a 2-pin SPST configuration and a self-resetting push-button action: it returns to its original position when released. A rubber ring and hexagonal nut help secure the switch to a panel. It is available in red and green.
Suitable for control circuits, prototypes and compatible electrical applications, this switch offers a simple way to add push-button input to a project.
Terminology note: The supplied description mentions both “self-reset” and “self-locking/latching.” These describe different switching actions. This listing treats the switch as momentary, self-resetting based on the product title; confirm the exact action with the supplier before publishing.
Key Features
-
R13-507 model.
-
16mm panel mounting hole.
-
2-pin SPST switch.
-
Round push-button cap.
-
Self-resetting / momentary action (verify with supplier).
-
Rubber ring and hex nut for panel mounting.
-

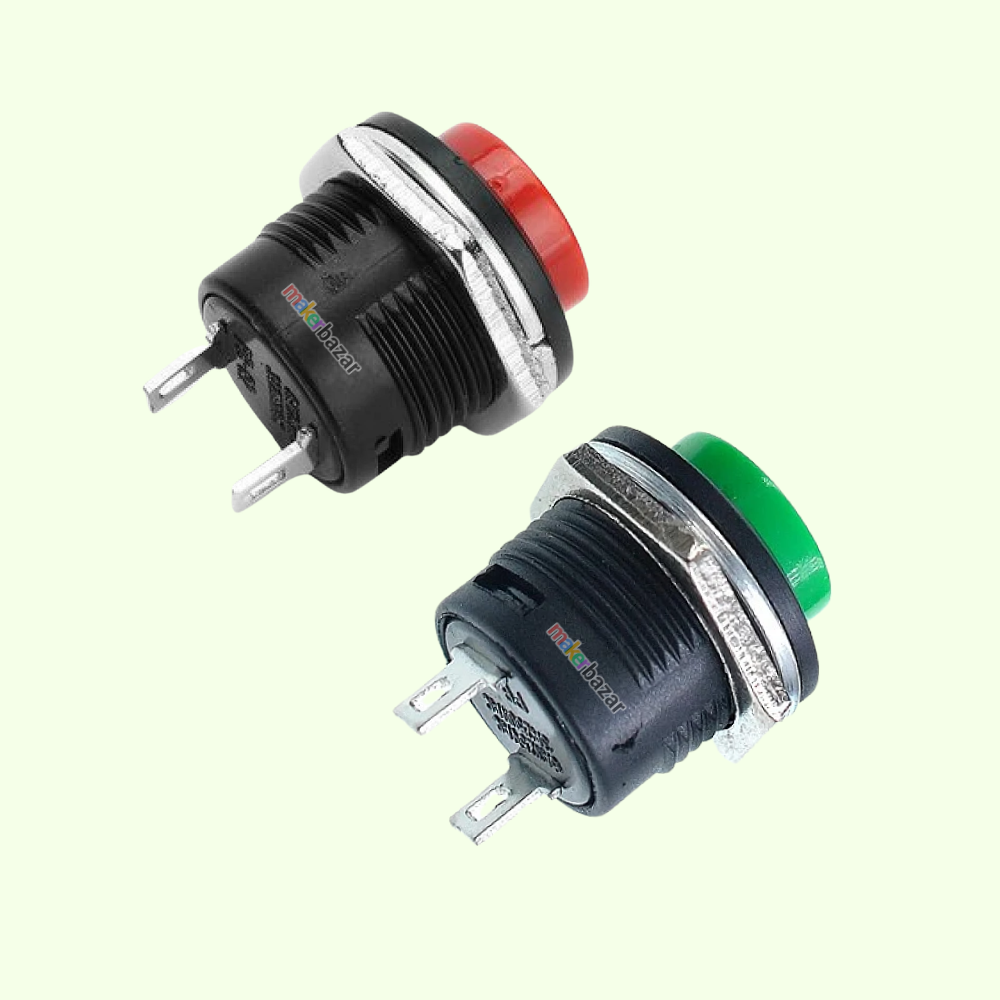

Available in red and green.
-
Compact design for DIY and circuit-control projects.
-
Rated for 250V AC at 1.5A or 125V AC at 3A, as supplied.
Technical Specifications
| Specification | Details |
|---|---|
| Model | R13-507 |
| Product Type | Round Cap Push Button Switch |
| Switch Configuration | SPST, 2-pin |
| Switching Action | Self-resetting / momentary (supplier confirmation recommended) |
| Mounting Hole Diameter | 16mm |
| Cap Colour | Red, Green |
| Operating Voltage / Current Rating | 250V / 1.5A; 125V / 3A (confirm AC/DC rating with supplier) |
| Operating Temperature | −25°C to +85°C |
| Material | Plastic (as provided) |

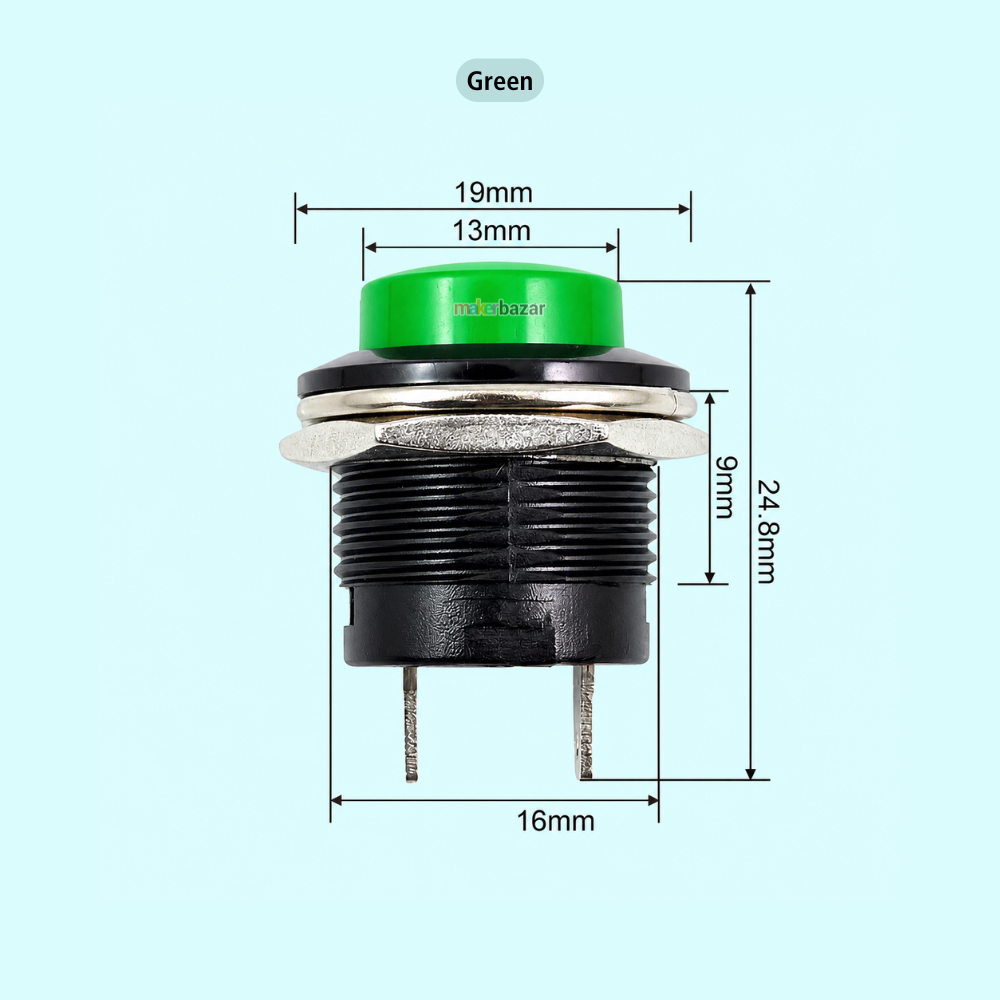

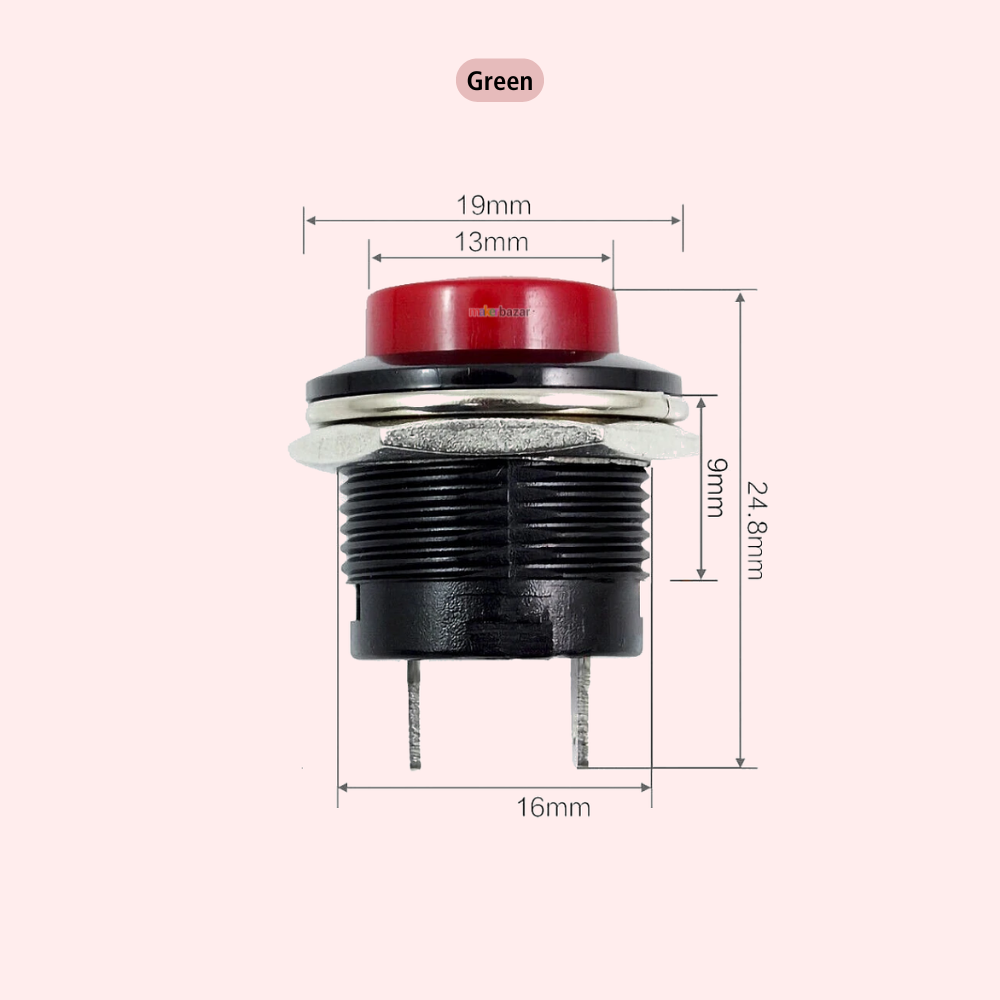

| Length | 25mm |
| Mounting Hardware | Rubber ring and hex nut |
Applications
-
DIY electronics projects.
-
Panel-mounted circuit controls.
-
Electrical equipment control panels.
-
Compatible electromagnetic starter and contactor control circuits.
-
Prototyping and maker projects.
-
Push-button input for suitable electrical systems.
Precautions
-
Verify the switch’s exact momentary or latching action before installation.
-
Confirm whether the voltage/current ratings apply to AC, DC or both before connecting a load.
-
Do not exceed the specified electrical rating.
-
Disconnect power before wiring or mounting.
-
Ensure the mounting hole is 16mm and tighten the nut securely without damaging the switch.
-
Use appropriate insulation and wiring practices.
-
This switch is not confirmed as suitable for safety-critical circuits.
-
Keep away from moisture unless the supplier confirms an appropriate ingress-protection rating.
