Description

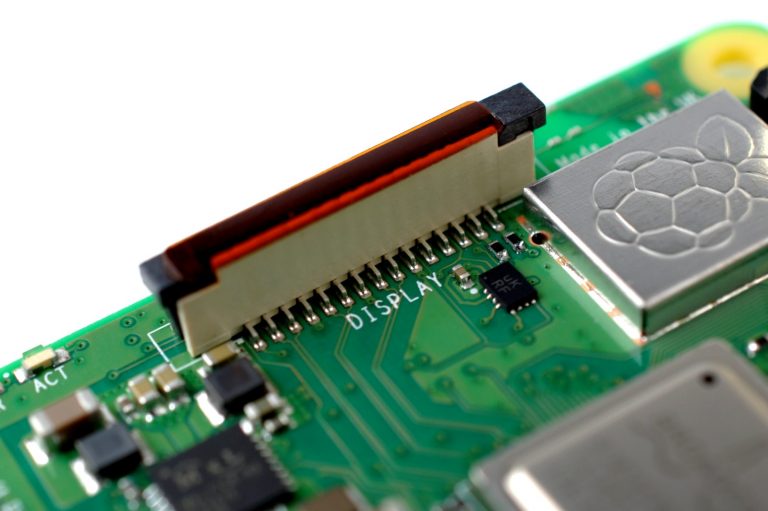

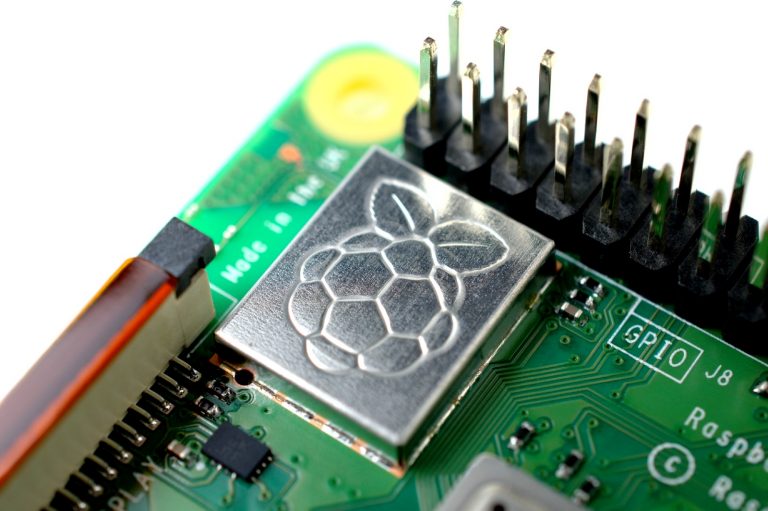

The All new Upgraded 2018s Raspberry Pi 3 Model A+ now comes with the Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz quad-core processor, dual-band wireless LAN, Bluetooth 4.2/BLE in the same mechanical format as the Raspberry Pi 1 Model A+.
With Extended 40-pin GPIO header and Full-size HDMI it is the perfect board for the minimalist Pi fan. This low-cost Pi uses the same processor as the model B+ but does away with the Ethernet jack and three of the USB Ports. This makes it lower power, less expensive and much lighter & smaller!
It’s still compatible with all Pi operating systems and software and has the exact same 40 pin GPIO connector and camera/display sockets, so any HATs or Pi Plates or other things that plug into the model B+ will work just the same.
It also has the same HDMI, sound/composite connector and micro-USB connector for power
Unlike the Raspberry Model B+, there’s only one USB port and no ethernet jack but it’s also significantly smaller at 65mm x 56mm if you don’t include overhang from the connectors.
Don’t forget, you’ll need a USB power supply with micro USB cable, and a microSD card with a Raspberry Pi OS on it (we suggest a Raspbian 4G card or NooBS 8G card)
