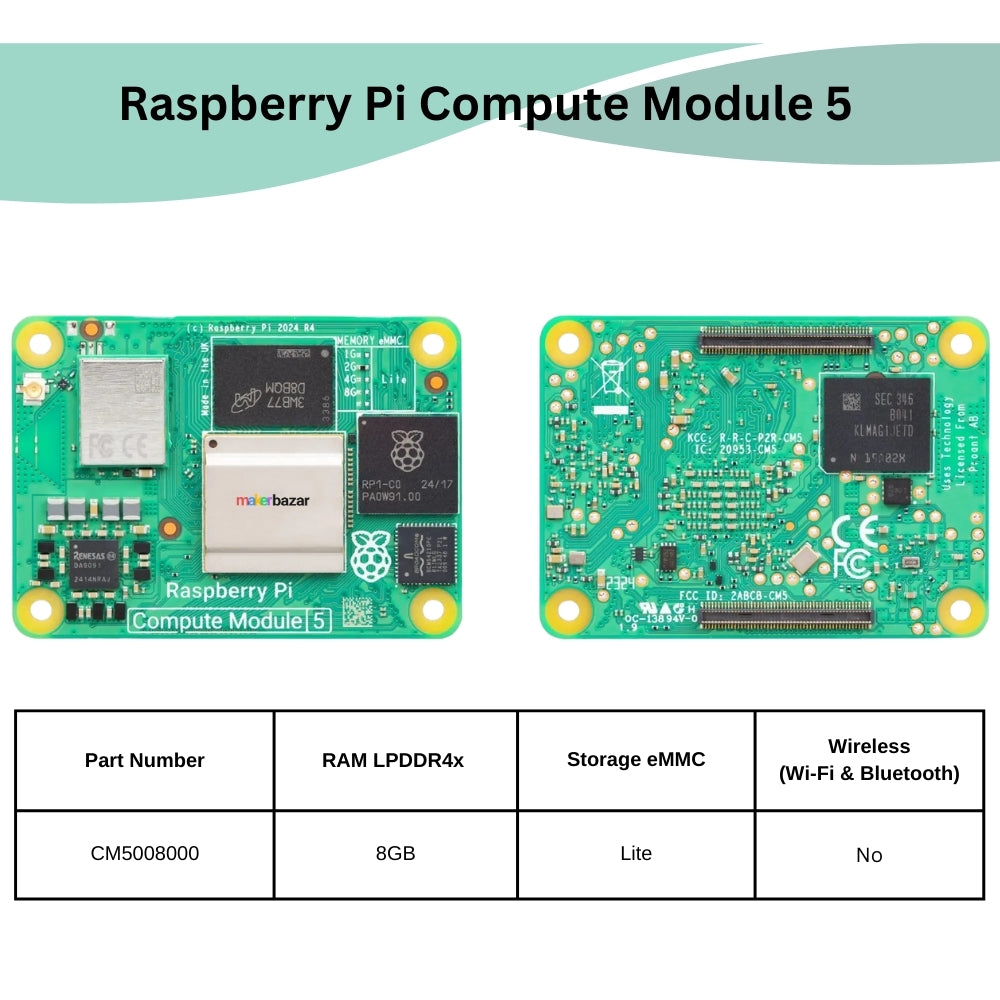

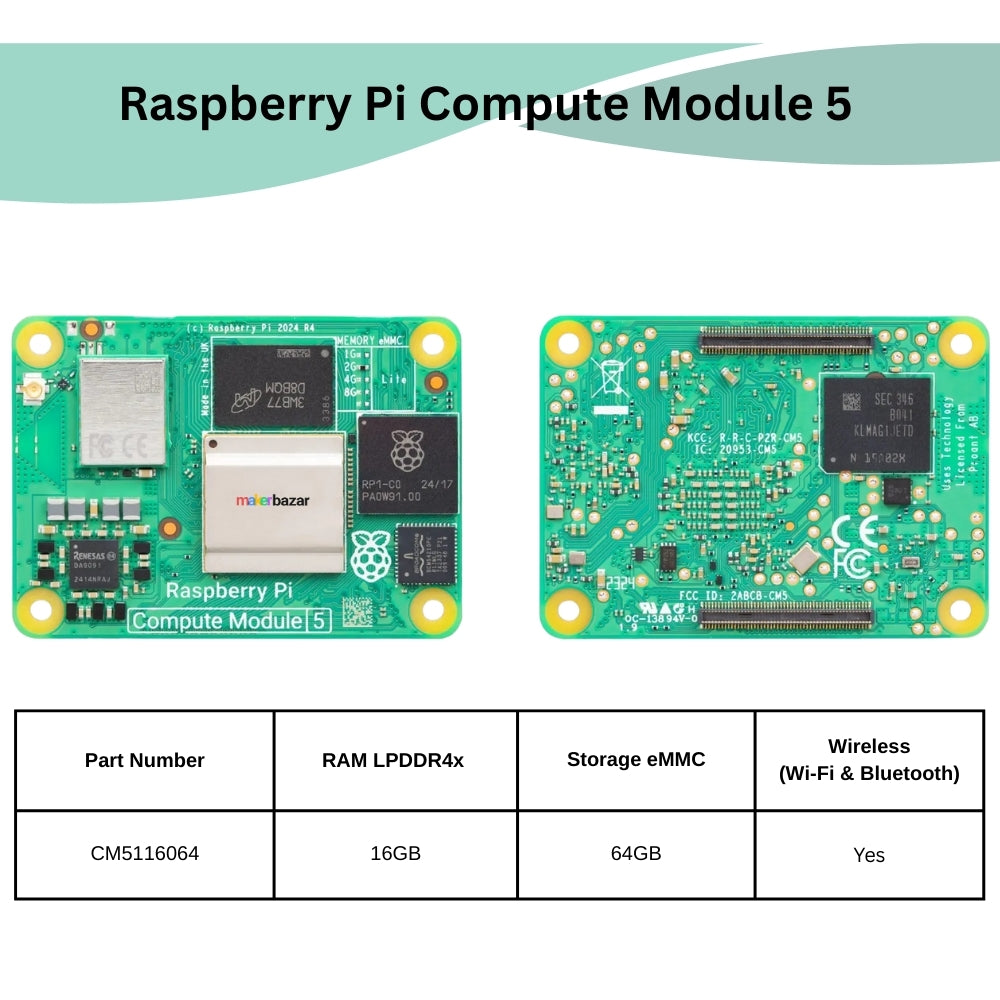

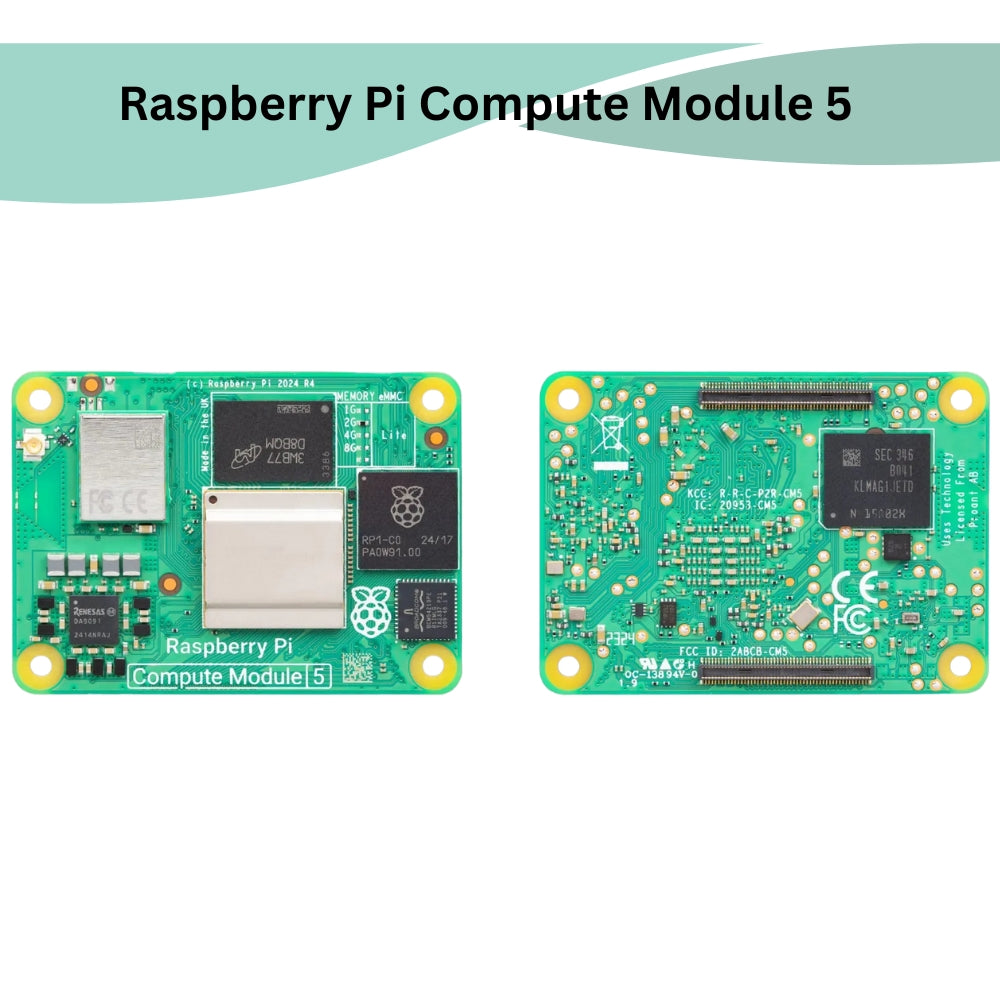

Raspberry Pi Compute Module 5 – High-Performance Embedded Computing Board
The Raspberry Pi Compute Module 5 is a system-on-module that brings the power of the Raspberry Pi 5 to a compact form factor, perfect for embedded applications. It features a quad-core Arm Cortex-A76 processor, dual 4Kp60 HDMI outputs, Gigabit Ethernet, and an optional fully-certified wireless module with Wi-Fi® and Bluetooth connectivity. With multiple RAM and eMMC flash configurations, the Compute Module 5 lets you integrate Raspberry Pi 5’s robust hardware and optimized software into your custom systems and designs.
Compared to its previous generation the Compute Module 5 offers expanded I/O interfaces, providing greater flexibility and more options for product and application development. For budget-conscious projects, a version without eMMC flash is also available.
The Raspberry Pi Compute Module 5 is a system-on-module that brings the power of the Raspberry Pi 5 to a compact form factor, perfect for embedded applications. It features a quad-core Arm Cortex-A76 processor, dual 4Kp60 HDMI outputs, Gigabit Ethernet, and an optional fully-certified wireless module with Wi-Fi® and Bluetooth connectivity. With multiple RAM and eMMC flash configurations, the Compute Module 5 lets you integrate Raspberry Pi 5’s robust hardware and optimized software into your custom systems and designs.
Compared to its previous generation the Compute Module 5 offers expanded I/O interfaces, providing greater flexibility and more options for product and application development. For budget-conscious projects, a version without eMMC flash is also available.
Specification
Specifications for Raspberry Pi Compute Module 5
| Processor | Broadcom BCM2712 Quad-core 64-bit Arm Cortex-A76 (Armv8) SoC @ 2.4GHz |
|---|---|
| RAM | 1GB, 2GB, 4GB, 8GB LPDDR4-4267 SDRAM with ECC |
| Storage | 0GB, 16GB, 32GB or 64GB eMMC flash memory |
| HDMI | 2 × HDMI 2.0 ports (supports up to 4Kp60 on both ports simultaneously) |
| Video | 4Kp60 HEVC decoder OpenGL ES 3.1 graphics, Vulkan 1.2 |
| Connectivity | Wifi 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless Bluetooth 5.0, BLE On board electronic switch to select between PCB trace or external antenna. 1 × PCIe x1 root complex, Gen 2 (5Gbps) |
| USB | 1 × USB 2.0 port (high speed) 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation |
| CSI/DSI | 2 × 4-lane MIPI ports supporting both DSI (display port) and CSI-2 (camera port) |
| GPIOs | Up to 30 × GPIO supporting either 1.8V or 3.3V signalling and peripheral options: Up to 5 × UART Up to 5 × I2C Up to 5 × SPI 1 × SDIO interface 1 × DPI (parallel RGB display) 1 × I2S Up to 4 × PWM channels Up to 3 × GPCLK outputs |
| Power Supply | Single +5V PSU input supports USB PD for up to 5A @ 5V |
| Operating Temperature | -20°C to +85°C |
| Dimensions | 55 mm × 40 mm × 4.7 mm module |
| Mounting Holes | 4 × M2.5 mounting holes |
