RC3563 Battery Tester – High Precision Internal Resistance & Voltage Measurement Tool
The RC3563 Battery Internal Resistance Tester is a compact and highly accurate handheld testing device designed to measure both battery internal resistance and voltage simultaneously. Utilizing advanced Kelvin four-wire testing technology, it eliminates errors caused by contact and wire resistance, ensuring precise and reliable measurements.
This tester features an intelligent control system with LCD display and incorporates advanced filtering algorithms for enhanced accuracy and stability. Powered by a built-in 1000mAh rechargeable lithium battery, it supports convenient 5V charging via standard mobile chargers, making it ideal for both field and laboratory use.
Suitable for testing lithium, nickel, lead-acid, and other battery types, the RC3563 is widely used in battery maintenance, manufacturing, quality inspection, and research labs. It also supports low resistance measurement for capacitors and resistors, making it a versatile tool for electronics professionals.

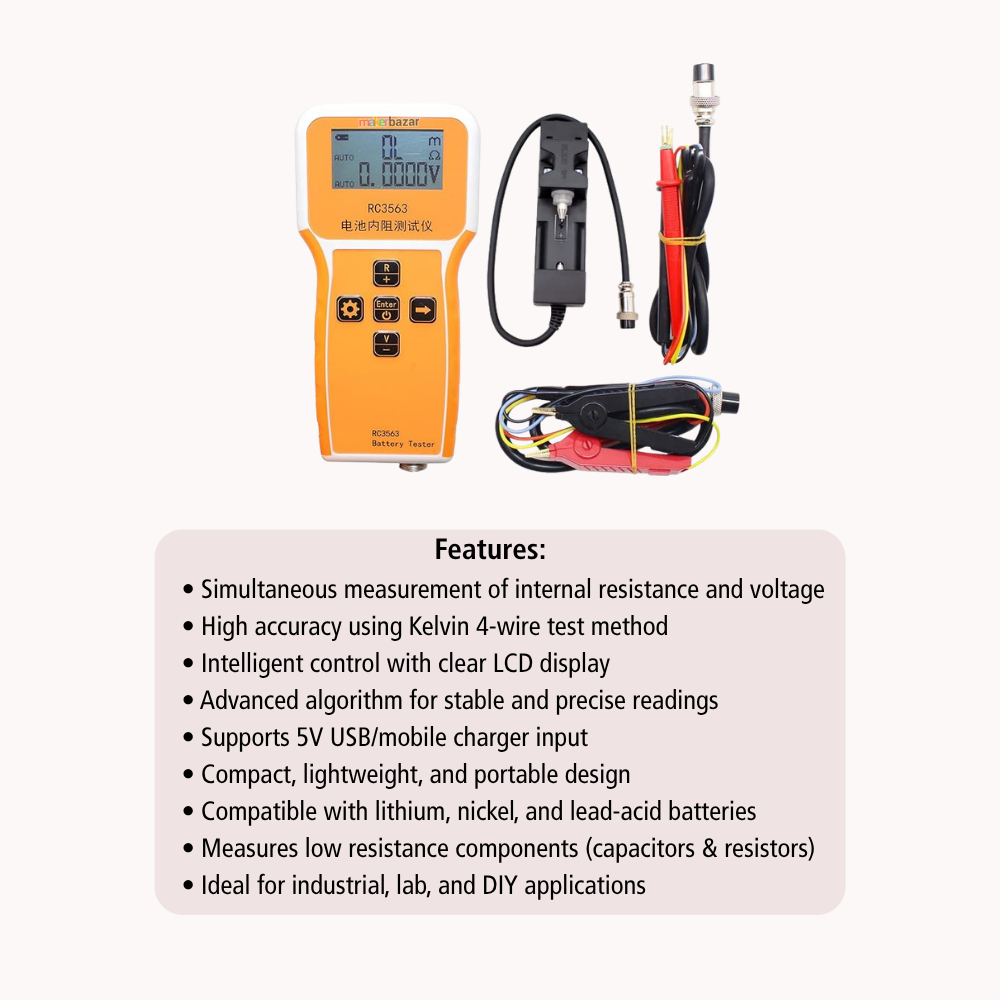

Key Features
• Simultaneous measurement of internal resistance and voltage.
• High accuracy using Kelvin 4-wire test method.
• Intelligent control with clear LCD display.
• Advanced algorithm for stable and precise readings.
• Built-in 1000mAh rechargeable lithium battery.
• Supports 5V USB/mobile charger input.
• Compact, lightweight, and portable design.
• Compatible with lithium, nickel, and lead-acid batteries.
• Measures low resistance components (capacitors & resistors).
• Ideal for industrial, lab, and DIY applications.

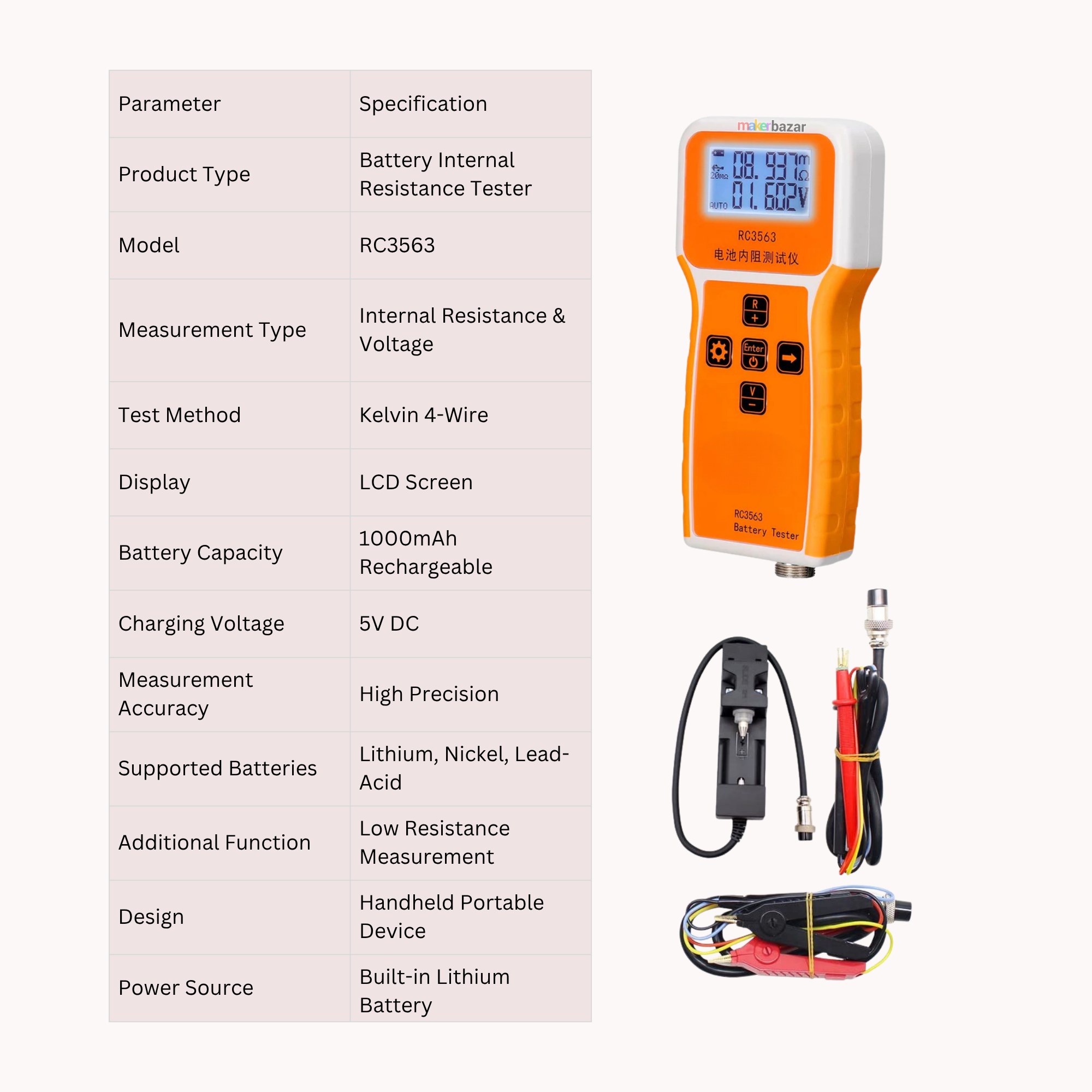

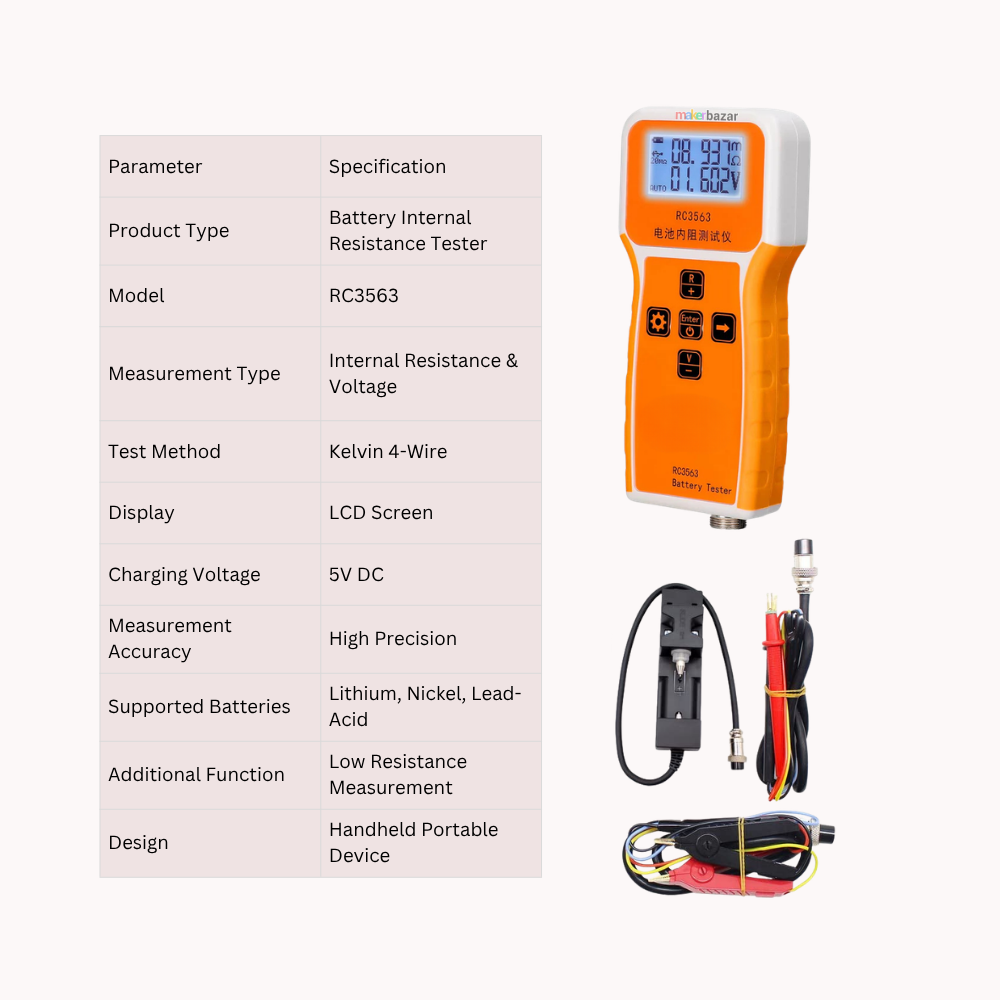

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Battery Internal Resistance Tester |
| Model | RC3563 |
| Measurement Type | Internal Resistance & Voltage |
| Test Method | Kelvin 4-Wire |
| Display | LCD Screen |
| Battery Capacity | 1000mAh Rechargeable |
| Charging Voltage | 5V DC |
| Measurement Accuracy | High Precision |
| Supported Batteries | Lithium, Nickel, Lead-Acid |
| Additional Function | Low Resistance Measurement |
| Design | Handheld Portable Device |
| Power Source | Built-in Lithium Battery |

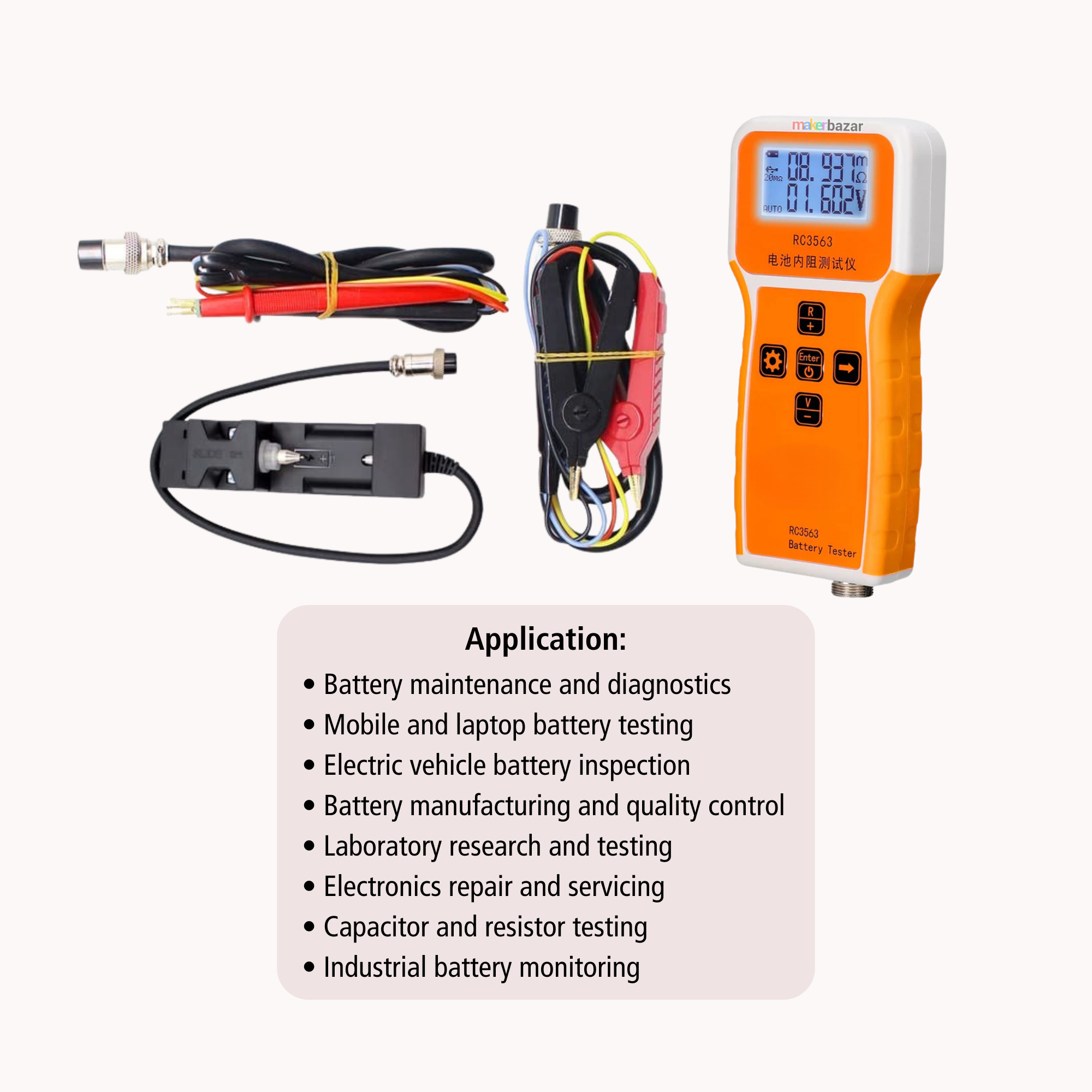

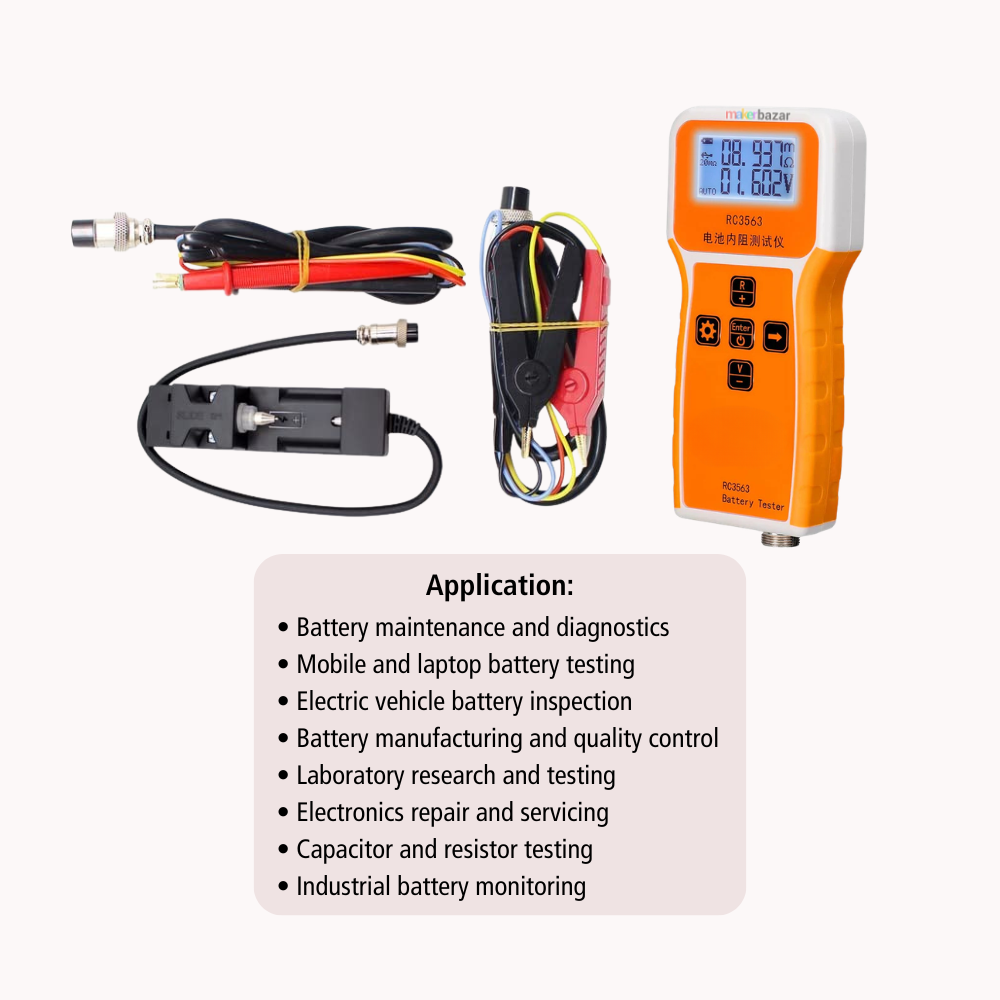

Applications
• Battery maintenance and diagnostics.
• Mobile and laptop battery testing.
• Electric vehicle battery inspection.
• Battery manufacturing and quality control.
• Laboratory research and testing.
• Electronics repair and servicing.
• Capacitor and resistor testing.
• Industrial battery monitoring.
Precautions
• Ensure correct polarity while connecting probes.
• Avoid short-circuiting the test leads.
• Use only 5V charging input.
• Do not use in high humidity or wet conditions.
• Handle clamps carefully to maintain accuracy.
• Keep away from extreme temperatures.
