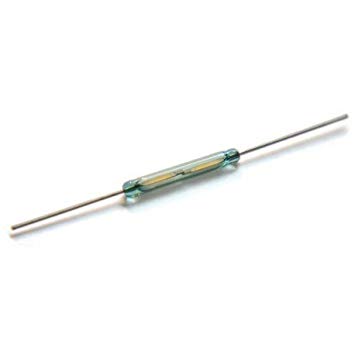

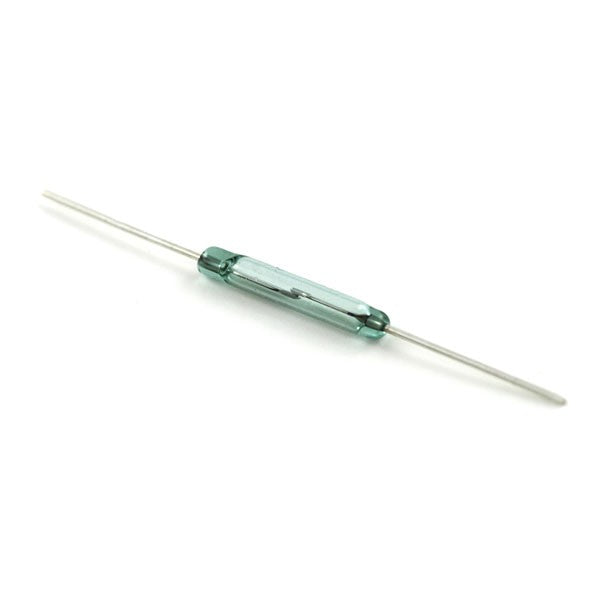

Magnetic Control Reed Switch SPST

Save ₹ 5.00
SKU: 422914464
3 reviews

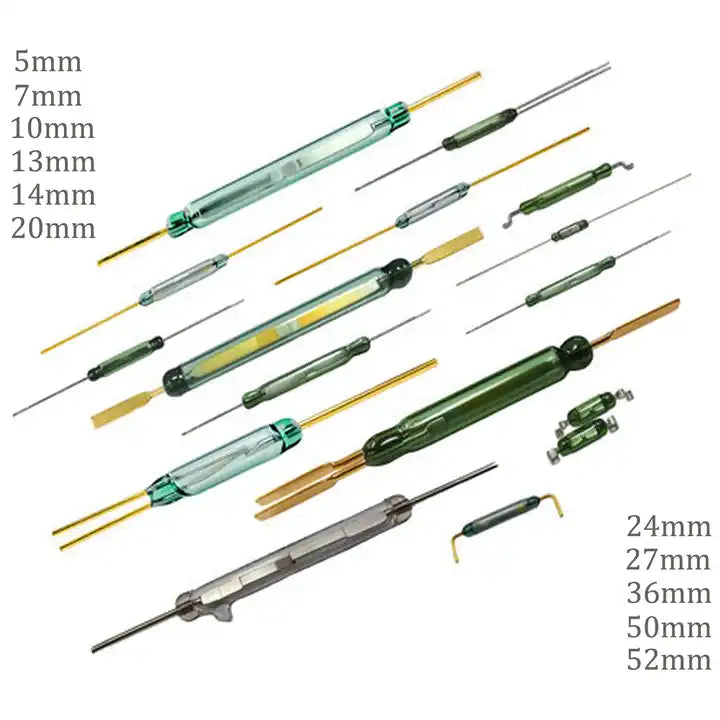

Size: 14mm
Sale price₹ 17.00 Regular price₹ 22.00
( ₹ 14.41 without 18% GST.)

Tax included Shipping calculated at checkout


Reed Switch / Sensor - SPST

This is a miniature normally open contact type reed switch. When the switch is exposed in a magnetic field, the two ferrous pins inside the switch pull together and the switch closes. After removing the magnetic field, the leads separate, and the switch opens. This makes for a great non-contact switch and carries up to 1.2A.

The switch has low contact resistance and is ideally suitable for signal switching applications, reed relays, security, monitoring, limit sensing, etc. It is a small and easy-to-use module and can operate in a variety of environmental conditions. It operates very reliably in the -50℃  to +140℃ temperature range.


  • Miniature size and easy to use
  • Hermetically sealed switch, contacts are not affected by and have no effect on their external environment.
  • Soft leads enable reliable hand forming.
  • operates very reliably in the -50℃  to +140℃ temperature range.


  • Maximum voltage: 24V
  • Maximum operating current: 1.2A
  • Frequency: 100Hz
  • Contact resistance: 20 mΩ
  • Insulation resistance: 100 MΩ
  • Lifecycle: ≅100000
  • Operating temperature range:  -50℃  to +140℃
