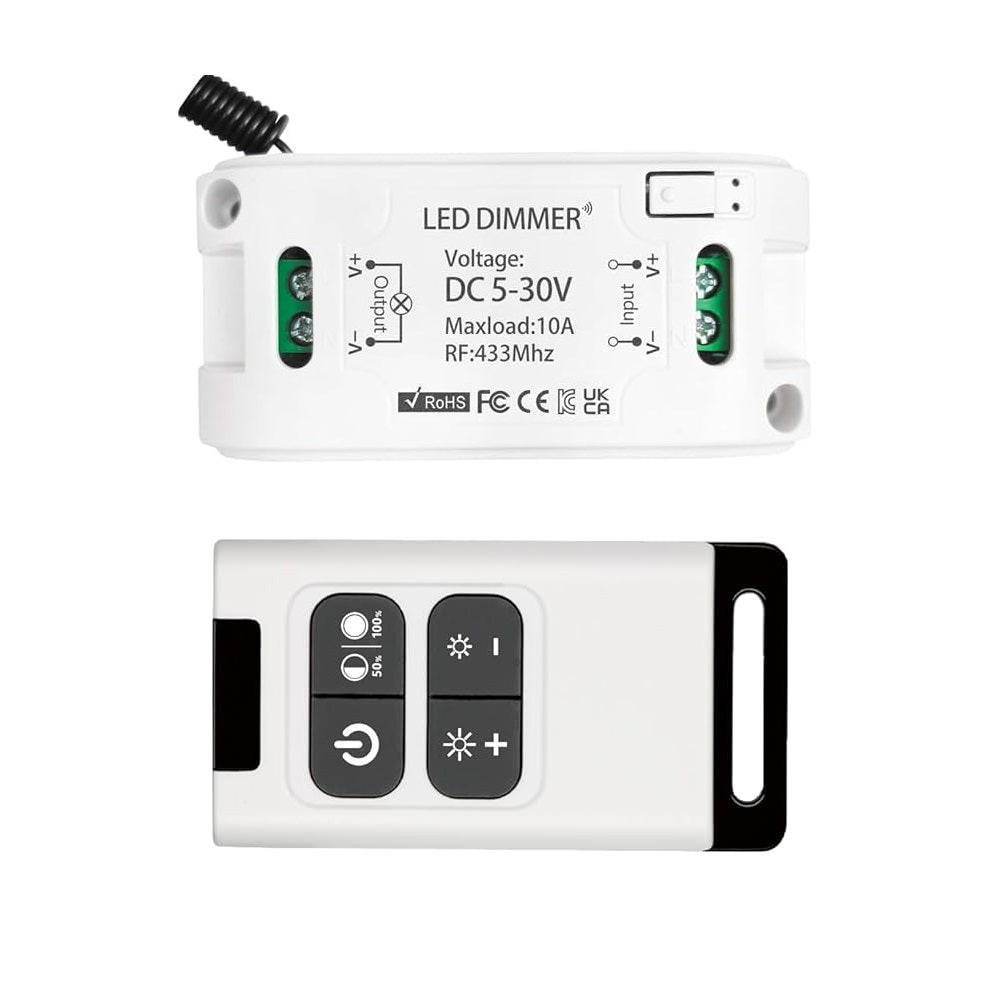

Wireless Dimmer Switch DC 5V 12V 24V 10A Relay Receiver Controller with Transmitters Remote Control
This RF wireless dimmer switch controller offers smooth and remote-adjustable dimming (0–100%) for LED lights and DC-powered devices. Operating on a wide voltage range (DC 5V to 30V) with a strong 10A relay, it ensures high reliability and signal range up to 50 meters. The included dual remote controls use stable EV1527 coding technology for seamless pairing and operation through walls and obstacles. Ideal for LED strip lights, lamps, or other low-voltage devices.
Specifications
| Feature | Details |
|---|---|
| Receiver Voltage | DC 5V – 30V |
| Max Current | 10A |
| Relay Life | >400,000 cycles |

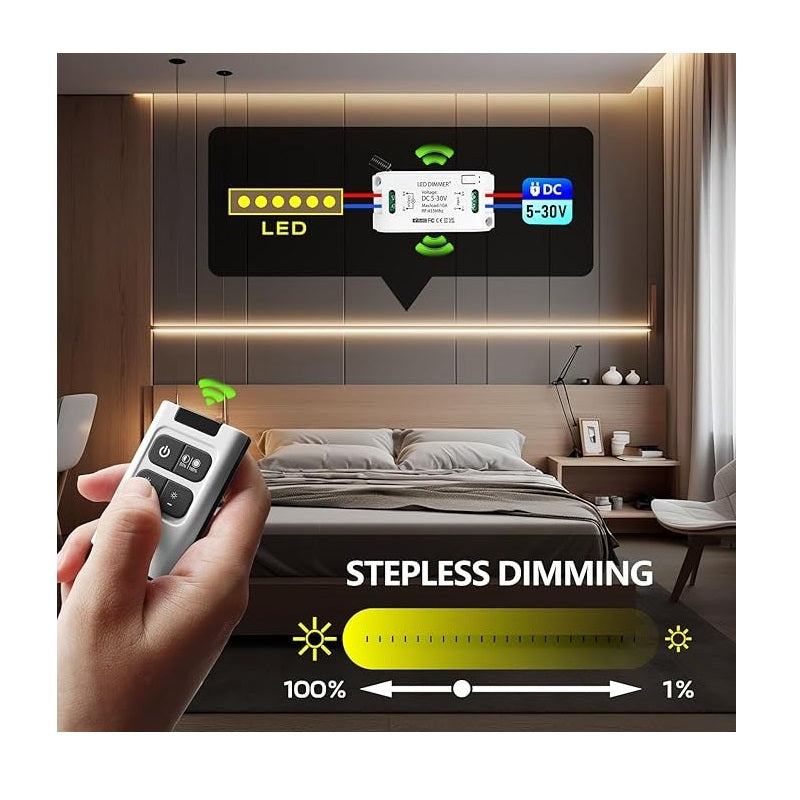

| Adjustable Output | 0% – 100% (dimming function) |
| Quiescent Current | <10 mA |
| RF Frequency | ASK superheterodyne radio |

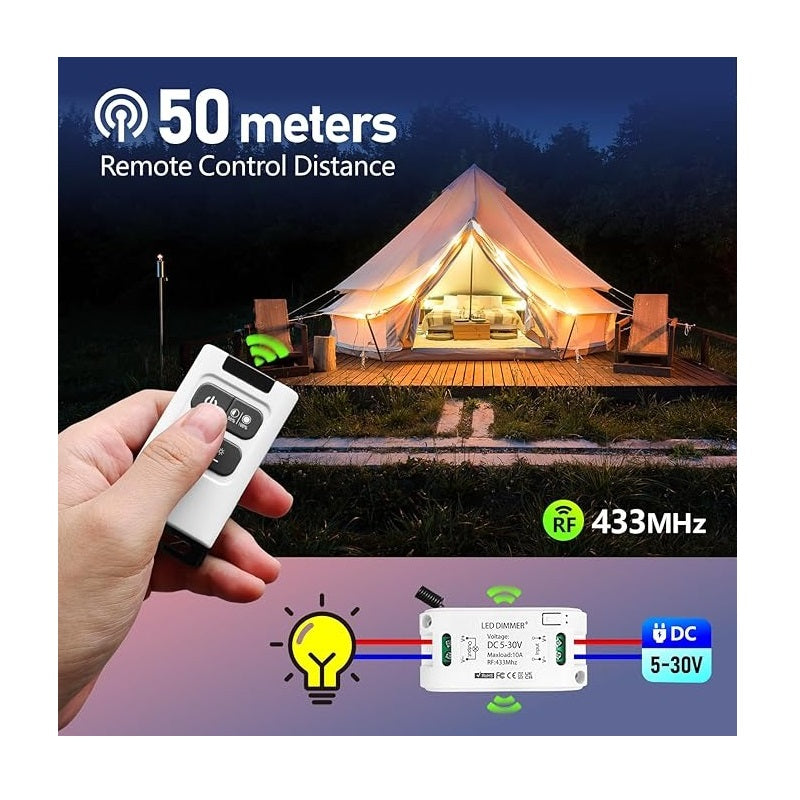

| Reception Range | ~50 meters (open area) |
| Reception Sensitivity | > -97 dBm |
| Transmitter Battery | 1 x 27A 12V (included, lasts ~3 years) |
| Memory Capacity | Up to 20 remote controls |
| Coding Chip | EV1527 (learning code) |
| Working Temp | -30°C ~ +80°C |

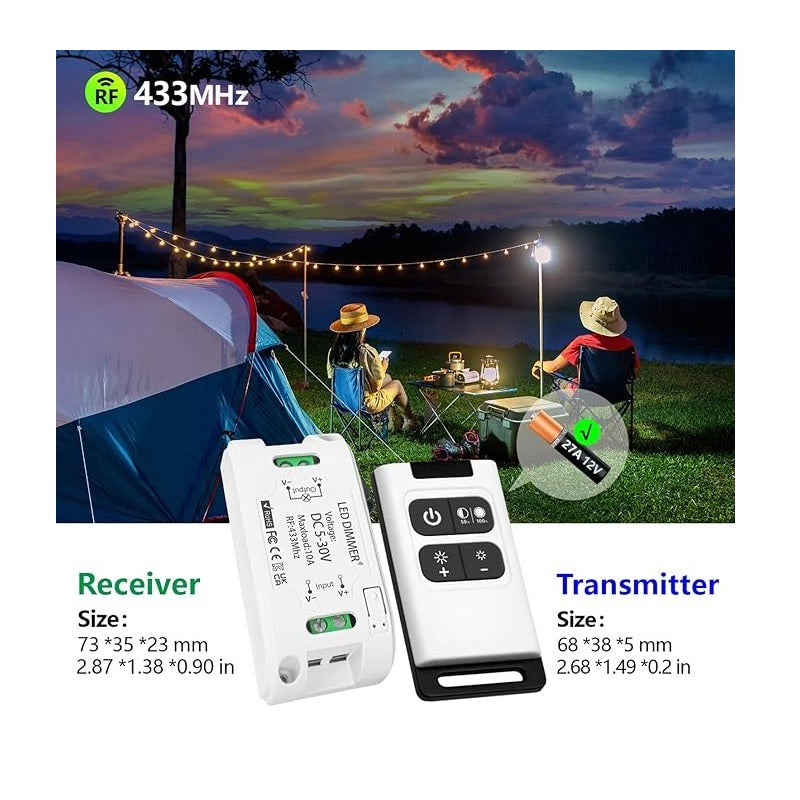

| Receiver Size | 73 x 35 x 23 mm |

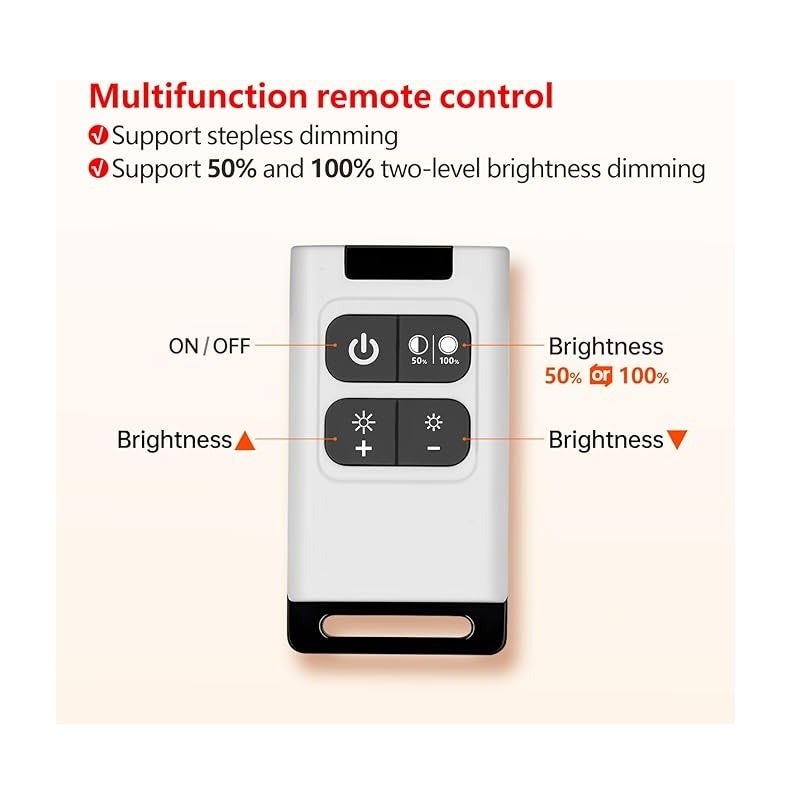

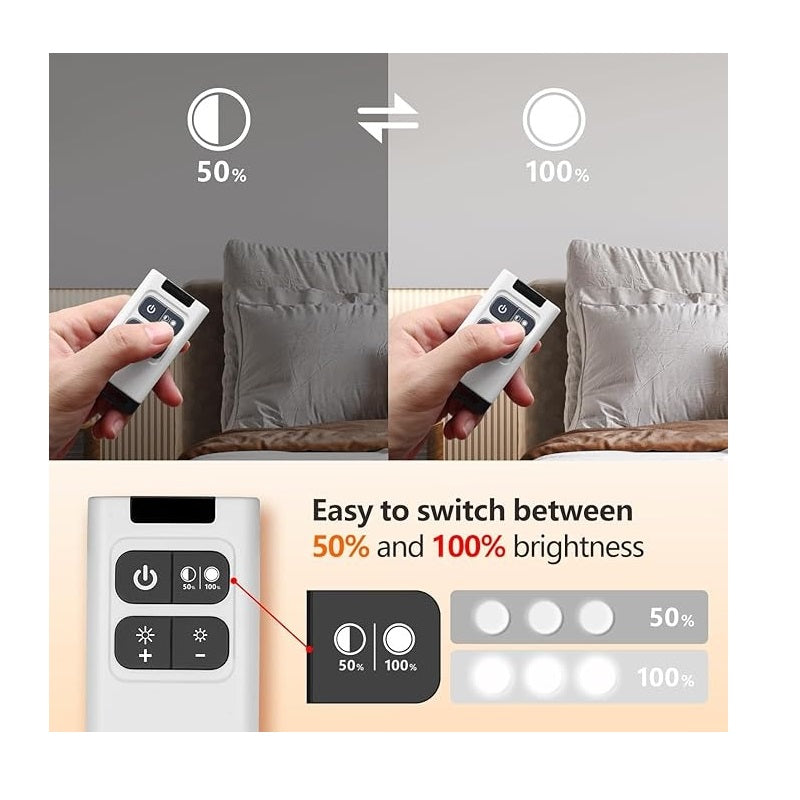

| Functions | On/Off, 50%/100%, Brightness up/down |

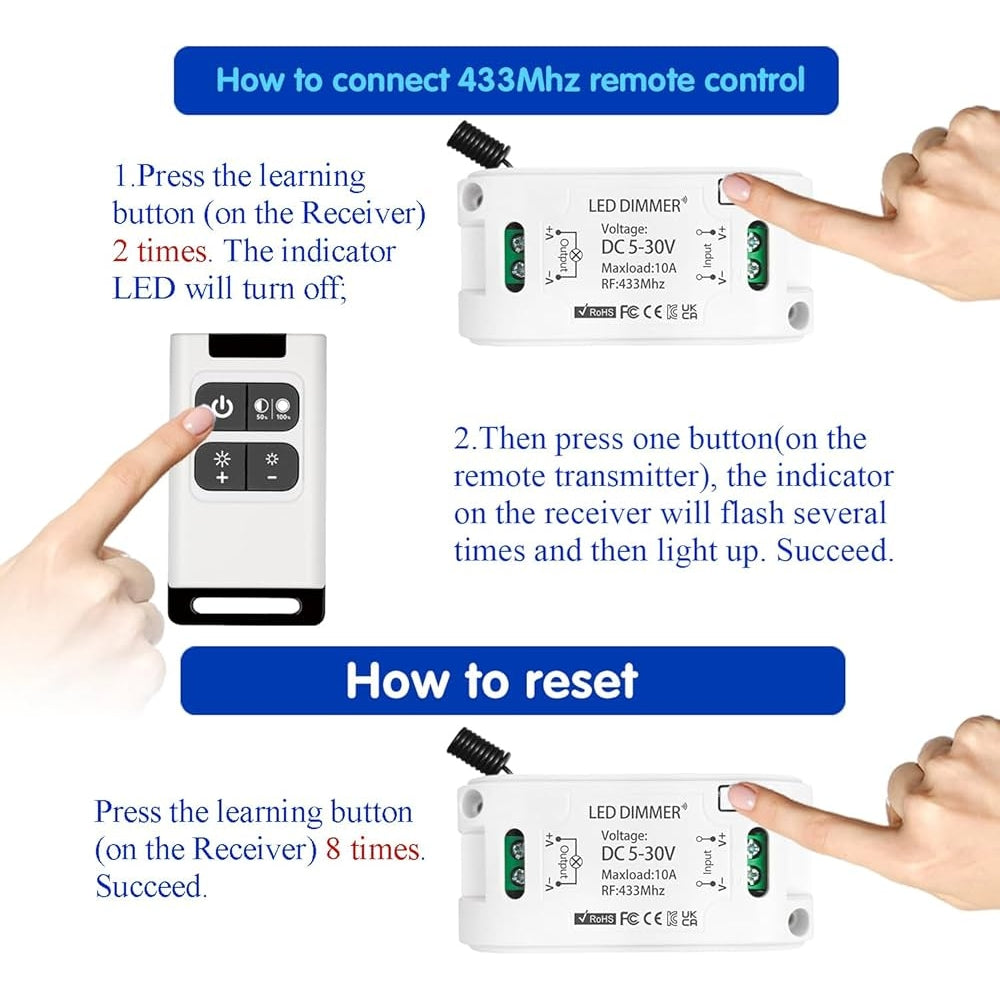

| Reset Method | Press learning button 8 times |
| Remote Pairing | Press button 2 times, then remote within 3 sec |
