Description
Wireless RF Communication Module Kit for Arduino and DIY Projects

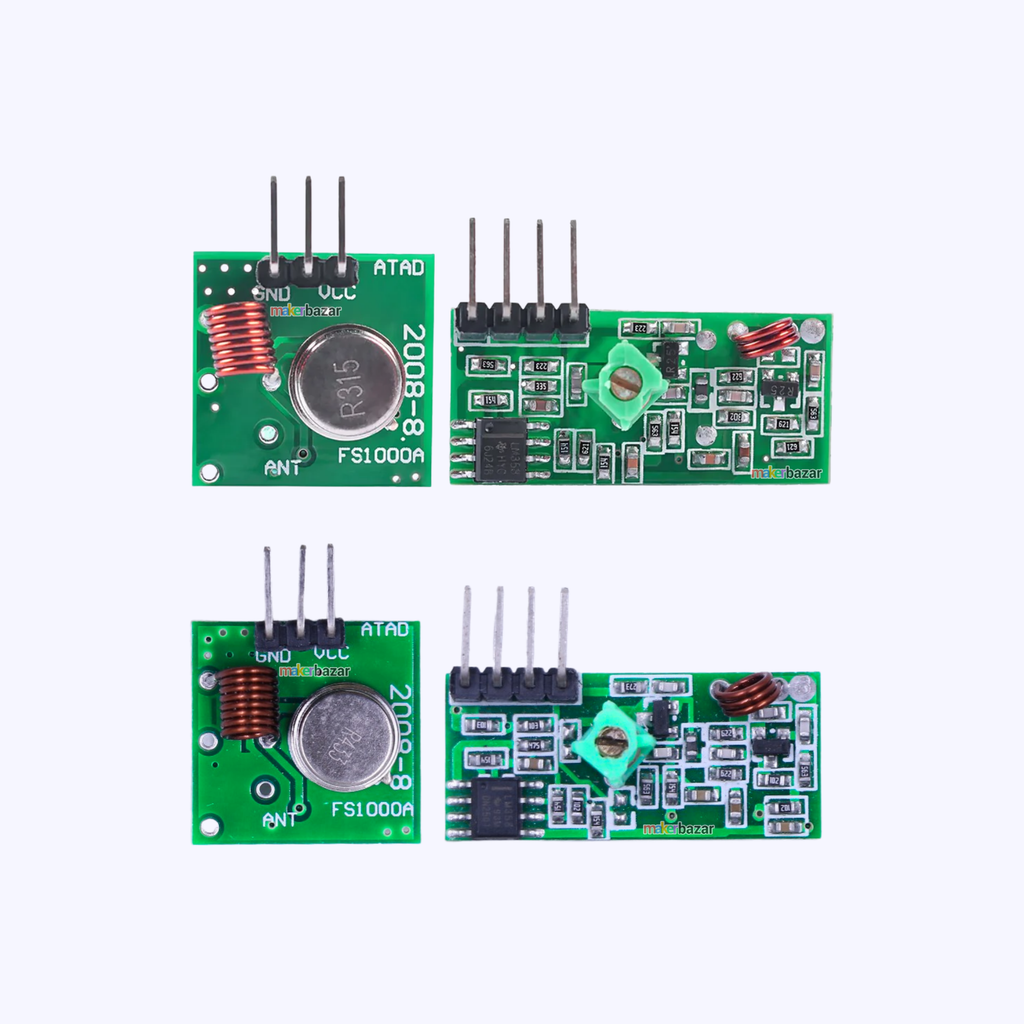

The RF Transmitter Receiver Module Kit is a cost effective and reliable solution for wireless communication projects. Available in both 315MHz and 433MHz variants, this ASK RF module pair enables simple one way data transmission between microcontrollers such as Arduino and Raspberry Pi.
Designed for easy integration, these modules can be used for remote control systems, wireless data transfer, automation projects, and IoT applications. With long transmission range and low power consumption, this kit is ideal for beginners and professionals working on wireless communication systems.
Key Features
- Supports wireless communication using RF technology.
- Available in 315MHz and 433MHz frequency options.
- Compatible with Arduino Raspberry Pi and microcontrollers.
- Long range transmission up to 100 to 200 meters.
- Low power consumption design.
- Compact and breadboard friendly modules.
- Easy to interface with simple pin configuration.
- Cost effective solution for wireless projects.
Technical Specifications

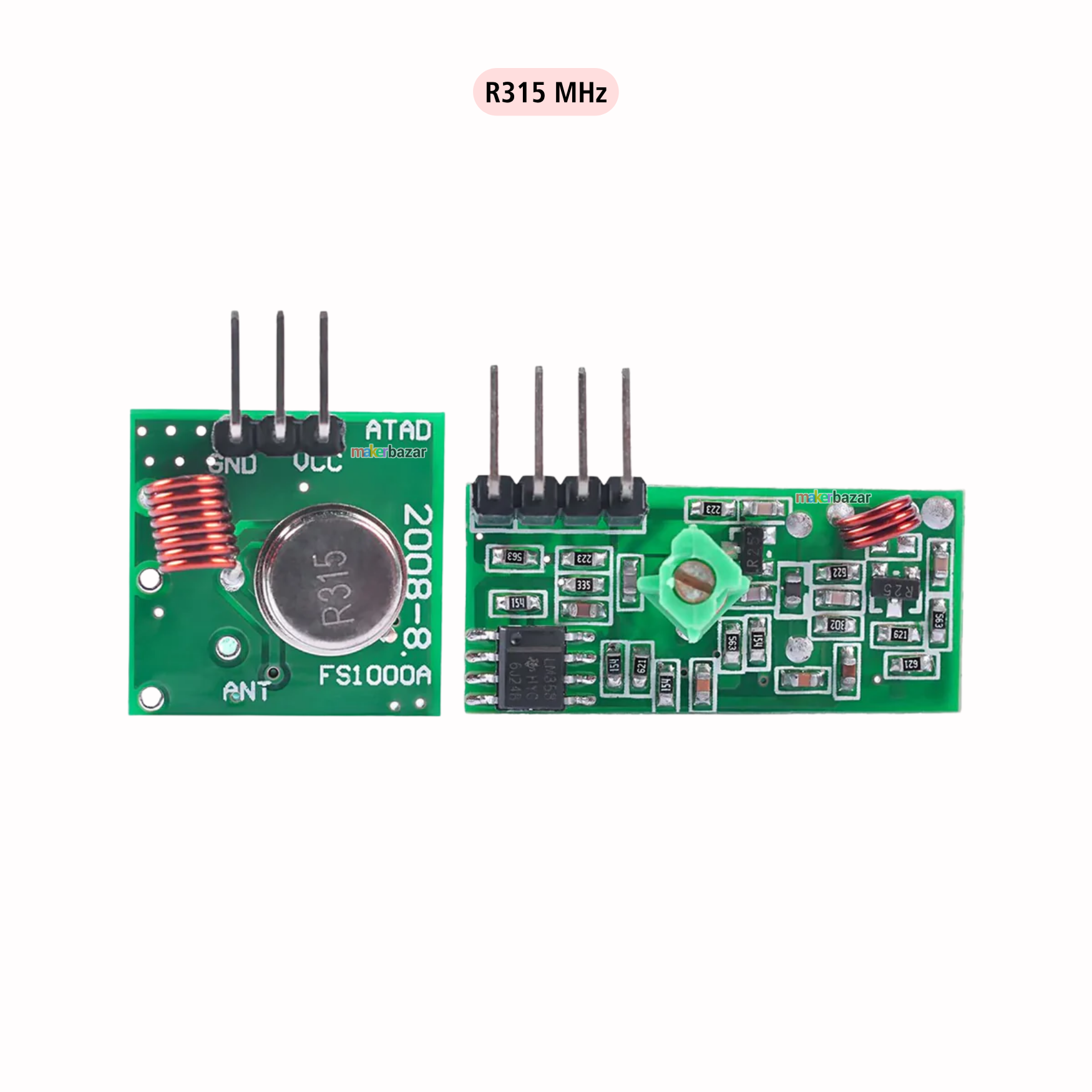

315MHz RF Module
| Specification | Details |
|---|---|
| Frequency | 315 MHz |
| Receiver Model | XY-MK-5V |
| Receiver Voltage | DC 5V |
| Receiver Current | 4mA |
| Sensitivity | -105 dB |
| Transmitter Voltage | 3.5V to 12V |
| Transmission Power | 10mW |
| Data Rate | 4KB per second |
| Range | 20 to 200 meters |
| Modulation | ASK |

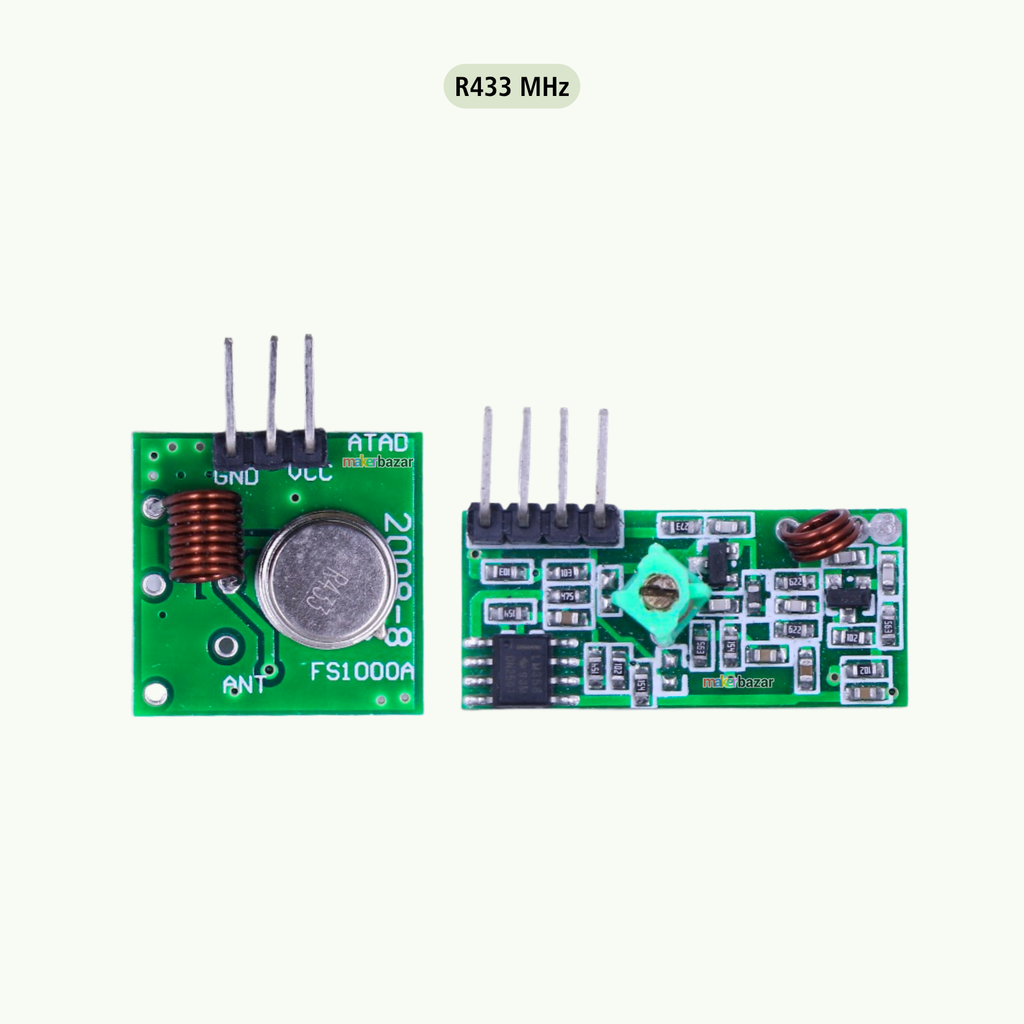

433MHz RF Module
| Specification | Details |
|---|---|
| Frequency | 433.92 MHz |
| Receiver Voltage | 5V |
| Receiver Current | 3.5mA |
| Sensitivity | -105 dBm |
| Transmitter Voltage | 3V to 6V |
| Output Power | 4 to 12 dBm |
| Range | Up to 100 meters |
| Data Rate | 1kbps to 10kbps |
| Modulation | ASK |
Applications
- Wireless remote control systems.
- Home automation projects.
- Wireless data transmission.
- Burglar alarm systems.
- IoT and smart devices.
- Wireless sensor networks.
- Automation control systems.
- DIY electronics projects.
Precautions
- Ensure correct voltage supply before connecting.
- Use proper antenna for better range performance.
- Avoid using near strong electromagnetic interference.
- These modules support one way communication only.
- Not suitable for direct UART communication due to noise.
- Handle modules carefully to avoid static damage.
