Description

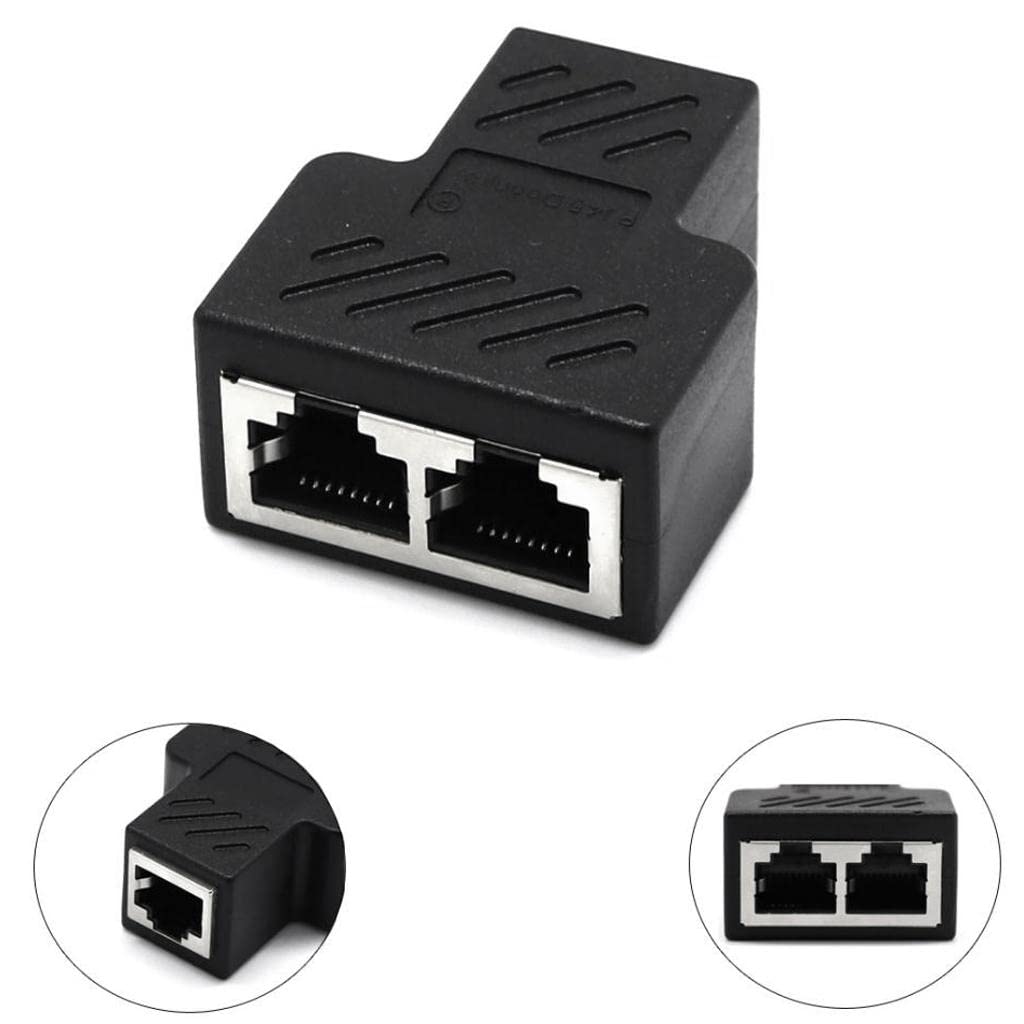

RJ45 1 Male to 2 Female LAN Network Cable Splitter Adapter
The RJ45 Ethernet Splitter (1 to 2) lets you run two network connections over a single LAN cable. It has one RJ45 male plug and two RJ45 female ports. This saves you from laying a second cable between two points.
Features
- 1 x RJ45 male to 2 x RJ45 female (8P8C)
- Two 10/100 Mbps Ethernet lines over one Cat5 / Cat5e / Cat6 cable
- Passive design, no power or setup needed
- Compact, plug-and-play

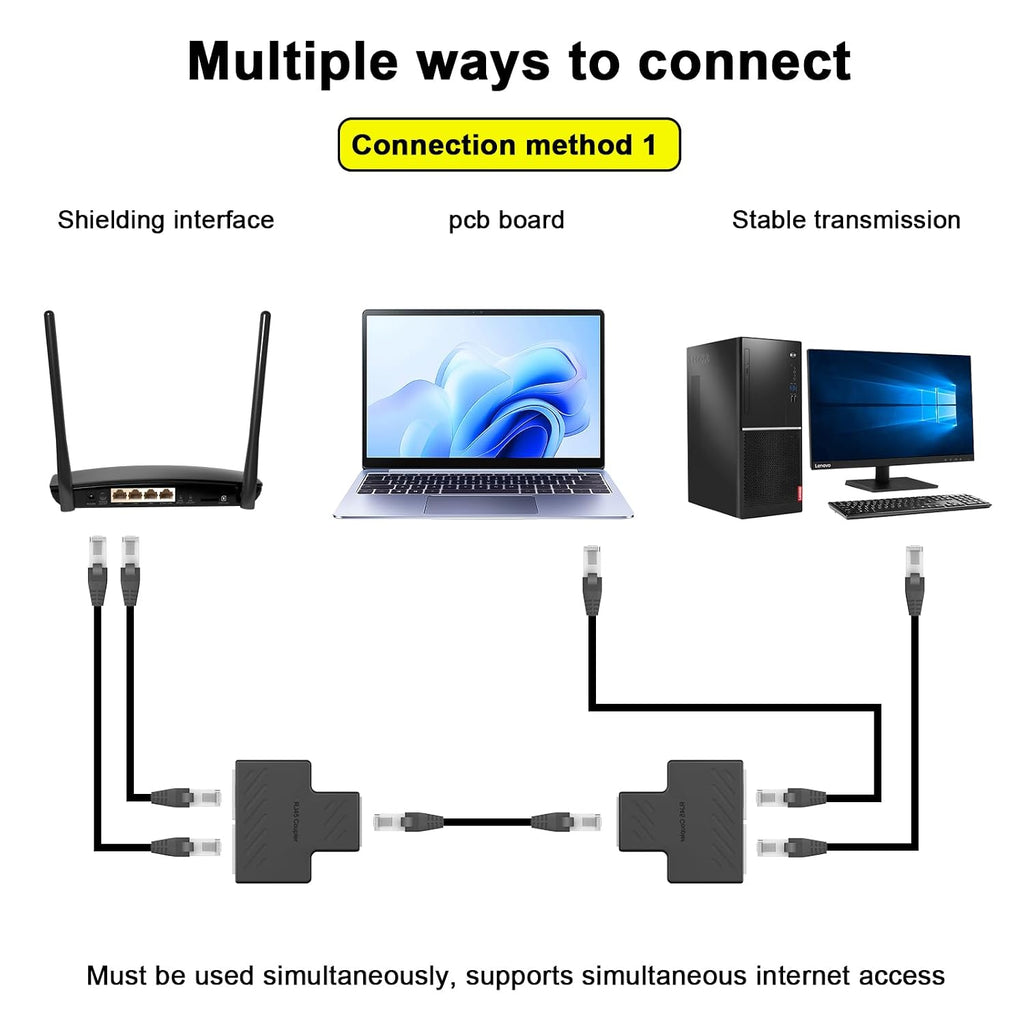

How to Use
- At the router/switch end, plug one splitter into two free LAN ports. Connect its male end to the single LAN cable.
- At the far end, plug the other end of the cable into a second splitter.
- Connect two devices (PC, CCTV/NVR, IP phone etc.) to the two ports of the second splitter.
Important Note
Use these splitters in a pair, one at each end of the cable. This is a passive wire splitter, not a network switch or hub. With a single splitter, it may not effectively support internet on both systems at the same time. To share one router port among several devices, use an Ethernet switch.
- Each port is limited to 100 Mbps. Gigabit (1000 Mbps) speed is not supported.
- PoE is not supported.
Package Includes
- 1 x RJ45 1 to 2 Ethernet Splitter Connector
