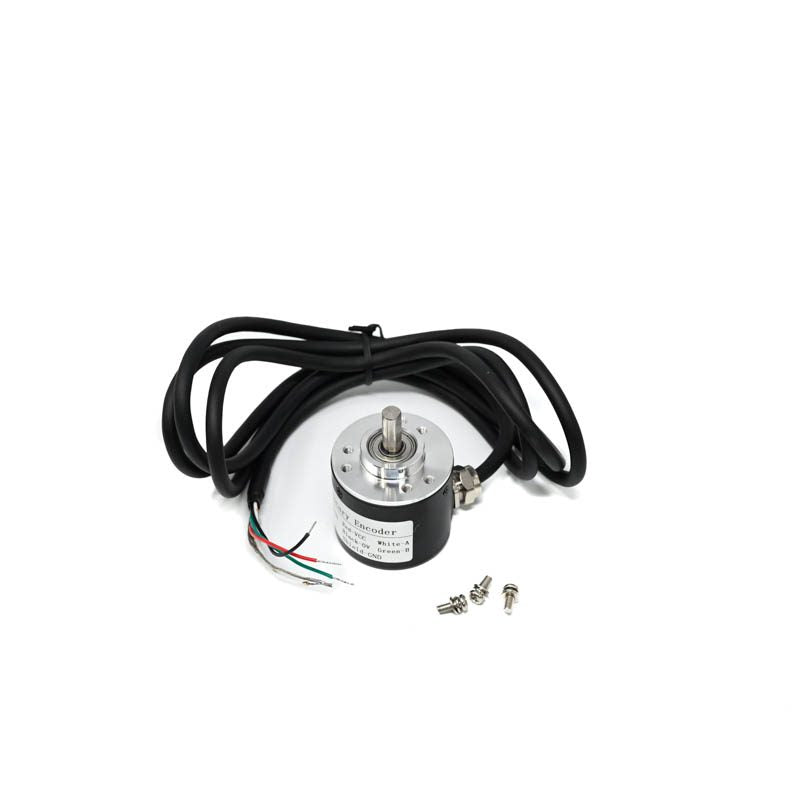

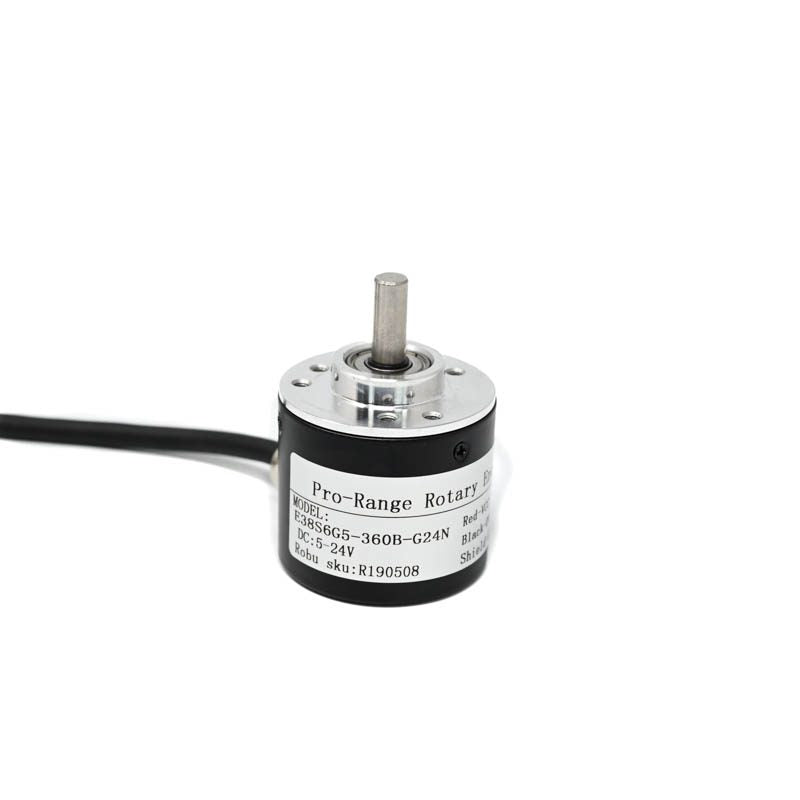

Rotary Incremental Encoder
The Rotary Incremental Encoder is a high-precision position and motion sensor that converts rotational movement into digital signals. Utilizing a photo-electric sensing method, this encoder provides accurate incremental pulses for speed, direction, and position feedback in automation, robotics, and CNC applications.
Key Features:
✅ Photo-Electric Sensing Technology – Ensures high-resolution output with reliable performance.
✅ Incremental Output Signals (A/B Phase) – Provides precise quadrature signals for motion tracking.
✅ Durable Shaft & Housing – Built with a robust metal or high-grade plastic enclosure for long-term use.
✅ Wide Voltage Range – Typically operates between 5V to 24V DC for versatility.
✅ High Pulse Per Revolution (PPR) Options – Available in 100, 200, 360, 600, 1000, 2000, 2500 PPR (varies by model).
✅ Compact & Lightweight Design – Suitable for integration into compact automation systems.
Technical Specifications:
-
Sensing Type: Photo-Electric Optical
-
Shaft Diameter: 6mm / 8mm / 10mm (Varies by model)
-
Pulses Per Revolution (PPR): 100 / 200 / 360 / 600 / 1000 / 2000 / 2500 PPR
-
Operating Voltage: 5V / 12V / 24V DC
-
Output Signal: Quadrature A/B Phase, Open Collector or Push-Pull
-
Response Frequency: Up to 100 kHz
-
Rotational Speed: Up to 6000 RPM
-
Cable Length: Typically 1m (customizable)
-
Mounting Type: Flange or Servo Mount
-
Output Format: NPN / PNP Open Collector, Line Driver (Differential Output)
-
Operating Temperature: -20°C to +85°C
Applications:
🔹 CNC Machines & Robotics – Position and speed control in automated systems.
🔹 3D Printers & Stepper Motor Feedback – Improves motion precision.
🔹 Industrial Automation – Conveyor belt motion tracking.
🔹 Servo & DC Motor Control – Enhances closed-loop feedback.
🔹 Automated Measurement Systems – Detects angular movement in metrology devices.
Package Includes:
✔ 1 x Rotary Incremental Encoder
✔ Mounting Accessories (Brackets, Screws – Depending on Model)
✔ Connection Cable (Pre-Wired or Terminal Type)
