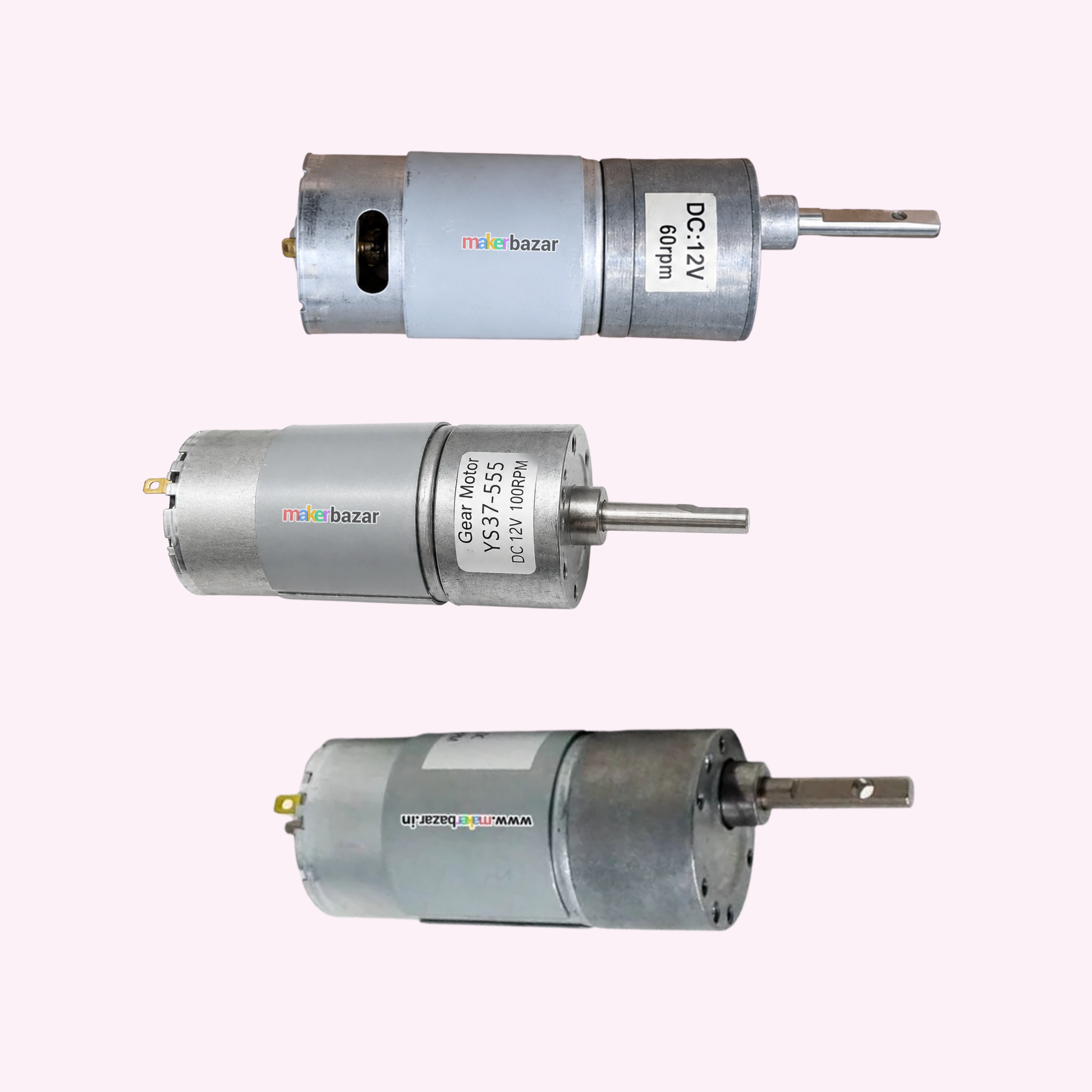

Three small cylindrical brushed DC motors shown horizontally on a pale pink background, with visible labels including 'm30 bazar' and 'DC12V'.

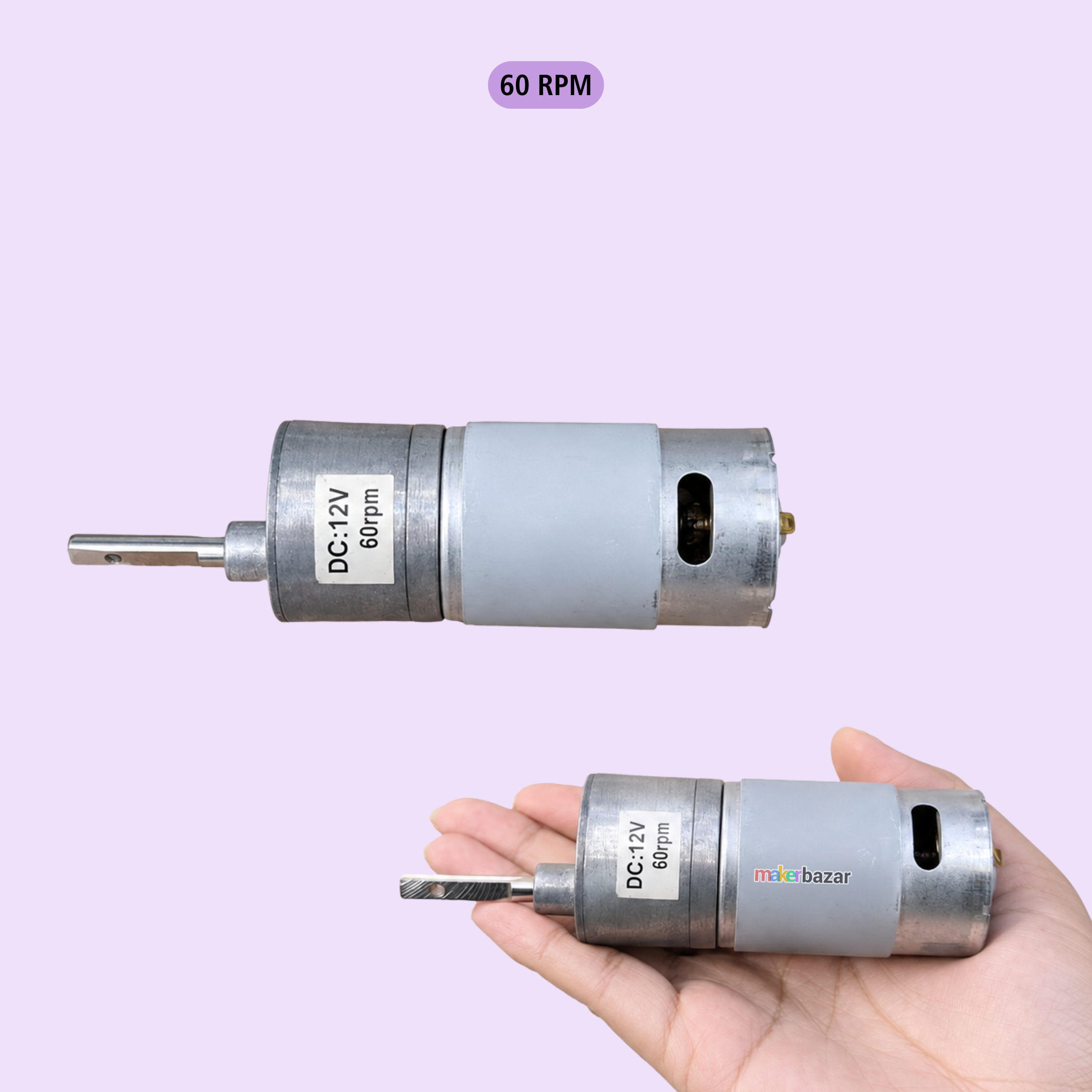

A small DC 12V 60RPM motor shown twice on a pale lavender background, with one floating and one being held in a hand to show scale. A purple label at the top reads '60 RPM'.
A small DC motor shown on a light lavender background with dimension callouts indicating approximately 40 mm total length, 17 mm width, and a shaft extending left. The image includes the text '60 RPM' and a visible website watermark.

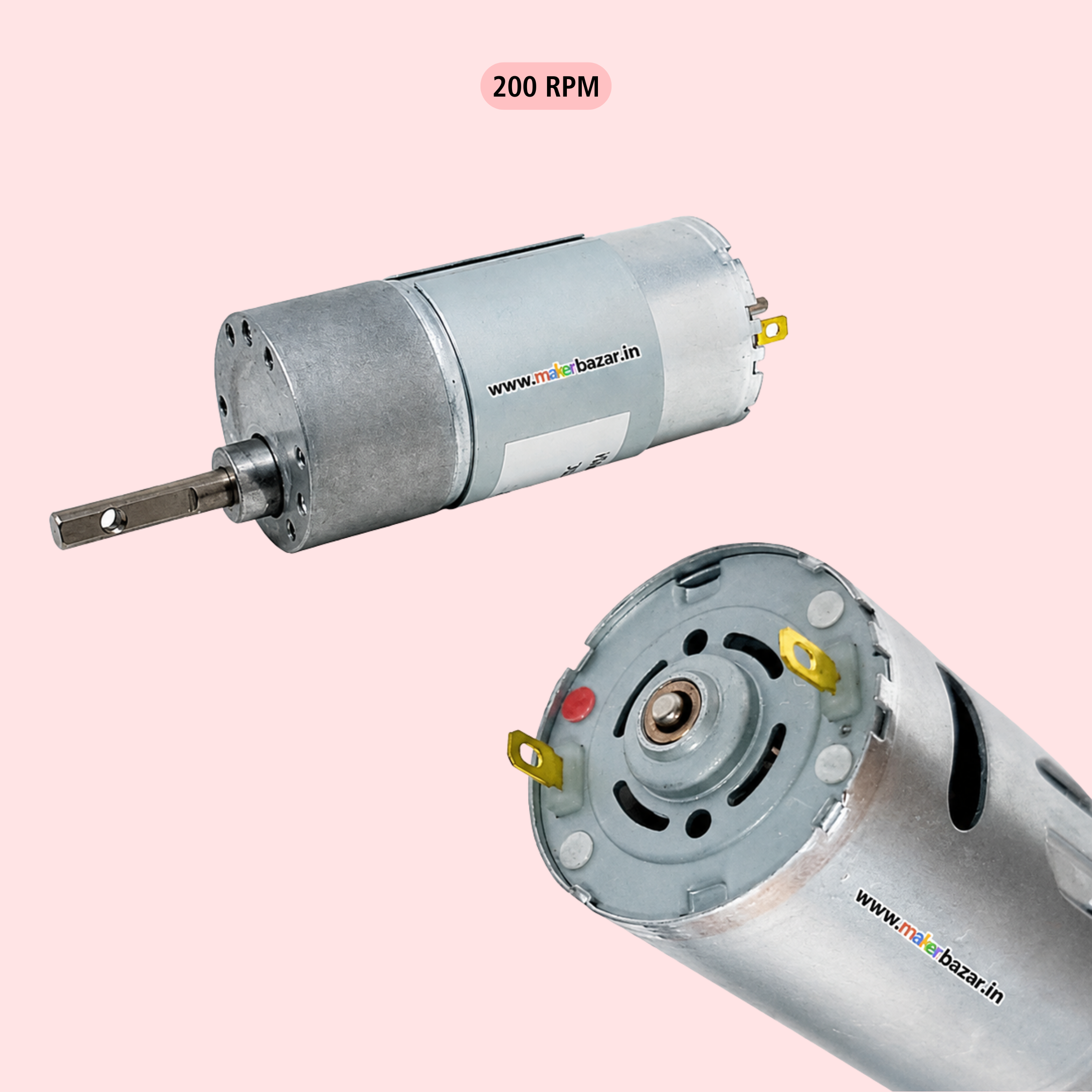

A brushed DC motor shown from two angles on a solid pale pink background, with a small label reading '200 RPM' above it. The motor is metallic silver with small yellow and red terminal accents.

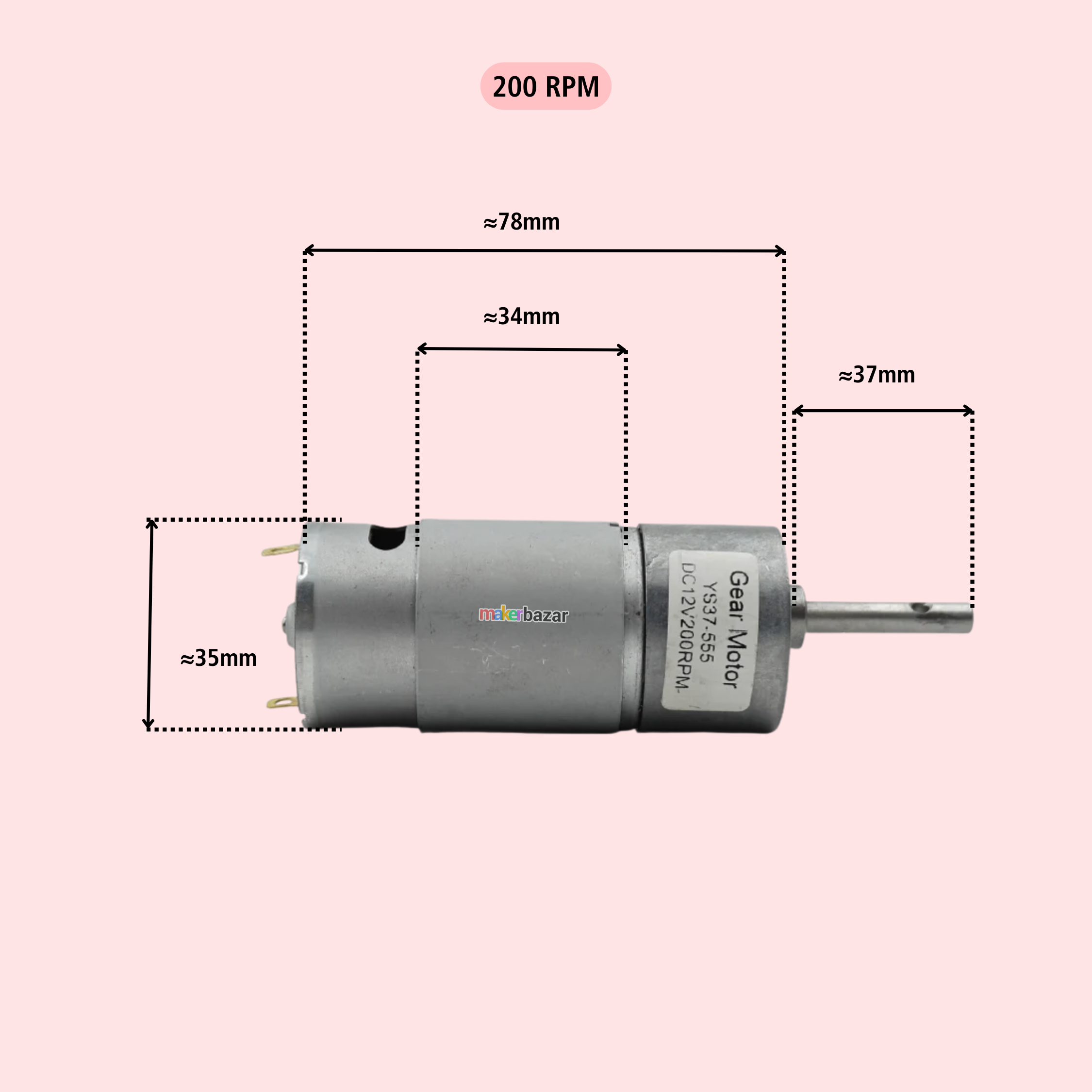

A small cylindrical gear motor shown on a light pink background with overlaid dimension lines and text indicating measurements around 78 mm, 34 mm, 35 mm, and 37 mm, plus a '200 RPM' label above.

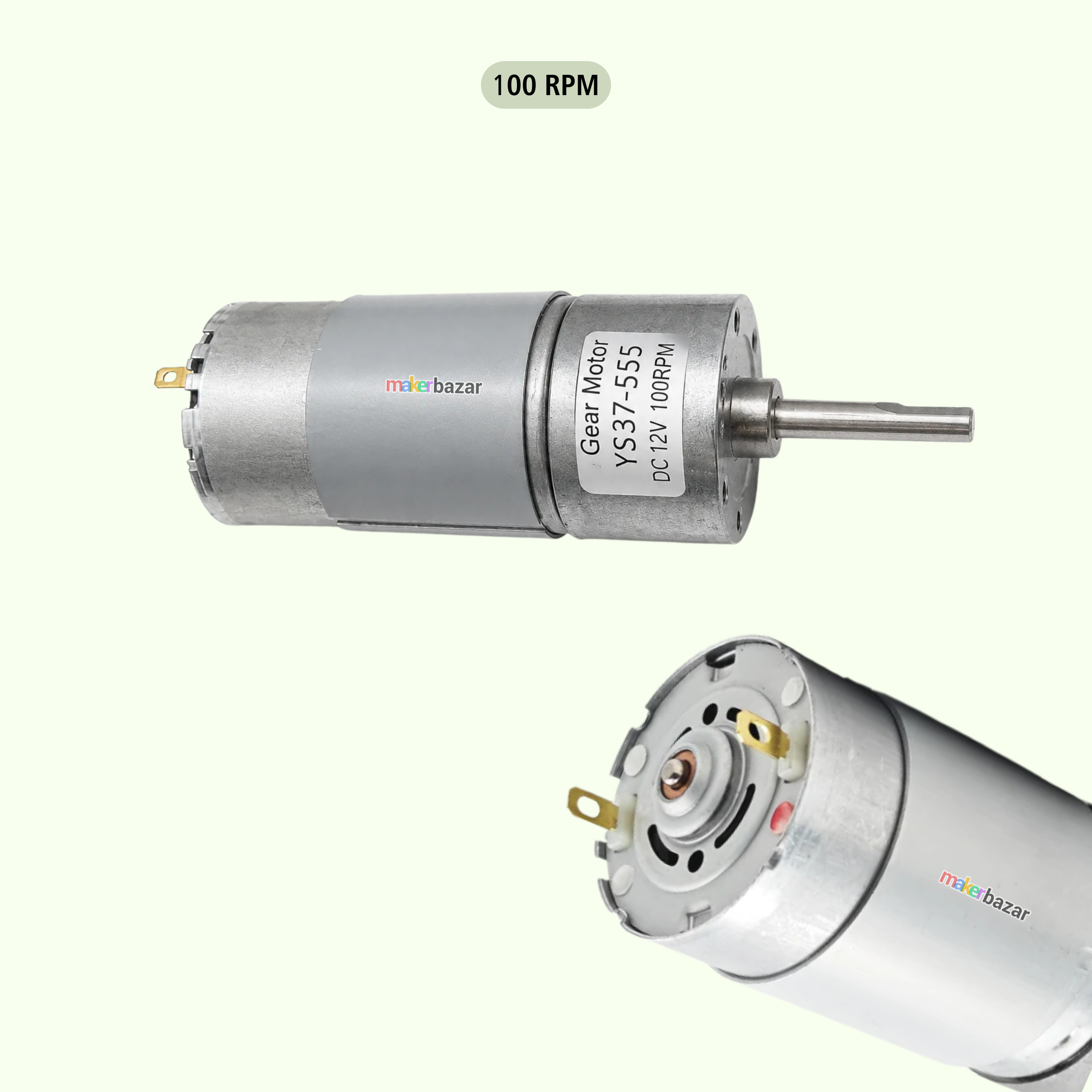

Two views of a small brushed DC motor on a pale green background, with a label reading 100 RPM and a product label showing the brand minibazar and model YS37-50C.

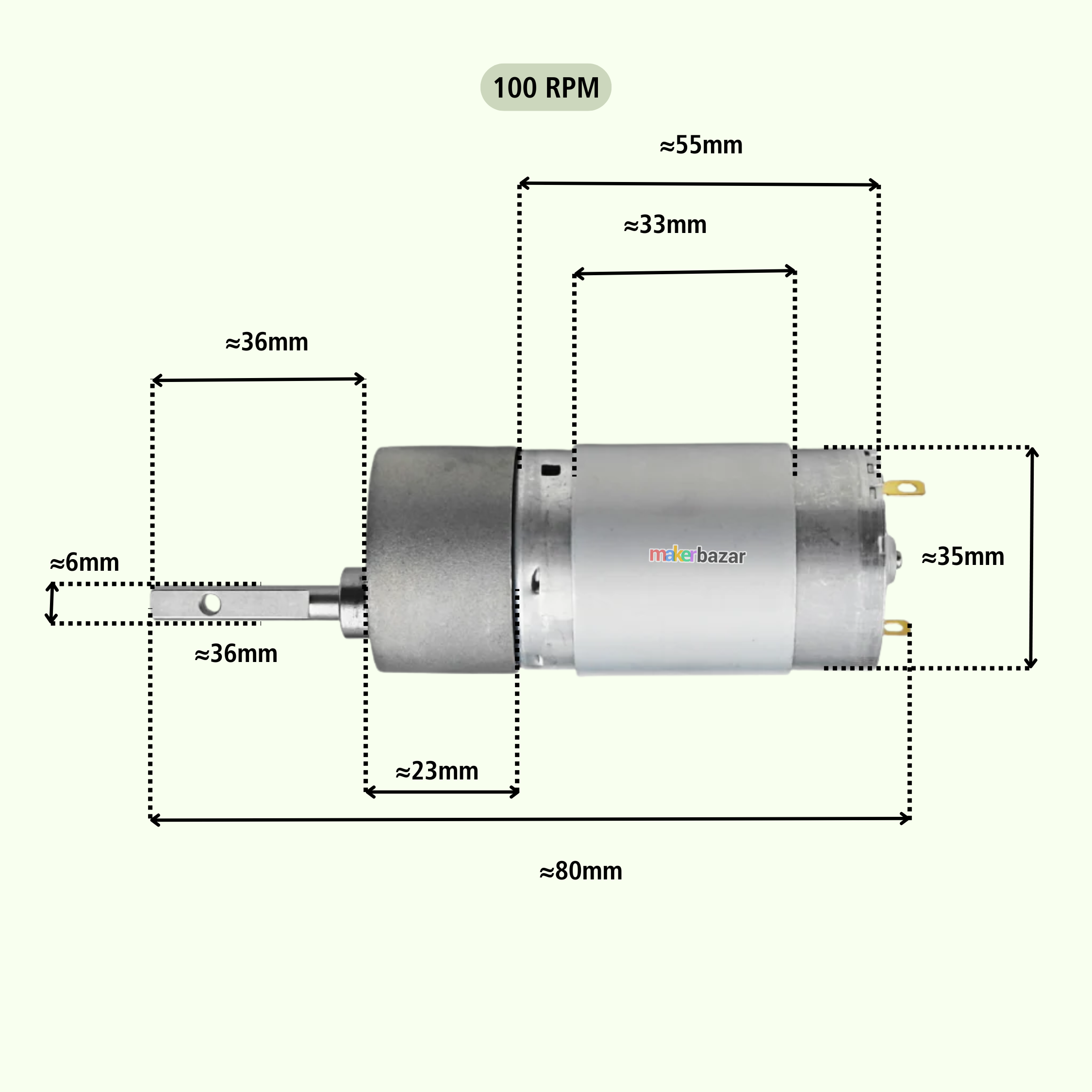

A technical dimension diagram of a cylindrical electric motor on a pale green background, showing measurements in millimeters for length, diameter, shaft size, and terminal spacing, with a small '100 RPM' label above.
Roll over image to zoom in Click on image to zoom
Three small cylindrical brushed DC motors shown horizontally on a pale pink background, with visible labels including 'm30 bazar' and 'DC12V'.A small DC 12V 60RPM motor shown twice on a pale lavender background, with one floating and one being held in a hand to show scale. A purple label at the top reads '60 RPM'.A small DC motor shown on a light lavender background with dimension callouts indicating approximately 40 mm total length, 17 mm width, and a shaft extending left. The image includes the text '60 RPM' and a visible website watermark.A brushed DC motor shown from two angles on a solid pale pink background, with a small label reading '200 RPM' above it. The motor is metallic silver with small yellow and red terminal accents.A small cylindrical gear motor shown on a light pink background with overlaid dimension lines and text indicating measurements around 78 mm, 34 mm, 35 mm, and 37 mm, plus a '200 RPM' label above.Two views of a small brushed DC motor on a pale green background, with a label reading 100 RPM and a product label showing the brand minibazar and model YS37-50C.A technical dimension diagram of a cylindrical electric motor on a pale green background, showing measurements in millimeters for length, diameter, shaft size, and terminal spacing, with a small '100 RPM' label above.

High Torque 555 DC Electric Gear Motor

SKU: 873615829
Similar-Products:
Voltage: 12V
Frequency: 60 RPM
Price:
₹ 549.00

(₹ 465.25 + 18%GST)

Tax included Shipping calculated at checkout

For Bulk Purchase, Contact us at +91-9717583225 or Sales@ecompass.xyz

Description

RS37-555 High Torque DC Geared Motor for Selfie Booth Machine | Electric Gear Motor

The RS37-555 High Torque DC Geared Motor is a powerful and reliable electric motor designed for applications requiring high torque, smooth operation, and long service life. Built around the popular RS-555 DC motor and integrated with a precision metal gearbox, this motor delivers excellent performance for selfie booth machines, automation equipment, robotics, conveyor systems, vending machines, and DIY projects. Its compact design, durable construction, and stable speed make it an ideal choice for continuous-duty applications where dependable motion control is essential.

Key Features

  • High torque metal geared DC motor.
  • Based on reliable RS-555 brushed DC motor.
  • Designed for selfie booth machine applications.
  • Smooth and stable operation.
  • High-quality precision gearbox.
  • Compact and robust construction.
  • Low noise operation.
  • High efficiency power transmission.
  • Excellent starting torque.
  • Suitable for continuous operation.
  • Easy mounting and installation.
  • Long service life.
  • Suitable for forward and reverse rotation.
  • Ideal for industrial and DIY applications.

Technical Specifications

Parameter Details
Product Type DC Geared Motor
Motor Model RS37-555
Motor Type Brushed DC Motor
Gearbox Type Metal Spur Gearbox
Output Shaft D-Type Shaft (Variant Dependent)
Operating Voltage 12v
Rated Speed Variant Dependent
Rated Torque Variant Dependent
Rotation Direction CW / CCW (By Changing Polarity)
Gear Material Metal
Housing Material Metal
Bearing Type Ball Bearing / Sleeve Bearing (Variant Dependent)
Mounting Type Screw Mount
Duty Cycle Continuous Duty
Noise Level Low Noise Operation
Cooling Method Natural Air Cooling

Note: Voltage, RPM, gear ratio, shaft dimensions, and torque depend on the selected product variant.

Applications

  • Selfie Booth Machines.
  • 360° Photo Booth Machines.
  • Automatic Rotating Platforms.
  • Robotics Projects.
  • Industrial Automation.
  • Conveyor Systems.
  • Smart Vending Machines.
  • DIY Motorized Projects.
  • Automatic Doors.
  • Curtain Automation.
  • Smart Home Devices.
  • Packaging Machines.
  • Textile Machines.
  • Mini CNC Machines.
  • Camera Slider Systems.
  • Camera Pan & Tilt Systems.
  • Agricultural Automation
  • Laboratory Equipment
  • Medical Equipment
  • Educational Robotics
  • Mechanical Prototypes
  • Motion Control Systems
  • Battery Powered Machines
  • Maker Projects
  • Engineering Projects

Precautions

  • Operate only within the specified voltage range.
  • Do not overload the motor beyond its rated torque.
  • Ensure proper mounting before operation.
  • Avoid prolonged shaft blockage while powered.
  • Keep away from water and corrosive environments.
  • Ensure proper ventilation during continuous use.
  • Use an appropriate motor driver or controller.
  • Reverse rotation only by changing motor polarity.
  • Lubricate mechanical components if required after prolonged use.
  • Keep away from excessive dust and debris.
