Description

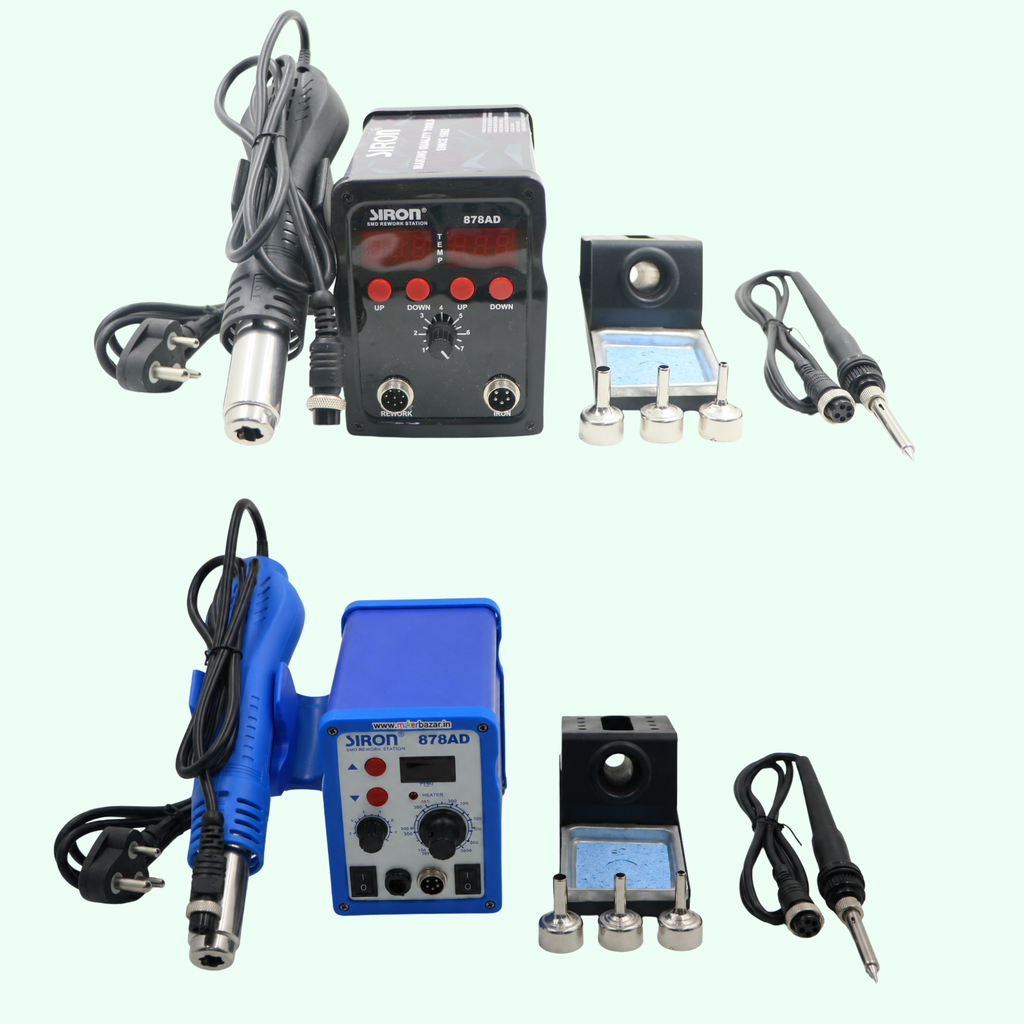

Siron 878AD 2-in-1 SMD Hot Air Rework & Soldering Station
The Siron 878AD 2-in-1 Rework Station combines a hot air gun and soldering iron station in one compact unit.
It is designed for PCB repair, SMD rework, soldering, desoldering, component mounting, and hardware debugging applications.
The hot air gun uses a brushless blower to provide smooth and adjustable airflow for different rework applications.
It is suitable for mounting and removing SMD components such as SOIC, QFP, PLCC, BGA, CHIP, and other surface-mount components.
The soldering station is suitable for soldering and desoldering through-hole components and performing general electronics repair work.
The adjustable temperature controls allow users to select the required temperature according to the component and application.
The LED display makes it easy to check and adjust the operating temperature during use.
Its compact 2-in-1 design makes it suitable for electronics technicians, mobile repair shops, PCB repair workstations, laboratories, and DIY electronics projects.
Key Features
- 2-in-1 hot air and soldering station.
- Hot air gun for SMD rework.
- Soldering iron for PCB soldering.
- Adjustable temperature control.
- Adjustable hot air flow.
- LED temperature display.
- Brushless blower.
- Smooth air delivery.
- Suitable for SMD components.
- Suitable for through-hole components.
- Easy-to-use control panel.
- Compact workstation design.
- Suitable for soldering and desoldering.
- Automatic hot air standby function.
Technical Specifications

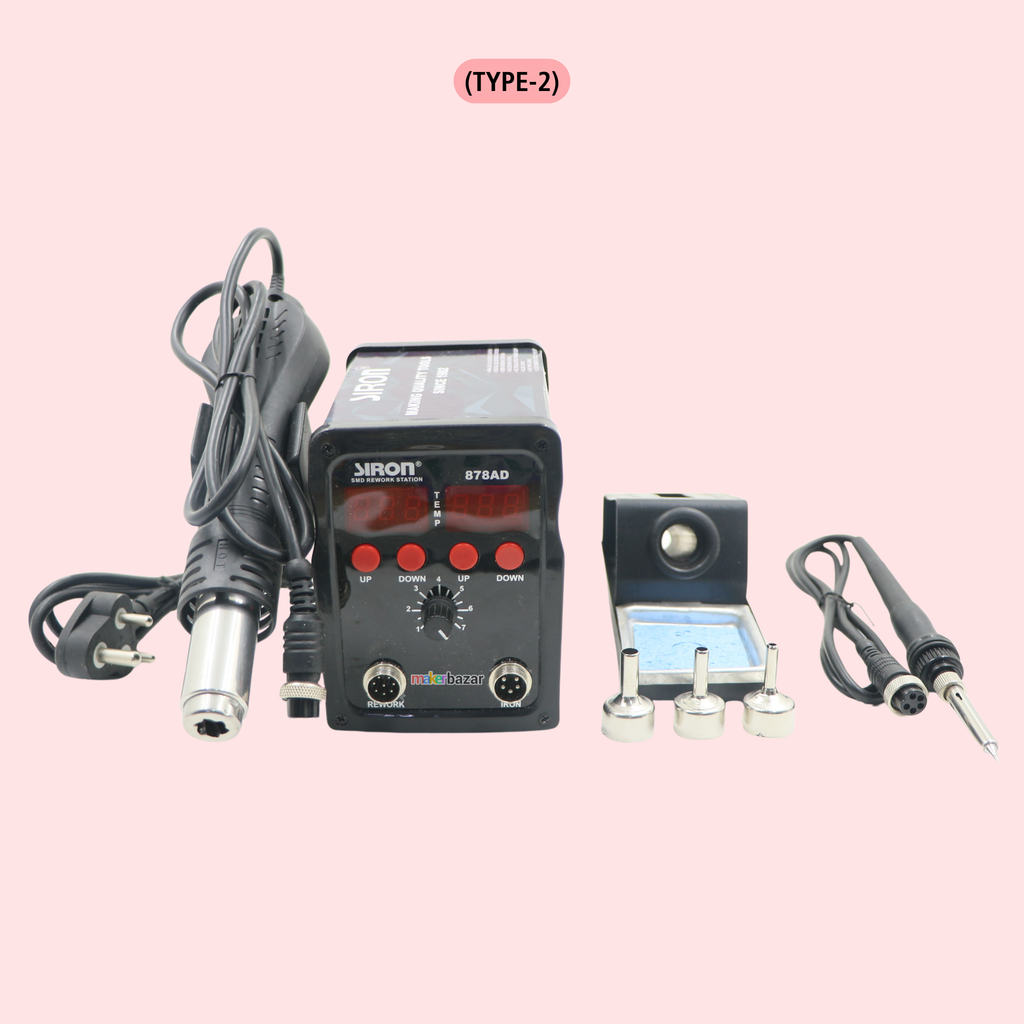

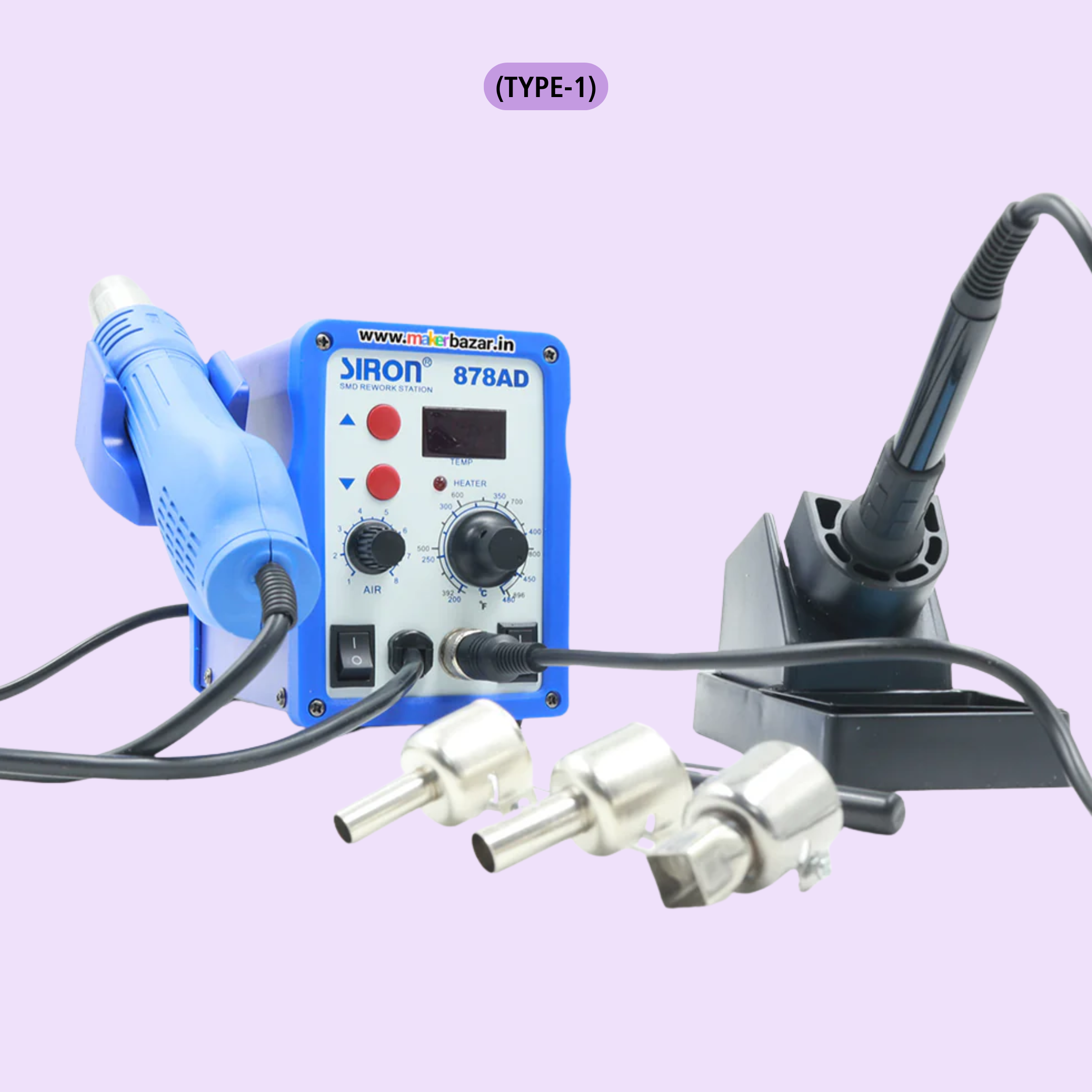

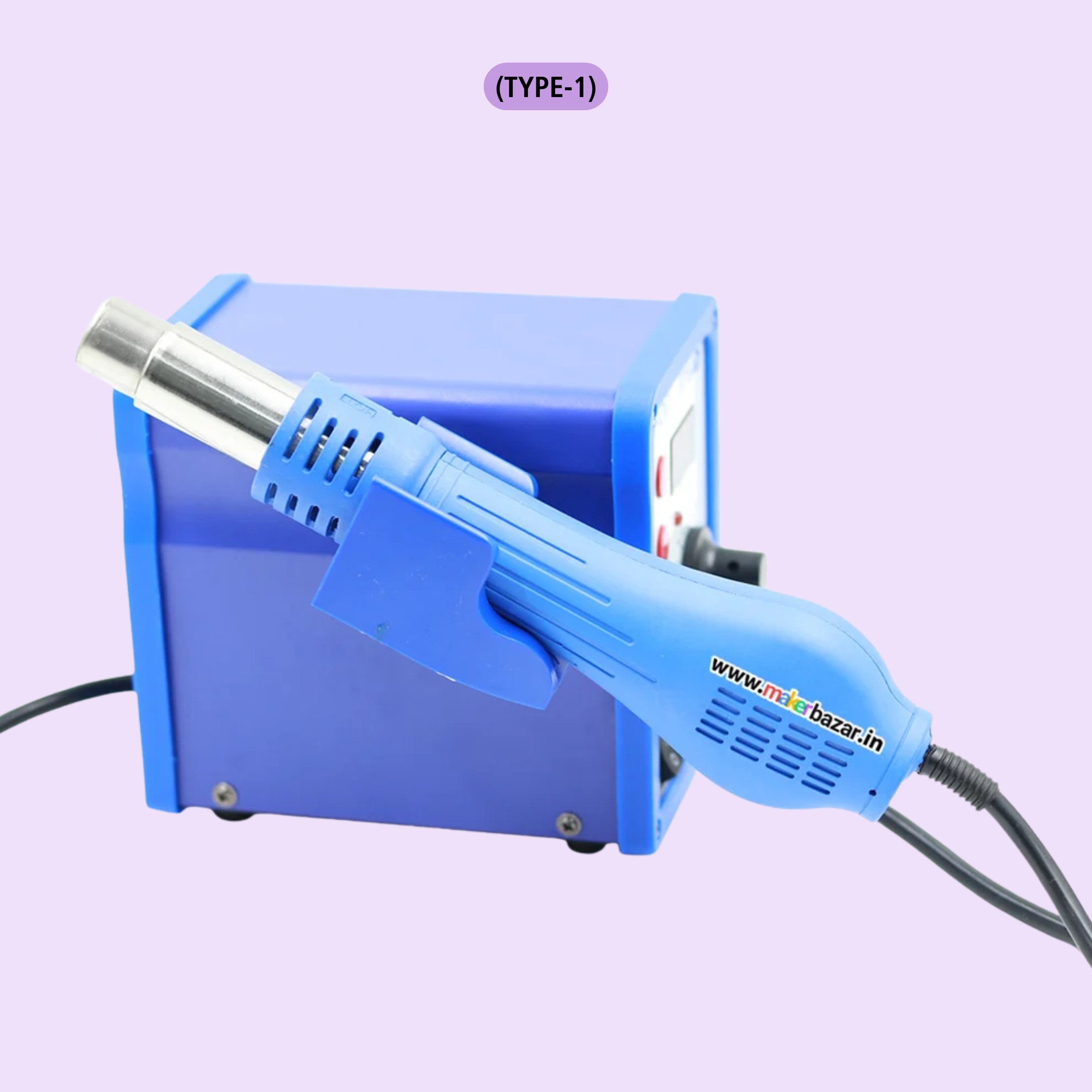

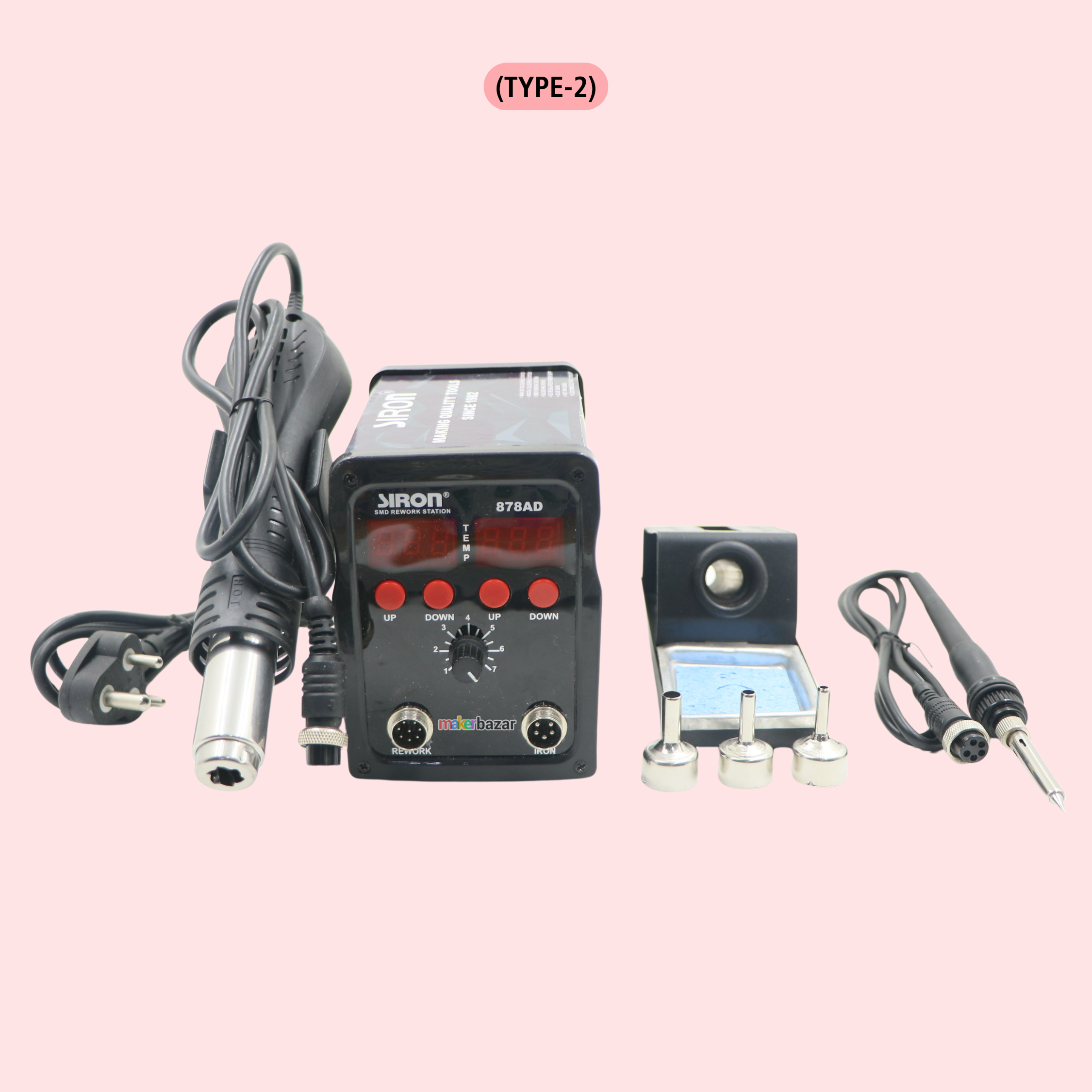

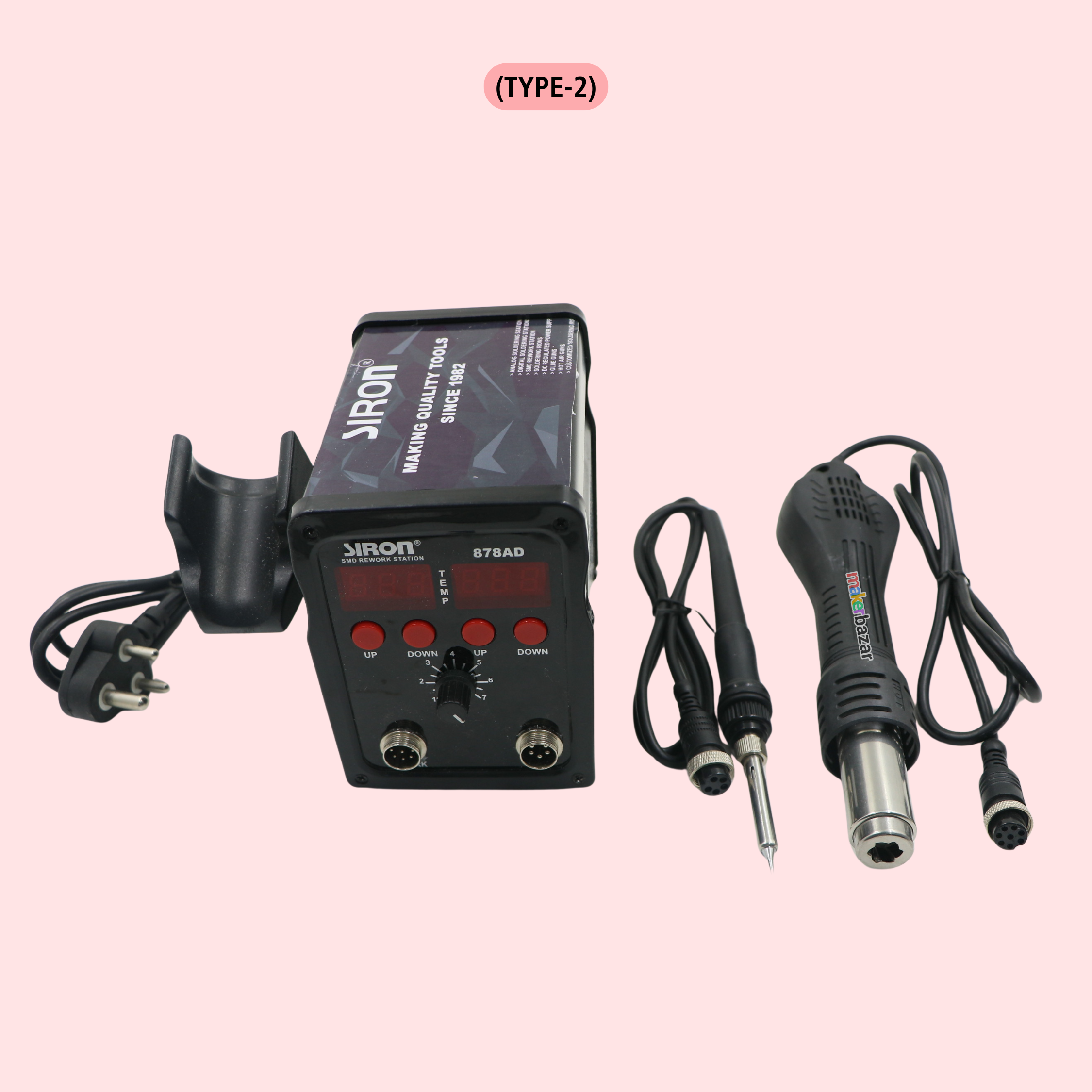

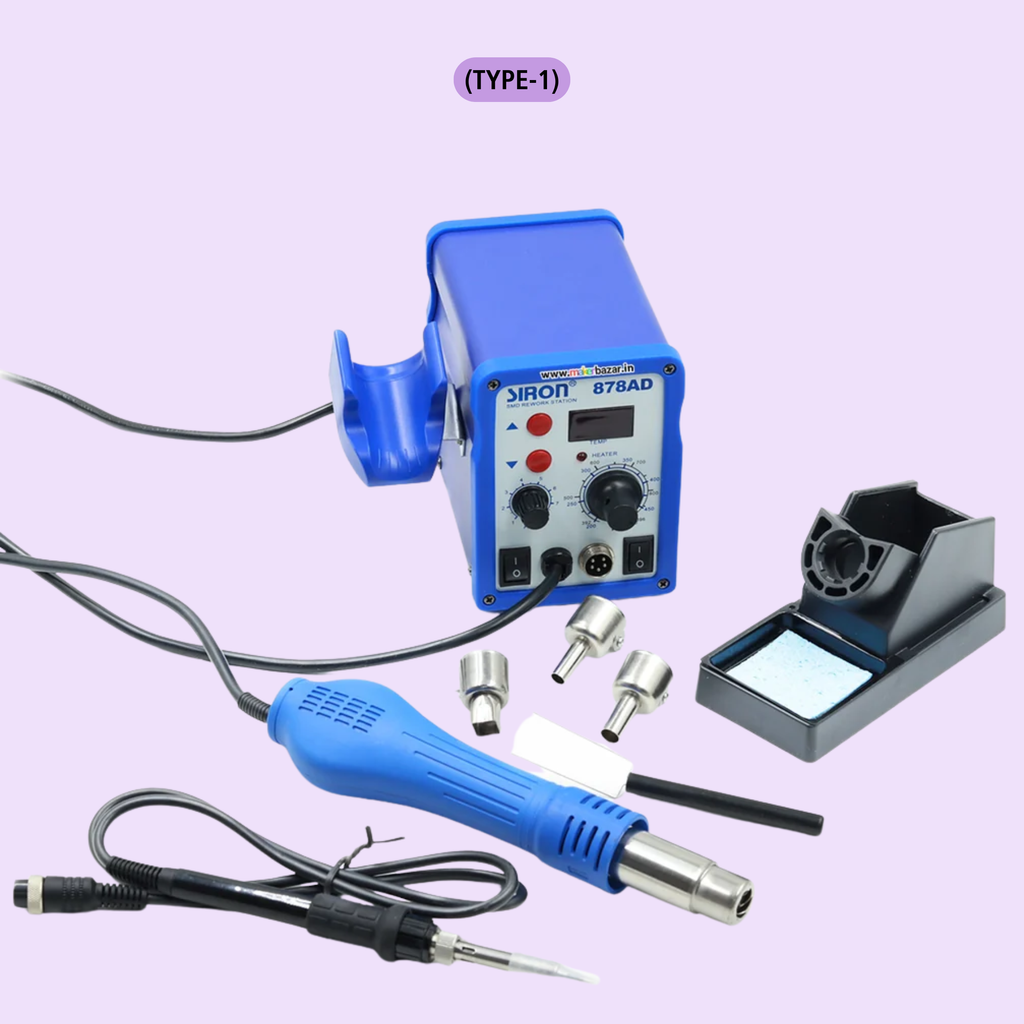

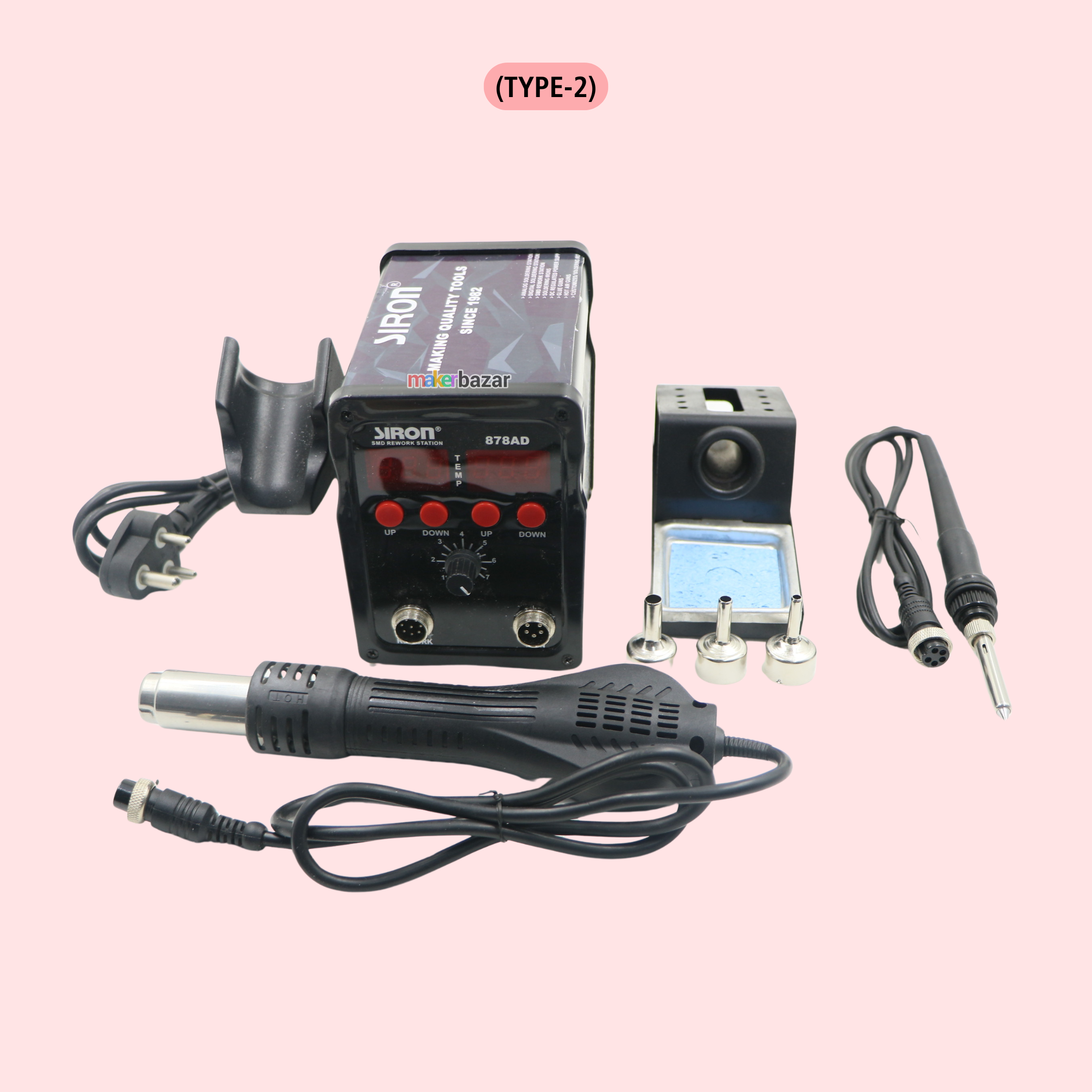

Type 1 vs Type 2 Comparison
| Specification | Type 1 | Type 2 |
|---|---|---|
| Function | SMD Rework / Hot Air | Soldering / Desoldering |
| Temperature Range | 100°C – 480°C | 200°C – 480°C |
| Display | LED / Nixie Tube | LED |
| Air Delivery | Brushless Blower | Not Applicable |
| Maximum Air Volume | 120 L/min | Not Applicable |
| Airflow | Adjustable | Not Applicable |
| Temperature | Adjustable | Adjustable |
| Main Use | SMD Mounting & Removal | Component Soldering |
| Suitable Components | SMD, SOIC, QFP, PLCC, BGA, CHIP | Through-Hole & General Components |
| Soldering Resistance | Not Applicable | <2Ω |
Main Unit Specifications
| Specification | Details |
|---|---|
| Brand | Siron |
| Model | 878AD |
| Product Type | 2-in-1 Rework & Soldering Station |
| Main Unit Dimensions | L148 × W99 × H140 mm (±5 mm) |
| Operating Ambient Temperature | 0°C – 40°C |
| Power Consumption | 700W Maximum |
| Operating Voltage | 230V AC |
| Hot Air Temperature Range | 100°C – 480°C |
| Soldering Temperature Range | 200°C – 480°C |
| Maximum Air Volume | 120 L/min |
| Hot Air System | Brushless Blower |
| Display | LED |
Applications
- PCB repairing.
- SMD soldering.
- SMD desoldering.
- Mobile repairing.
- Electronics repairing.
- IC removal.
- Component mounting.
- Through-hole soldering.
- Hardware debugging.
- Heat shrinking.
- Pre-heating.
- Glue heating.
- Drying applications.
- DIY electronics projects.
Precautions
- Do not touch the hot air nozzle or soldering tip during operation.
- Keep the hot air nozzle away from flammable materials.
- Do not direct hot air toward people or animals.
- Select the correct temperature according to the component being repaired.
- Keep the soldering tip clean for better soldering performance.
- Do not modify or disassemble the rework station without proper technical knowledge.
- Turn off the station when it is not being used.
- Allow the hot air gun and soldering iron to cool properly before storage.
- Always use the station in a properly ventilated workspace.
- Do not operate the station with wet hands.
- Keep the product away from children and untrained users.
