Description

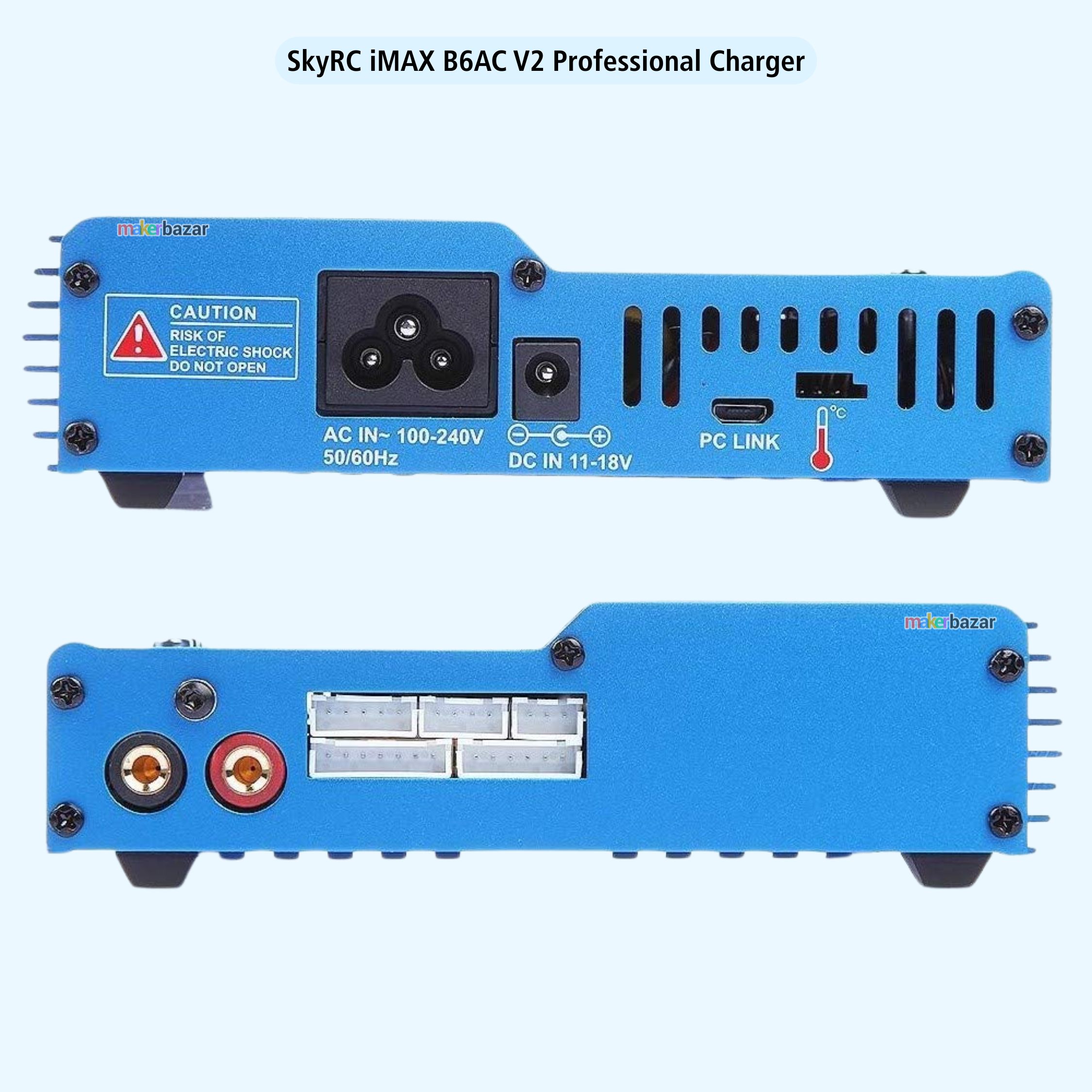

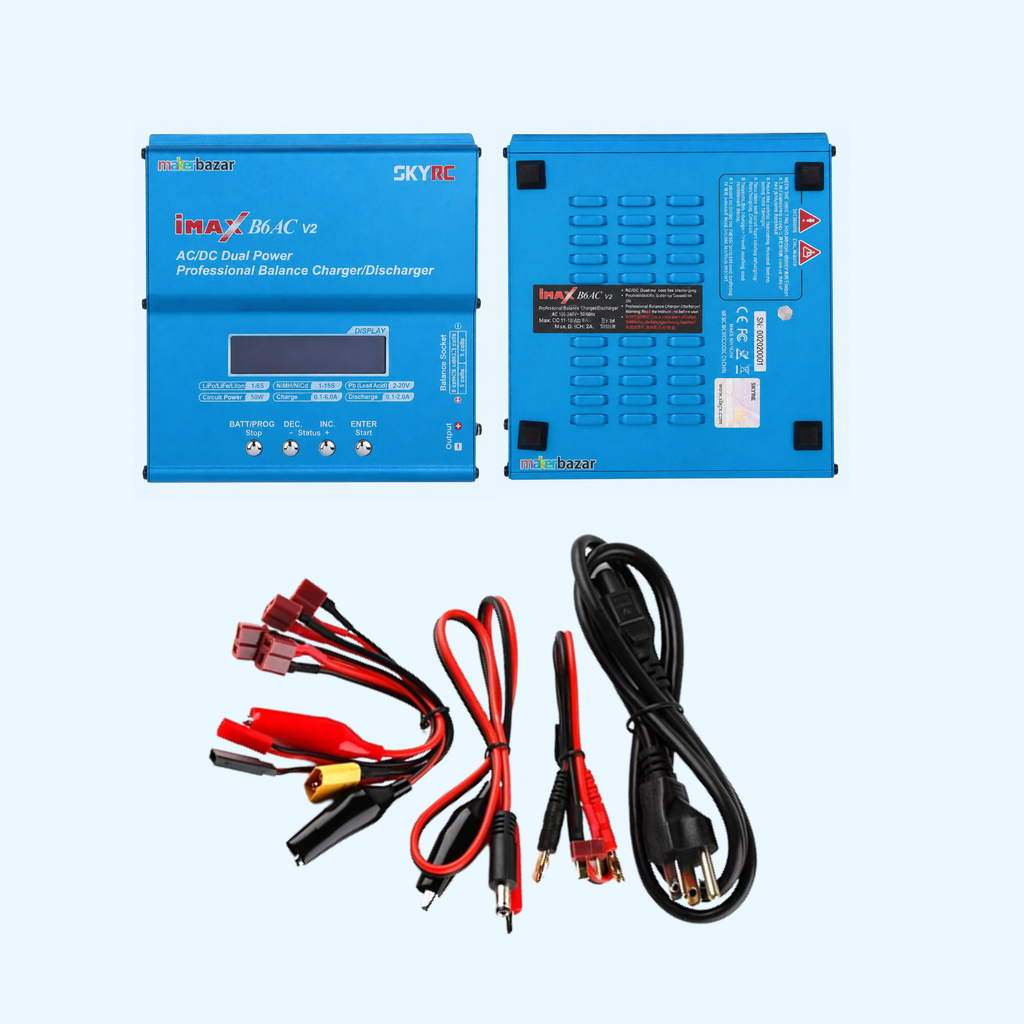

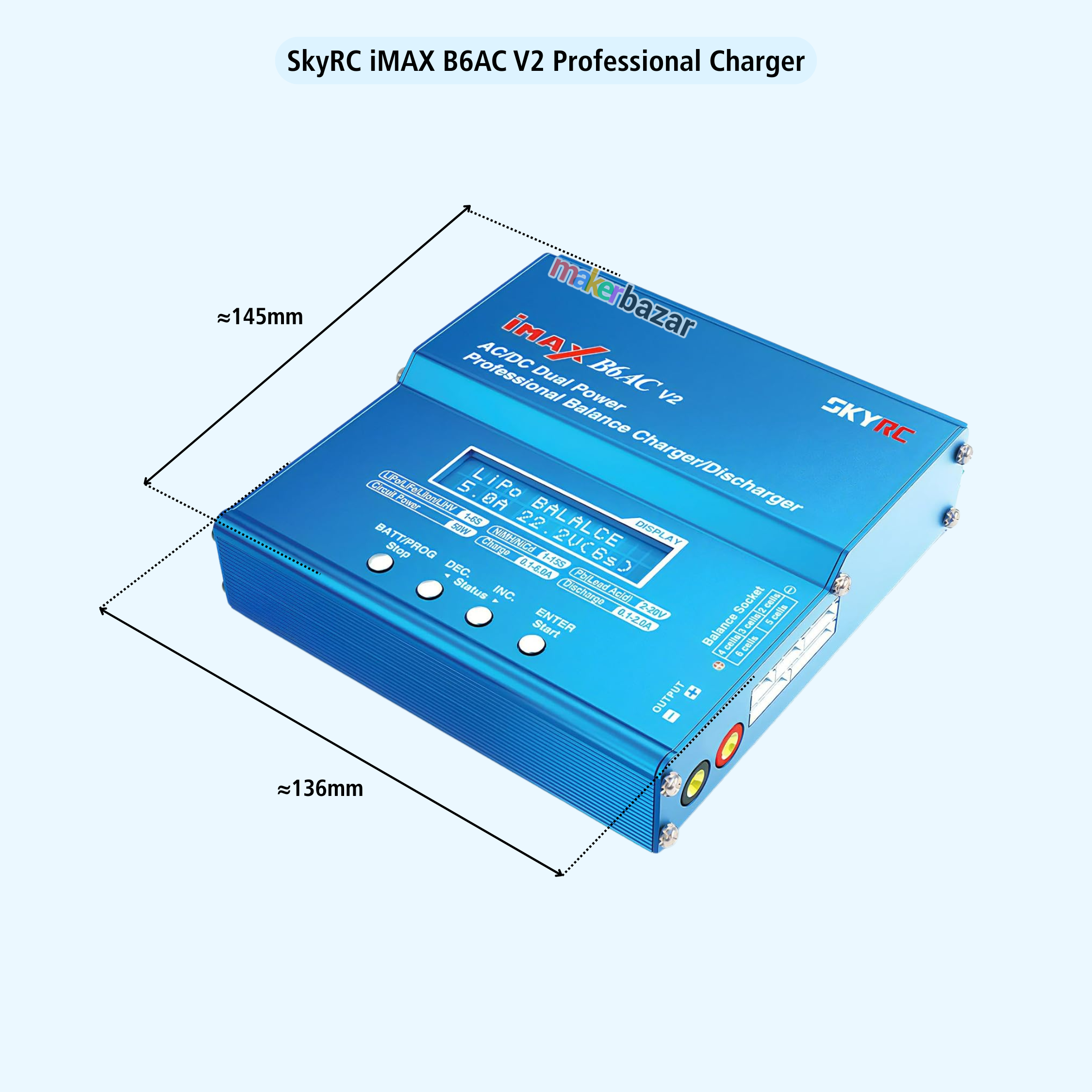

SkyRC iMAX B6AC V2 Professional AC/DC Balance Charger & Discharger for Multi-Chemistry Batteries
The SkyRC iMAX B6AC V2 Professional Balance Charger & Discharger is an advanced AC/DC smart battery charger designed for safely charging, balancing, discharging, cycling, and maintaining a wide range of rechargeable batteries. Supporting LiPo, Li-Ion, LiFe, LiHV, NiMH, NiCd, and Pb batteries, this all-in-one charger eliminates the need for multiple chargers, keeping your workspace organized and efficient.
The upgraded B6AC V2 features PC connectivity, firmware upgrade support, smartphone monitoring via the optional SkyRC Wi-Fi module (SK-600075), and individual cell balancing for maximum charging accuracy. It also includes advanced battery analysis functions such as Lithium Battery Meter, Internal Resistance Meter, Terminal Voltage Control, Automatic Charge Current Limit, Capacity Limit, and Processing Time Limit to maximize battery performance and safety.
Whether you're charging RC drone batteries, RC cars, airsoft packs, robotics batteries, or lead-acid batteries, the SkyRC iMAX B6AC V2 provides professional-grade charging performance with intelligent protection features.
Note: This is a genuine SkyRC charger and carries the SkyRC holographic authenticity sticker. The Wi-Fi Module (SK-600075) is an optional accessory and is not included with the charger.
Key Features
- Genuine SkyRC iMAX B6AC V2 charger.
- AC & DC dual input operation.
- Supports LiPo, Li-Ion, LiFe, LiHV, NiMH, NiCd & Pb batteries.
- Individual cell balancing.
- Integrated Lithium Battery Meter.
- Battery Internal Resistance Meter.
- Adjustable Terminal Voltage Control.
- Automatic charge current limit.
- Balance charge & discharge modes.
- Battery storage mode.
- Battery cycling function.
- Delta Peak Sensitivity for NiMH/NiCd.
- Capacity limit protection.
- Processing time limit.
- Input voltage monitoring.
- PC connectivity.
- Firmware upgrade support.
- Smartphone monitoring via optional Wi-Fi module.
- SKYRC Charge Master software support.
- Compact and professional design.

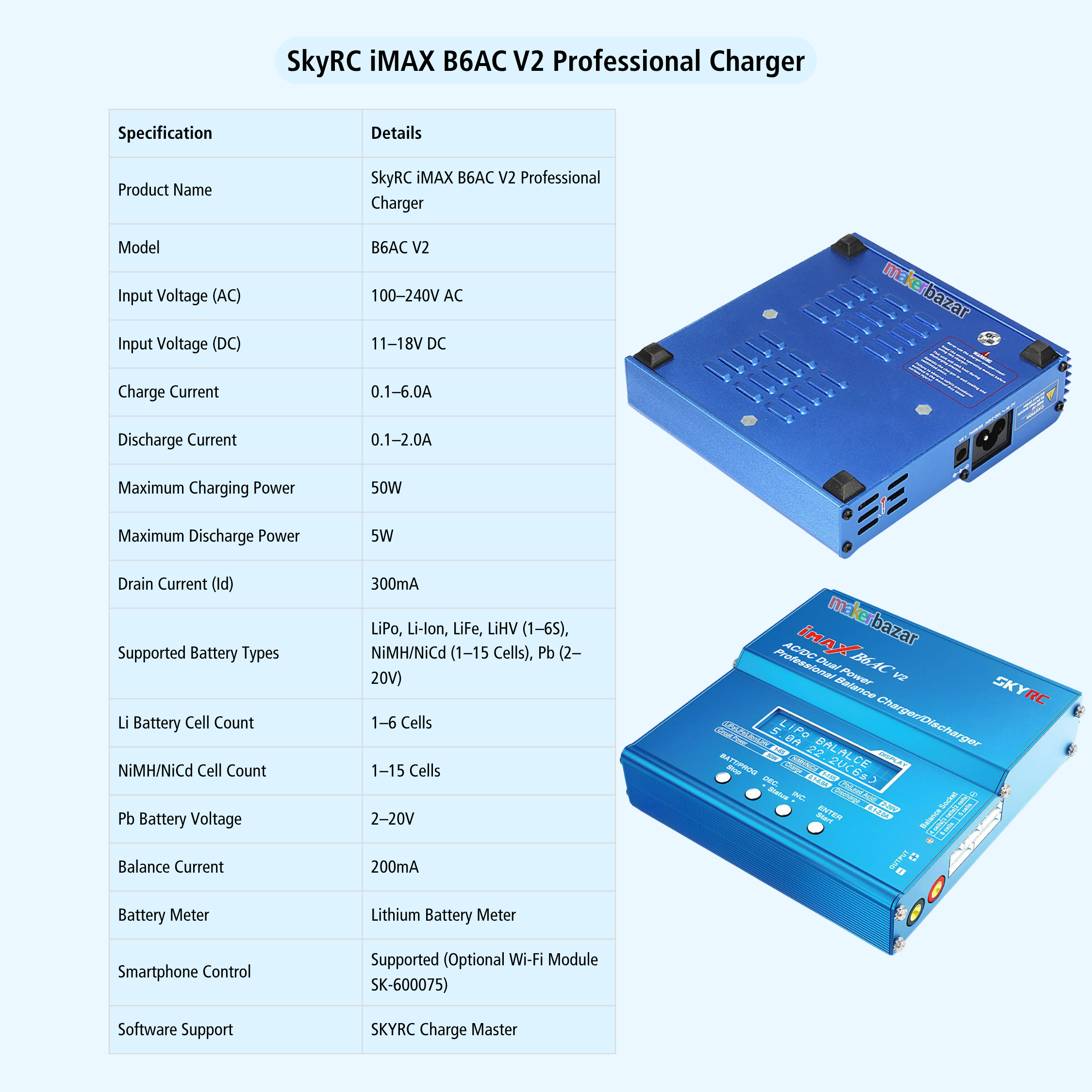

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | SkyRC iMAX B6AC V2 Professional Charger |
| Model | B6AC V2 |
| Input Voltage (AC) | 100–240V AC |
| Input Voltage (DC) | 11–18V DC |
| Charge Current | 0.1–6.0A |
| Discharge Current | 0.1–2.0A |
| Maximum Charging Power | 50W |
| Maximum Discharge Power | 5W |
| Drain Current (Id) | 300mA |
| Supported Battery Types | LiPo, Li-Ion, LiFe, LiHV (1–6S), NiMH/NiCd (1–15 Cells), Pb (2–20V) |
| Li Battery Cell Count | 1–6 Cells |
| NiMH/NiCd Cell Count | 1–15 Cells |
| Pb Battery Voltage | 2–20V |
| Balance Current | 200mA |
| Battery Meter | Lithium Battery Meter |
| Internal Resistance Meter | Supported |
| PC Connectivity | Yes |
| Firmware Upgrade | Supported |
| Smartphone Control | Supported (Optional Wi-Fi Module SK-600075) |
| Software Support | SKYRC Charge Master |

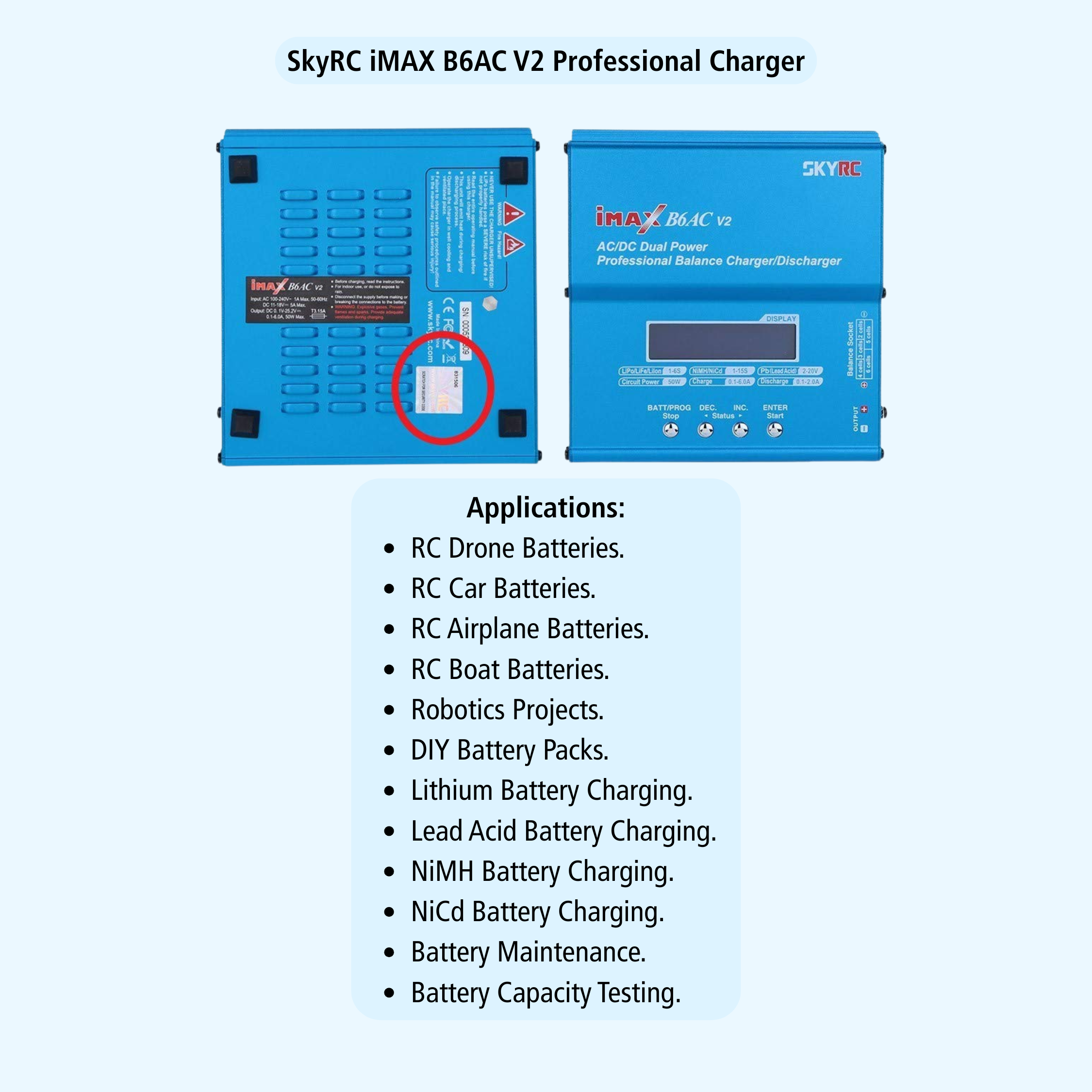

Applications
- RC Drone Batteries.
- RC Car Batteries.
- RC Airplane Batteries.
- RC Boat Batteries.
- Robotics Projects.
- DIY Battery Packs.
- Lithium Battery Charging.
- Lead Acid Battery Charging.
- NiMH Battery Charging.
- NiCd Battery Charging.
- Battery Maintenance.
- Battery Capacity Testing.
- Battery Storage Charging.
- Electronics Workshops.
- Educational Laboratories.
Precautions
- Select the correct battery chemistry before charging.
- Verify the battery cell count before starting.
- Use balance charging for lithium batteries whenever possible.
- Never leave batteries unattended while charging.
- Do not exceed the recommended charging current.
- Charge batteries on a non-flammable surface.
- Ensure proper ventilation during charging.
- Disconnect the charger before connecting or removing batteries.
- Keep away from moisture and direct sunlight.
- Use only genuine charging cables and balance leads.
