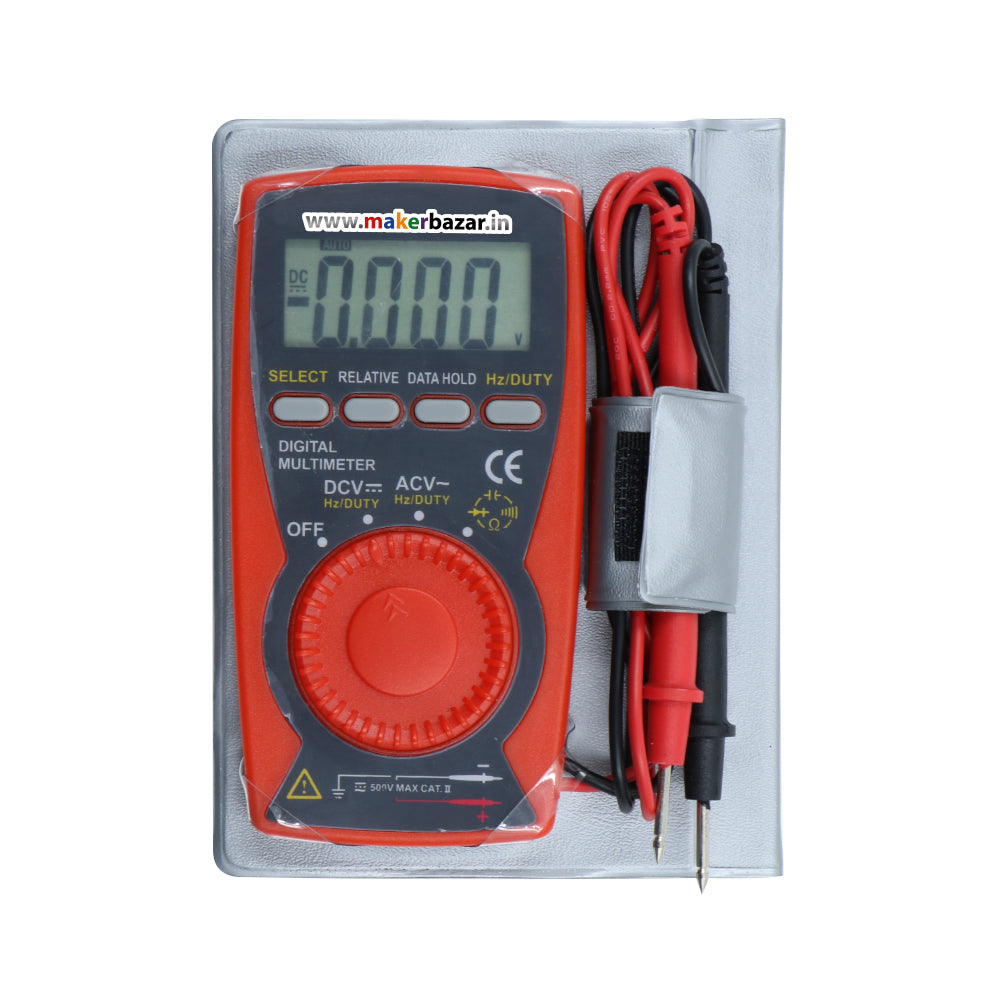

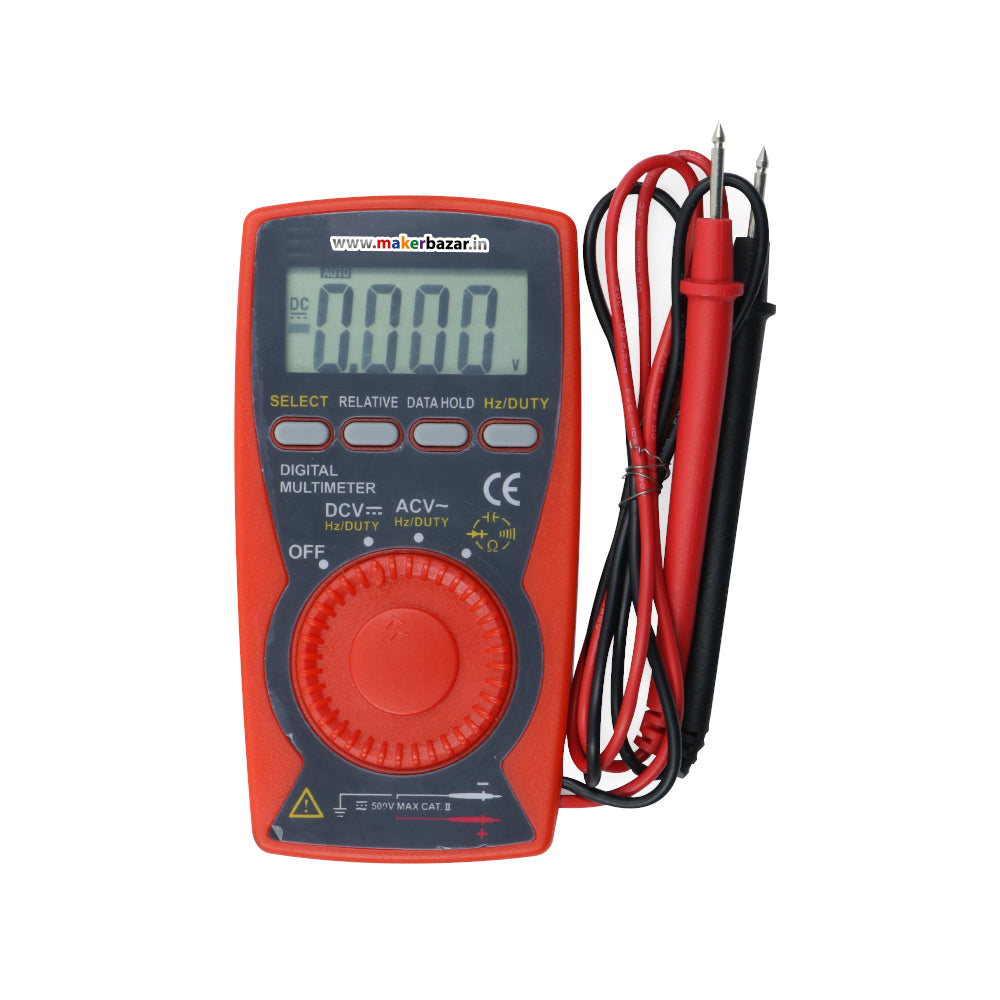

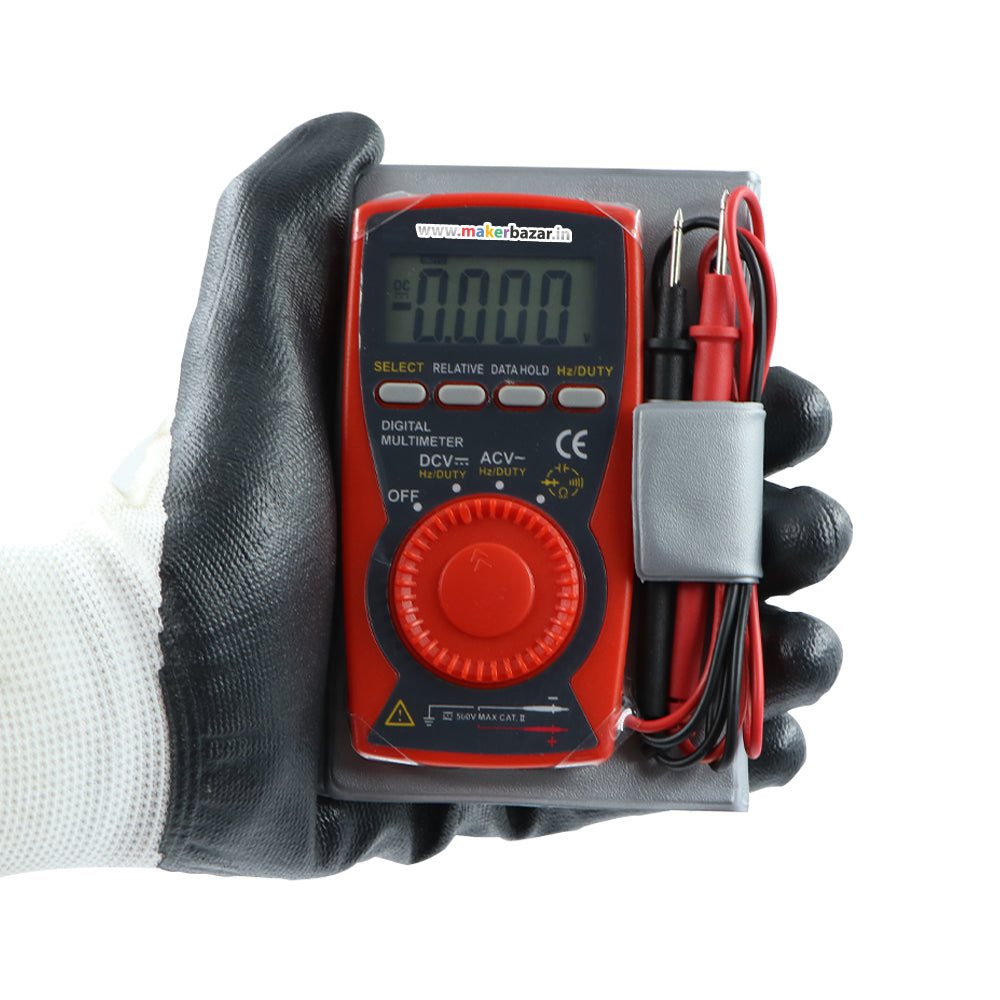

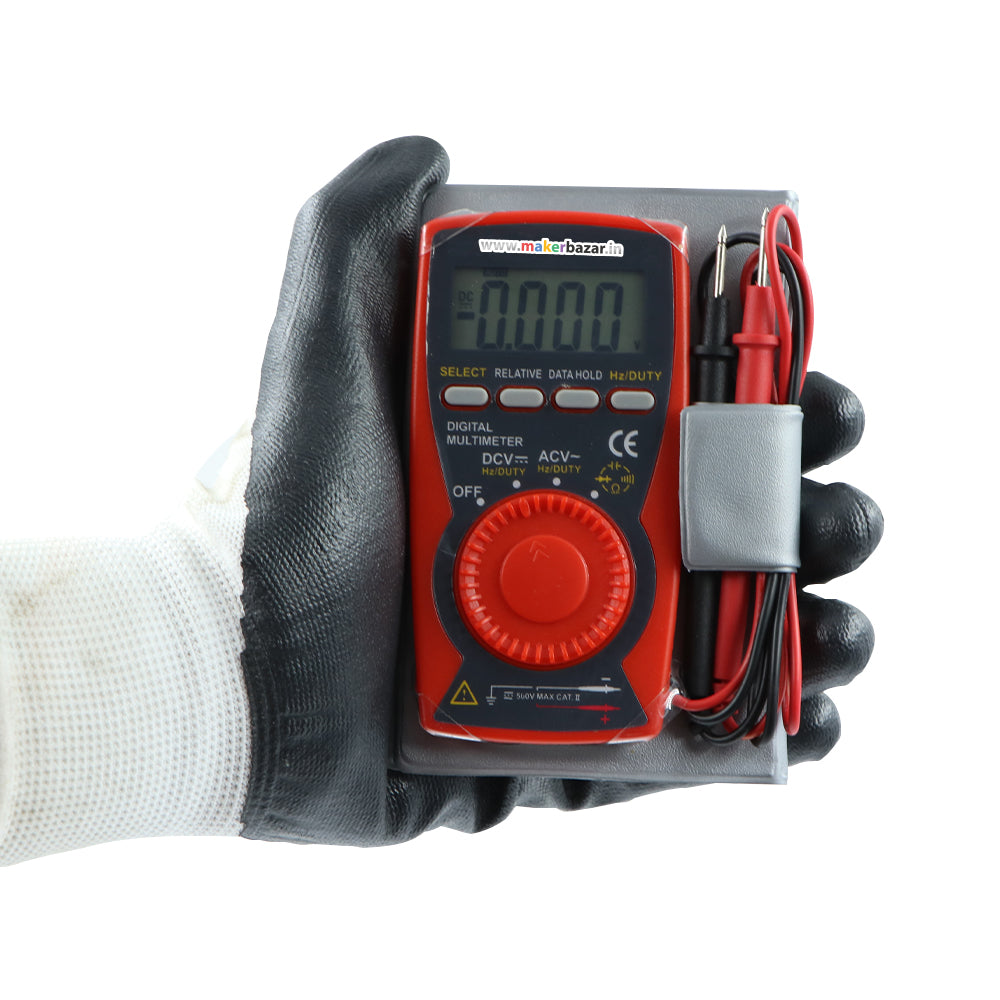

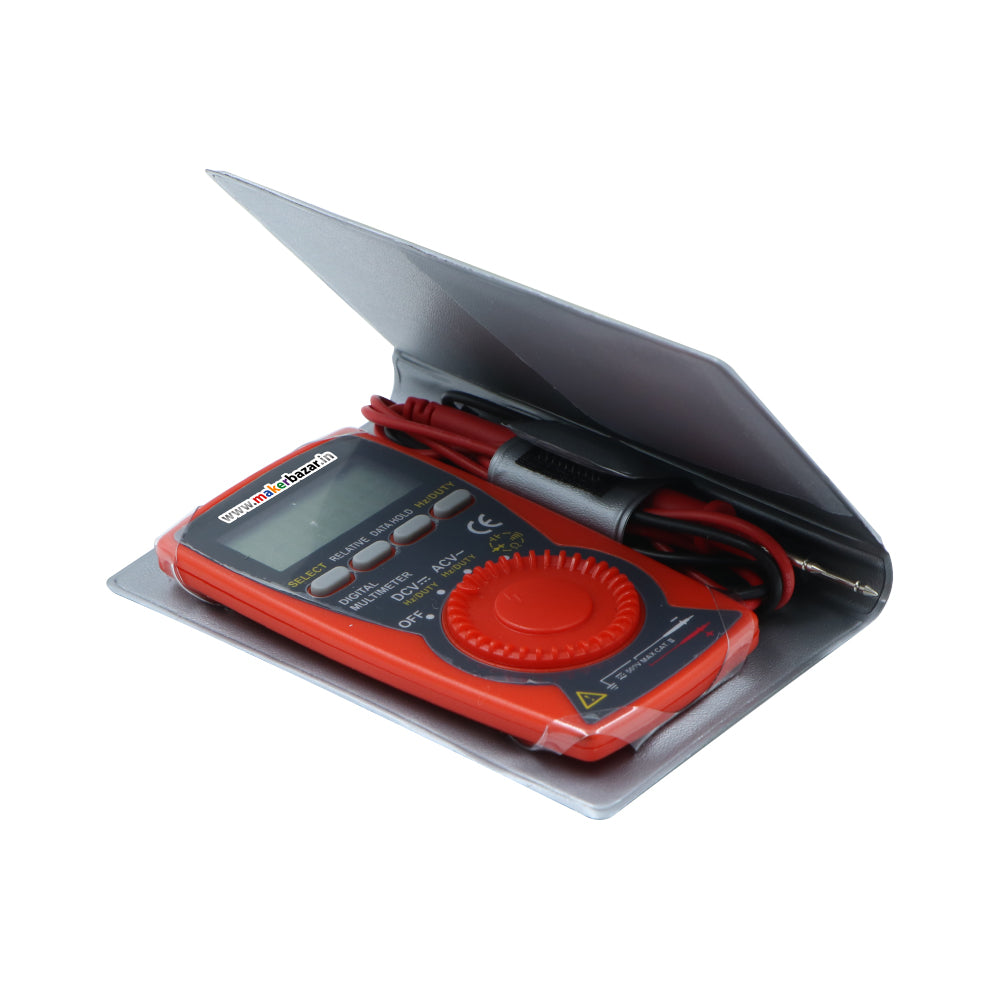

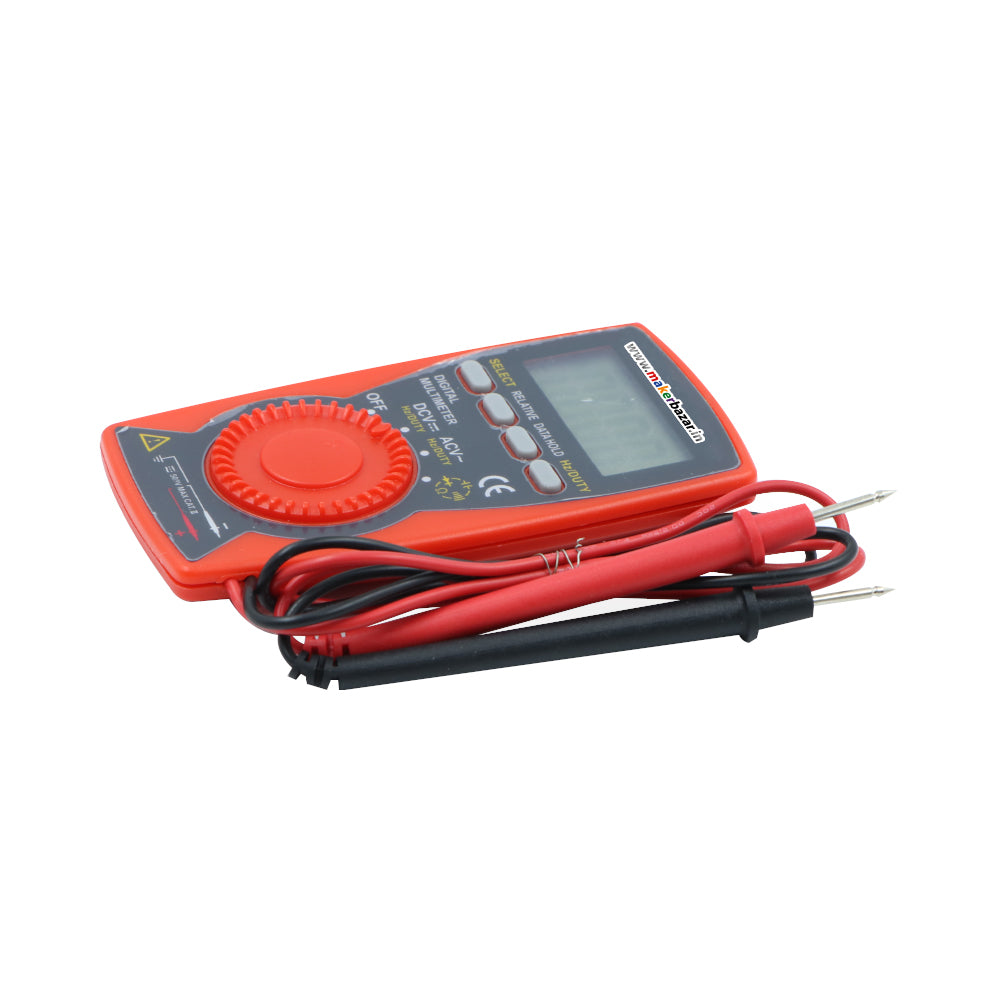

Pocket Compact Duty Ratio Frequency Capacitance Resistance Auto-range palm Digital Multimeter UA18 SD10A

It is fully functional, stable performance, high accuracy, low power consumption, the new structure, safe and reliable, can be used to measure AC and DC voltage, frequency, duty cycle, resistors, capacitors, rubbish tube forward voltage drop and continuity testing, is the majority of the ideal measuring instruments.

SPECIFICATIONS:

• DC Voltage: 400mV / 4V / 40V /300V±(0.8%+1)
• AC voltage: 4V / 40V / 300V ± (1.2% + 3)
• Resistance: 400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ ± (1% + 2)
• Capacitance: 4nF / 40nF / 400nF / 4uF / 40uF / 200uF ± (4% + 3)
• Frequency: 10Hz-100kHz ± (0.5% + 3)
• Automatic function
• Duty cycle: 0.1% -99.9%
• Diode test
• Continuity Buzzer
• Relative value measurement
• Data Hold
• Full symbol display
• Automatic shutdown
• Low Voltage Display
• Input impedance: ≥10MΩ
• Maximum display: 1999
• Power: 3V button battery (CR3032) not include battery
• LCD Size: 44 × 23mm
• Body color: red
• Dimensions: 107 × 56 × 12mm
• Standard accessories: table pen, manual, warranty card
• Standard packaging: blister and card.
