Description

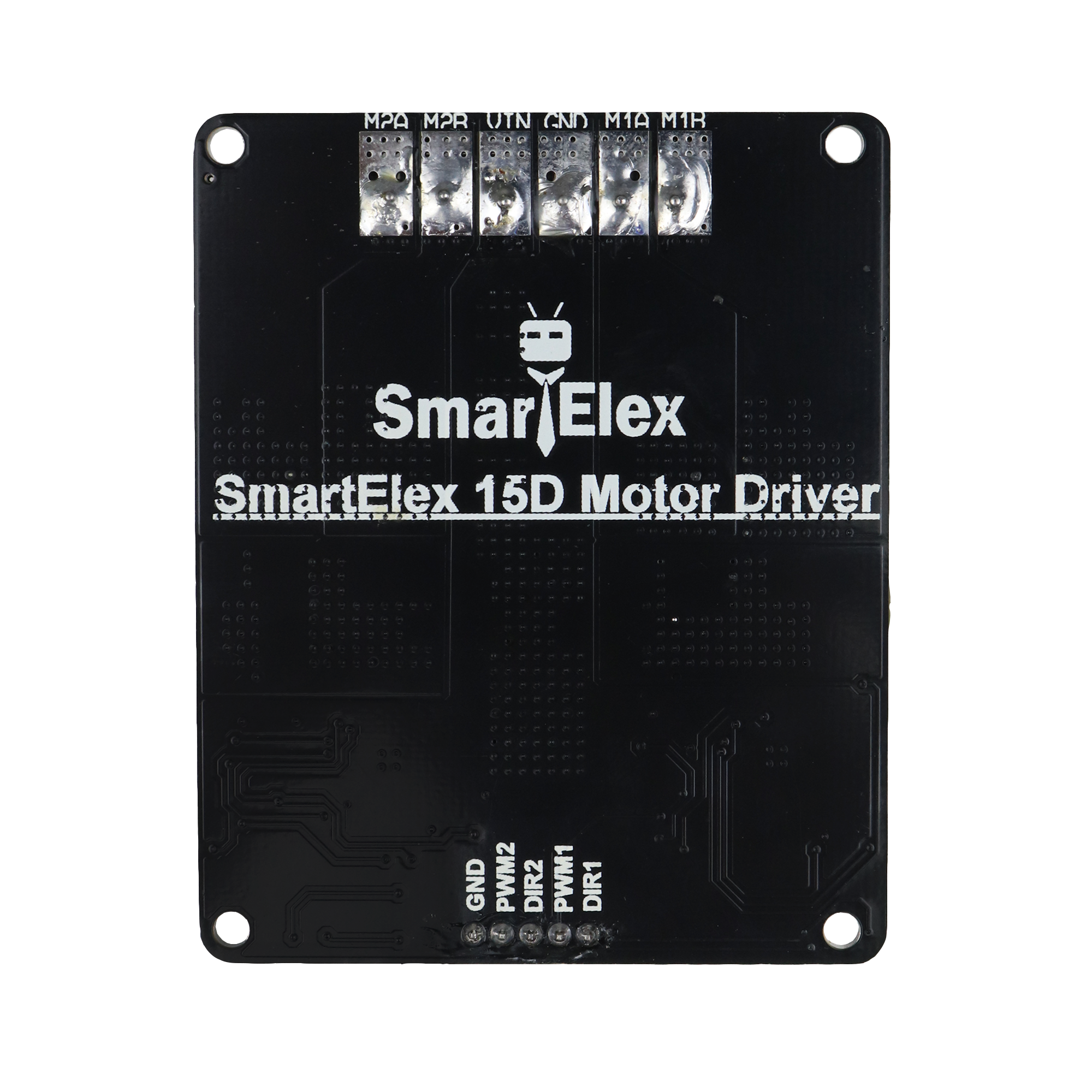

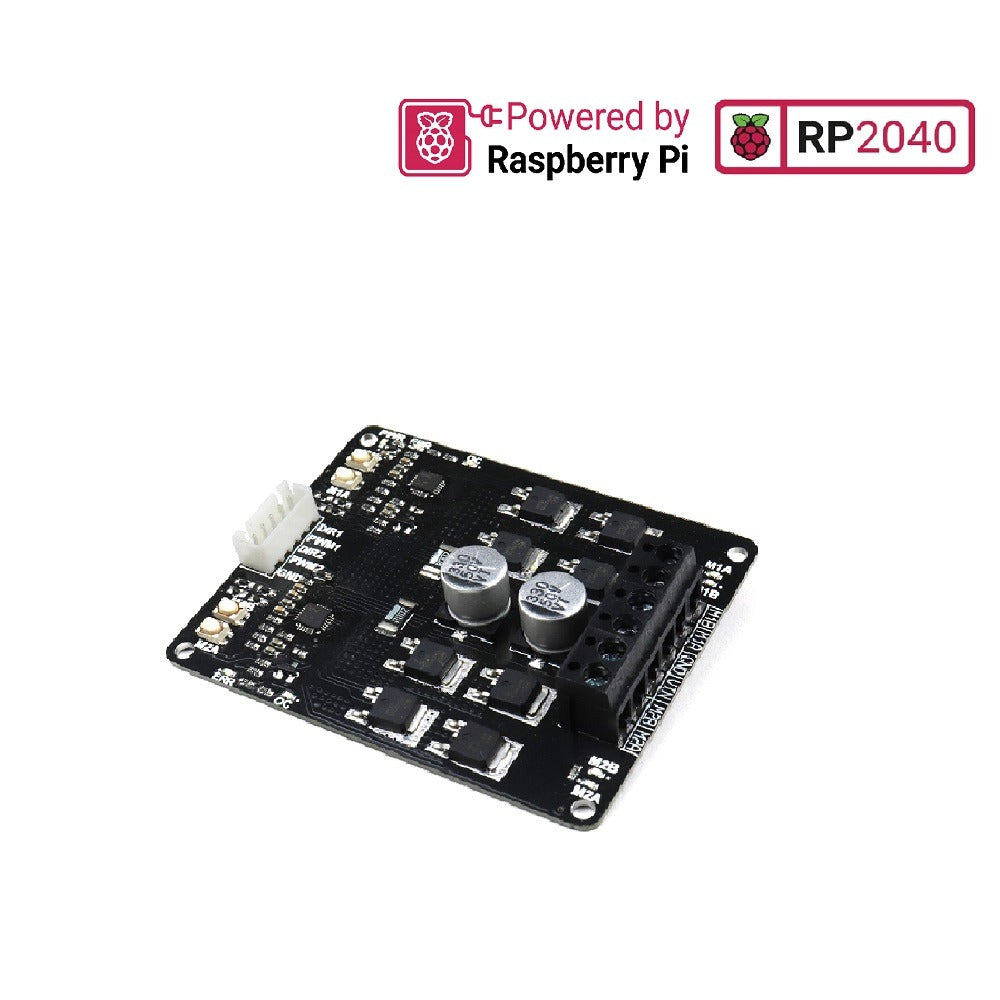

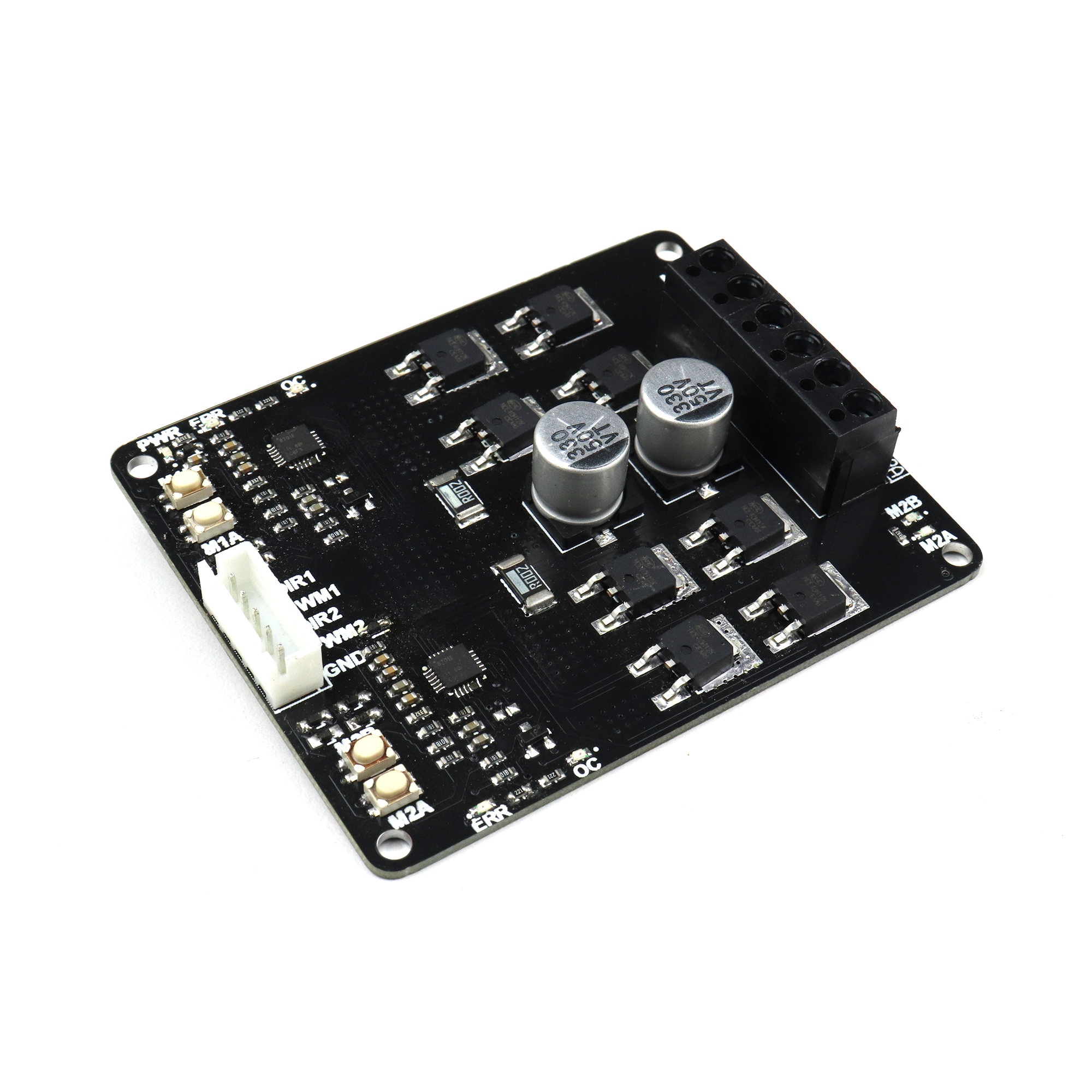

Smart Elex 15D 13A Continuous, 30A Peak DC Motor Driver Board for Robotics
The SmartElex 15D Dual Channel DC Motor Driver is a powerful and reliable solution for driving two brushed DC motors with ease. It supports up to 13A continuous and 30A peak current, making it suitable for high-load applications. The board is compatible with 3V and 5V logic levels and offers PWM + direction control, thermal shutdown, and overcurrent protection. Ideal for Arduino, Raspberry Pi, or other MCUs, it operates from 6.8V to 30V and includes a connection cable. Compact and efficient, it's perfect for robotics and mechatronics projects.
Specifications:
-
Model: SmartElex 15D
-
Channels: 2 (Dual Motor Control)
-
Operating Voltage: 6.8V to 30V
-
Continuous Current: 13A
-
Peak Current: 30A (for 10 sec)
-
Control Method: PWM and direction (TTL compatible)
-
Protection: Overcurrent, Thermal shutdown, Undervoltage lockout
-
Logic Input: 3V & 5V compatible
-
Dimensions (L×W×H): 75 × 63 × 15 mm
-
Weight: 30g
-

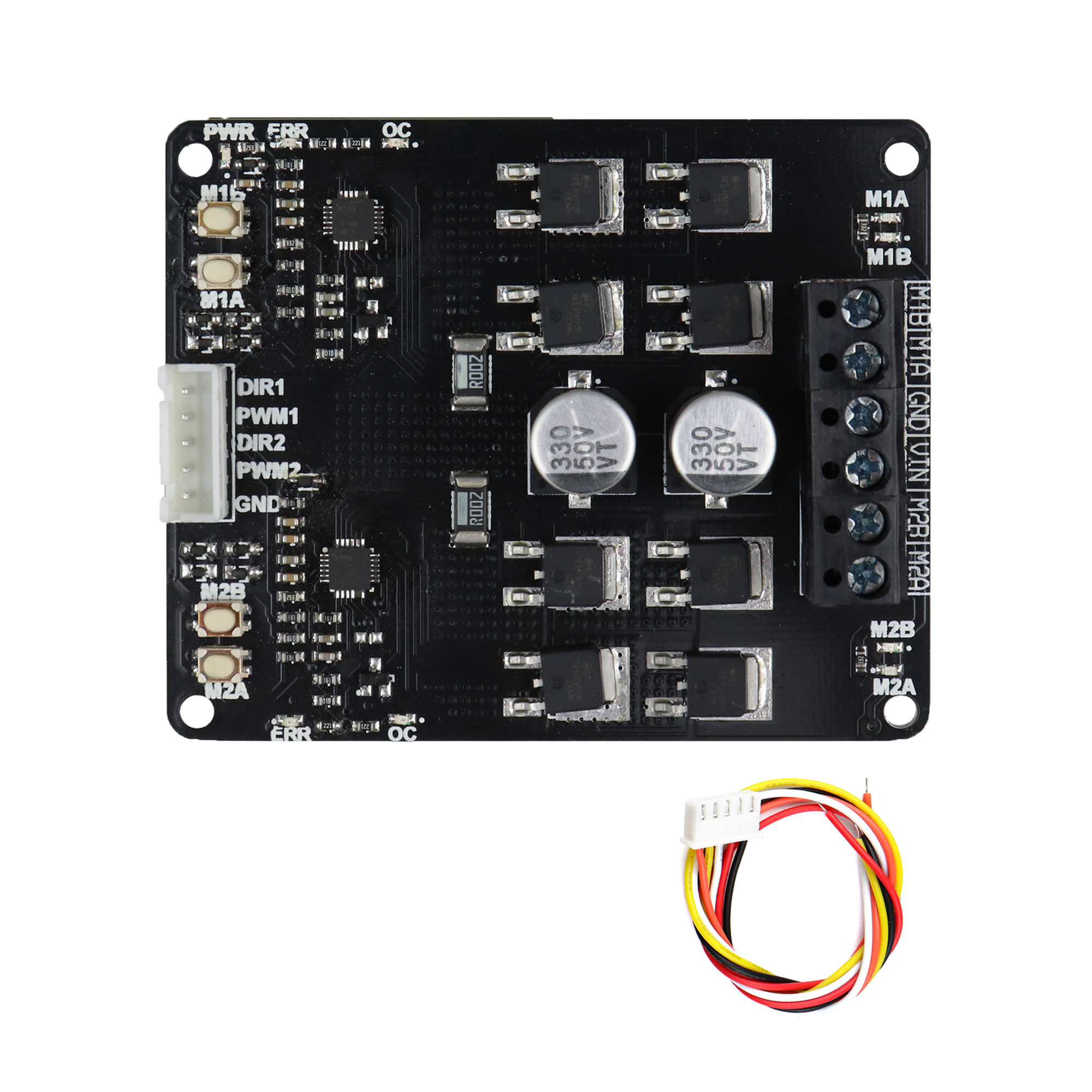

Included: 1x Driver Board, 1x Connection Cable
