SmartElex 30D Smart Dual Motor Driver with PWM and RC Control
SmartElex 30D Smart Motor Driver (Powered by Raspberry Pi) is a Dual Channel motor driver capable of supplying 30 amps continuously with peak currents up to 85 amps (2 Sec) per channel. It can be operated from radio control, analog, TTL serial, and PWM. A variety of operating modes including mixed and independent modes in radio control, analog, and PWM mode.
Operating modes allow for operation, such as switching between radio controls and PWM mode or switching between any of 4 modes via a 4-position DPDT mode switch. MOSFETs are switched at 16 KHz to ensure quiet operation and no annoying whining sound.
Besides, it is also equipped with a microcontroller unit to provide smart features such as multiple input modes current limit, and thermal protection. If the temperature of the board reaches 80 degrees then motor speed becomes half and speed will be normal once the temperature reaches below 70 degrees. The Smart Motor Driver will be shut down at 100 degrees.
Features:
- Supplying 30 amps continuously with peak currents up to 85 amps (2 Sec) per channel.
- Support motor voltage from 7V to 28V.
- Onboard Low Internal resistance MOSFETs are switched at 16 KHz frequency.
- Overcurrent protection and indication.
- Thermal protection.
- Multiple input modes: RC, Analog, PWM, Serial Packetized.
- On-board push buttons for test and manual operation.

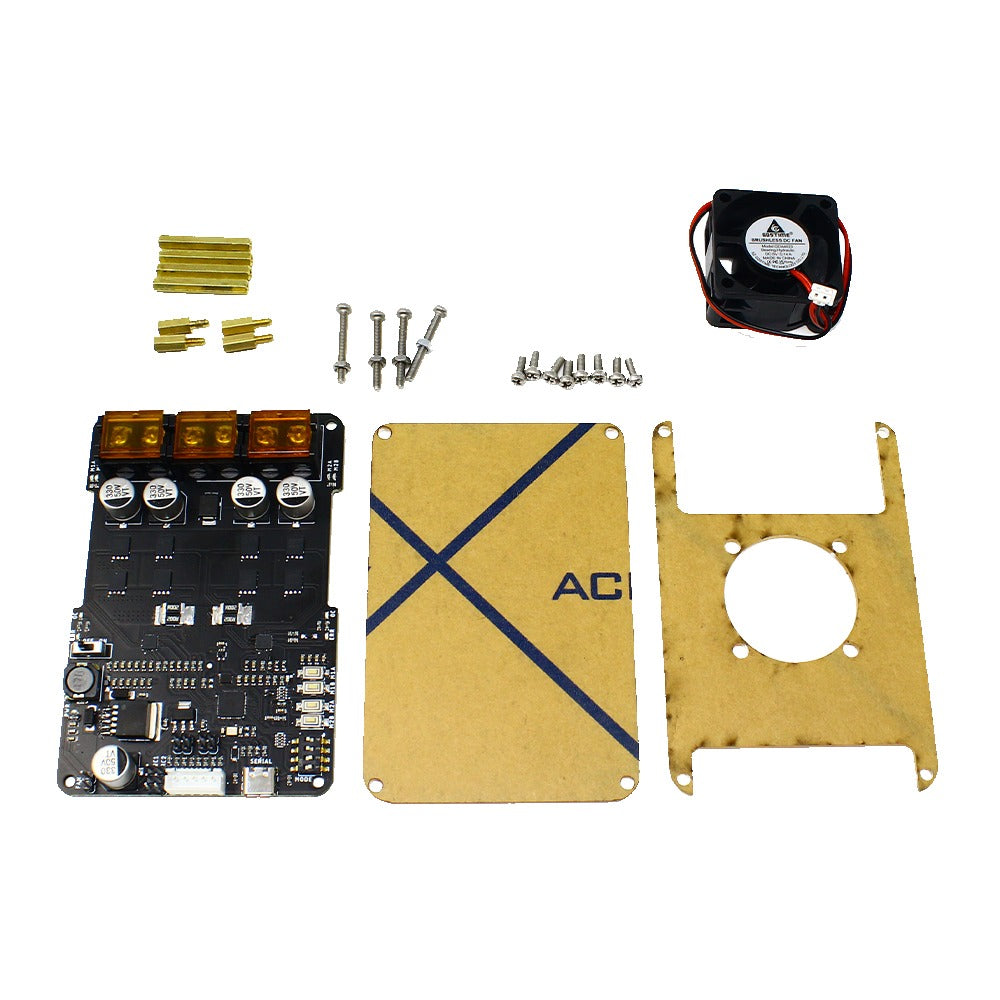

Package Includes:
1 x SmartElex 30D Smart Motor Driver (Dual Motor, PWM & RC)(Powered by Raspberry Pi)
1 x Interfacing Cable
1 x Acrylic Casing with nuts, bolts and spacers
1 x DC fan
