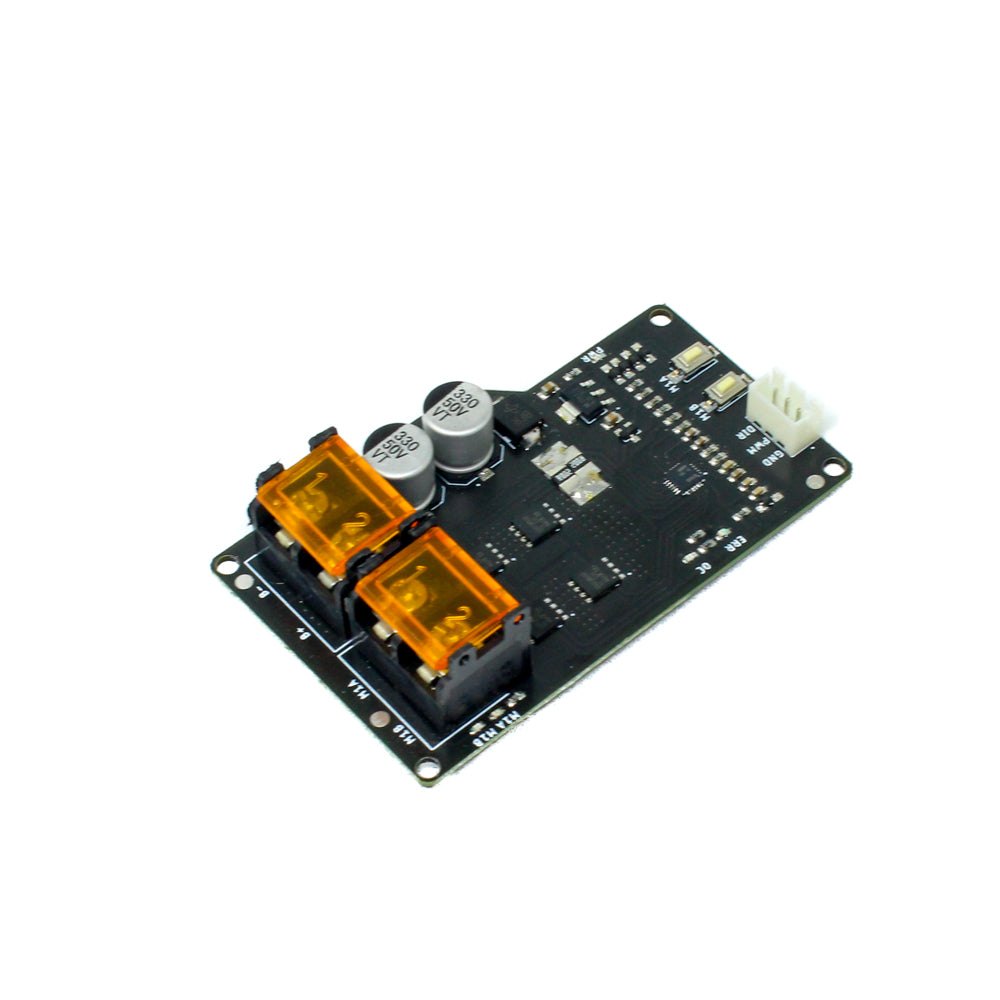

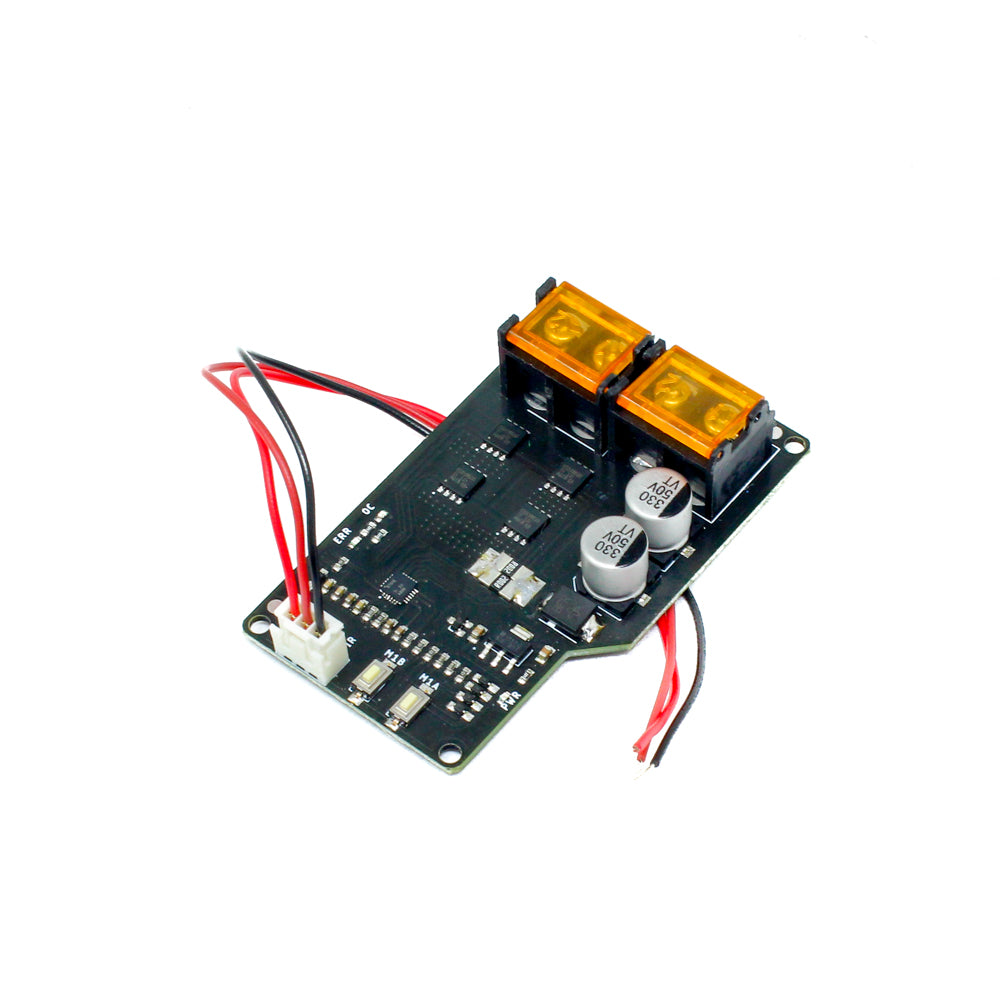

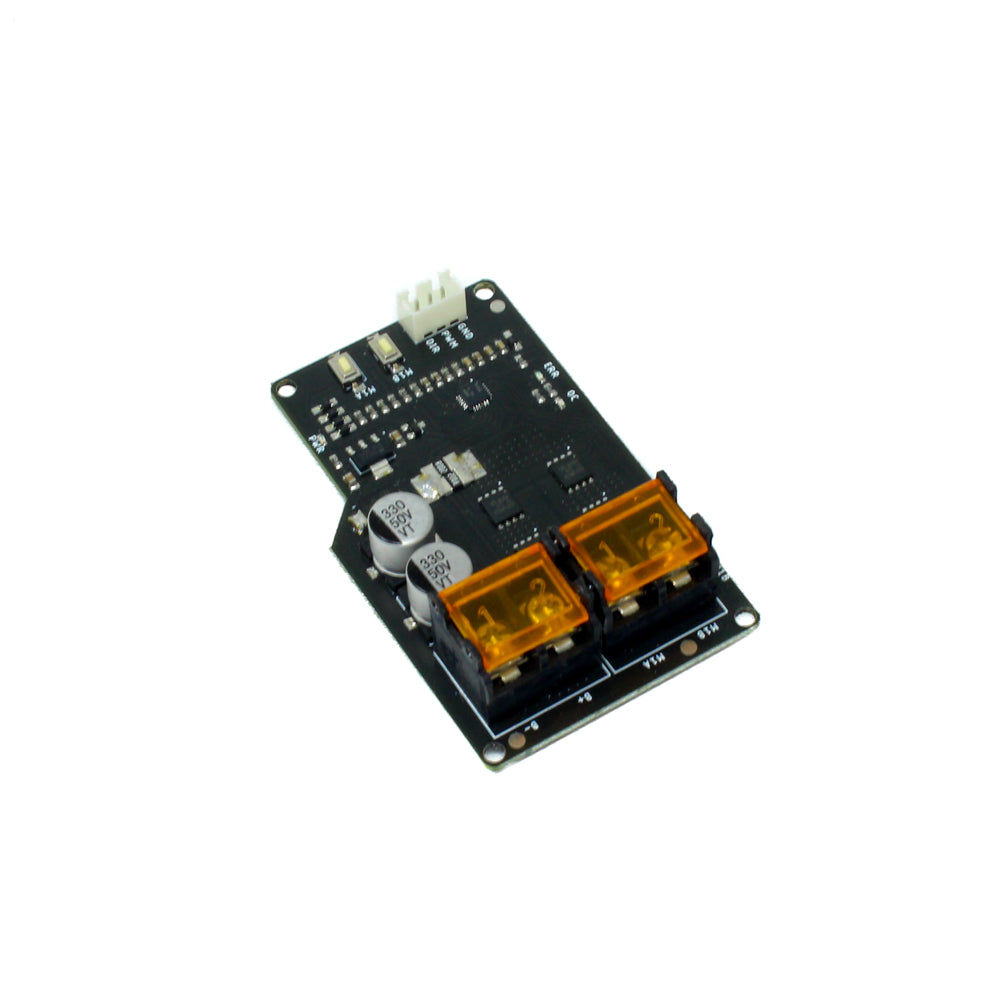

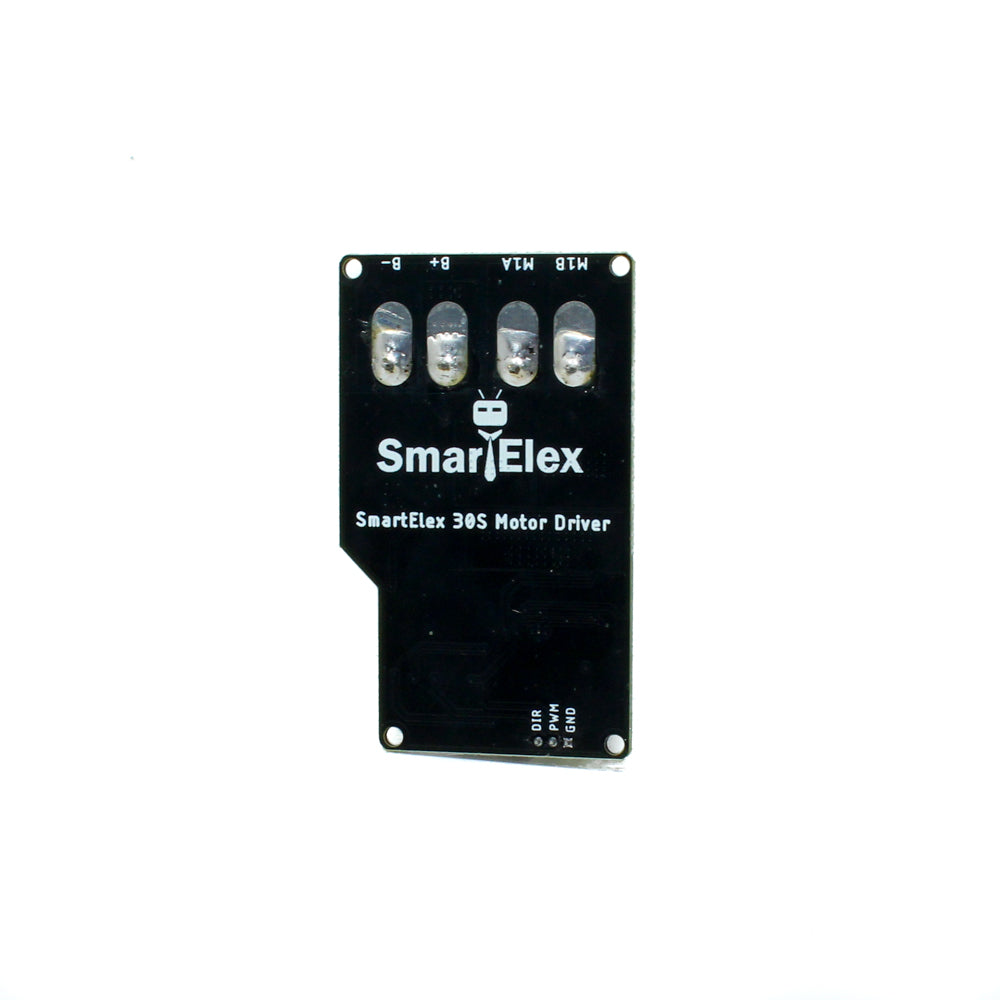

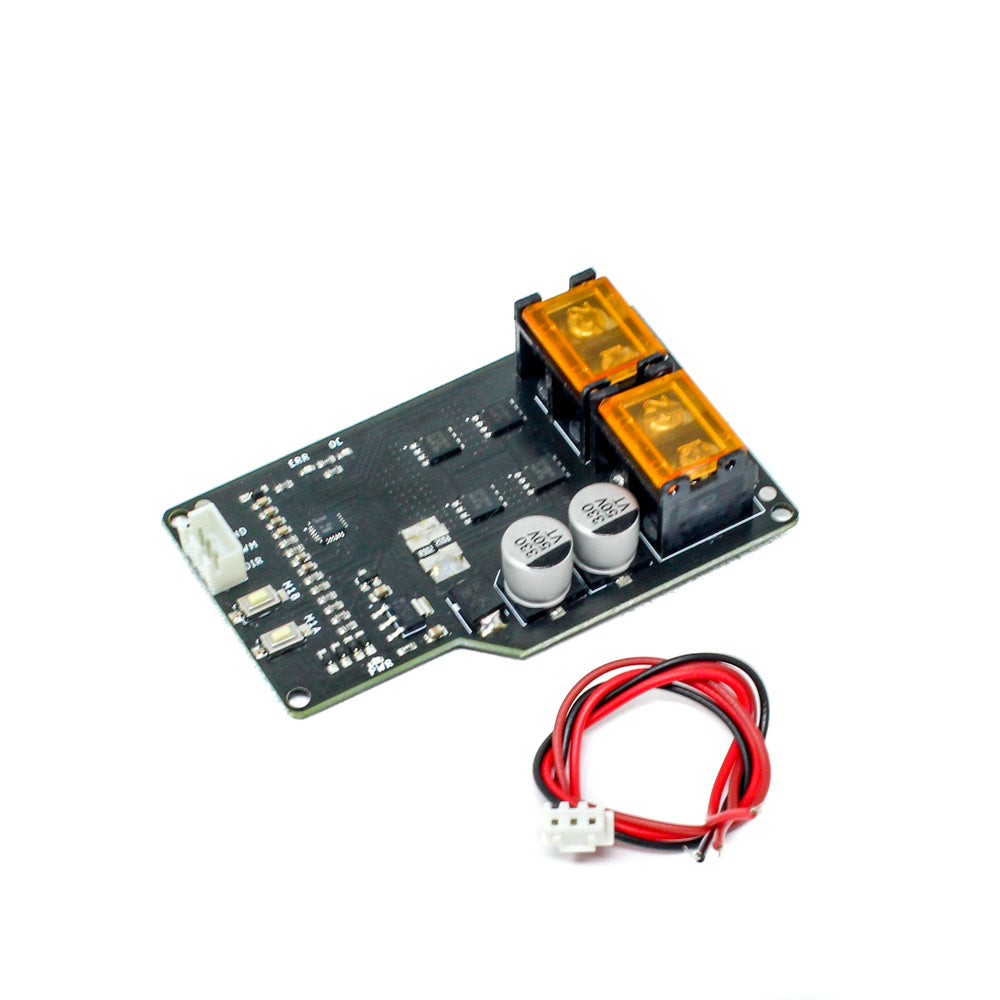

SmartElex 30S DC Motor Driver – 30A High Current Single Channel Controller
The SmartElex 30S DC Motor Driver is a high-performance, single-channel motor controller designed to handle 30A continuous and up to 85A peak current (2 sec). Suitable for bidirectional control of a brushed DC motor, it operates between 7V to 28V and supports TTL-level PWM input, making it ideal for robotics and heavy-load motor applications. Built-in overcurrent protection ensures reliable and safe operation.
Specifications:
-
Model Type: Motor Driver
-
No. of Channels: 1
-
Continuous Current: 30A
-
Peak Current: Up to 85A (2 seconds)
-
Input Voltage: 7V – 28V
-
PWM Frequency: 490 Hz
-
Motor Type: Brushed DC (Bidirectional Control)
-
Protection: Overcurrent with indication
-
Dimensions (L×W×H): 82 × 50 × 17 mm
-
Shipping Weight: 0.035 kg
-
Shipping Dimensions: 10 × 6 × 3 cm
