Description
Smart Elex Battle Relay – Heavy-Duty RC Controlled Power Switch
SmartElex Battle Relay Series offers powerful, radio-controlled relay switches available in Single or Dual Channel versions, ideal for controlling AC devices up to 240VAC @ 10A. Featuring screw terminals, LED indicators, and electrical isolation, these relays allow effortless integration into RC systems, lighting, and home automation—without requiring microcontroller knowledge.
Specifications
-

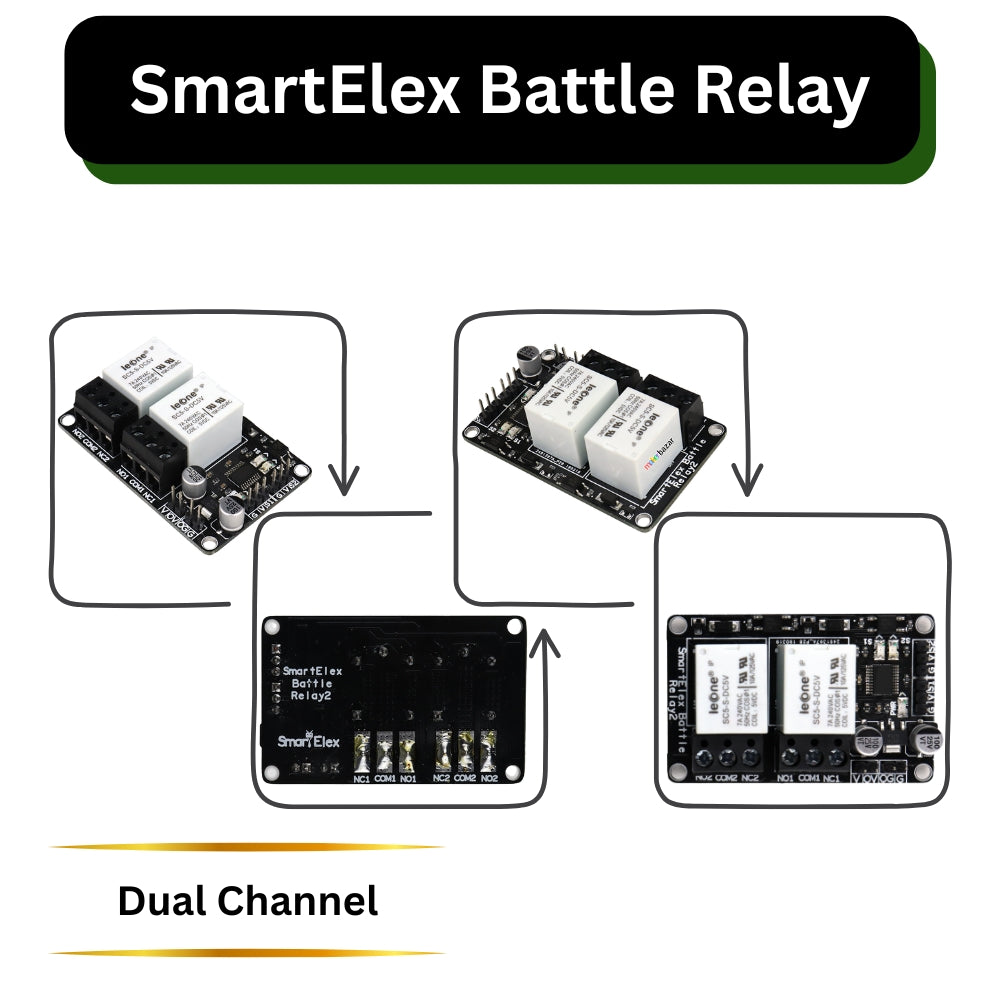

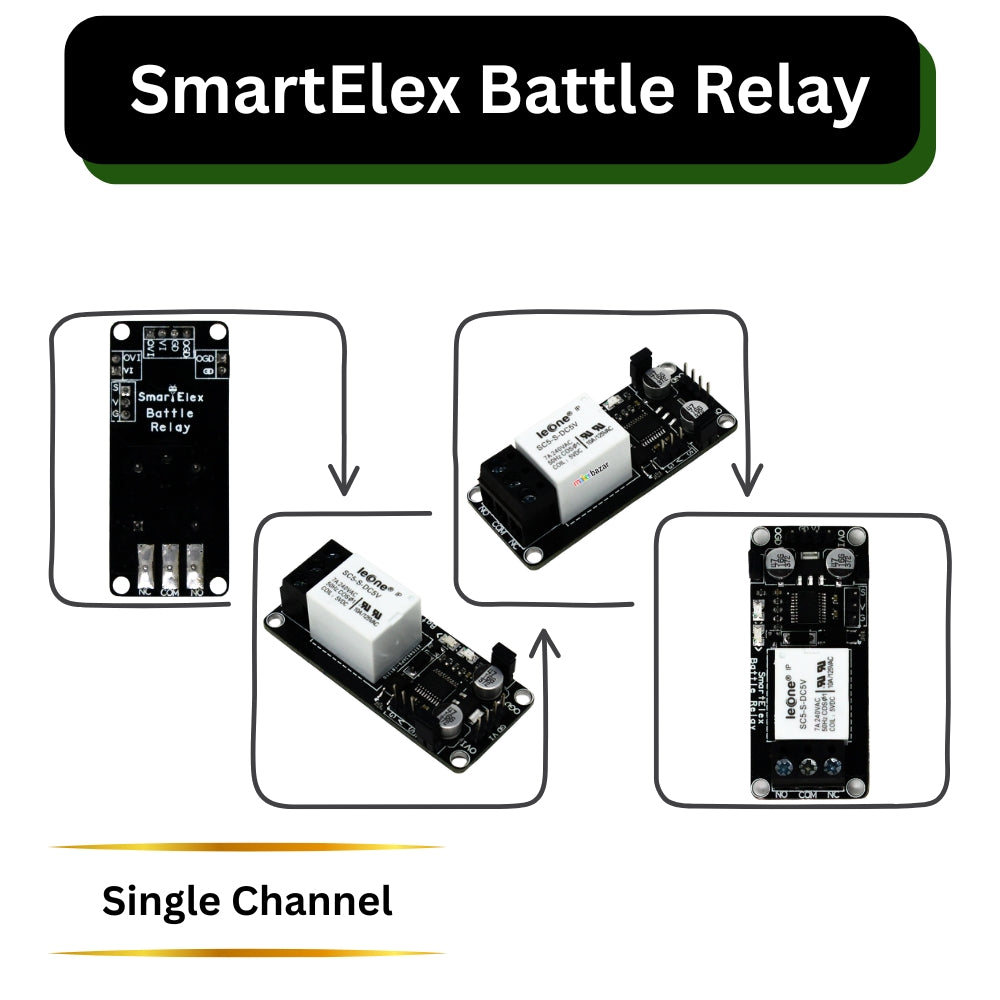

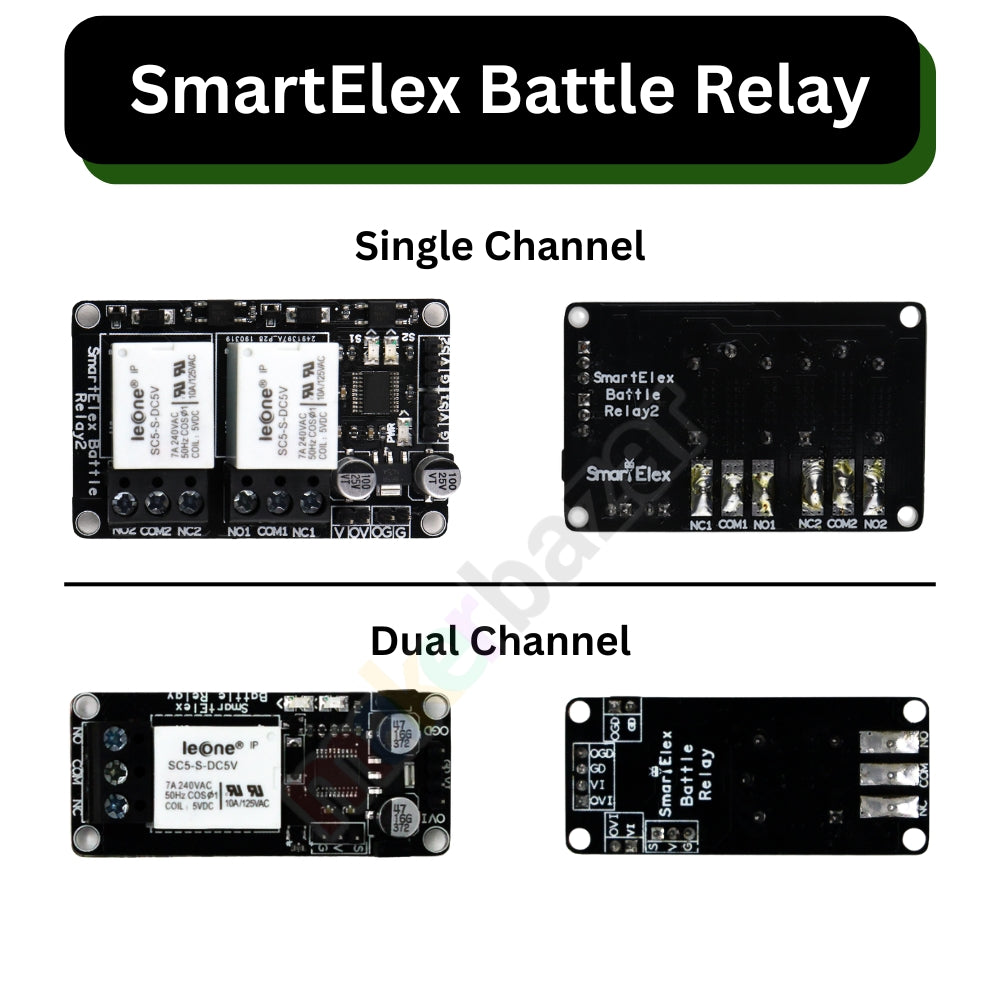

Channel Options: Single or Dual
-
Trigger Voltage: 5V DC
-
Switching Voltage: 125VAC @ 10A, 240VAC @ 7A
-
Operating Voltage: 4.8V – 5.8V DC
-
Indicators:
-
Single Channel: 1 Power LED, 1 Status LED
-
Dual Channel: 1 Power LED, 2 Status LEDs
-
-
Connection: Wear-resistant screw terminals
-

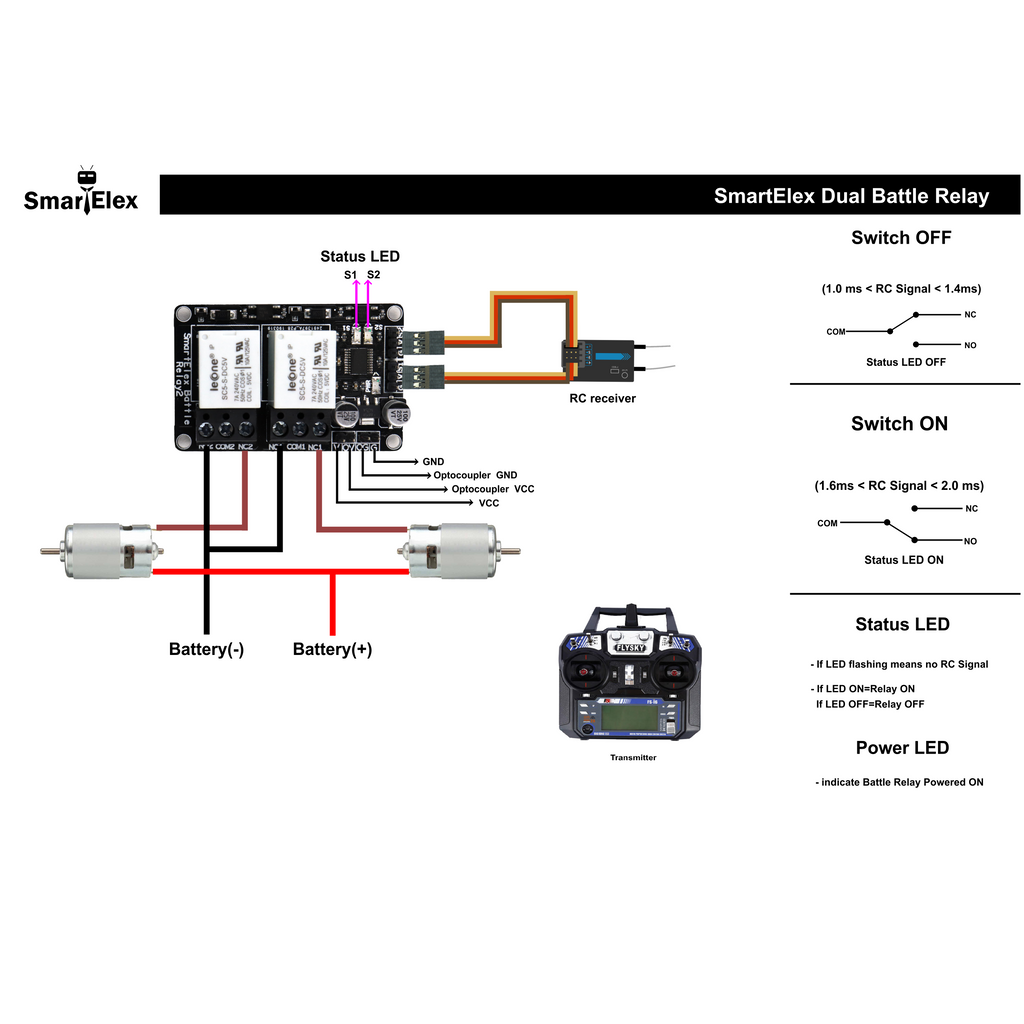

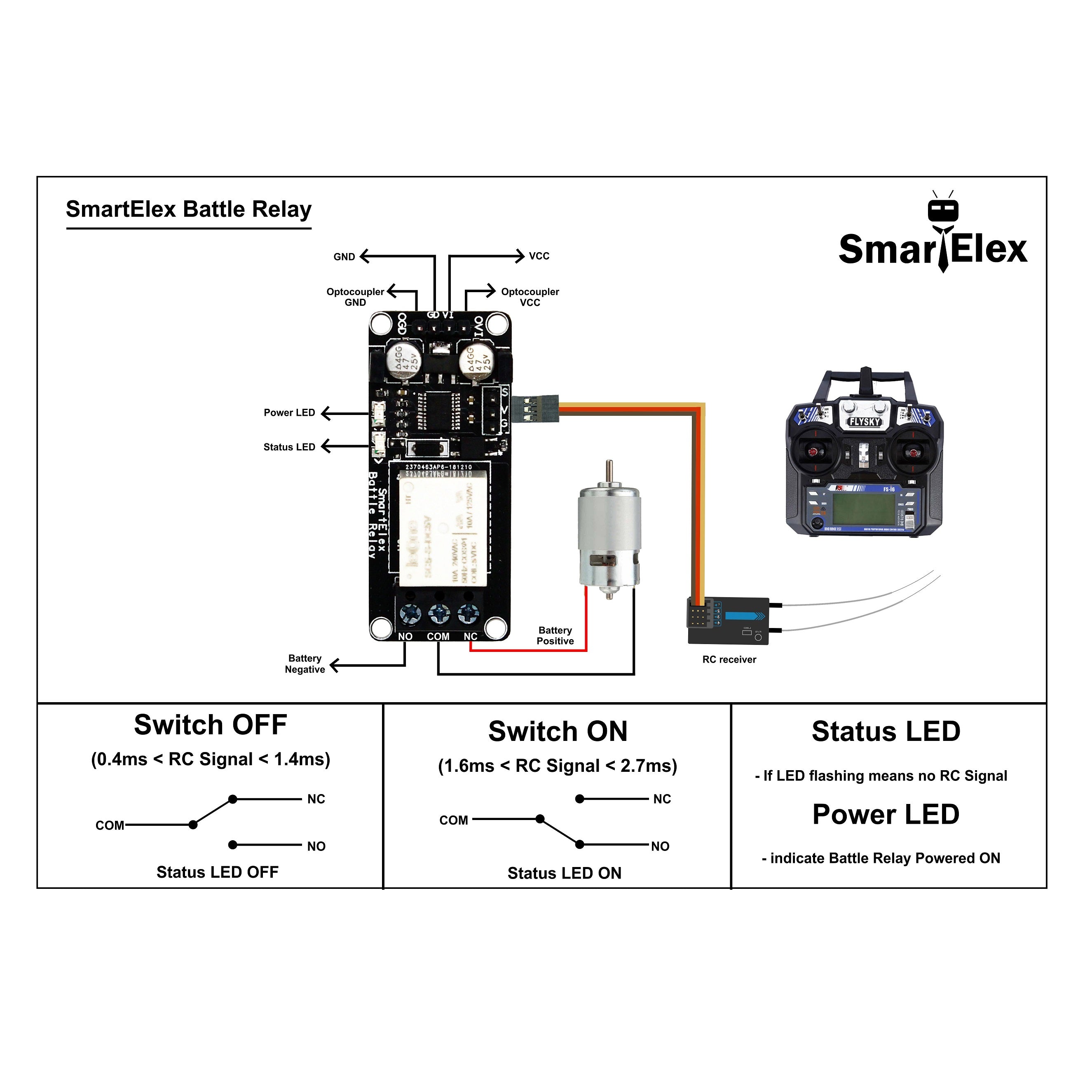

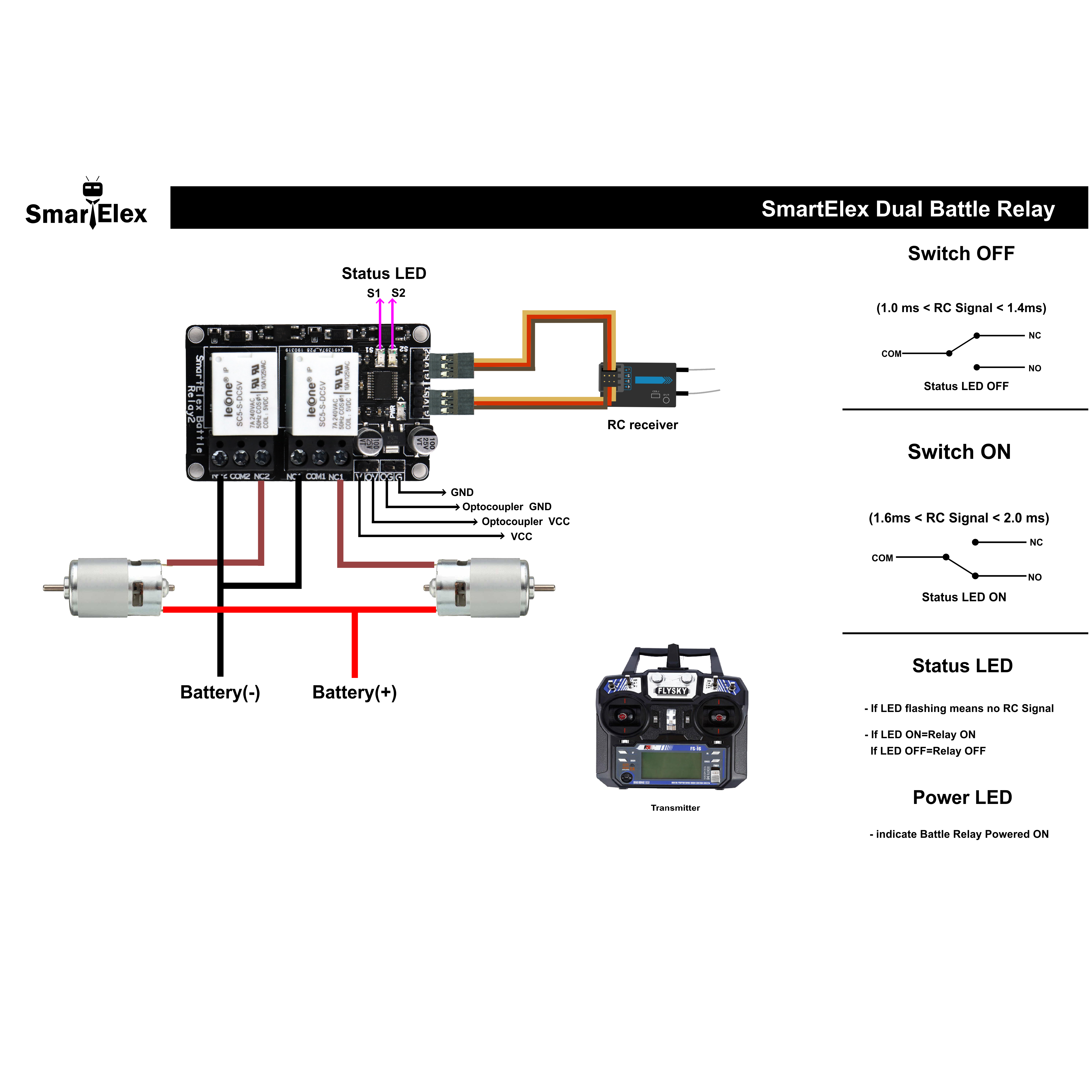

Control Input: Standard RC signal (radio stick movements)
-
Full Electrical Isolation: Yes
