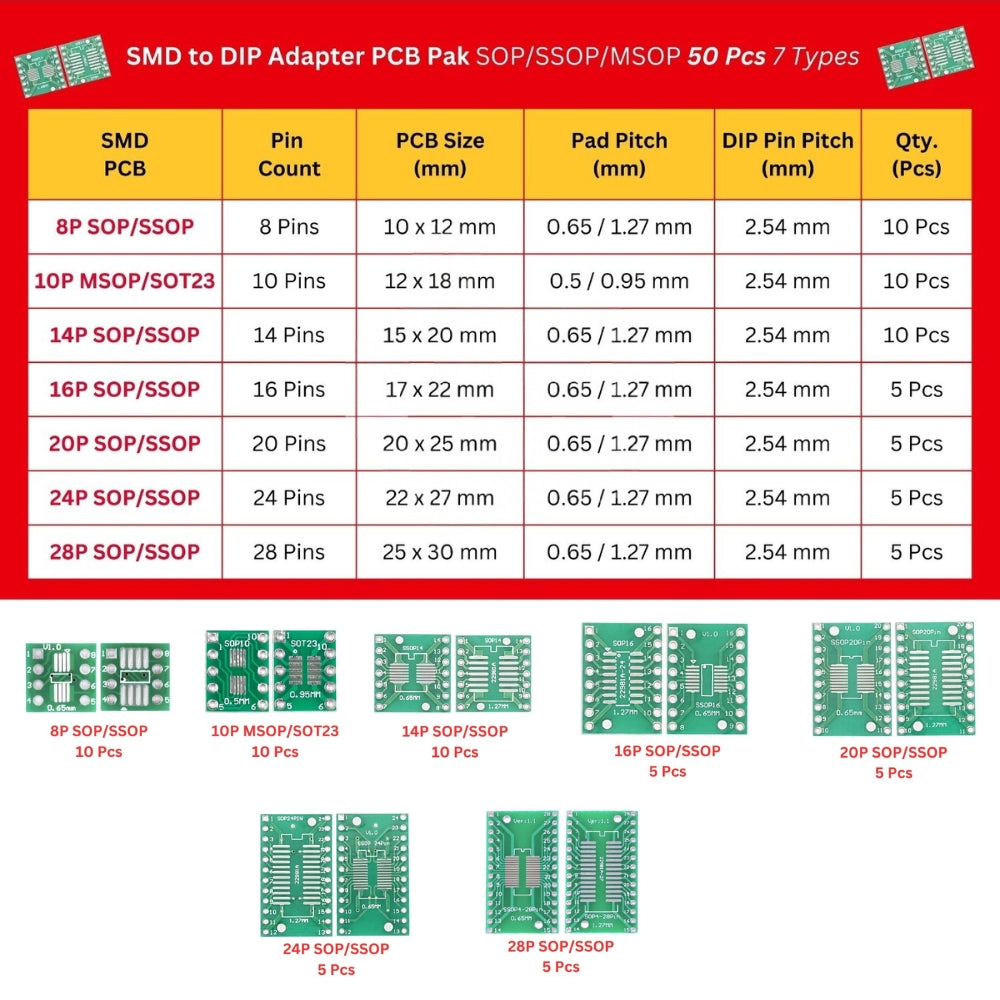

SMD to DIP PCB Adapter Kit SOP/TSSOP to DIP 8/10/14/16/20/28 Pin
An SOP/SSOP/TSOP to DIP Adapter PCB is a small printed circuit board designed to convert surface-mount integrated circuits (ICs) with Small Outline Package (SOP), Shrink Small Outline Package (SSOP), or Thin Small Outline Package (TSOP) footprints into a Dual In-Line Package (DIP) format. This allows surface-mount components to be used with breadboards, perfboards, and through-hole PCBs, making them easier to test, prototype, and integrate into various projects.
This SOP/SSOP/TSOP to DIP Adapter PCB set is designed to convert various SOP, SSOP, and TSOP surface-mount IC packages into a dual in-line package (DIP) format. These adapters make it easy to use surface-mount devices (SMDs) with breadboards, perfboards, and through-hole PCBs for prototyping and testing.
PCB Symbol:
Features:
- Easy prototyping with breadboards and DIP circuits
- Simplifies soldering of small-pitch SMD components
- Compatible with standard DIP sockets and through-hole PCBs
- Double-sided design supports multiple package types
- Gold-plated or tinned pads for reliable connections
- No need for expensive reflow soldering equipment
- Reduces risk of damage to delicate SMD components
- Useful for electronics development, testing, and repair
Applications:
- Prototyping: Easily test surface-mount ICs with breadboards and through-hole circuits
- Circuit Development: Use SMD components in DIP-based PCB designs
- Component Testing: Evaluate and troubleshoot SMD ICs before final integration
- Electronics Repair: Replace faulty SMD components with easier-to-handle DIP alternatives
- Educational Projects: Help students and beginners learn about surface-mount technology
- Custom Module Design: Convert SMD sensors, controllers, or ICs into user-friendly DIP modules
- Embedded Systems: Integrate small-pitch microcontrollers and memory ICs into experimental setups
