Description
500V OFF-Grid Solar DCDB Box with MCB, Fuse & Surge Protection
The Solar DC Distribution Box (DCDB) 500V OFF-Grid is a reliable protection and distribution solution designed for off-grid solar power systems. It safely manages DC power flow from solar panels to the inverter while providing protection against overloads, short circuits, and voltage surges.

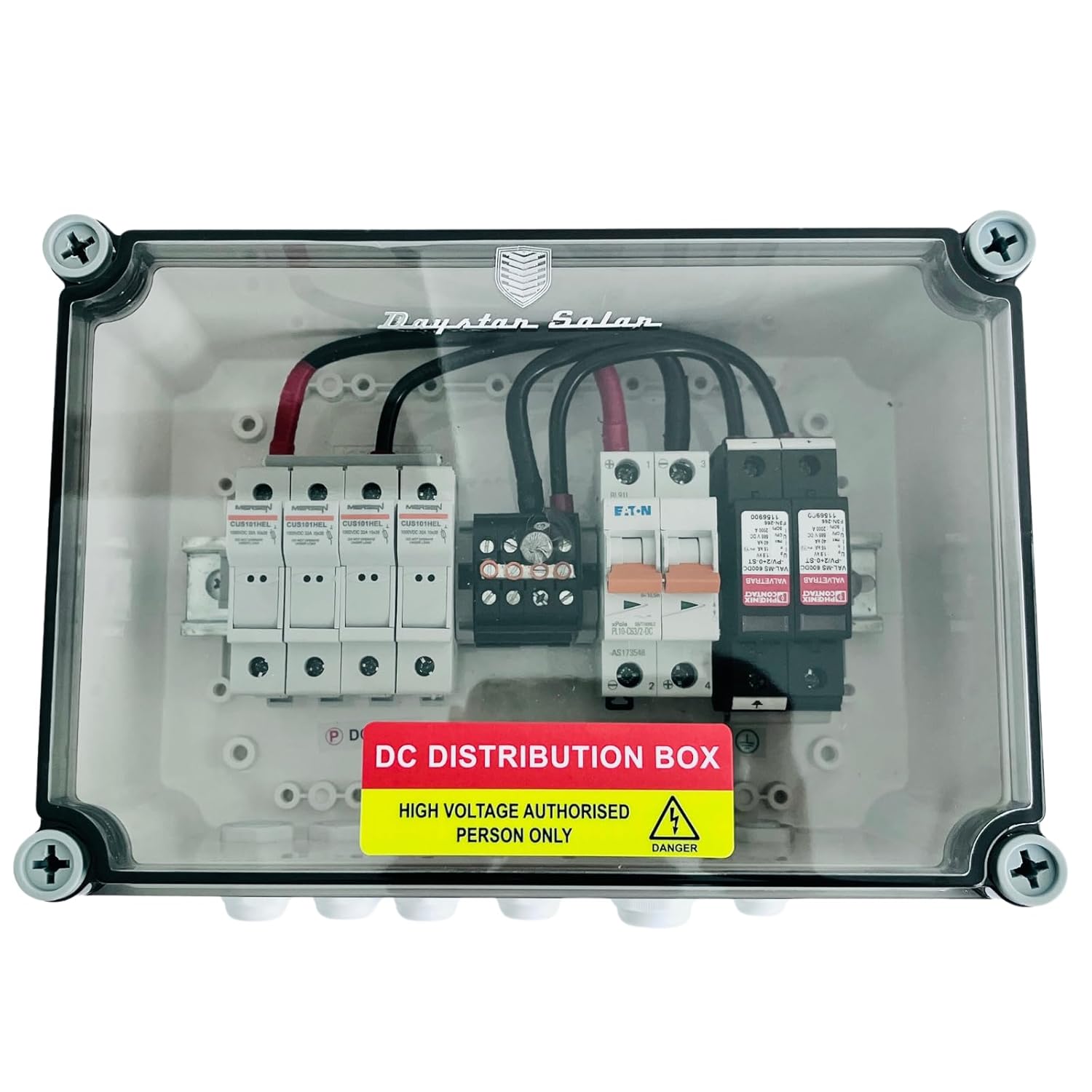

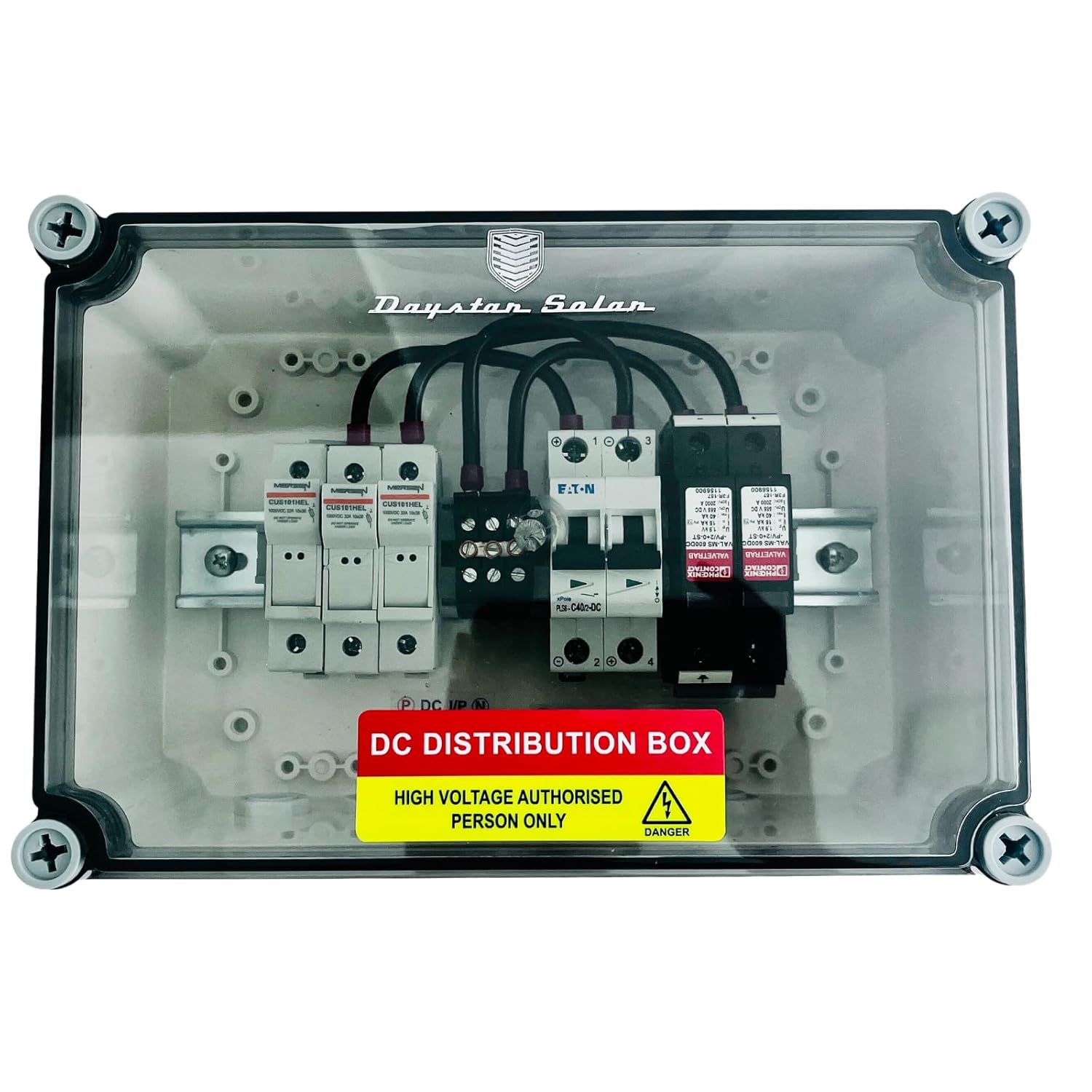

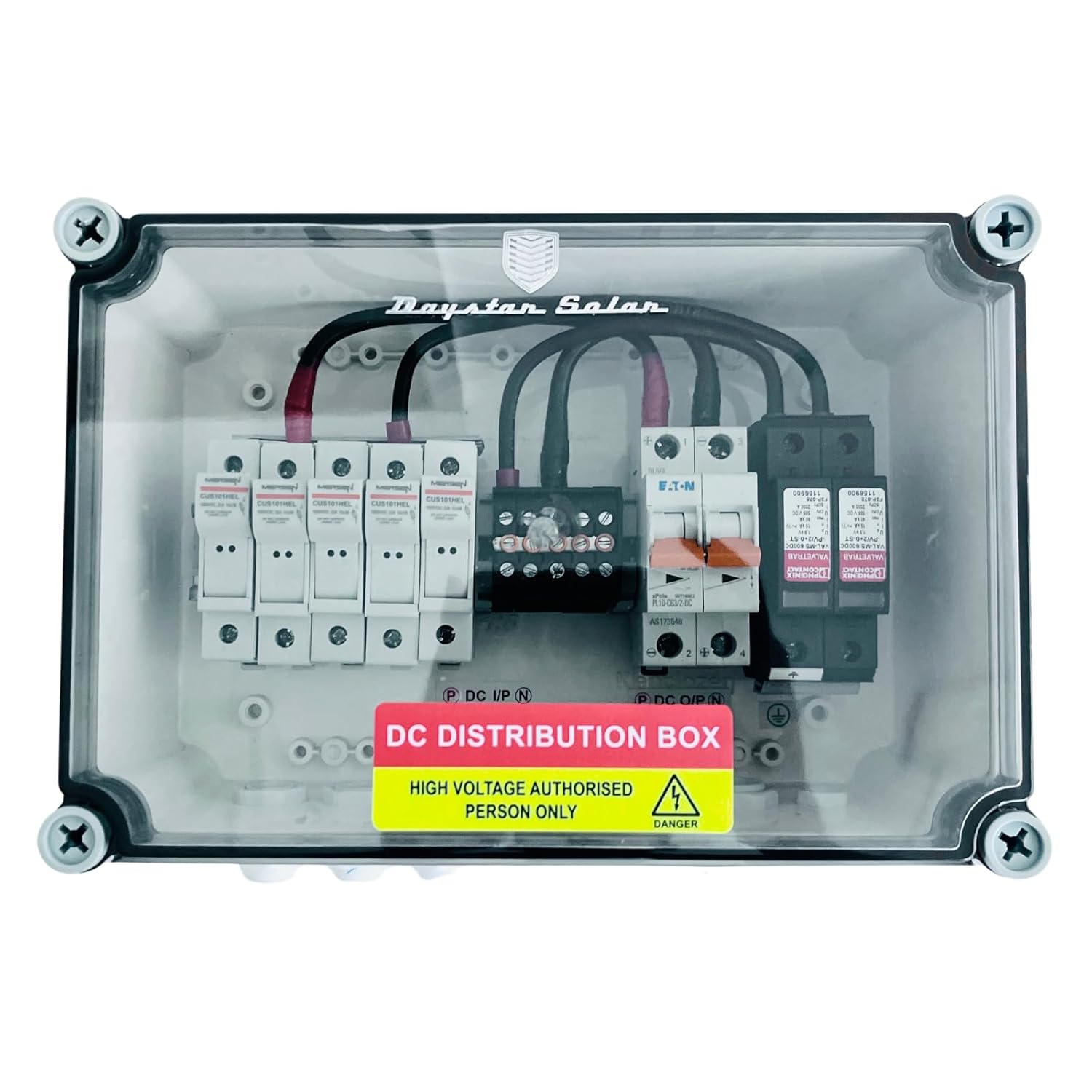

This DCDB unit comes pre-installed with essential protection components such as DC MCBs, DC fuses, and Surge Protection Devices (SPD) housed inside a durable transparent enclosure for easy inspection and maintenance. The weather-resistant enclosure helps protect internal components from dust and moisture, making it suitable for indoor and semi-outdoor solar installations.
Designed for solar PV applications, the DCDB improves overall system safety, reliability, and maintenance convenience in residential, commercial, and industrial solar setups.
Key Features
- Designed for OFF-Grid solar power systems
- Supports DC voltage up to 500V
- Integrated DC MCB protection
- Built-in DC fuse holders
- Surge Protection Device (SPD) included
- Transparent enclosure for easy monitoring
- Durable and weather-resistant body
- Safe DC power distribution and isolation
- DIN rail mounted internal components
- Compact and easy-to-install design
Typical Specifications
- Product Type: Solar DC Distribution Box (DCDB)
- System Type: OFF-Grid Solar System
- Rated Voltage: Up to 500V DC
- Protection Components:
- DC MCB
- DC Fuse
- SPD (Surge Protection Device)
- Enclosure Type: Transparent Polycarbonate/ABS Box
- Mounting Type: Wall Mount
- Application: Solar PV Protection & Distribution
- Usage: Solar Panel to Inverter DC Protection
- Protection Against:
- Overload
- Short Circuit
- Voltage Surge
- Reverse Fault Conditions
Applications
- OFF-Grid solar systems
- Solar home systems
- Solar battery charging systems
- Small commercial solar installations
- Rural and remote solar setups
- Solar power distribution protection
- PV array protection systems
Benefits of Using a Solar DCDB
- Enhances solar system safety
- Protects inverter and solar panels
- Simplifies maintenance and troubleshooting
- Provides organized DC power distribution
- Helps reduce electrical damage risks
- Improves long-term reliability of solar installations
Typical Internal Components
- DC Miniature Circuit Breaker (MCB)
- DC Fuse Holders
- Surge Protection Device (SPD)
- Terminal Blocks / Busbars
- DIN Rail Mounting Assembly
Why Choose This Solar DCDB?
- Reliable DC-side solar protection
- Compact and professional installation solution
- Pre-assembled and ready to use
- Suitable for OFF-grid solar applications
- Durable enclosure with transparent cover
- Easy wiring and inspection access
