Description
High Precision Flex Bend Sensor for Motion Detection and Robotics
The Spectra Symbol Flex Sensor is a highly sensitive bend detection sensor designed to measure flex and angle displacement in physical systems. As the sensor bends, its resistance changes, allowing accurate measurement of motion and position when connected to microcontrollers like Arduino or Raspberry Pi.

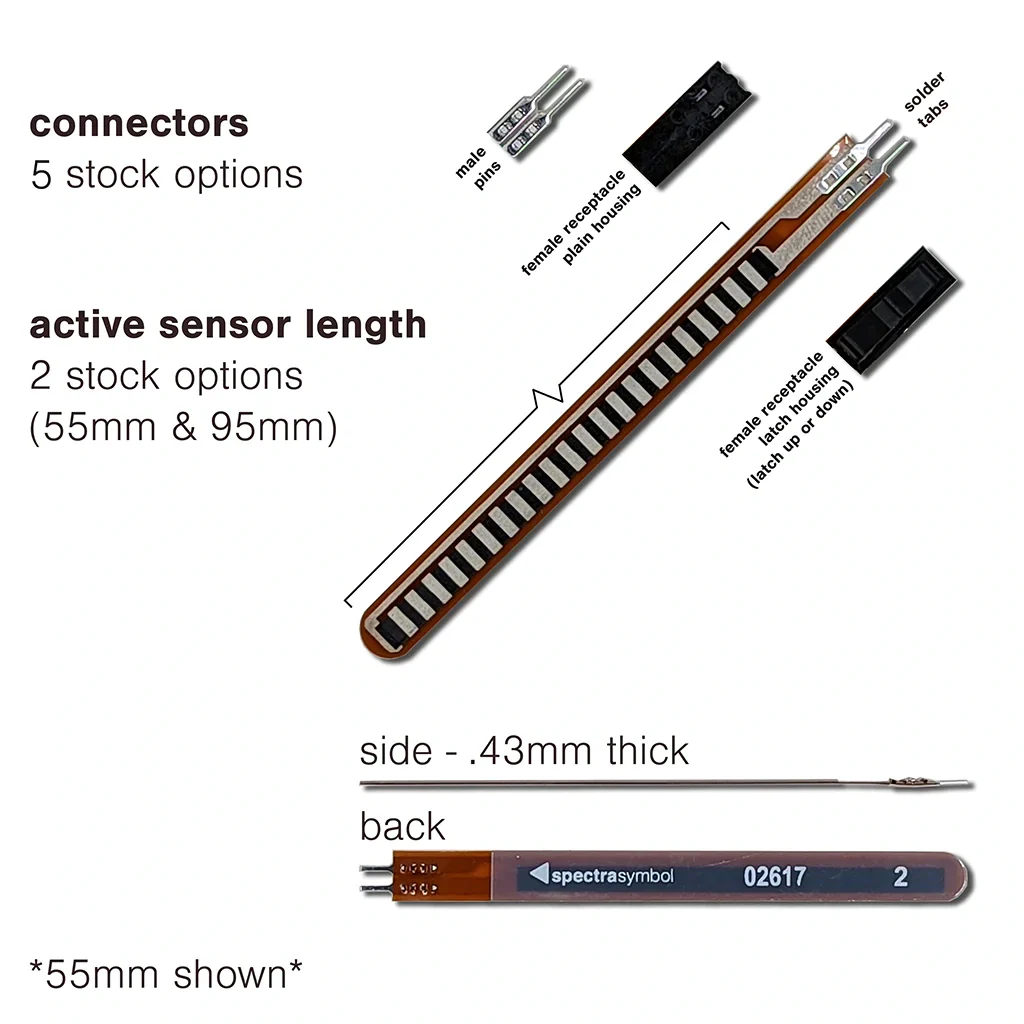

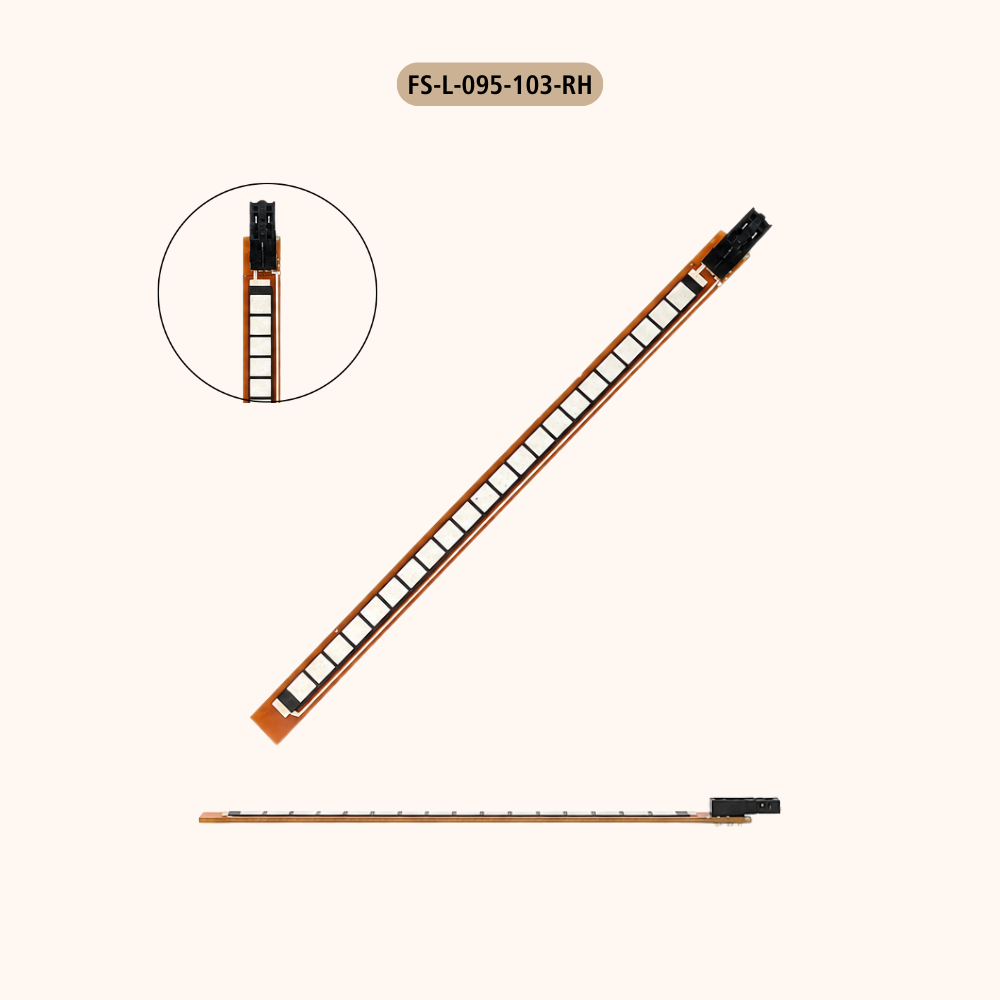

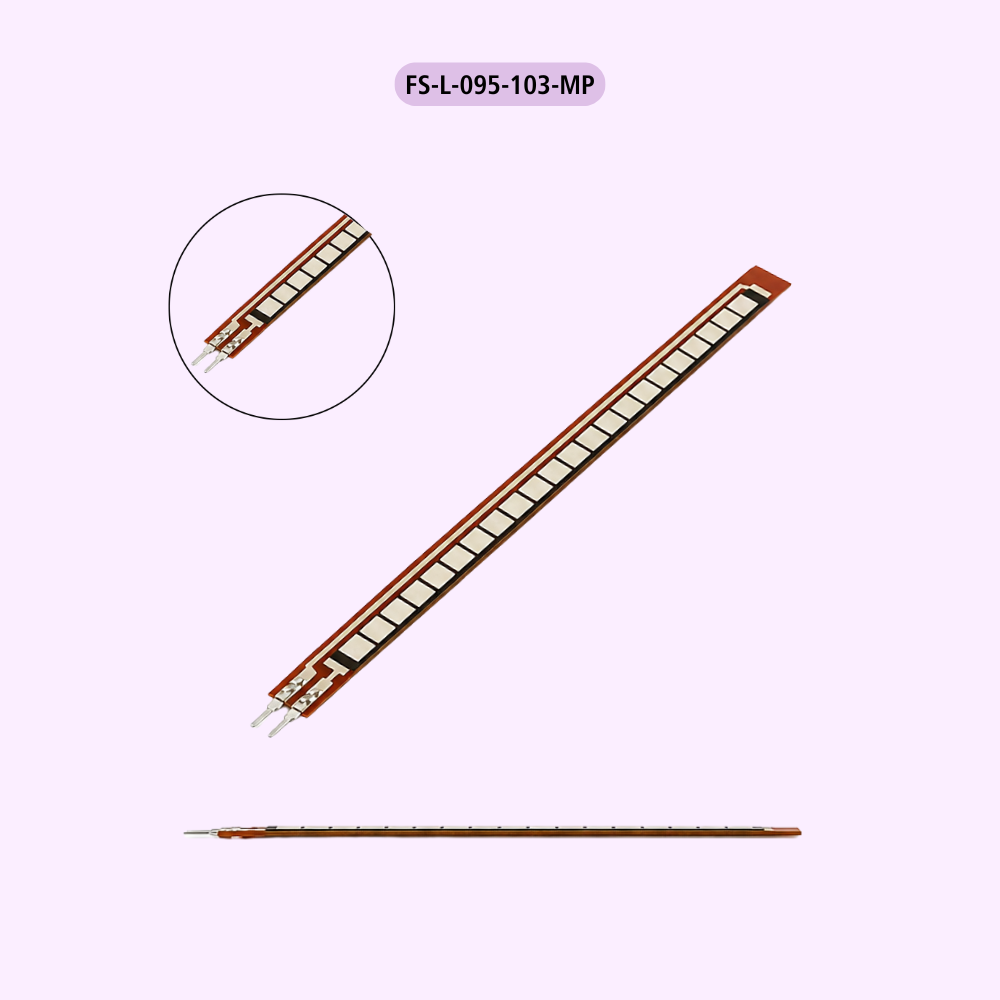

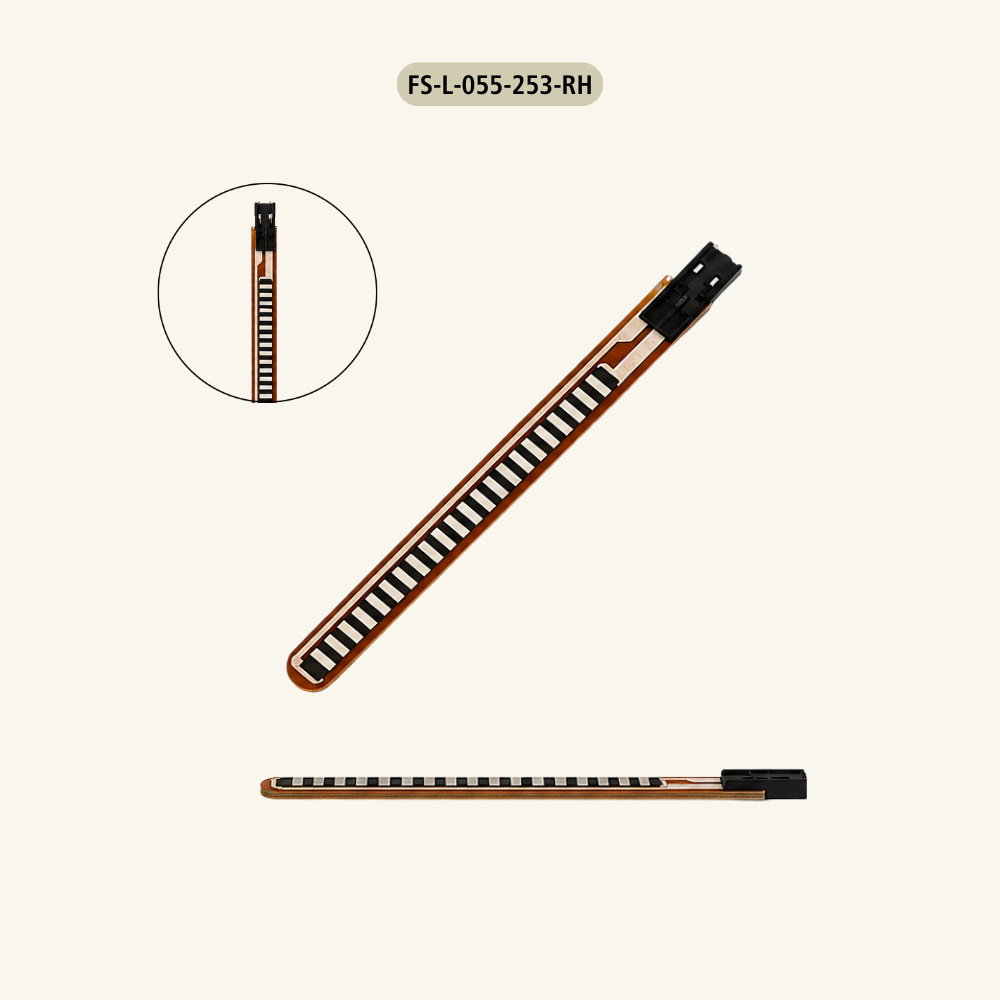

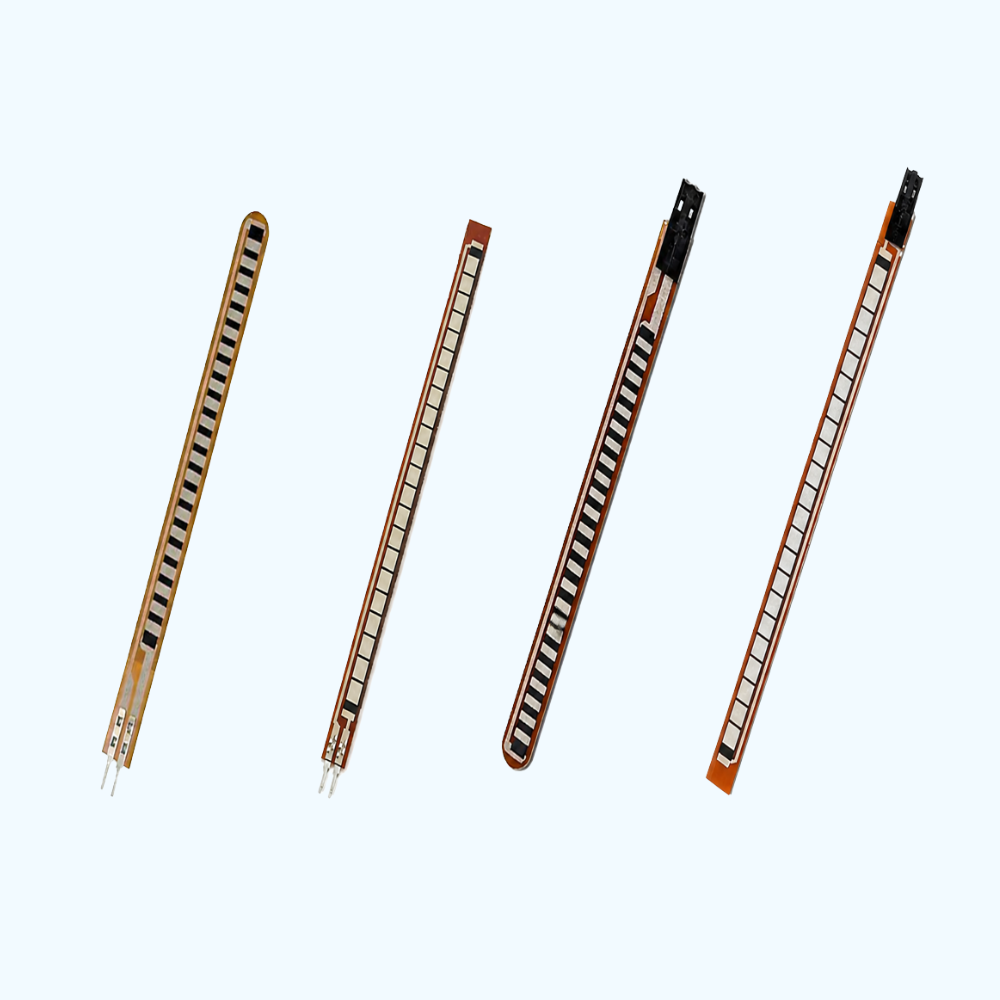

Available in multiple variants including different lengths such as 55mm, 80mm, and 95mm, and connector types like male pin and female housing, this sensor is ideal for a wide range of applications including robotics, wearable devices, gaming, and medical systems.
Key Features
- Accurate bend and angle detection.
- Resistance changes based on flex.
- Multiple length and connector variants available.
- Breadboard friendly male pin versions.
- Female housing connector for secure integration.
- Long life cycle over 1 million flexes.
- Low profile and lightweight design.
- Easy integration with microcontrollers.
- Suitable for wearable and motion sensing applications.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Flex Bend Sensor |
| Brand | Spectra Symbol |
| Sensor Length Options | 55mm 80mm 95mm |
| Resistance Flat | 10K Ohm or 25K Ohm depending on variant |
| Resistance Tolerance | ±30% |
| Interface | Analog Resistance Output |
| Connector Type | Male Pins or Female Housing |
| Power Rating | 0.5W Continuous 1W Peak |
| Life Cycle | Greater than 1 Million Cycles |
| Thickness | Approx 1mm |
| Mounting Type | Custom Mount |
Applications
- Robotics and robotic arms.
- Gesture recognition systems.
- Gaming controllers and virtual motion.
- Wearable devices and smart gloves.
- Medical devices and rehabilitation systems.
- Musical instruments.
- Computer peripherals.
- Physical therapy monitoring.
Precautions
- Do not bend the base of the sensor.
- Only bend the sensing area.
- Avoid sharp or excessive bending.
- Handle carefully to prevent damage.
- Do not apply excessive force.
- Store in a dry and safe environment.
