Description

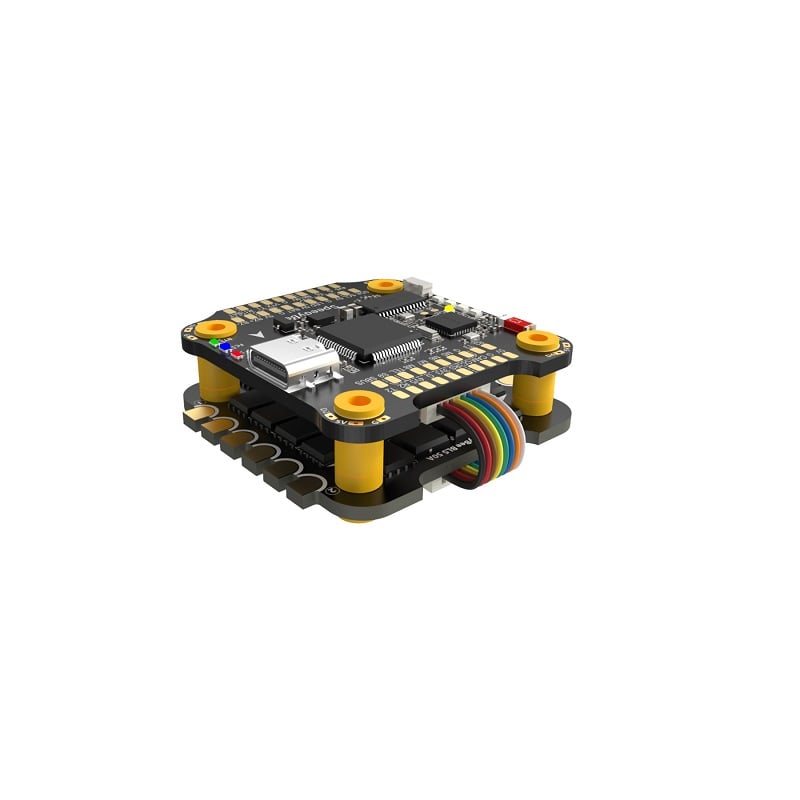

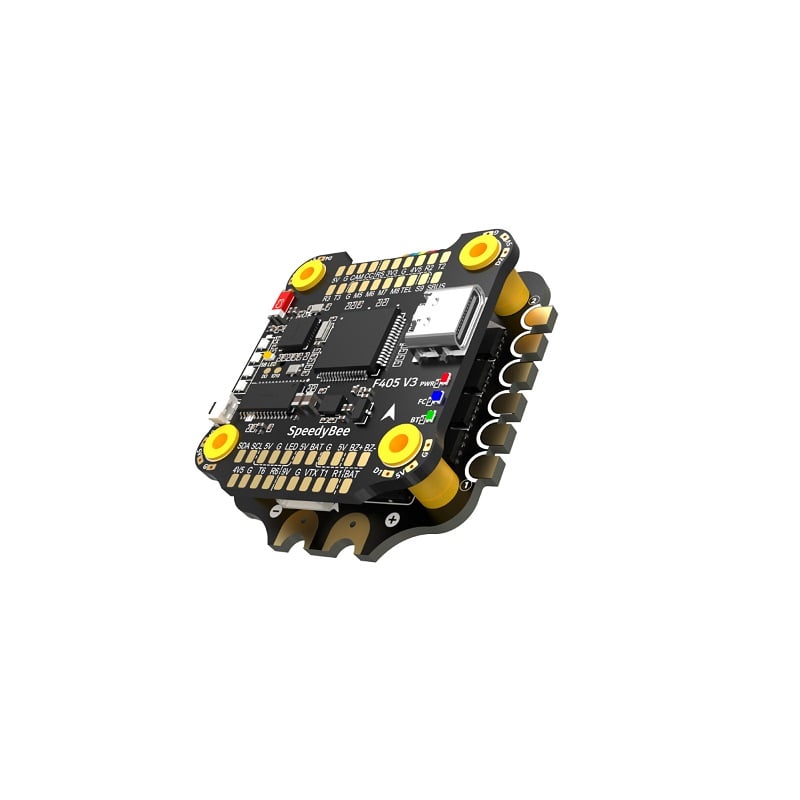

SPEEDYBEE F405 V3 Flight Controller
You will get an STM32F405 FC (better than F411), onboard 4-level battery life indicator, 4GB Blackbox SD card slot for your flight logs, 4 groups of LED strip pads, complete with a DJI plug for your digital quad, and built-in Bluetooth
for wireless configuration on the SpeedyBee app. Don’t forget about the powerful 50A 4-in-1 ESC, built with TVS
protective diode + Japan-made TDK SMT capacitors + external 1500uF low ESR capacitor, everything is for durable build and smooth flight.
for wireless configuration on the SpeedyBee app. Don’t forget about the powerful 50A 4-in-1 ESC, built with TVS
protective diode + Japan-made TDK SMT capacitors + external 1500uF low ESR capacitor, everything is for durable build and smooth flight.
Features:
- Built-in barometer for accurate height calculation
- SD Card slot can support up to 4GB Blackbox data
- Dedicated DJI Air Unit connector for a quick digital build
- 9V 2A + 5V 2A individual BECs
- 4 x UARTs for your receiver + VTX + camera + GPS.
- Power your GPS with a USB cable – no battery needed
Package Includes:
1 x SpeedyBee F405 V3 Flight Controller
1 x Speedy Bee BLS 50A 4 IN 1 ESC
1 x 35V 1500 uF low ESR Capacitor
1 x M3 nylon nut
5 x M3 Silicone O ring
5 x M3*8mm Silicone grommets(for FC)
5 x M3*8.1mm Silicone grommets(for FC)
1 x SH 1.0mm 15 mm length 8 pin capable( for FC-ESC connection)
5 x M3*30mm inner hexagon screws
1 x DJI 6 pin capable (80mm)
1 x XT60 Power cable(70mm)
