5 line 4 phase ULN 2003 Stepper Motor Driver - Without Motor

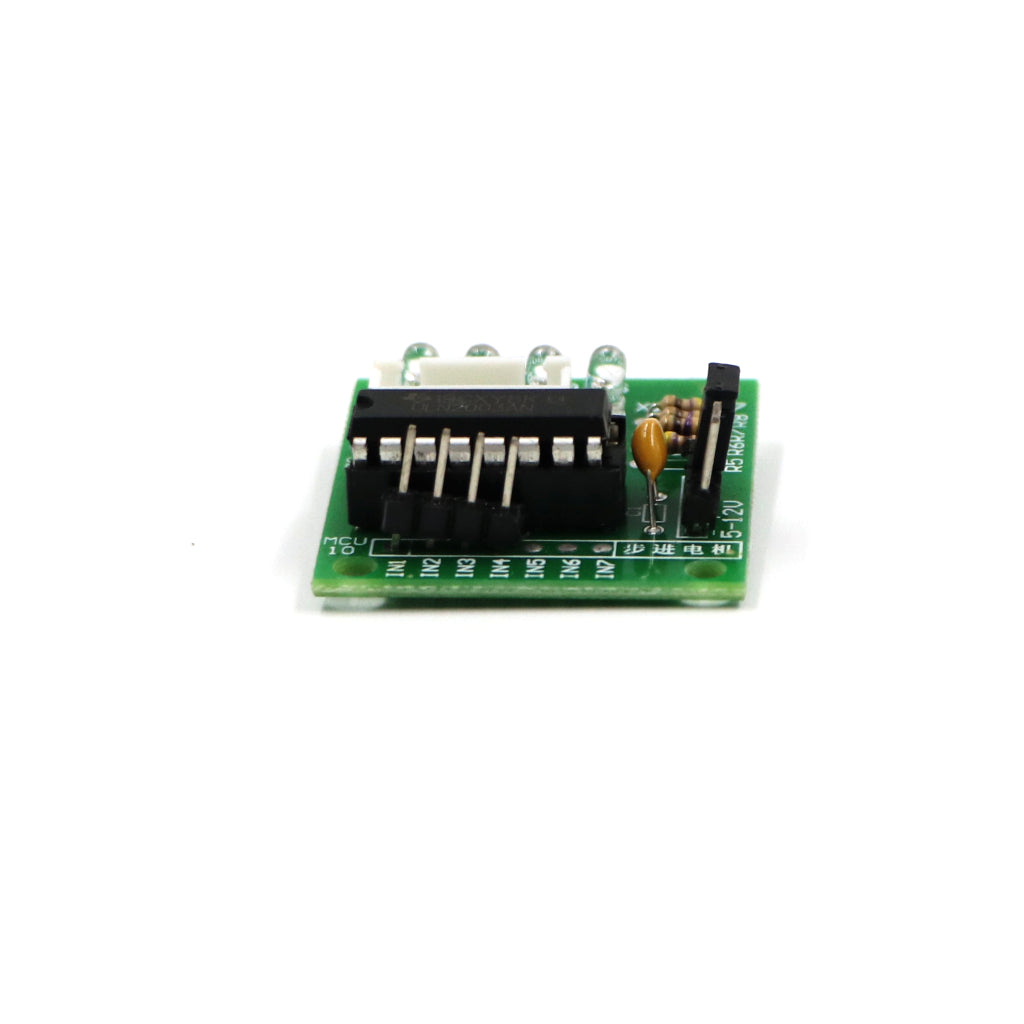

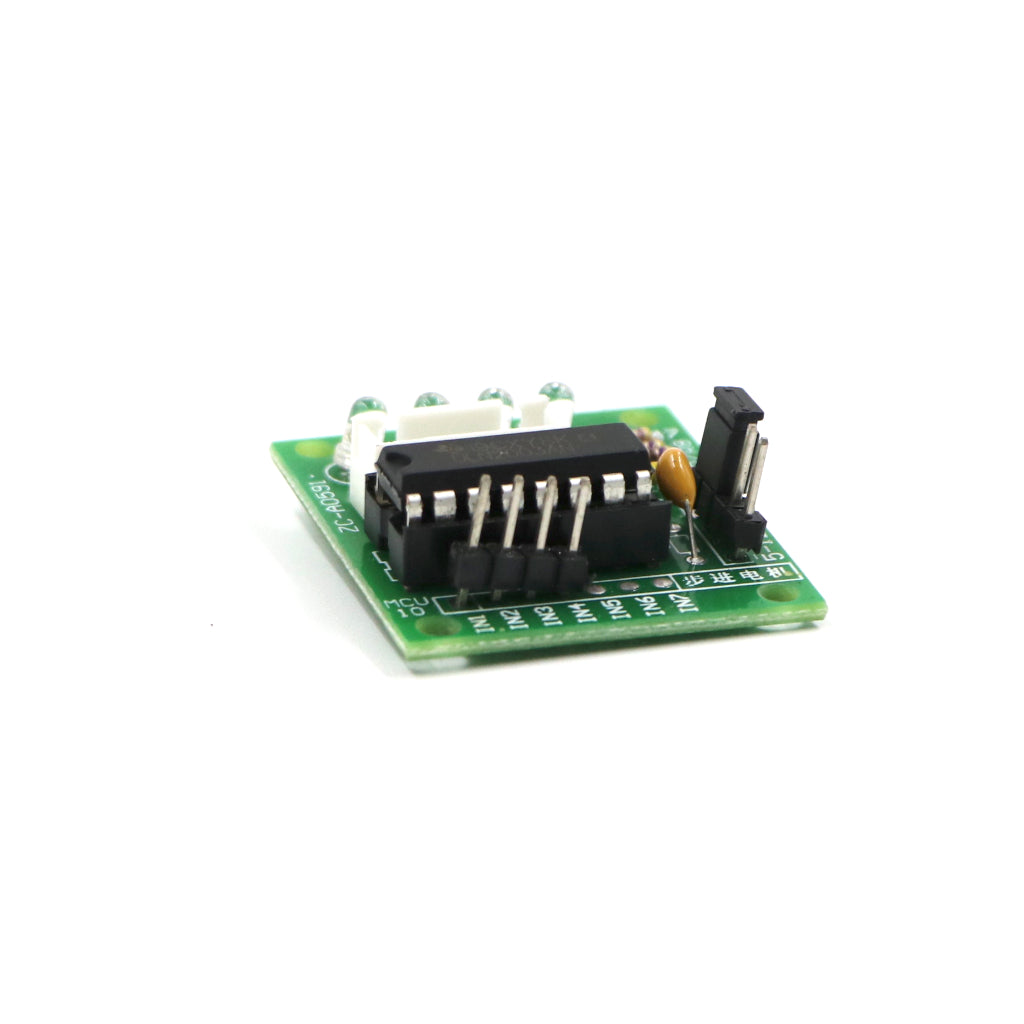

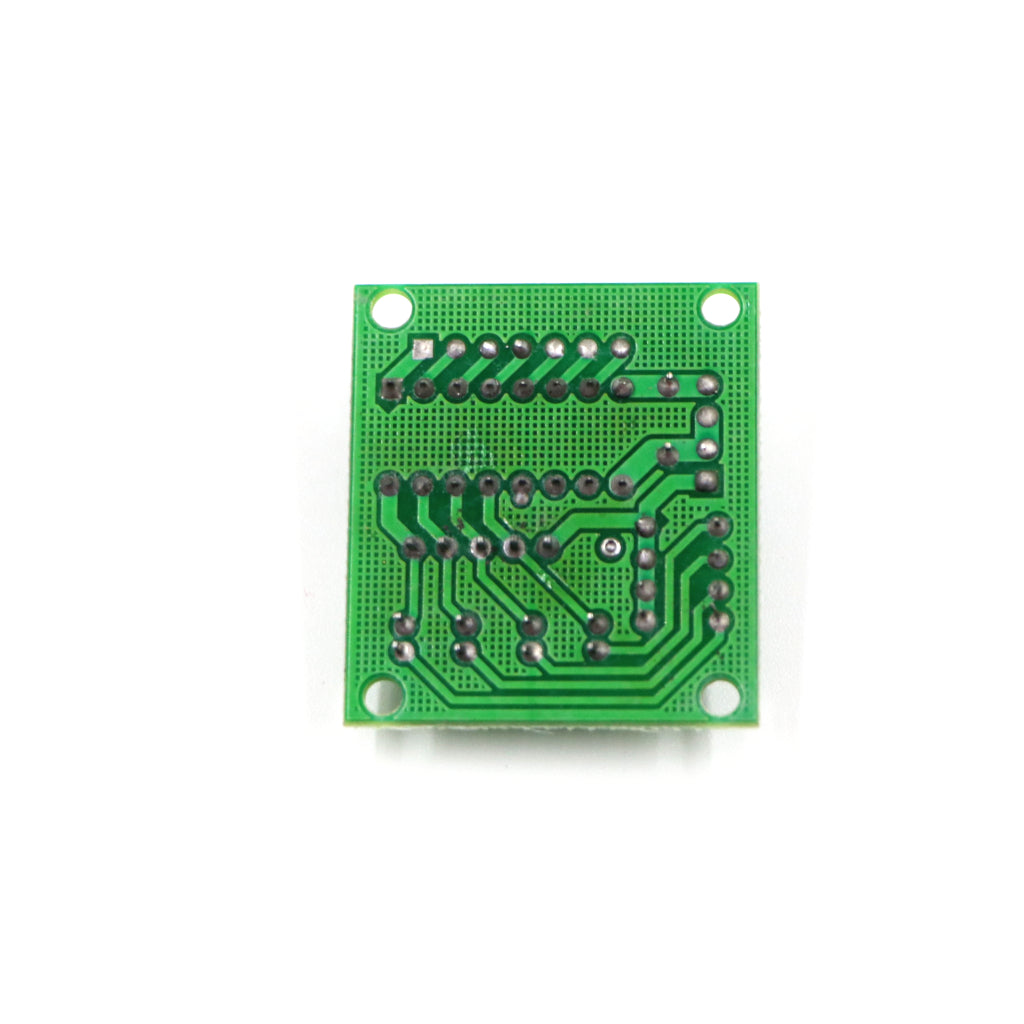

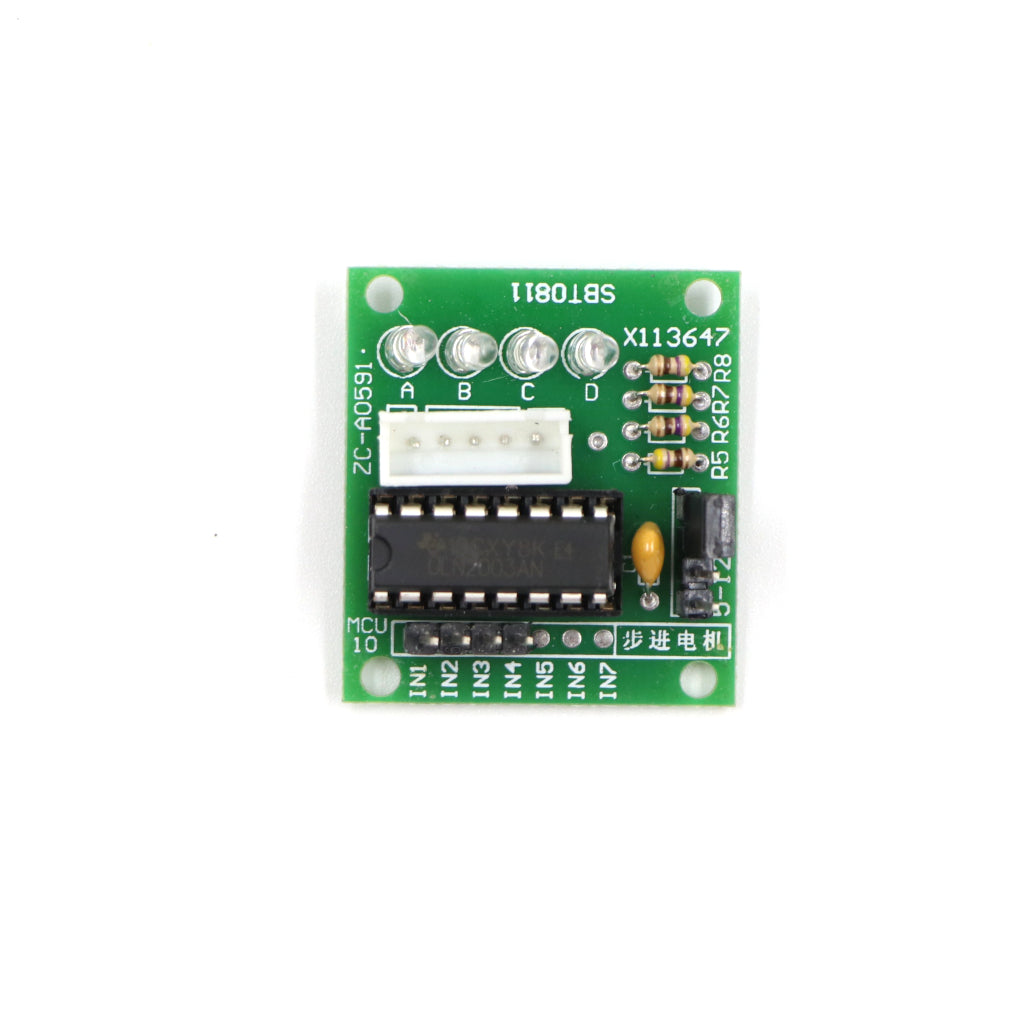

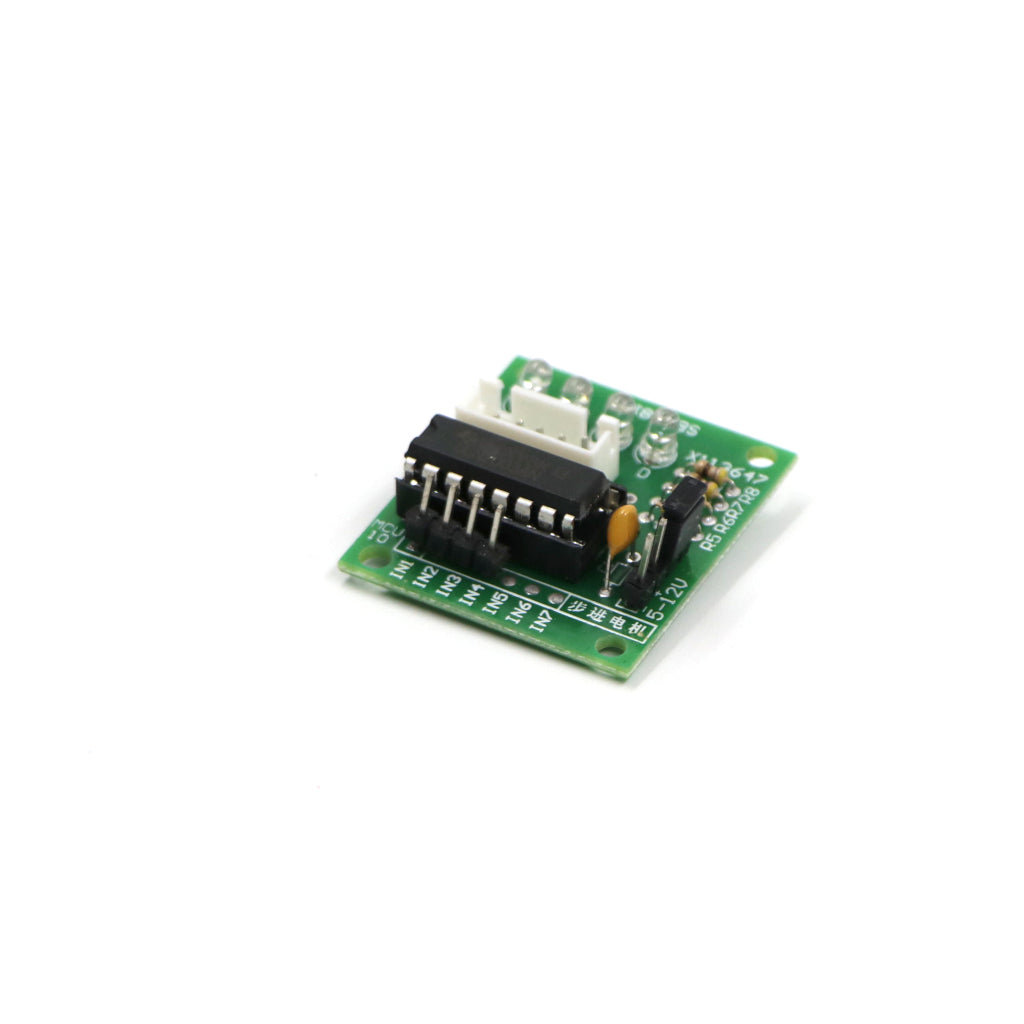

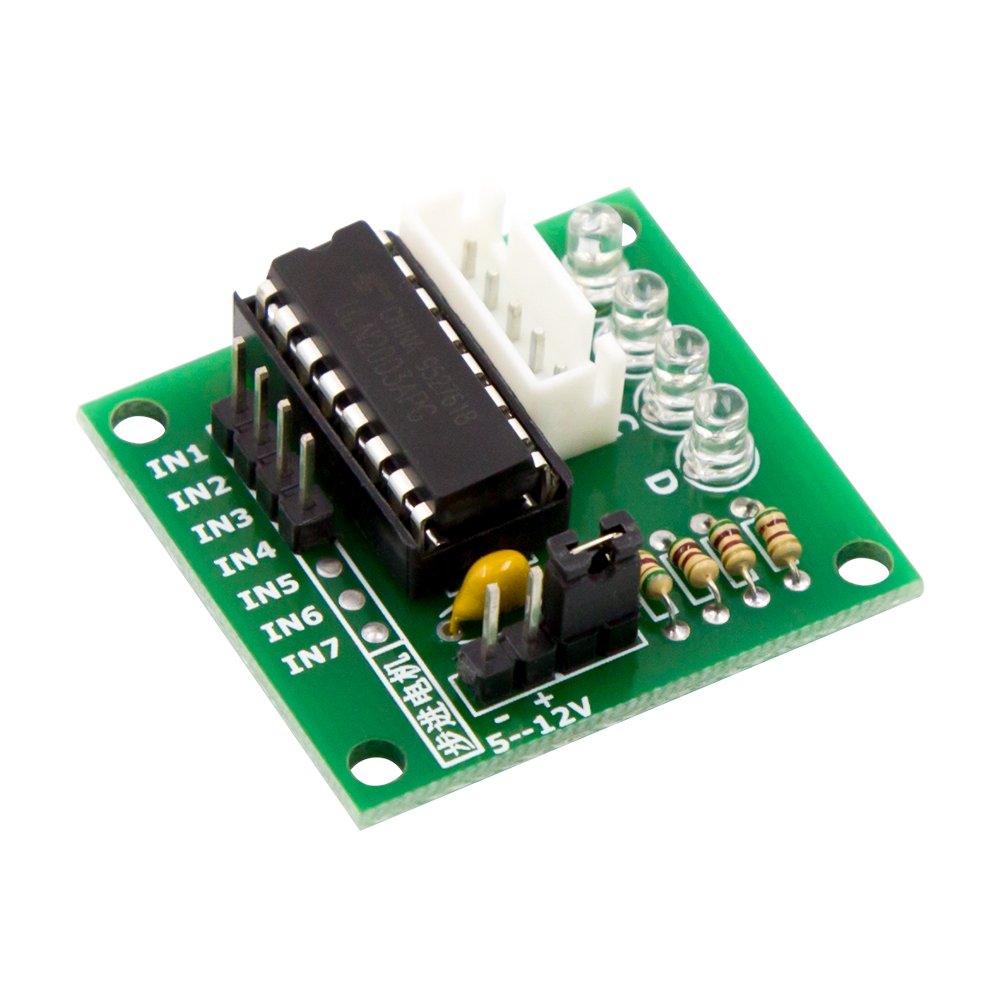

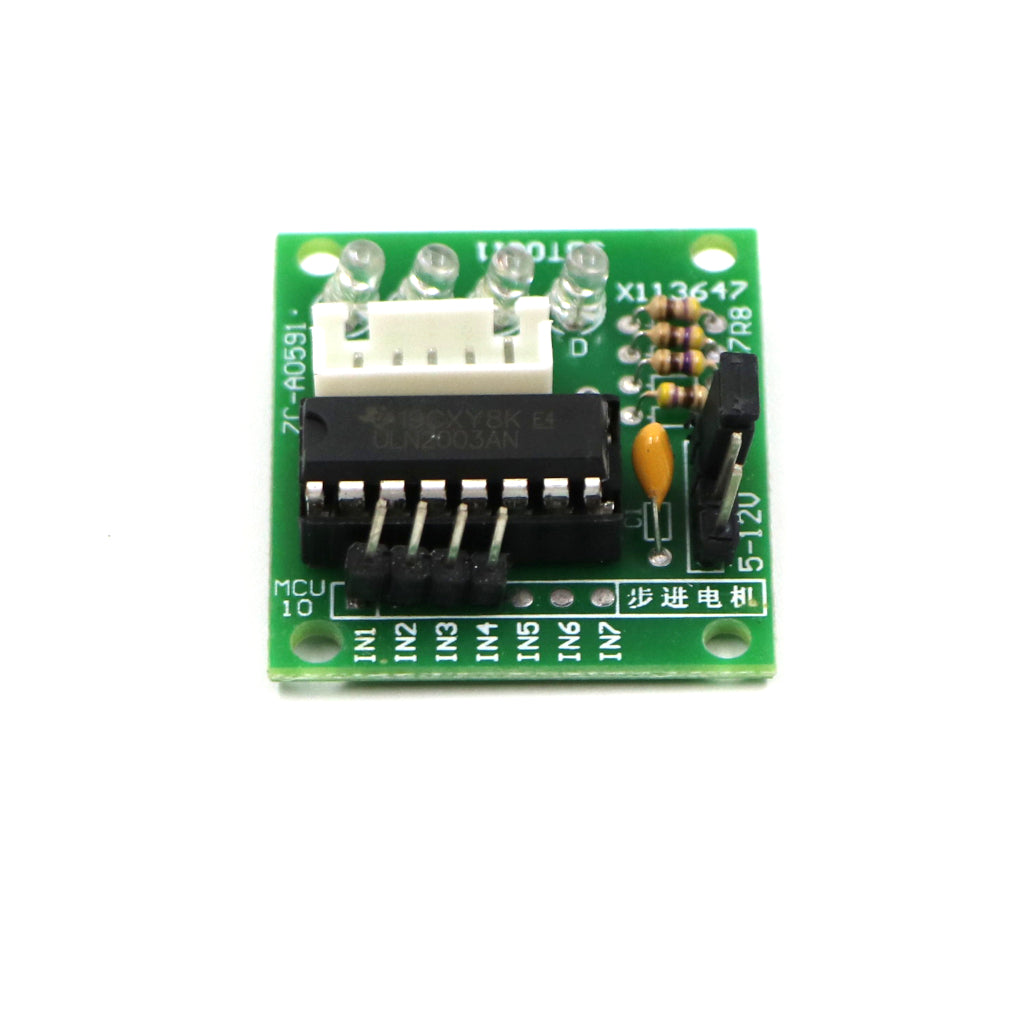

This is the ULN2003 Driver Module Stepper Motor Driver Board for driving and controlling stepper motors.
ULN2003 Stepper Motor Driver Board uses the ULN2003 DARLINGTON ARRAYS to drive the 4-phase 5-wire stepper motor (5v-12v).
It’s easy to use Arduino or another development platform to drive the stepper motor by this diver board.
The 5 Line 4 Phase Motor can be driven by an ordinary ULN2003 chip.
Specifications:
| Step Angle |
5.625°/64 |
| Reduction ratio |
1/64 |
| Phase |
4 |
| Current/Phase |
5V |

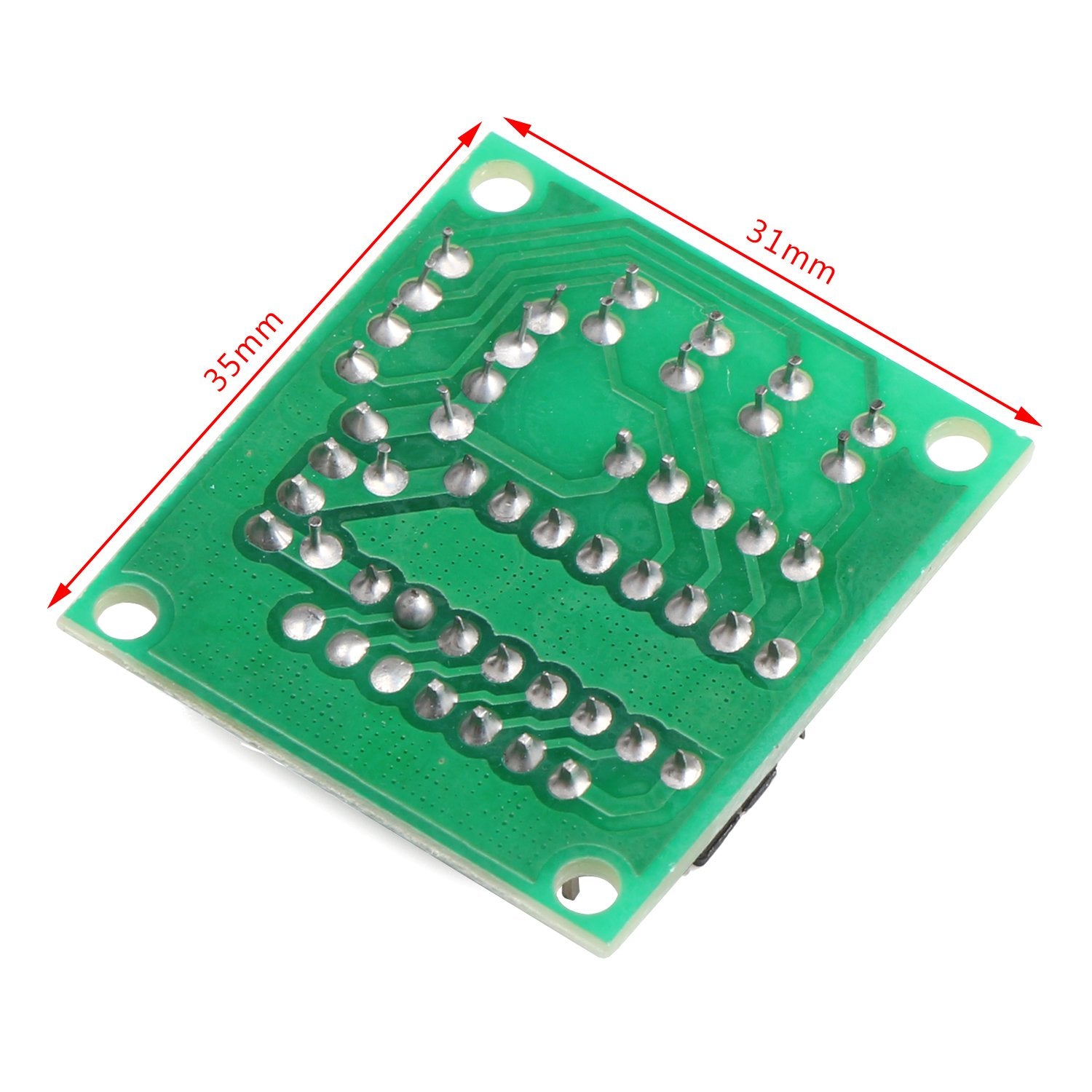

| Dimensions in mm (LxWxH) |
35x32x10 |
| Shipment Dimensions |
5 × 4 × 3 cm |
Features :
- ULN2003A motor driver chip
- Chip all the pins already leads for easy connection to use
- 5-12V power supply
- 4-way signal indicator
Package Includes :
1 x ULN2003 Driver Module Stepper Motor Driver Board
