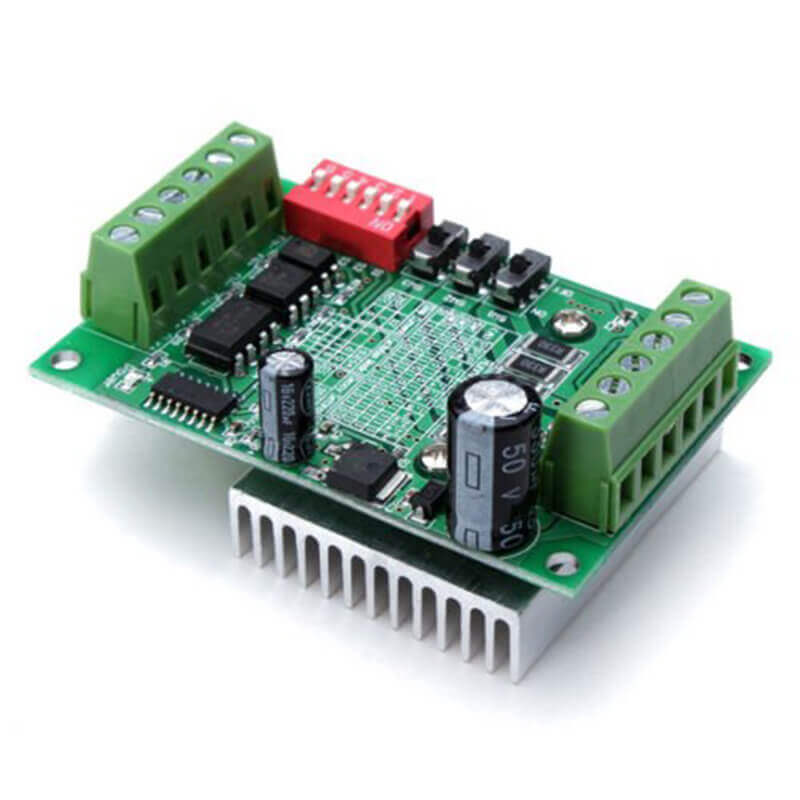

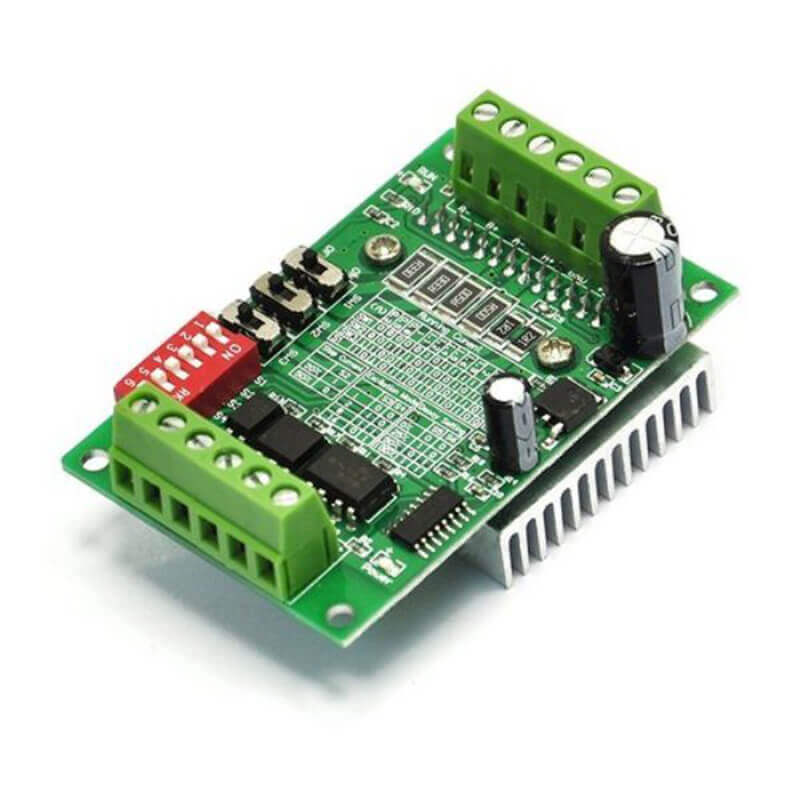

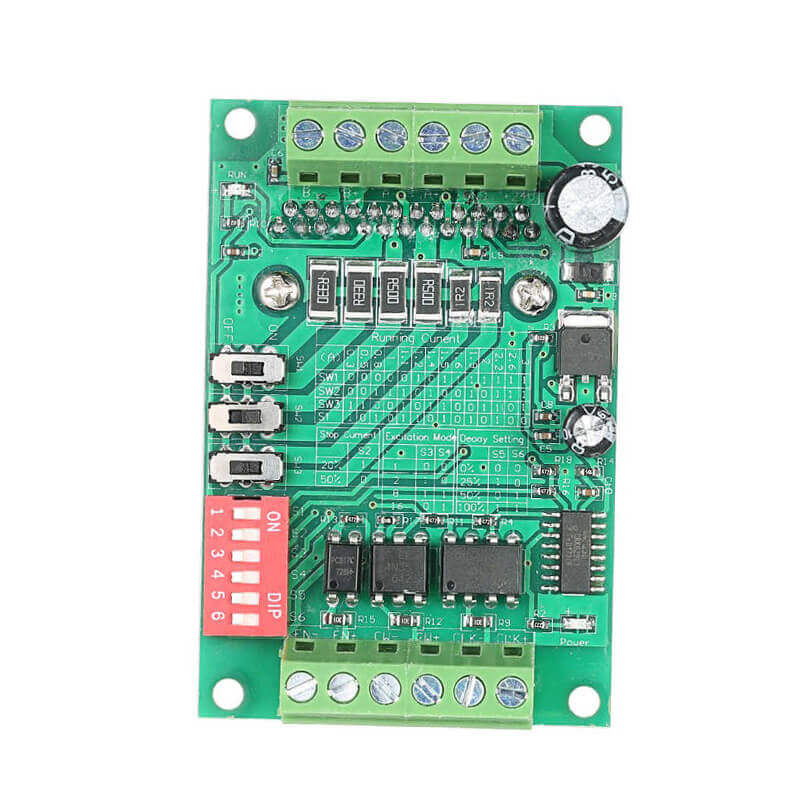

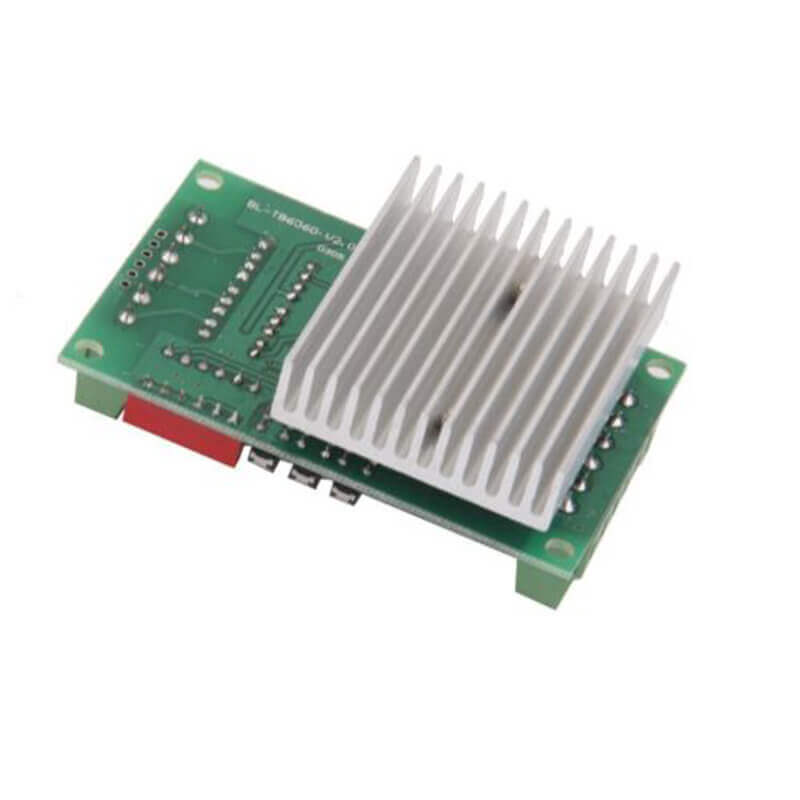

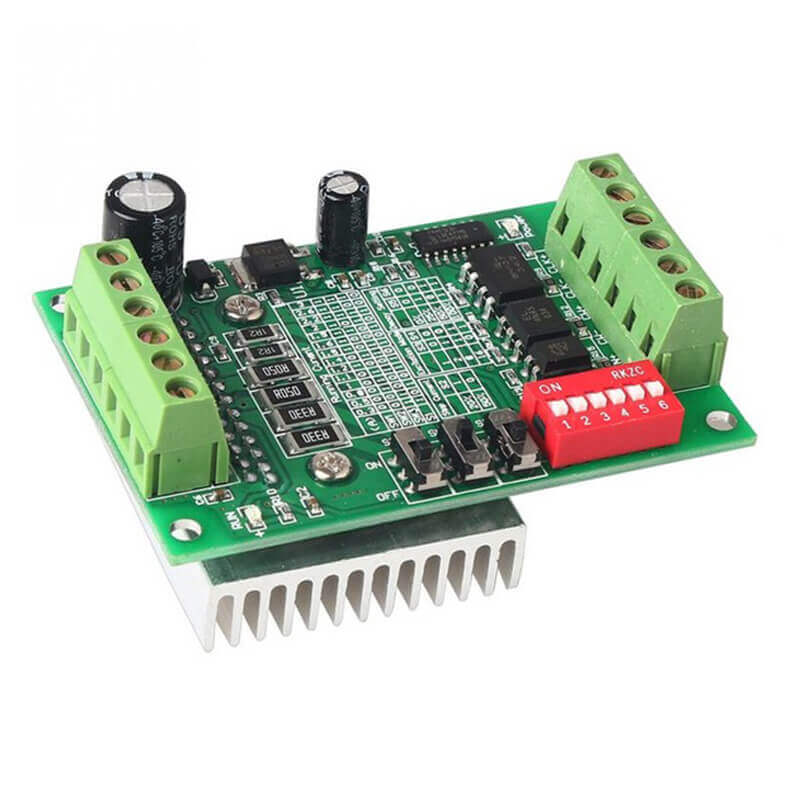

TB 6560 Driver Board 3 A CNC Router Single 1 Axis Controller Stepper Motor
Rated maximum output: ± 3A, peak 3.5A
Working voltage: DC 10V-35V
Recommended to use a switching power supply: DC24V power supply
- Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 Subdivisions.
The TB6560 new original chip can be used easily and provides features like low voltage shutdown, overheating stop and over current protection circuit to ensure optimal performance.
For two-phase within 42, 57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor.
Automatic half current function. The current is adjustable to meet the demands of different applications.
