Ultra Small L298N | Mini Dual Channel Motor Controller for Smart Cars & DIY Projects

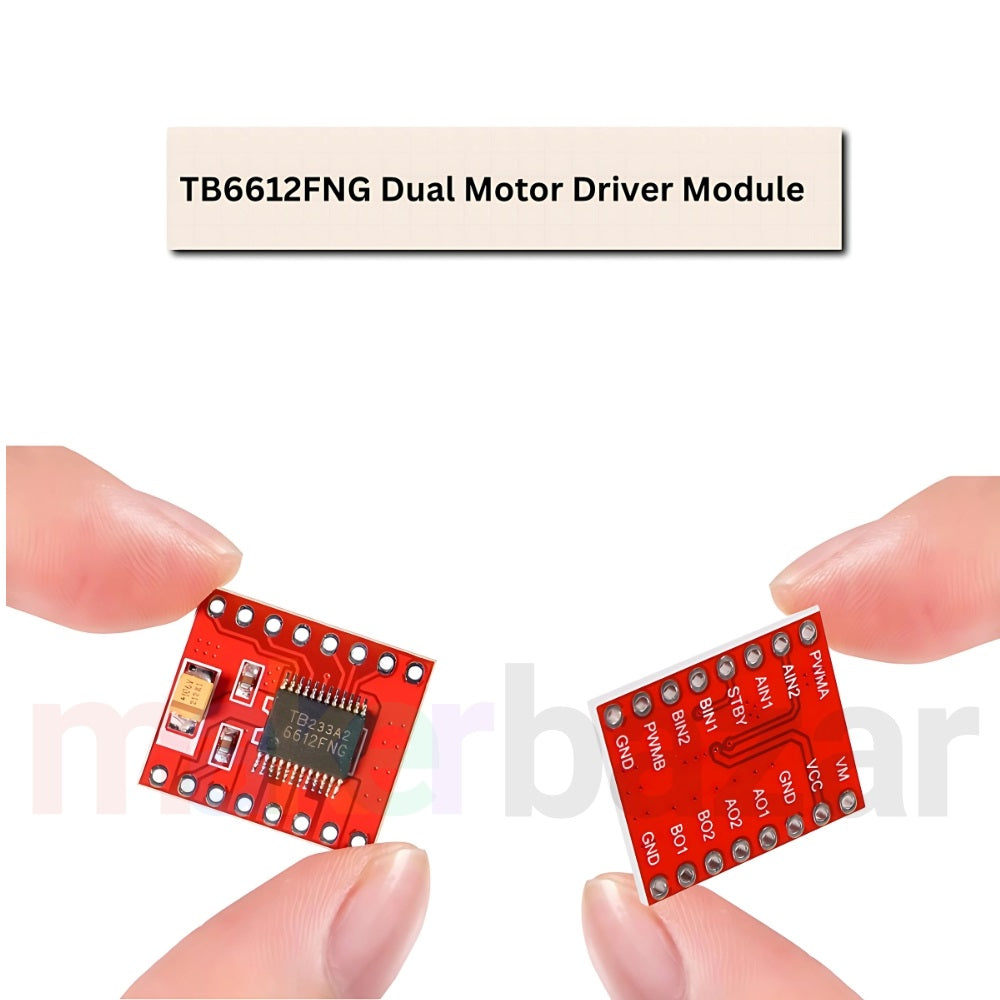

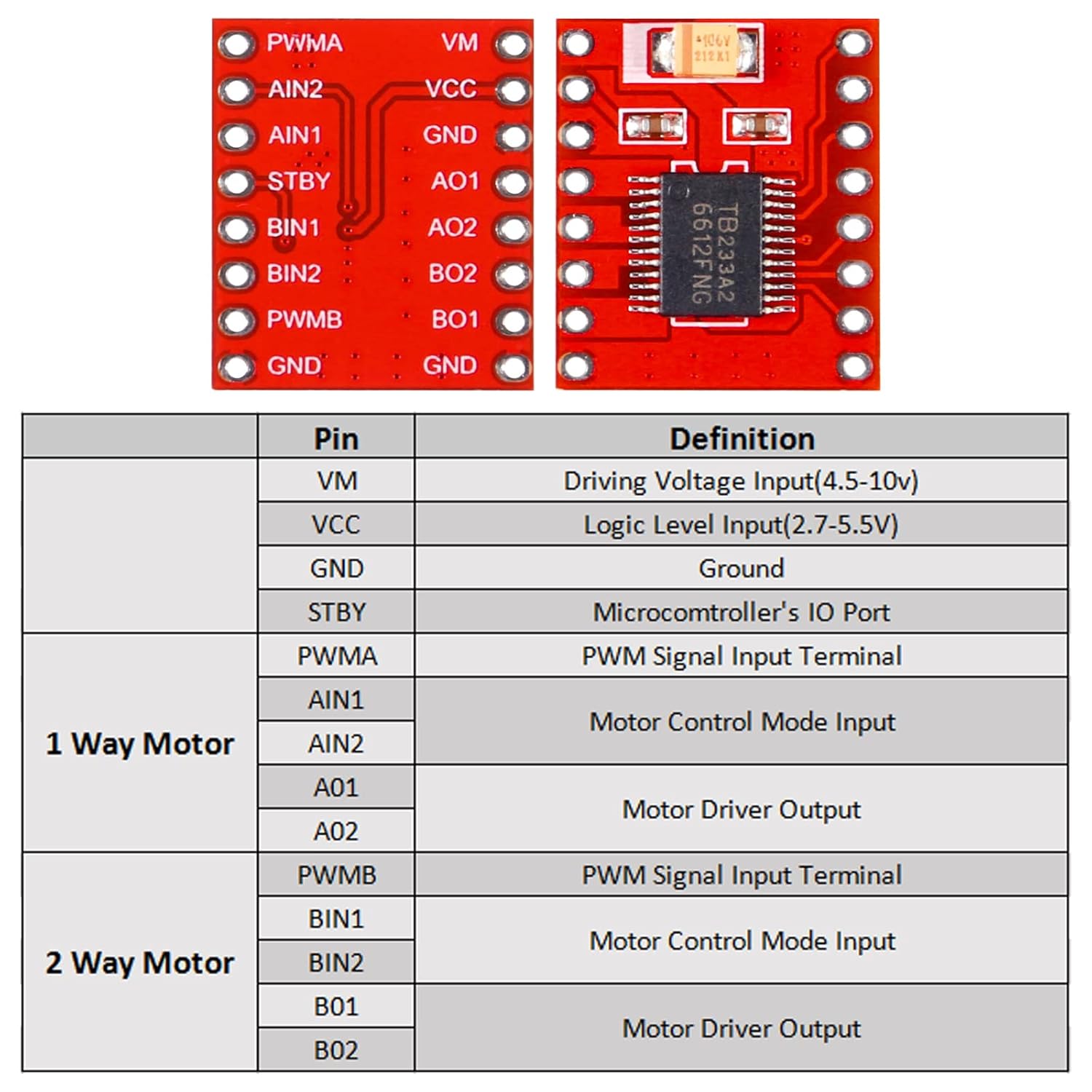

The TB6612FNG Dual Motor Driver Module is a high-efficiency MOSFET-based H-bridge motor controller designed for driving DC motors and 4-wire stepper motors. It offers built-in protection features like overcurrent, short circuit, undervoltage lockout, and over-temperature protection, ensuring safe and reliable operation. With a simple peripheral circuit and no need for external heat sinks, this module is easy to use, compact, and perfect for robotics, smart car projects, and various DIY applications.
Specifications:
- Model: TB6612FNG Motor Driver Module
- Input Voltage: 2.5V to 13.5V
- Continuous Current: 1.2A per channel
- Peak Current: 3.2A (single pulse)
- Driver Type: Dual H-bridge (MOSFET based)
- Compatible Motors: DC motors, 4-wire stepper motors
- Protection Features: Overcurrent, short circuit, undervoltage lockout, over-temperature
- Control Interface: PWM input
- Sleep Mode: Low-power sleep mode supported
- Size: Compact, easy to integrate
- Ideal For: Arduino, Raspberry Pi, Robotics, DIY projects
