Description

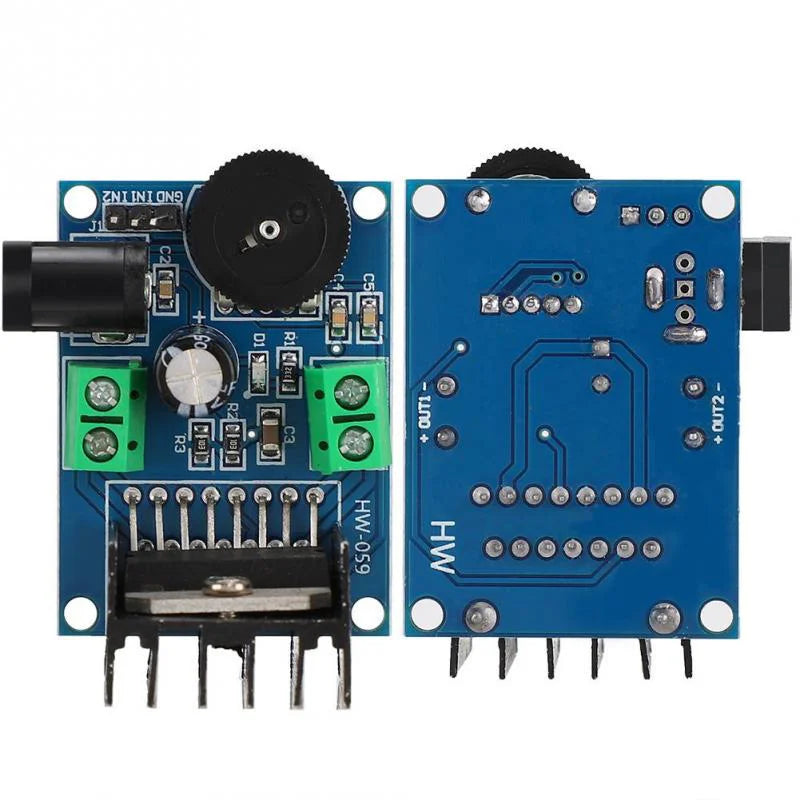

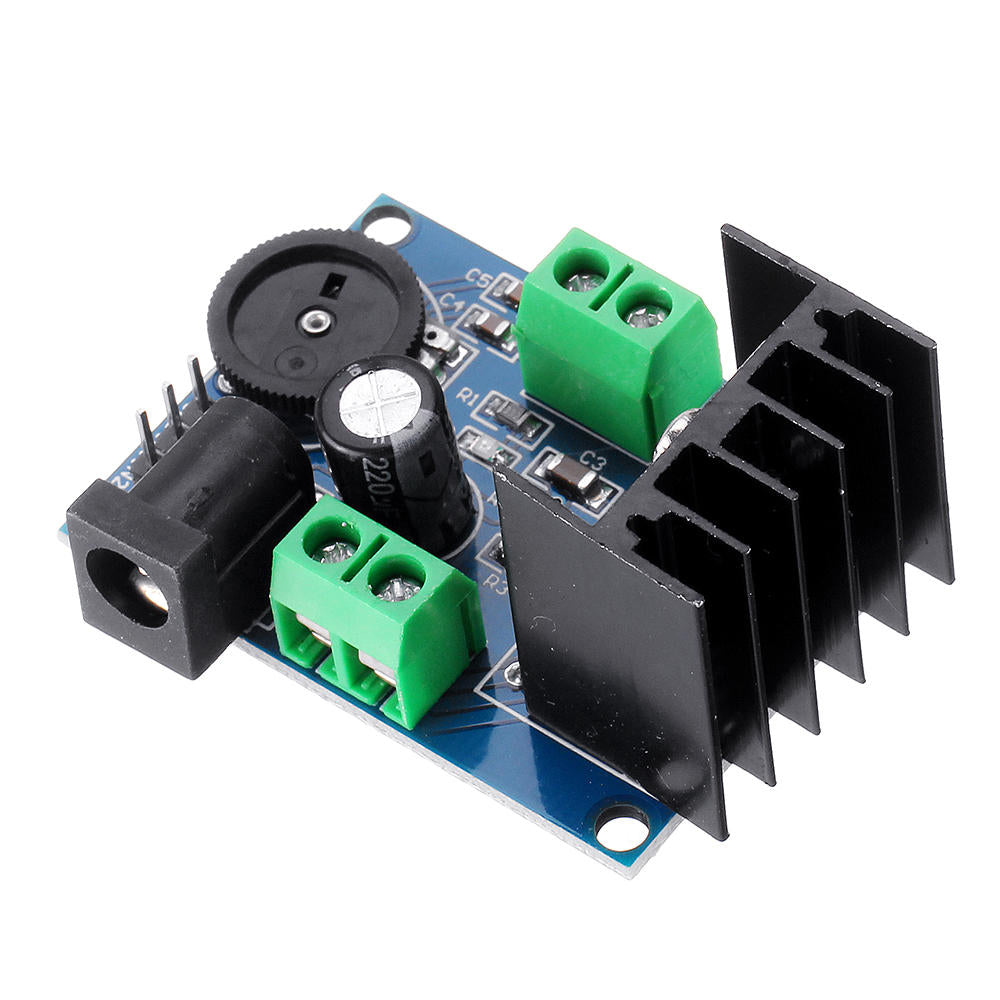

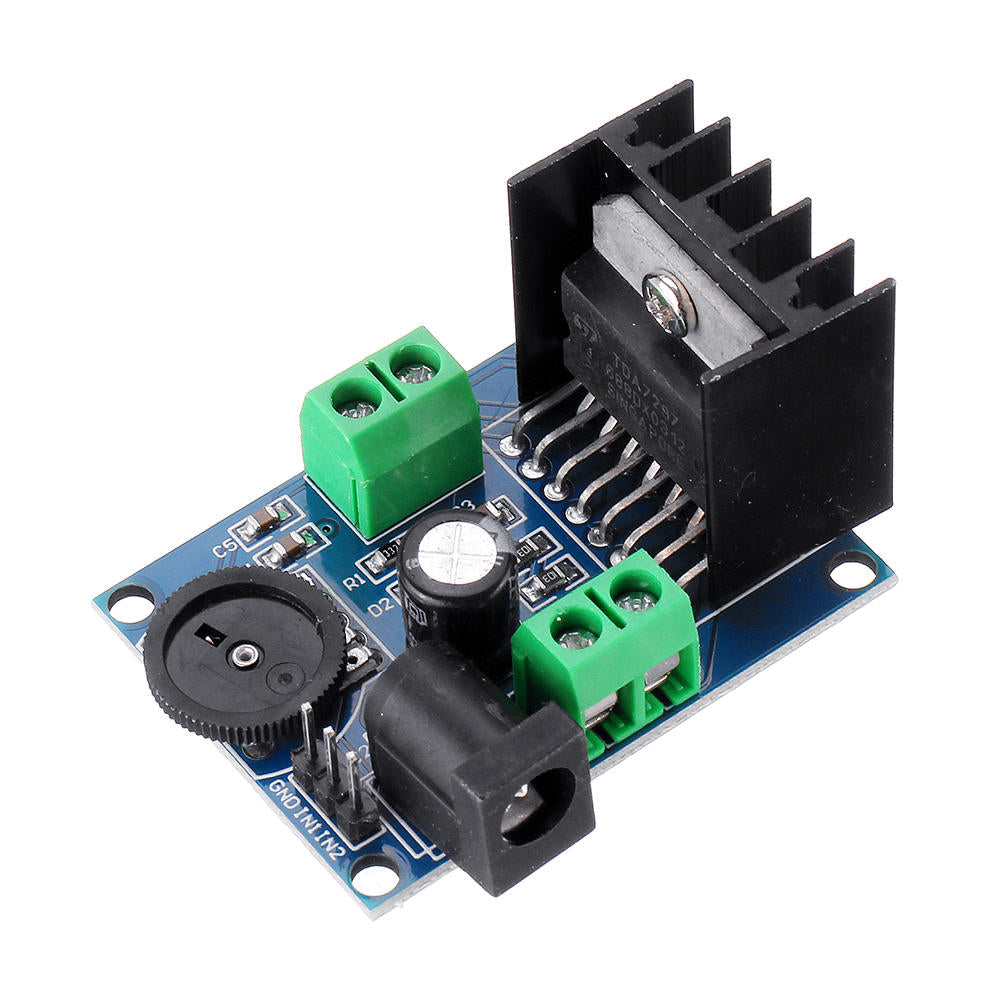

TDA 7297 12V Stereo Noiseless Audio Power Amplifier Module with 2 x 15W Output
Build your own music system with TDA7297 Dual Channel Digital Power Amplifier Module is a newly designed digital audio amplifier board with fine quality is practical to install and use also has good performance. It features a high-efficiency class D audio power amplifier with the latest and original TDA7297 core technology the BTL bridge circuit is more efficient than before.
This product uses the double power supply transformer with a dynamic power supply range from 6V to 18V with high efficiency small quiescent current. Additionally, it is equipped with Perfect protection functions like overvoltage protection and output current limit.
Features:
- A strong TDA7297 chip is a digital power amplifier chip, with low idle loss characteristics, which makes it work well and quickly.
- Onboard, front-facing IC to improve the input sensitivity, high-definition sound quality.
- It can be used for car vehicle computer speaker, family audio and video, and empty square.
- This product has the characteristics of loud sound, the capacitance is large, excellent sound quality.
- There is no solder joint on the back of the circuit board, the chip capacitors, and the solder board together, so there is no possibility of a short circuit.
| Model |
TDA7297 |
| Operating Voltage Range (VDC) |
6 to 18 |
| Output Power (W) |
2*15W |
| Length (mm) |
45 |
| Width (mm) |
33 |
| Height (mm) |
27 |
| Weight (gm) |
24 |
| Shipment Weight |
0.027 kg |
| Shipment Dimensions |
8 × 11 × 3 cm |
Package Includes:
1 x TDA7297 Power Amplifier Module Audio amplifier module Double Channel 10- 50W
