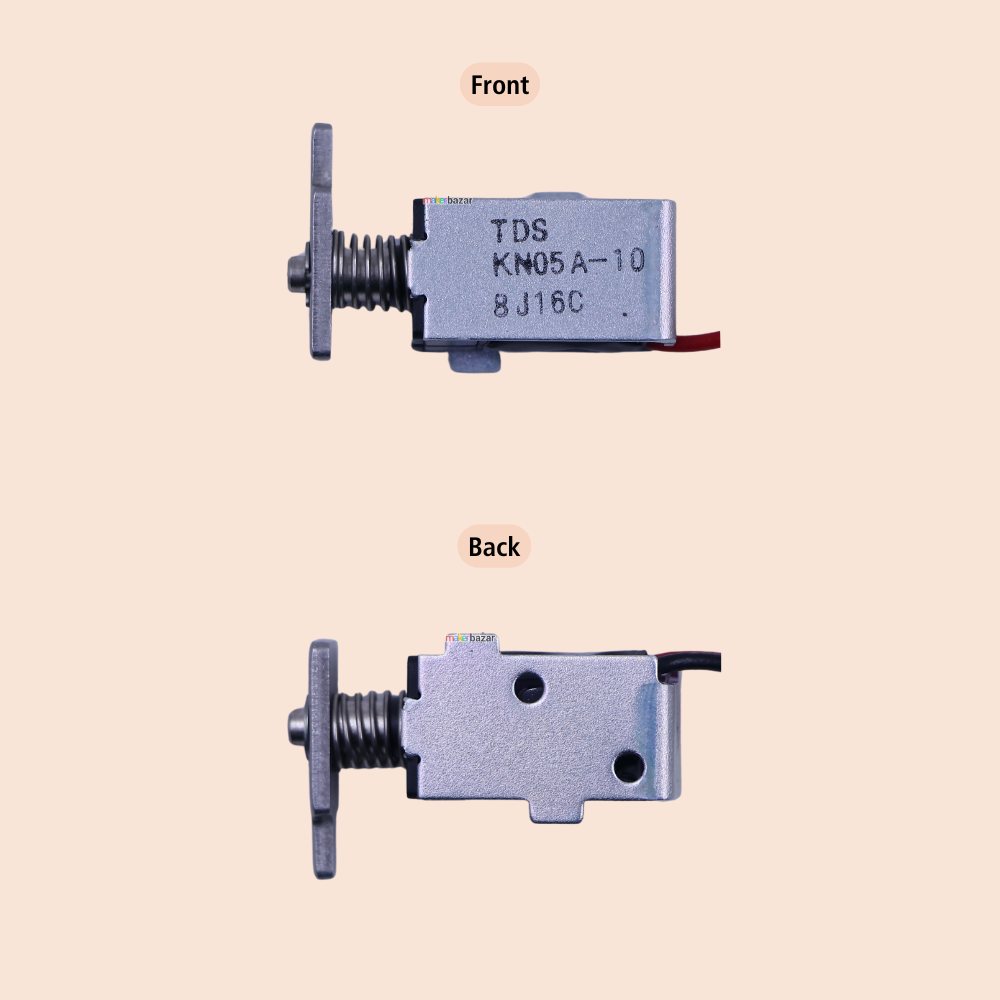

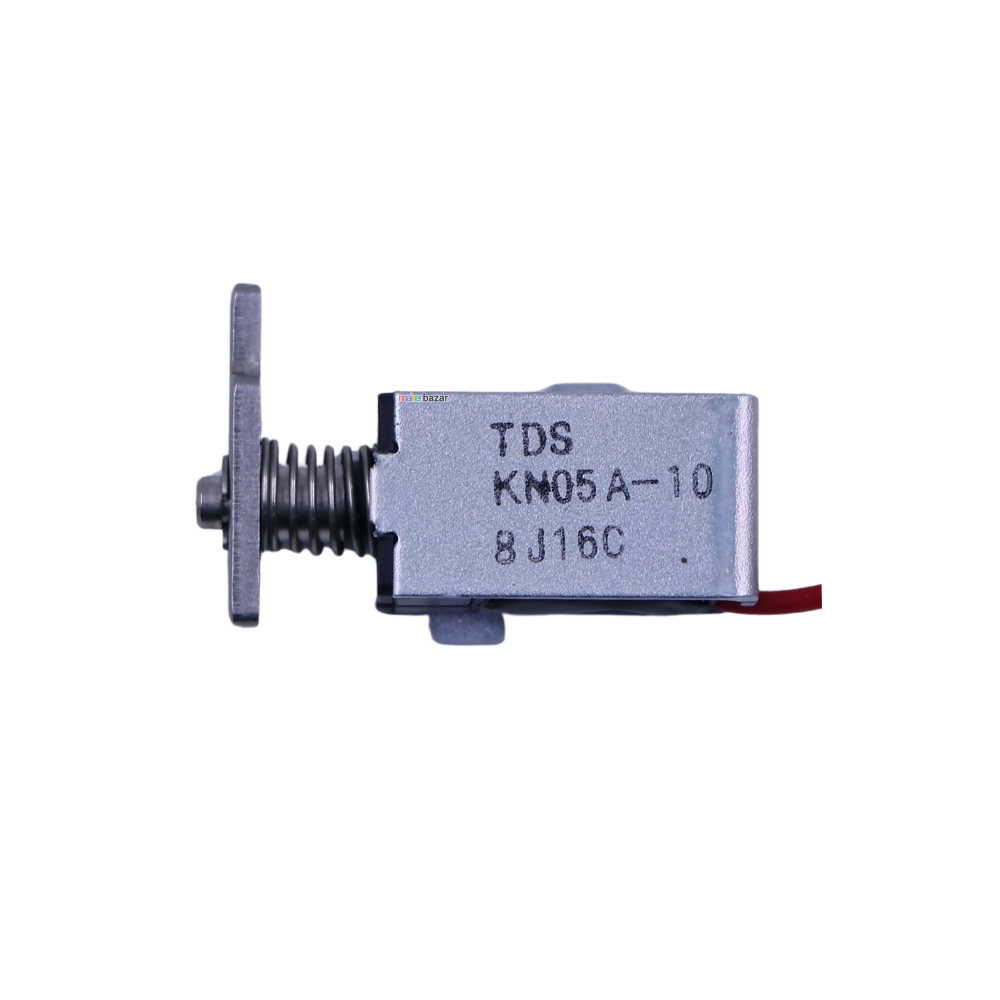

TDS-KN05A-10 DC Push-Pull Type Solenoid Electromagnet
The TDS-KN05A-10 Solenoid Electromagnet is a compact, high-efficiency push-pull linear actuator designed for use in electronic locks, vending machines, and automation projects. When voltage is applied, the internal electromagnetic coil generates motion that extends or retracts the plunger.
With a durable metal casing and precision spring return, this solenoid provides reliable operation, fast response, and long service life. Available in various voltage options (typically 5V, 12V, or 24V DC), it offers great versatility for DIY electronics, robotics, and industrial applications.
This model is ideal for automated access systems, machine interlocks, and mechanical actuation tasks where controlled linear motion is required.

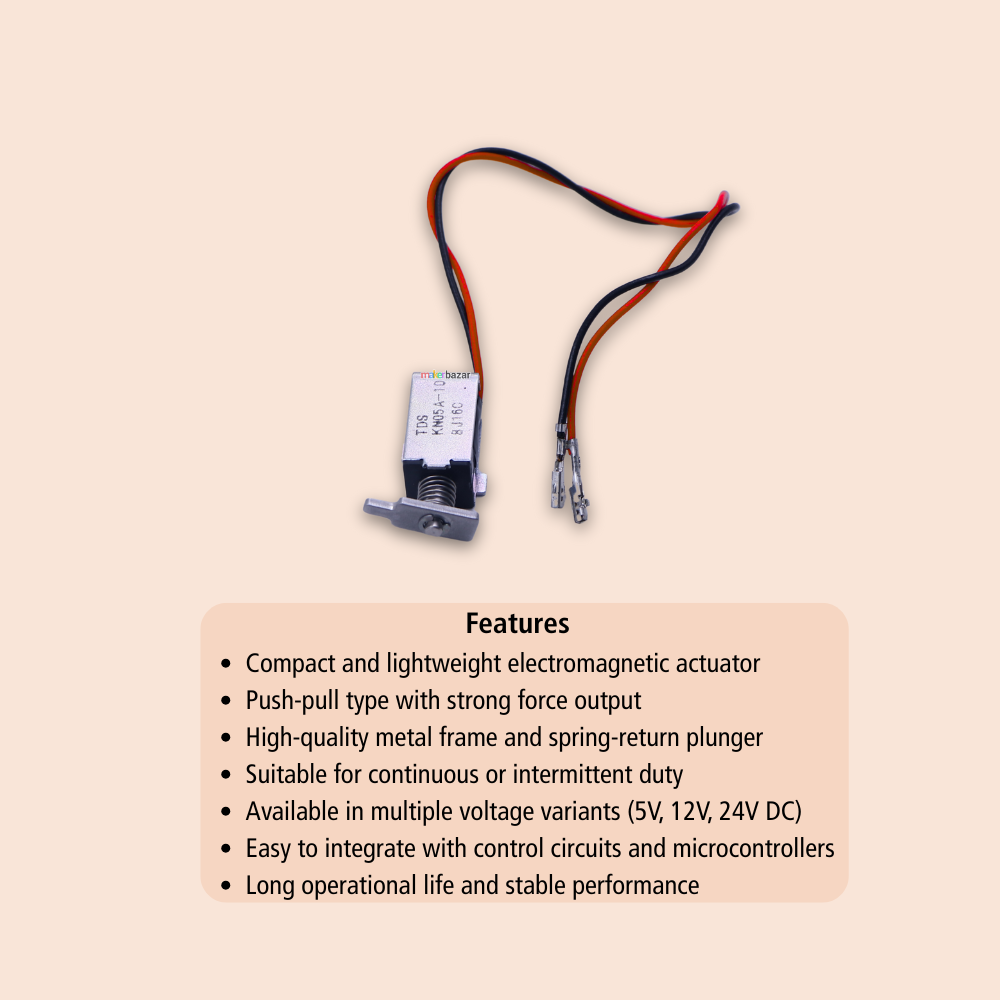

Features
-
Compact and lightweight electromagnetic actuator
-
Push-pull type with strong force output
-
High-quality metal frame and spring-return plunger
-
Suitable for continuous or intermittent duty
-
Available in multiple voltage variants (5V, 12V, 24V DC)
-
Easy to integrate with control circuits and microcontrollers
-
Long operational life and stable performance
Technical Specifications

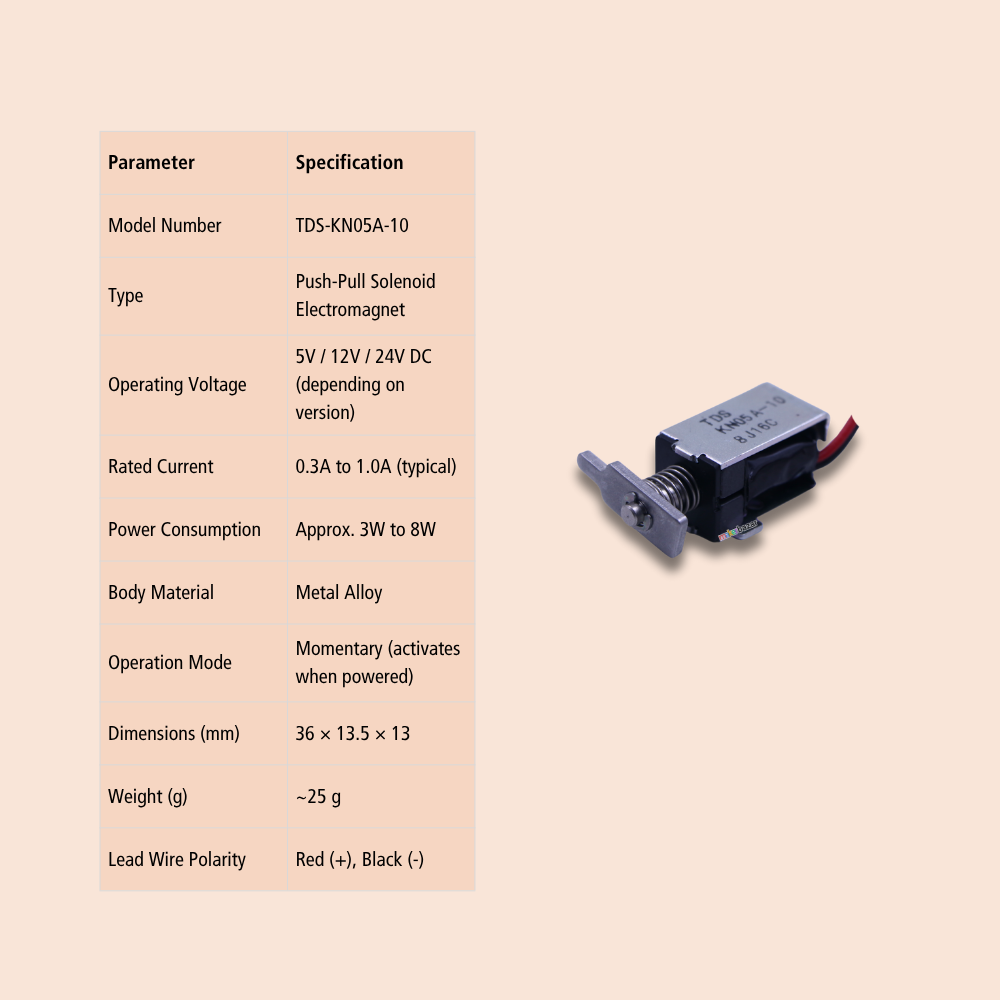

| Parameter | Specification |
| Model Number | TDS-KN05A-10 |
| Type | Push-Pull Solenoid Electromagnet |
| Operating Voltage | 5V / 12V / 24V DC (depending on version) |
| Rated Current | 0.3A to 1.0A (typical) |
| Power Consumption | Approx. 3W to 8W |
| Body Material | Metal Alloy |
| Operation Mode | Momentary (activates when powered) |

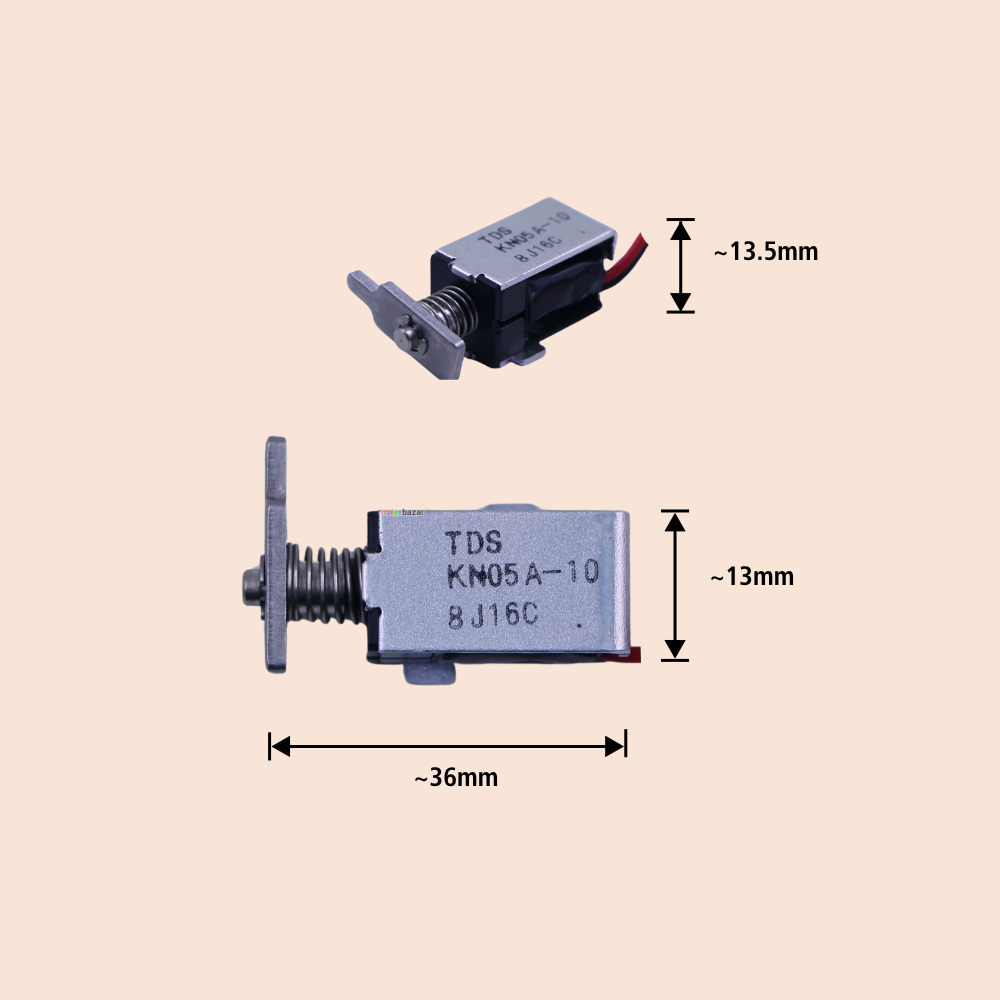

| Dimensions (mm) | 36 × 13.5 × 13 |
| Weight (g) | ~25 g |
| Lead Wire Polarity | Red (+), Black (-) |
Applications

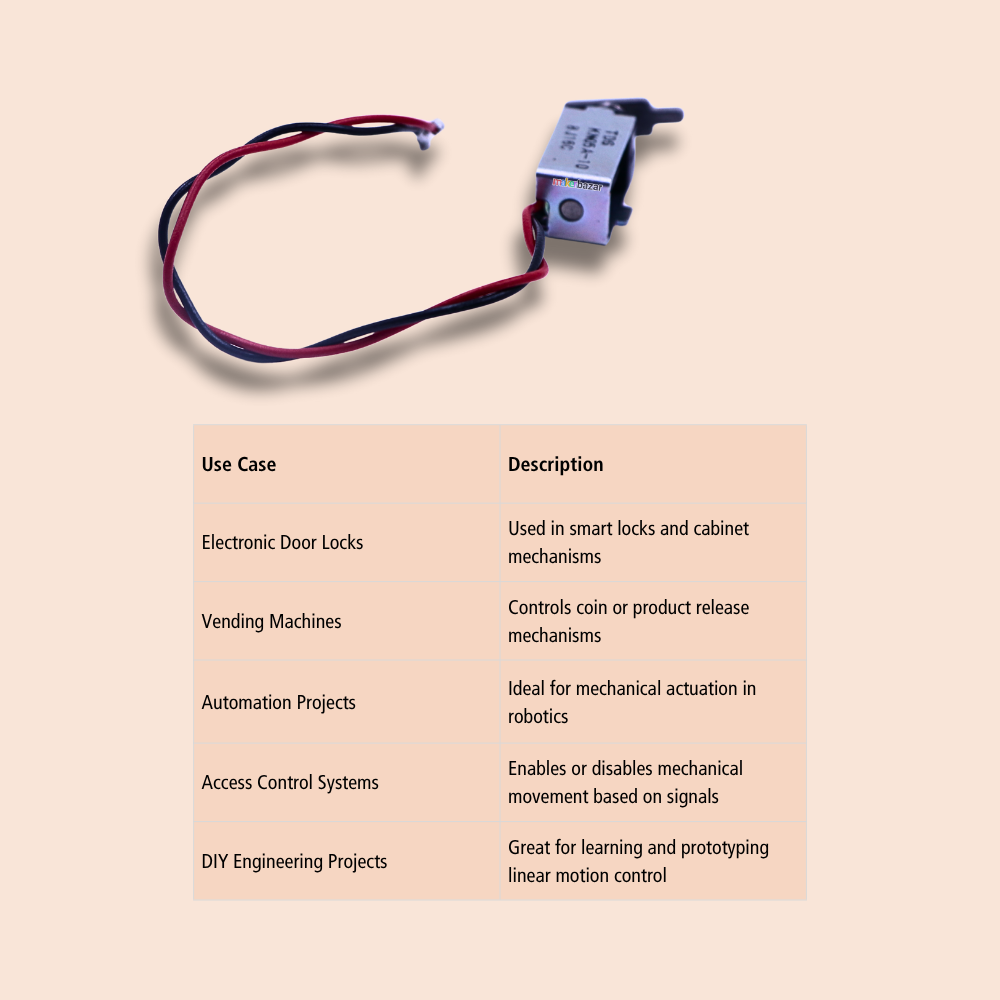

| Use Case | Description |
|---|---|
| Electronic Door Locks | Used in smart locks and cabinet mechanisms |
| Vending Machines | Controls coin or product release mechanisms |
| Automation Projects | Ideal for mechanical actuation in robotics |
| Access Control Systems | Enables or disables mechanical movement based on signals |
| DIY Engineering Projects | Great for learning and prototyping linear motion control |
Package Includes
1 x TDS-KN05A-10 DC Push-Pull Solenoid Electromagnet
Note
Ensure correct voltage is applied to avoid coil overheating.
For extended use, consider adding a flyback diode when controlled via microcontroller or relay.
