Description
TurboPro PA-11 Intelligent Digital Multimeter | 4000 Counts True RMS | Auto Range | NCV Voltage Detector
The TurboPro PA-11 Intelligent Digital Multimeter is a professional-grade digital measuring instrument designed for electricians, electronics engineers, technicians, students, and DIY enthusiasts. Featuring True RMS technology and a 4000-count LCD display, it provides highly accurate AC/DC voltage and resistance measurements, even for non-linear electrical loads.
Its intelligent Auto Mode automatically detects AC voltage, DC voltage, resistance, and continuity, allowing quick and hassle-free testing. The built-in Non-Contact Voltage (NCV) detector enables safe identification of live wires without direct electrical contact.
Equipped with manual measurement mode, data hold, continuity buzzer, LCD backlight, LED flashlight, automatic power-off, and CAT III 600V safety rating, the PA-11 is suitable for home maintenance, industrial servicing, automotive diagnostics, laboratory testing, and educational electronics projects.
Compact, lightweight, and easy to carry, this multimeter is an essential tool for accurate electrical troubleshooting and maintenance.
Key Features
- Intelligent Auto Measurement Mode.
- True RMS technology for accurate readings.
- 4000 Counts large LCD display.
- Auto & Manual measurement modes.
- Measures AC/DC Voltage.
- Resistance measurement up to 40MΩ.
- Non-Contact Voltage (NCV) detection.
- Continuity buzzer with audible alert.
- Data Hold function.
- LCD backlight for low-light environments.
- Built-in LED flashlight.
- Auto Power-Off after 15 minutes.
- Low battery indication.
- CAT III 600V safety rating.
- Compact and portable design.

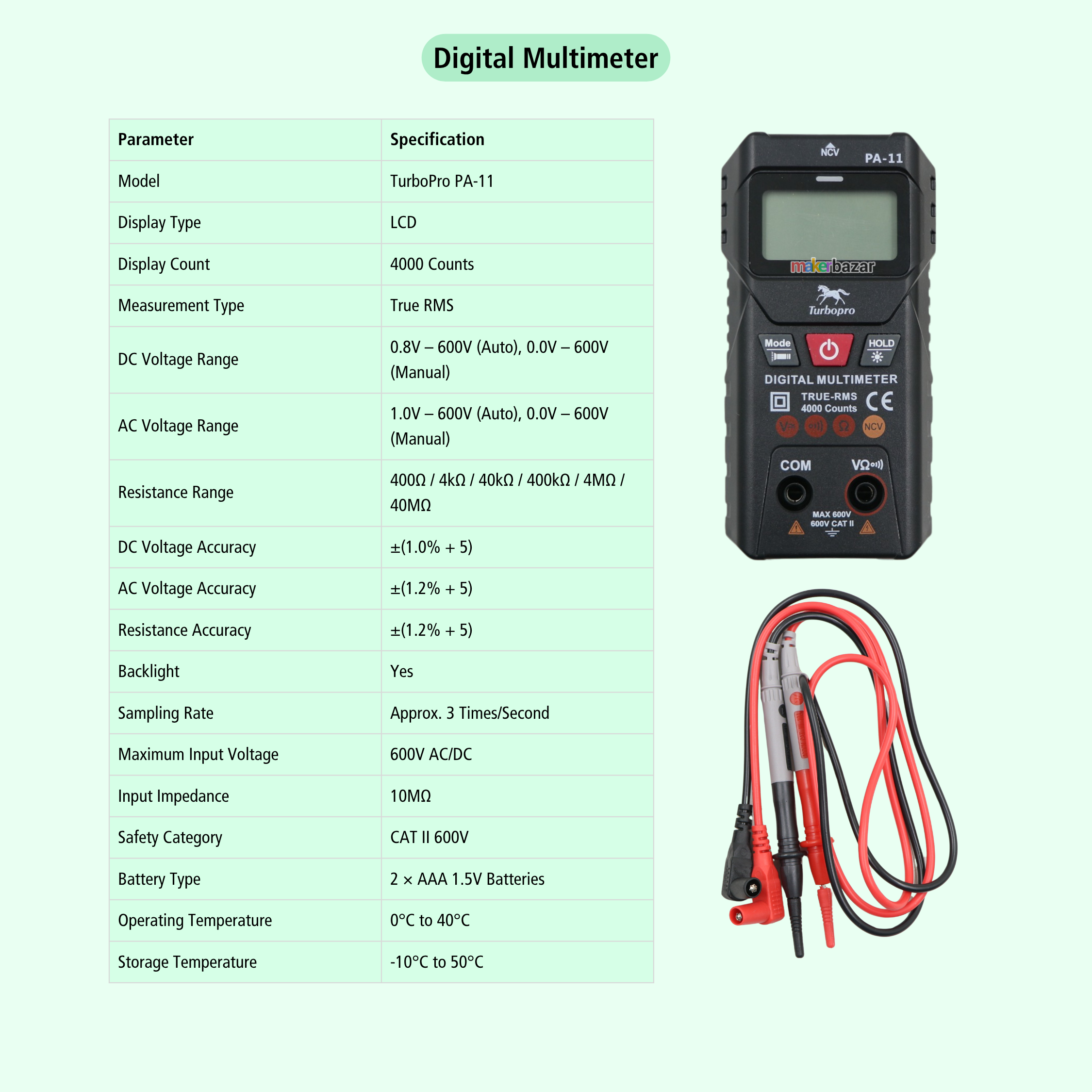

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TurboPro PA-11 |
| Display | 4000 Counts LCD |
| Measurement Type | True RMS |
| DC Voltage | Auto: 0.8V–600V, Manual: 0–600V |
| AC Voltage | Auto: 1V–600V, Manual: 0–600V |
| Resistance Range | 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ |
| Input Impedance | 10MΩ |
| Maximum Input Voltage | 600V AC/DC |
| NCV Detection | Yes |
| Continuity Test | Yes (Buzzer) |
| Data Hold | Yes |
| Backlight | Yes |
| Auto Power Off | Yes (Approx. 15 Minutes) |
| Low Battery Indicator | Yes |
| Sampling Rate | Approx. 3 Times/Second |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 50°C |
| Working Altitude | Up to 2000m |
| Safety Rating | CAT III 600V |
| Power Supply | 2 × AAA 1.5V Batteries |

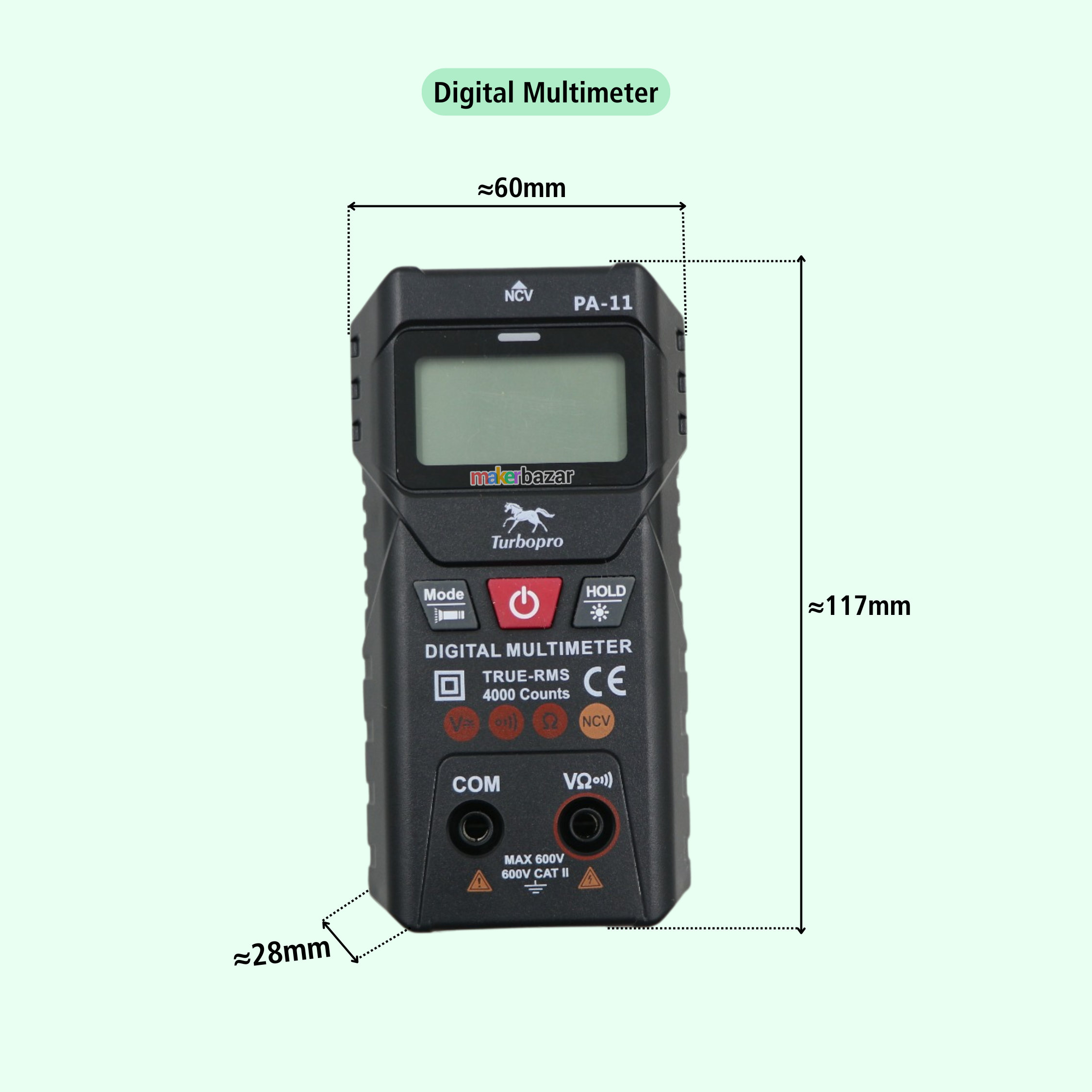

| Dimensions | 117 × 60 × 28 mm |

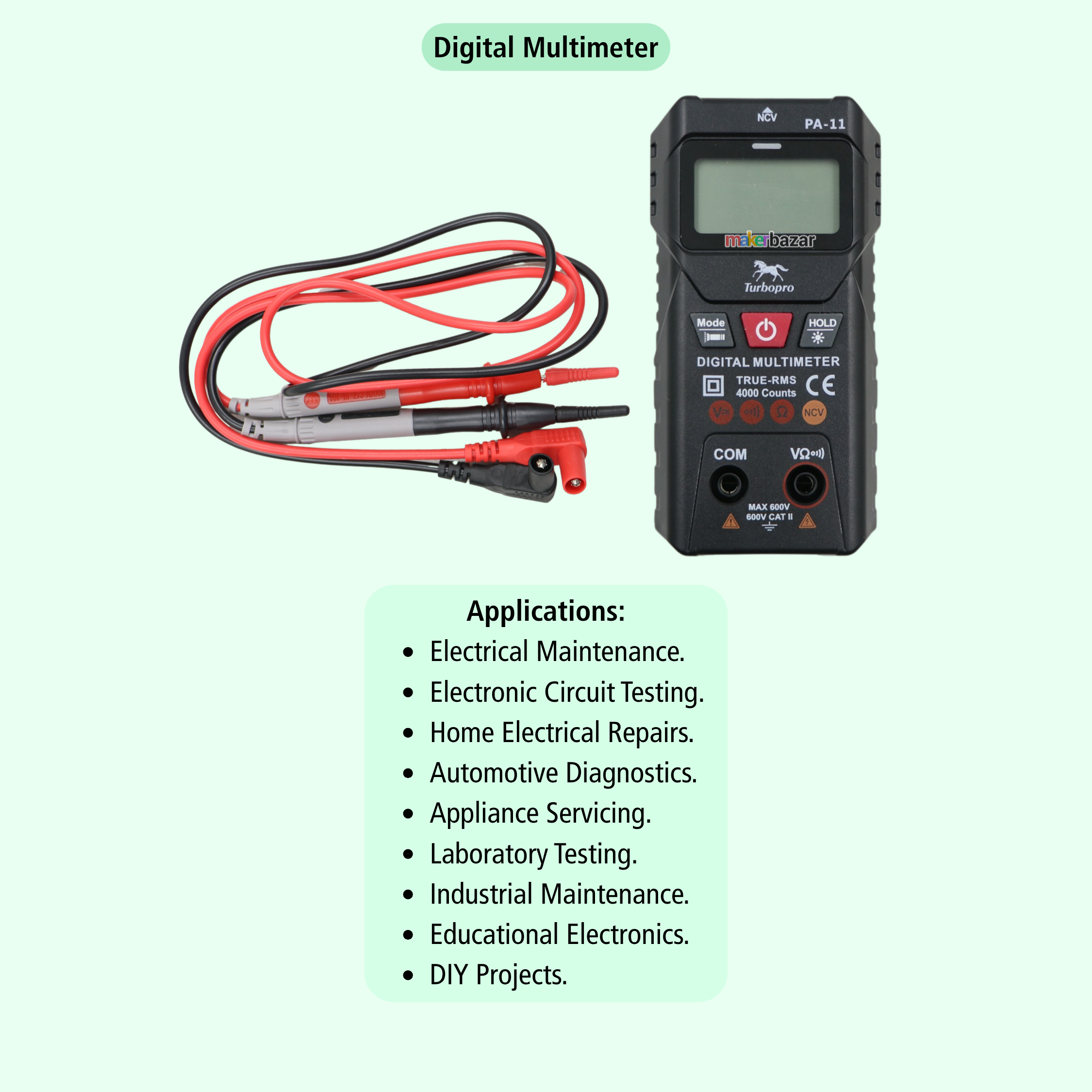

Applications
- Electrical Maintenance
- Electronic Circuit Testing
- Home Electrical Repairs
- Automotive Diagnostics
- Appliance Servicing
- Laboratory Testing
- Industrial Maintenance
- Educational Electronics
- DIY Projects
- Field Service Engineering
Precautions
- Do not exceed the maximum input voltage of 600V.
- Disconnect power before measuring resistance or continuity.
- Never use the meter with damaged test leads.
- Keep fingers behind the probe guards while testing.
- Replace batteries when the low battery indicator appears.
- Do not expose the multimeter to moisture or water.
- Store in a cool and dry place.
- Use appropriate safety precautions when working with live circuits.
- Select the proper measurement mode before testing.
- Keep away from children.
