[Type 3] Type-C USB 3A Polymer Ternary Li-ion Lithium Quick Fast Charging Board IP2312 CC/CV Mode 5V To 4.2V

Save ₹ 21.00
SKU: 321201062
No reviews
Price:
₹ 89.00 ₹ 110.00
( ₹ 75.42 without 18% GST.)

Tax included Shipping calculated at checkout

Description

Charging Board, Type C Input Polymer Ternary Lithium Battery Fast Charging Module 3A for Lithium Battery

This Type-C USB Input High Current 3A Polymer Ternary Lithium Battery Quick Fast Charging Board, equipped with the IP 2312 main control chip, is designed for efficient and controlled lithium battery charging. It offers flexibility in charging currents and cut-off voltages, making it suitable for a variety of applications where fast and reliable battery charging is essential.

Note: Not suitable for 3.2V lithium iron phosphate batteries.

FEATURES:

  • The IP2312 uses a full CC/CV charging mode.
  • When the battery voltage is lower than 3V, it enters the trickle charge mode and charges the battery with a charge current of 100mA.
  • When the battery voltage is greater than 3V, enter the constant current charging mode to charge the battery with the set constant current charging current.
  • When the battery voltage is close to 4.2V and the charging current is less than 300mA, it enters the constant voltage charging mode. After entering the constant voltage mode, the charging is stopped after every 4 minutes, and the battery voltage is detected to be higher than 4.15V: if it is higher than 4.15V, the charging is stopped; otherwise, the charging is continued, and then the detection is performed after 4 minutes.
  • When the battery is fully charged, if it detects that the battery voltage is lower than 4.1V, it will turn on to charge the battery.

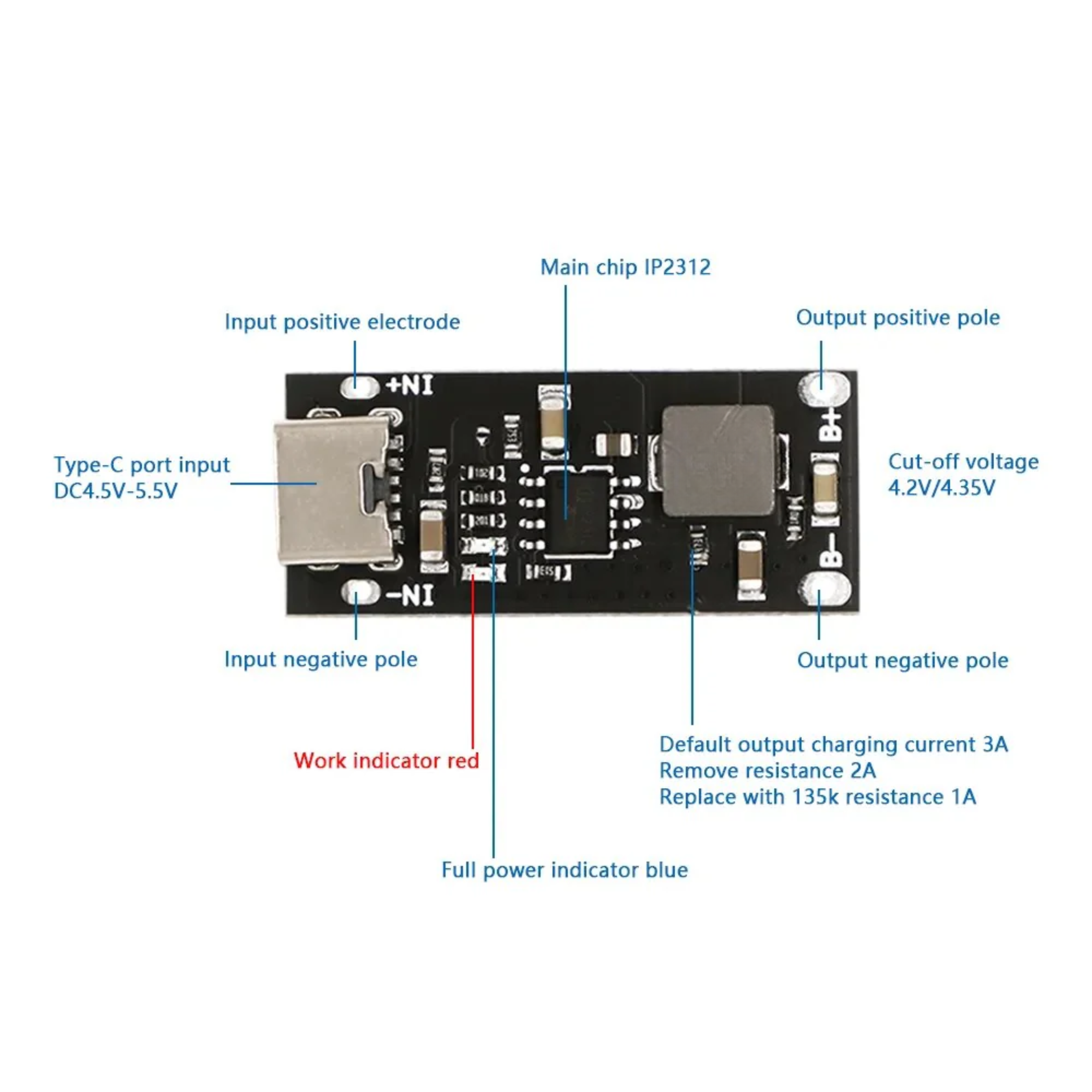

SPECIFICATIONS:

  • Main Control Chip: IP2312
  • Charging Mode: Full CC/CV charging mode
  • Input Voltage Range: 4.5V to 5.5V
  • Default Charging Current: 3A
  • Input Connector: Type-C USB
  • Charge Cut-off Voltage Options: 4.2V or 4.35V
  • Indicator Lights:
    • Work Indicator: Red
    • Full Charge Indicator: Blue

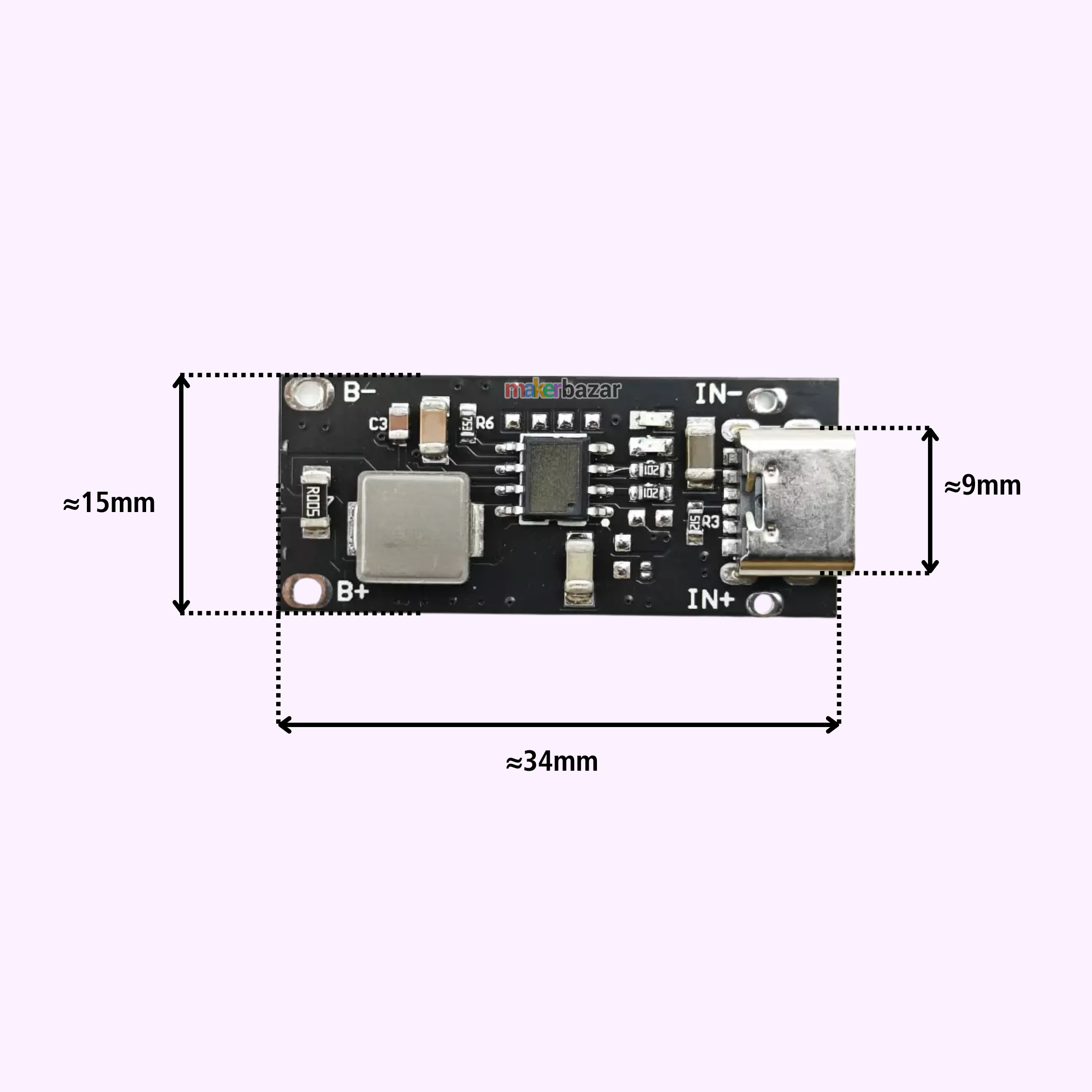

  • Dimension: 34.5mm x 15mm
    Note: This module is not suitable for running a DC motor,  as the module is not able to handle the high current requirement of a DC motor but it can run a small DC Toy motor, whose current requirement is less than 100milli amp.
