Description

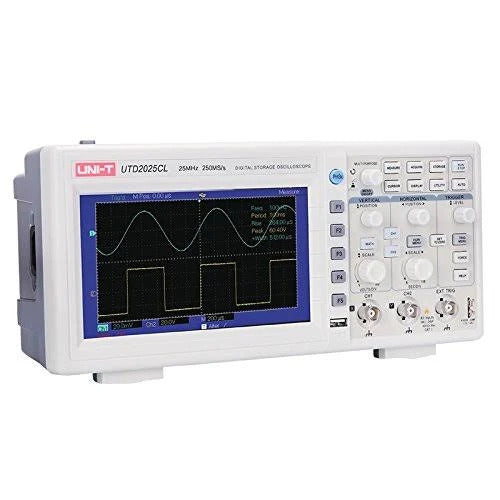

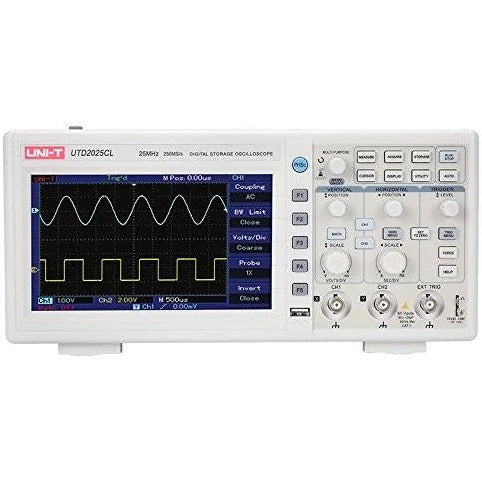

UTD2000CL series is an economical bench-type digital storage oscilloscope, meeting needs of basic measurements. The simple and clear front panel design provides convenient operations for users.
Bandwidth 50MHz
Channels 2
Sampling rate 500MS/s
Rise time <7ns
Memory depth 25kpts
Waveform capture rate >2, 000wfms/s
Vertical scale (V/div) 1mV/div〜20V/div
Time base scale (s/div) 10ns/div〜50s/div
Storage methods Setup, waveform, bitmap
Trigger specifications
Frequency counter 6 bits
Trigger types Edge, pulse width, video (UTD2025CL), alternate
Level range Internal ±8div from screen center
EXT ±3V
Holdoff range 80ns〜1.5s
Edge trigger types Rise, fall, rise & fall
Interfaces USB-OTG
