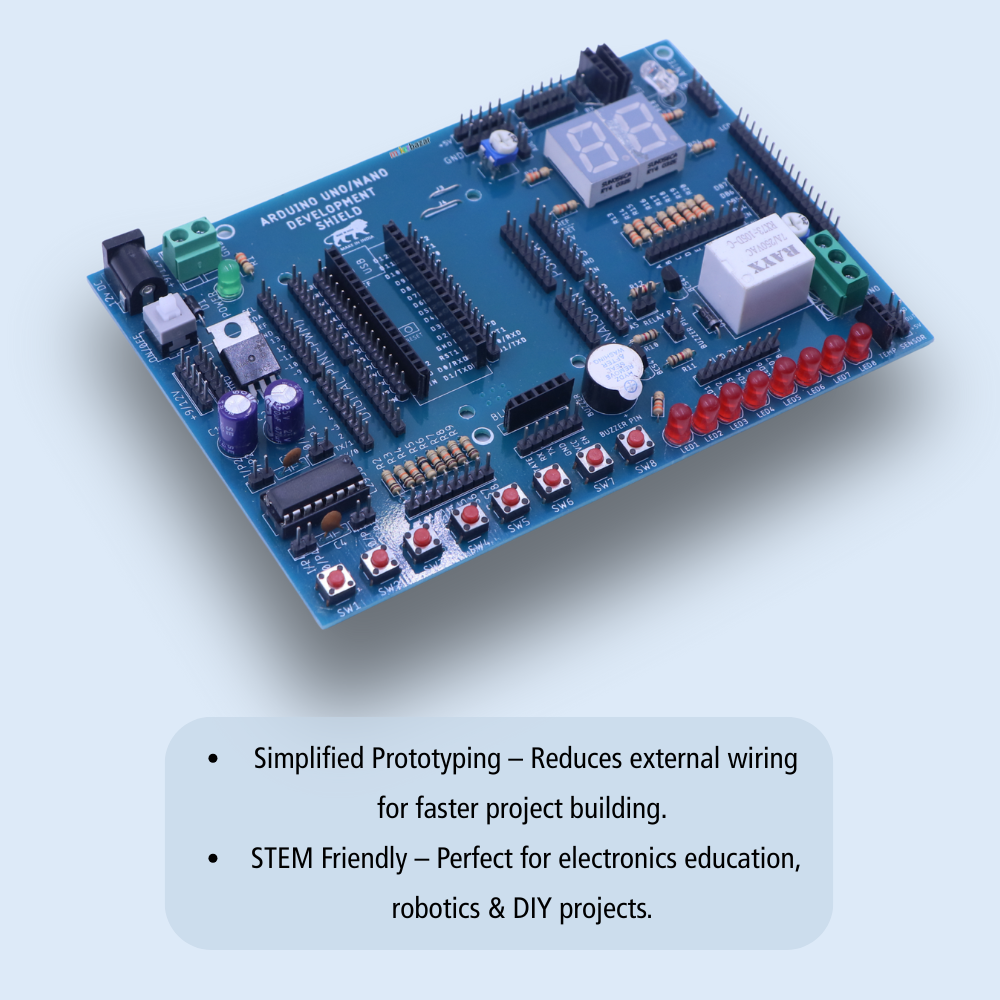

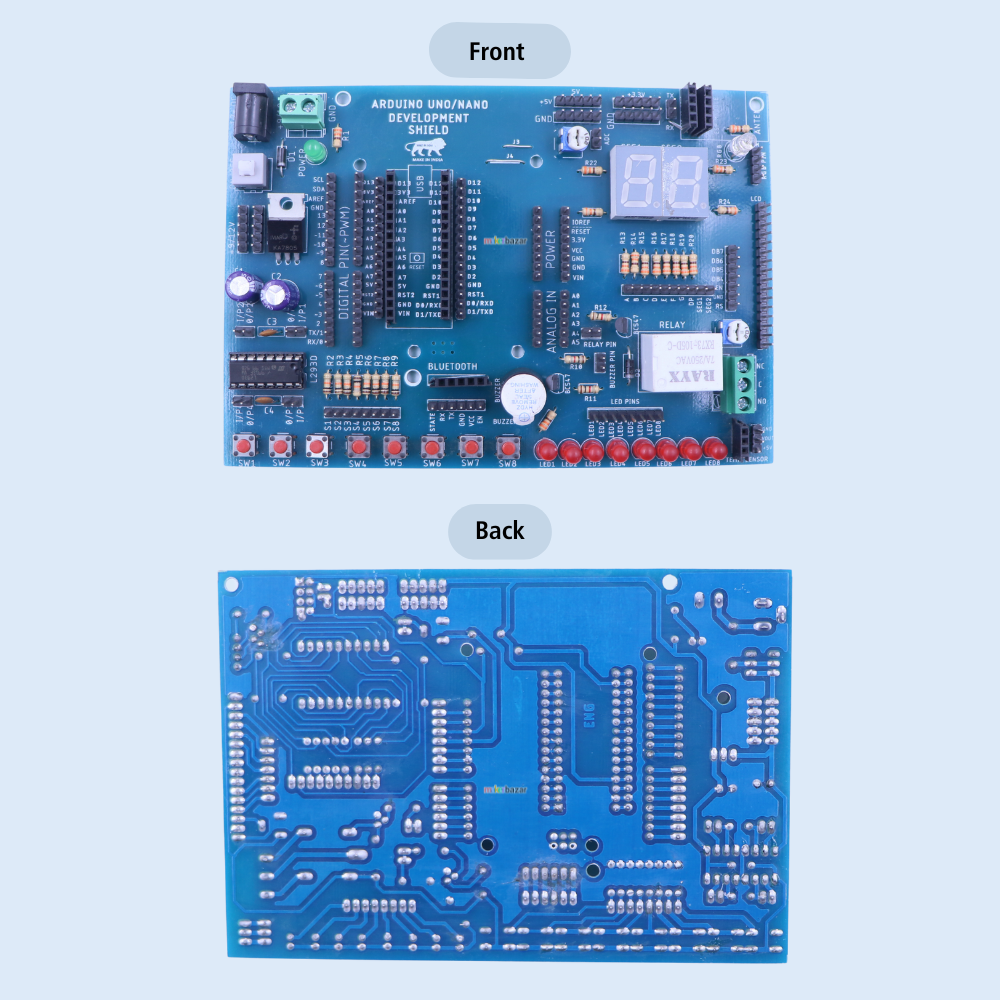

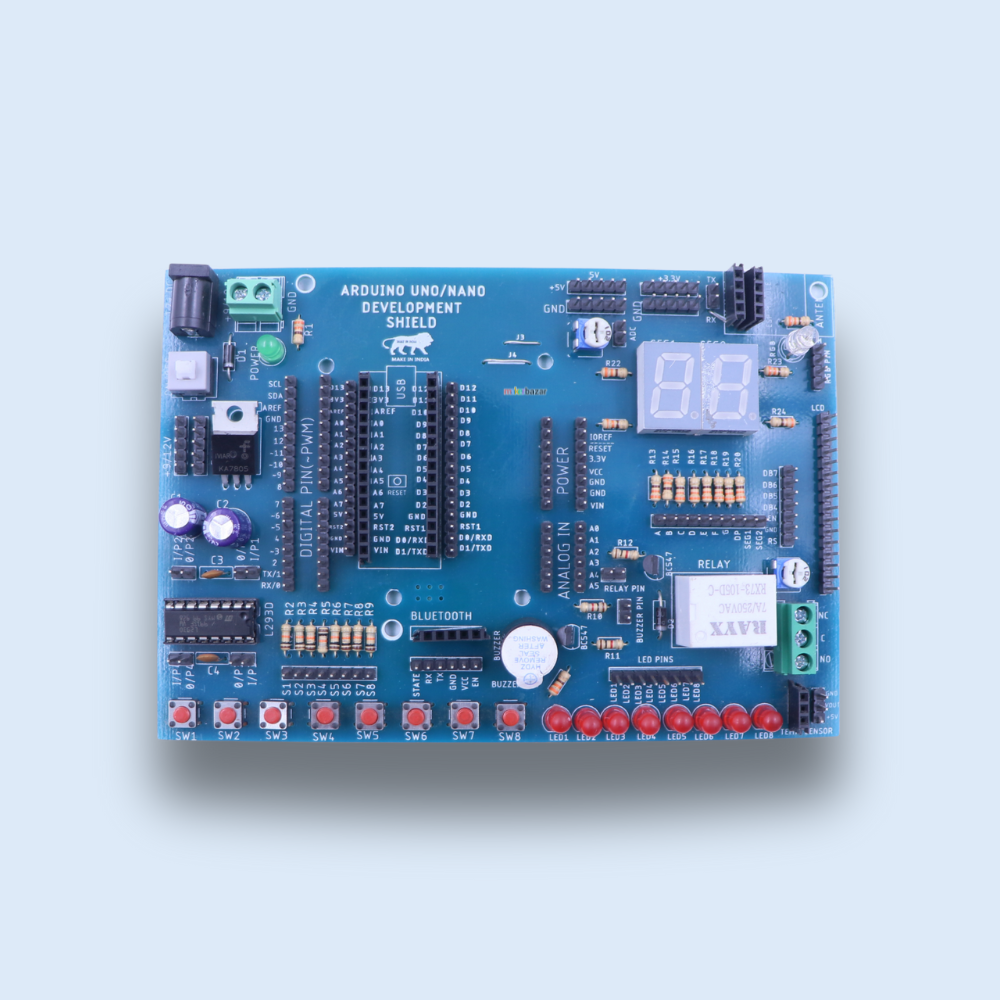

UNO+NANO Learning Board Shield for DIY Projects (Compatible with Arduino)

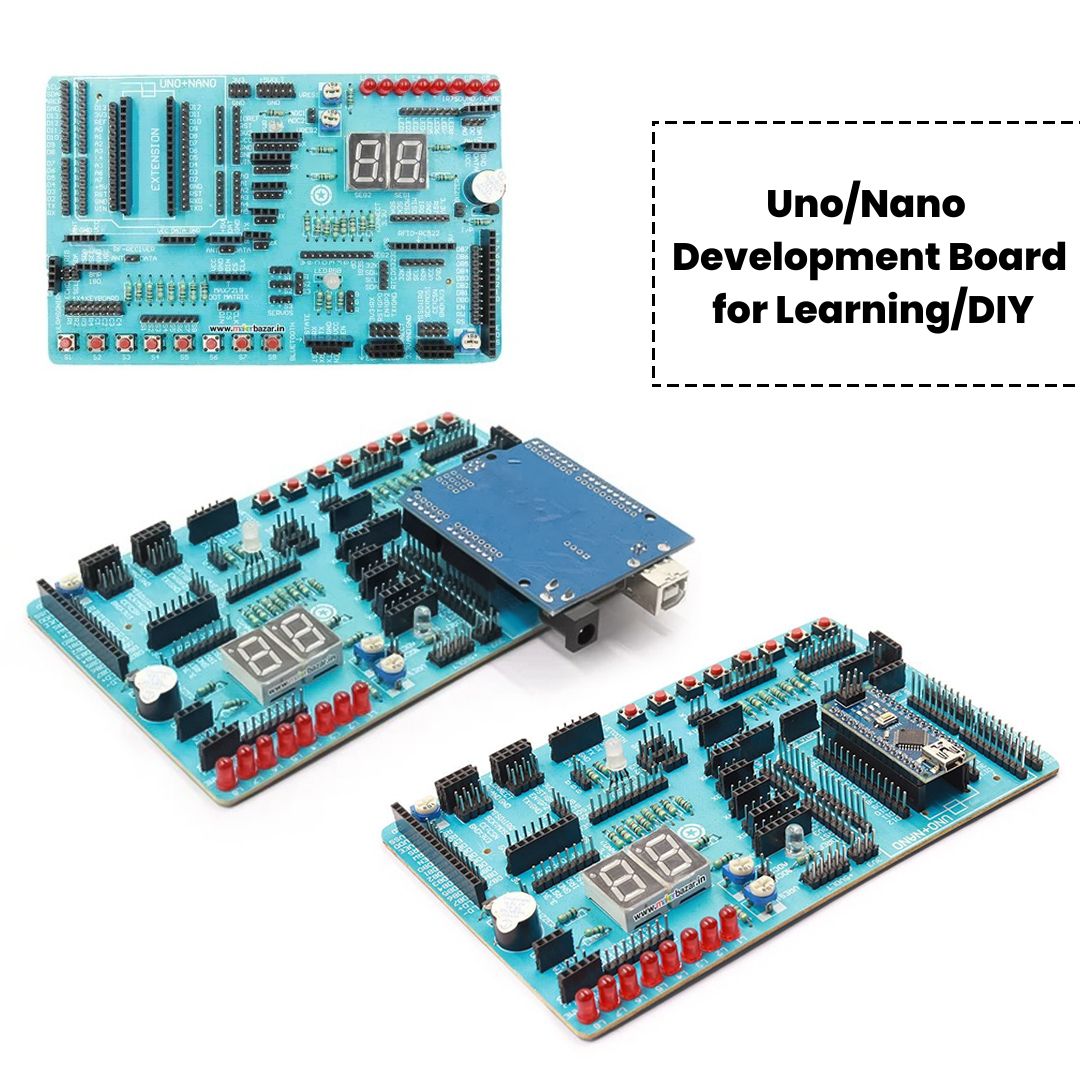

This DIY kit is perfect for beginners eager to explore embedded systems and the Internet of Things (IoT). The UNO+NANO Shield offers an affordable, open-source platform for IoT development, accommodating both UNO and NANO modules.

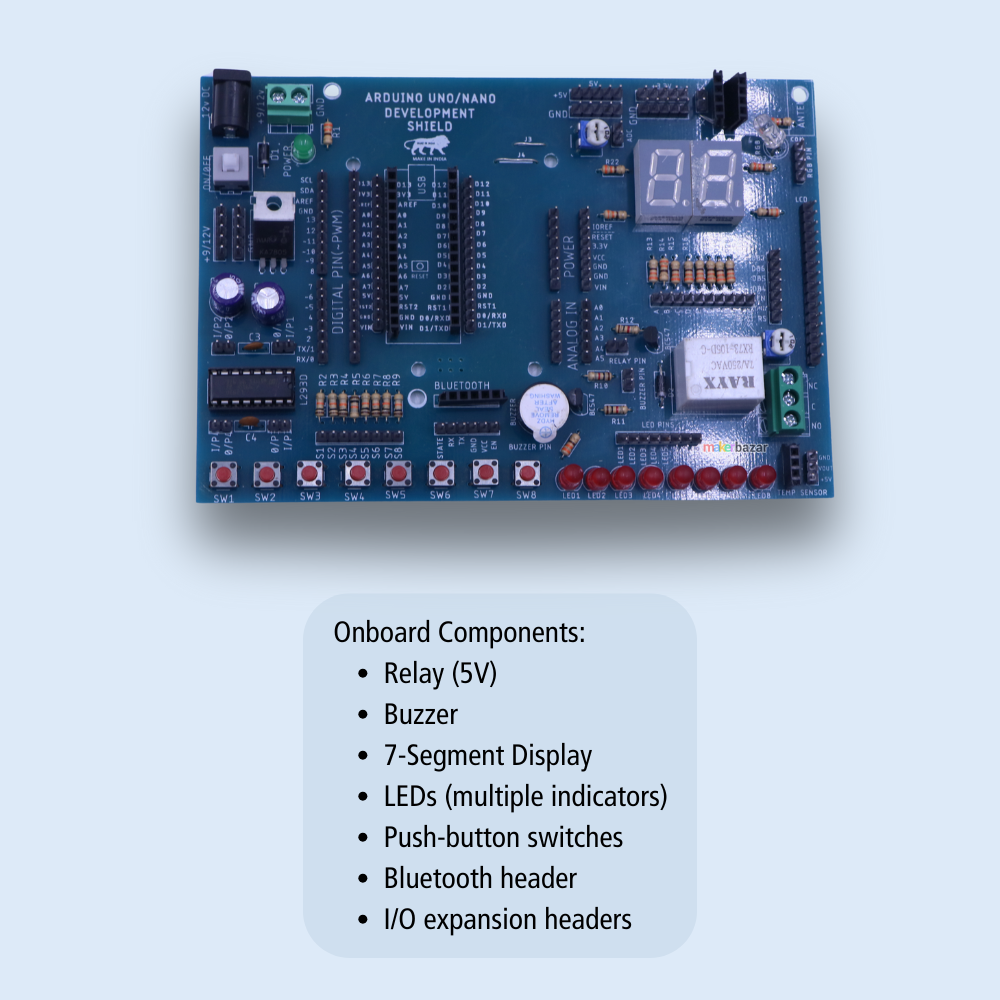

The shield features two seven-segment displays, a buzzer, an 8-input switch, and LEDs for various indicators, along with multiple ports for connecting devices and sensors.

Note: UNO and NANO modules are not included.

Key Features:

• Supports both UNO and NANO modules
• Versatile platform for a range of projects
• Excellent for learning embedded systems and IDE

Project Ideas:

• LED Blinking
• Servo Motor Control
• Seven-Segment Display Usage
• Timer and Timer Relay Control
• On/Off Switch with LED Indication
• LED Dimming
• Counting and Timer Counting
• LED Fading Effects
• IR Transmitter & Receiver
• Smoke Detection
• LDR Dark Detection
• Various Sensors
• RGB LED Control
• RFID
• WiFi Connectivity
• Bluetooth Integration

Specifications:

• Board Type: UNO+NANO Learning Shield
• Manufacturer: India
• Operating Voltage: +5V
• Dimensions: 160 x 103 x 15 mm
