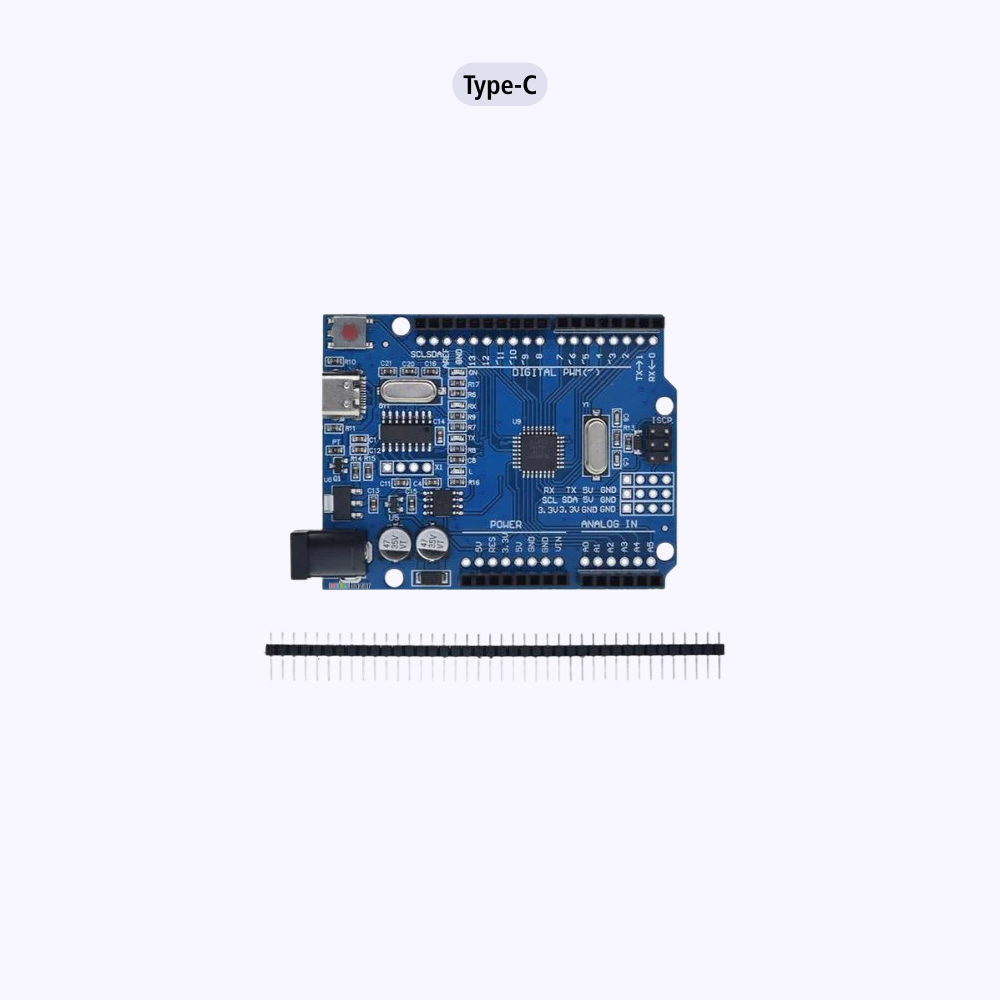

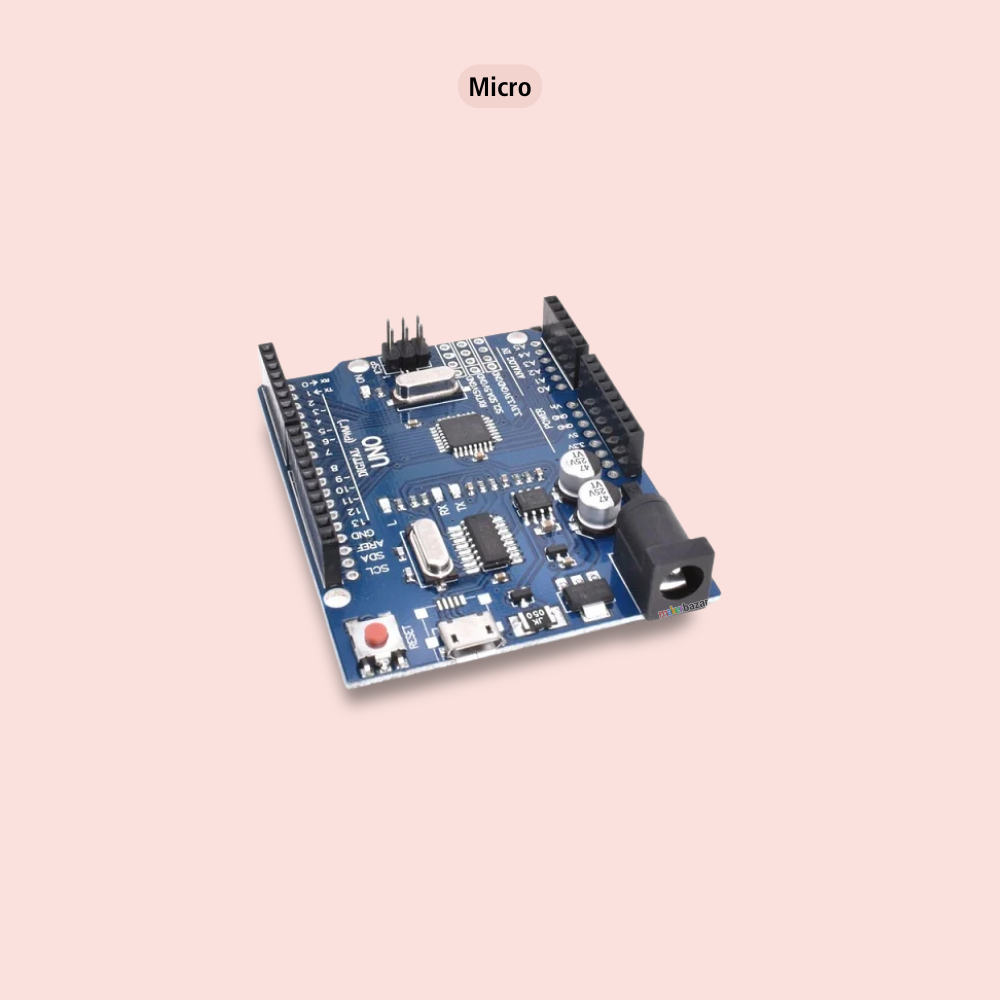

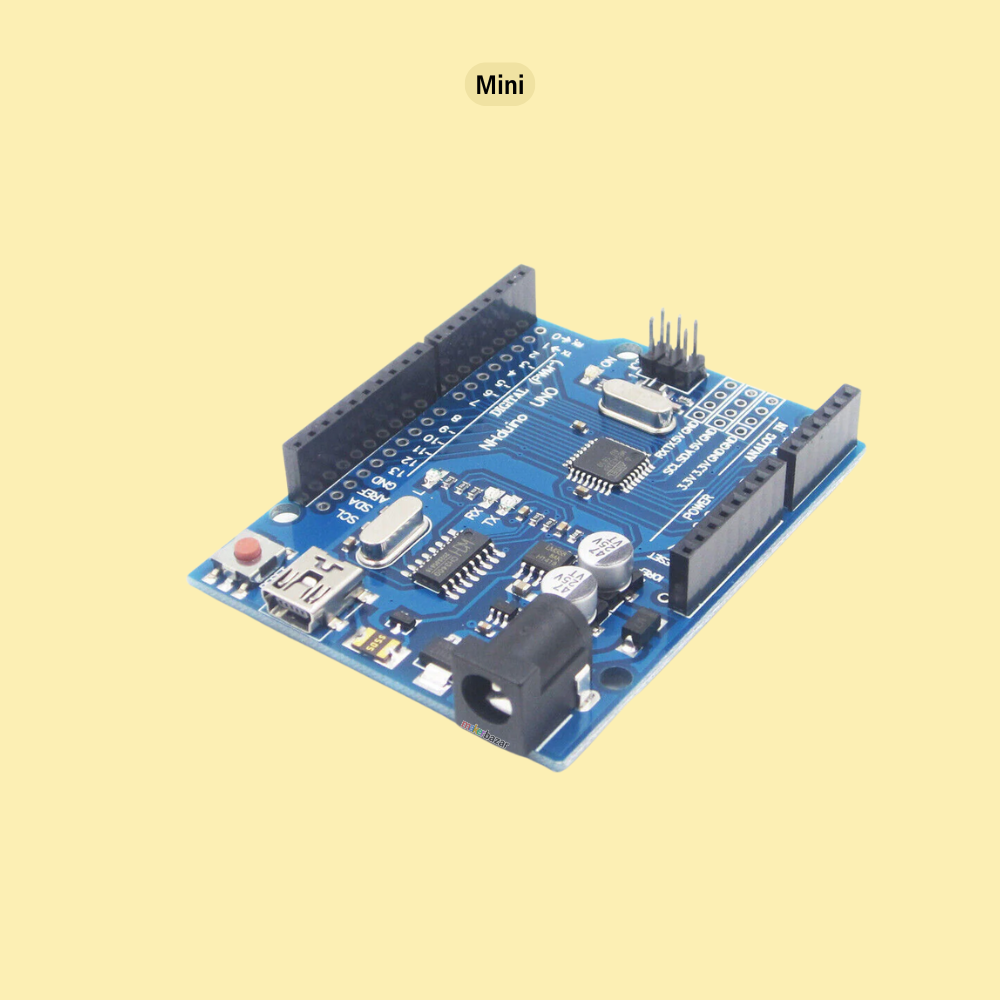

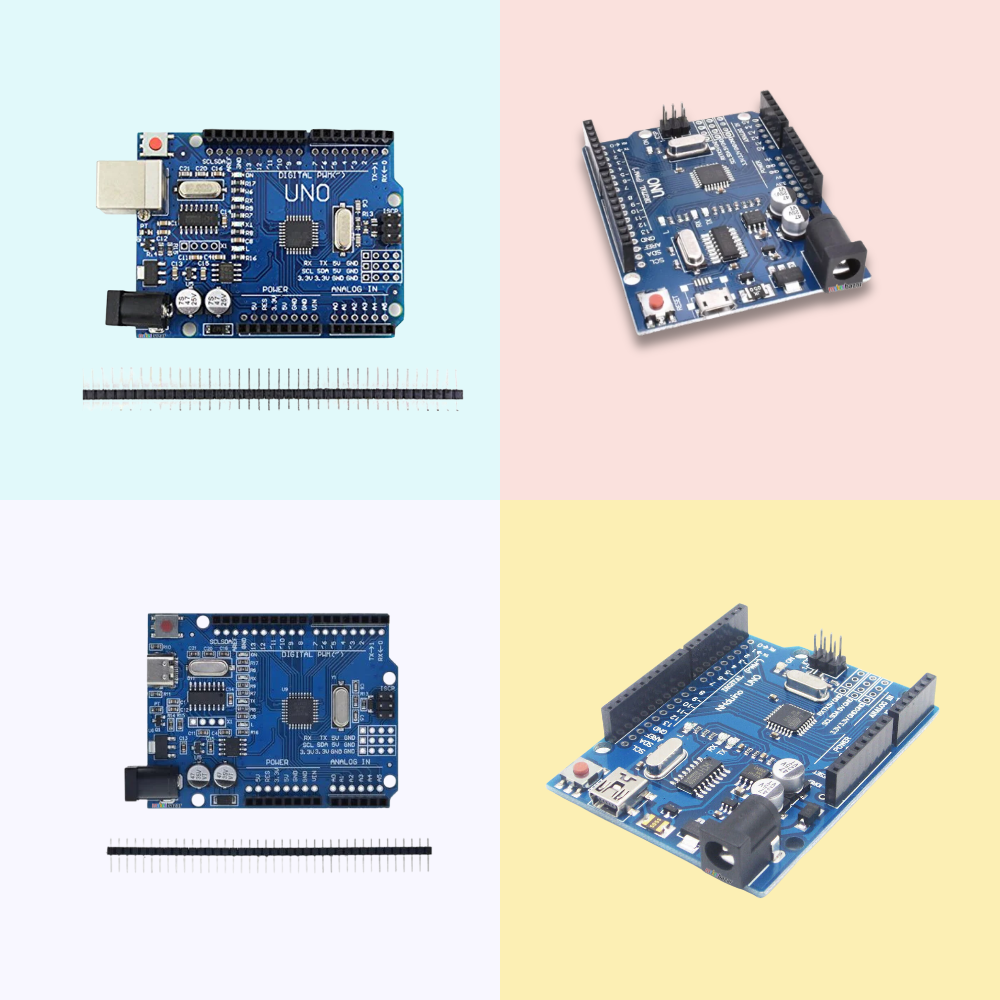

Uno R3 SMD Board Compatible with Arduino

Save ₹ 51.00
SKU: 58685
No reviews

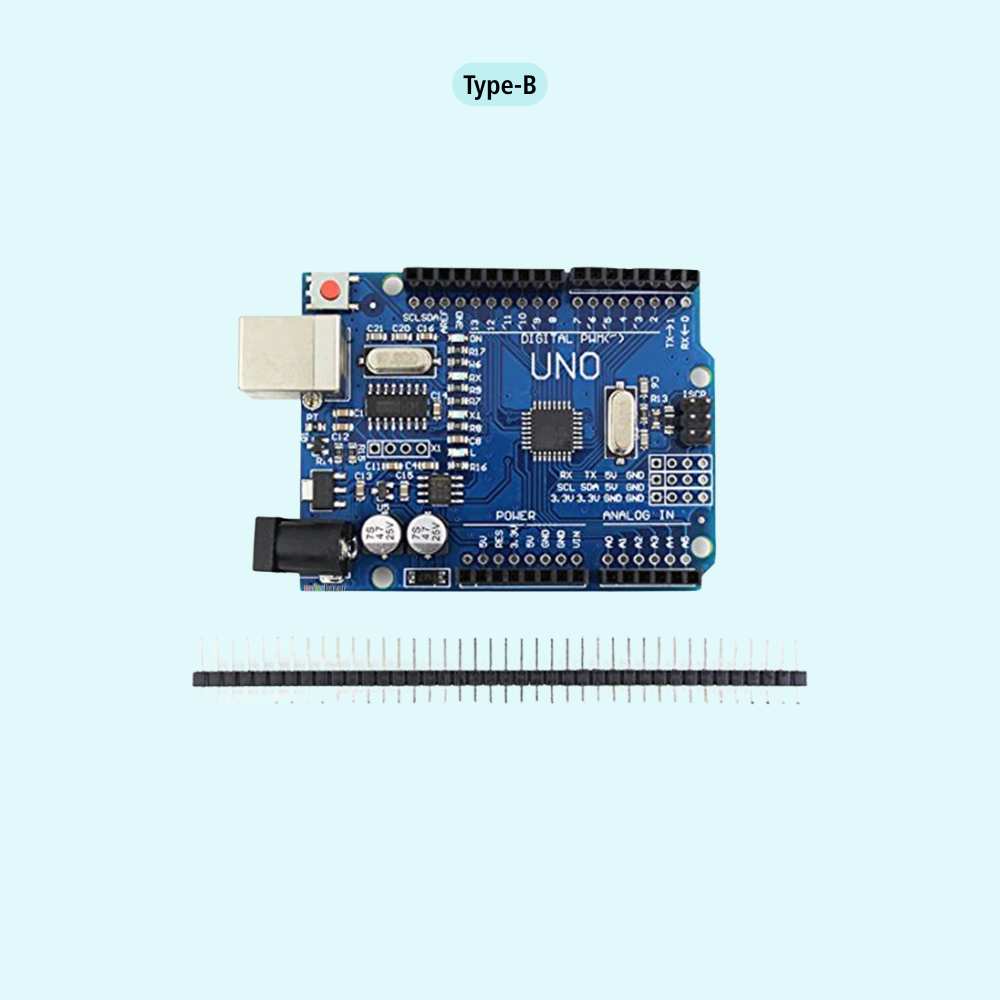

USB Connector: USB-Type-B
Price:
Sale price₹ 249.00 Regular price₹ 300.00
( ₹ 211.02 without 18% GST.)

Tax included Shipping calculated at checkout

Description

Atmega328P UNO R3 SMD Development Board

The Uno R3 CH340G ATmega328p Development Board is the low-cost version of the popular Uno R3 Arduino. It is assembled with the CH340 USB to Serial converter chip, instead of using an Atmega16U2 chip.

We have used plenty of these low-cost Arduino boards with CH340 chips, and have found them to work perfectly. The only time the CH340 chip is used is during programming and when using the serial output of the USB port. During normal operation, this board is identical to the more expensive version without CH340 chip.

Main changes from the older version:

1. Two rows of the holes for the pins (Male and Female). So it can be connected with normal Female Jumpers.
2. Additional 3 rows of the holes for wiring.
3. Changes to the DIP package of ATMEGA328P to flat package.
4. CH340G replace ATmega16U2


How to use:

1. Download the IDE Arduino
Link: http://arduino.cc/en/Main/Software (Copy to open)
2. Download the USB chip driver
Link: http://www.5v.ru/zip/ch341ser.zip (Copy to open)
3. Plug in UNO development board, the driver will be installed automatically
4. Select the UNO from the die
5. Select the COM port
6. The best choice first, Arduino comes with routine procedures, burn into it.


Package Includes :

1 x Uno R3 CH340G ATmega328p Development Board Compatible with Arduino
1 x set of male Jumper Header.
