Description

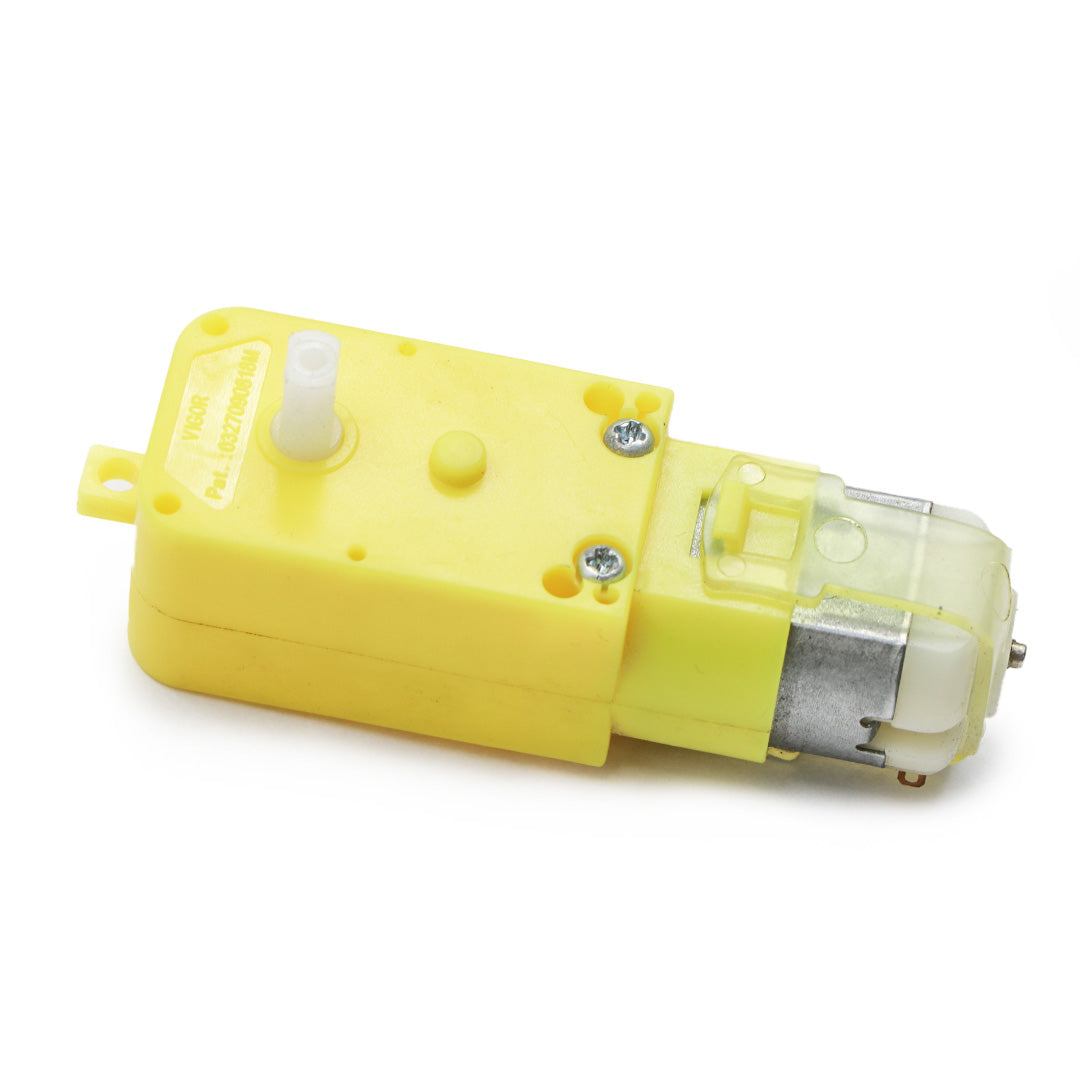

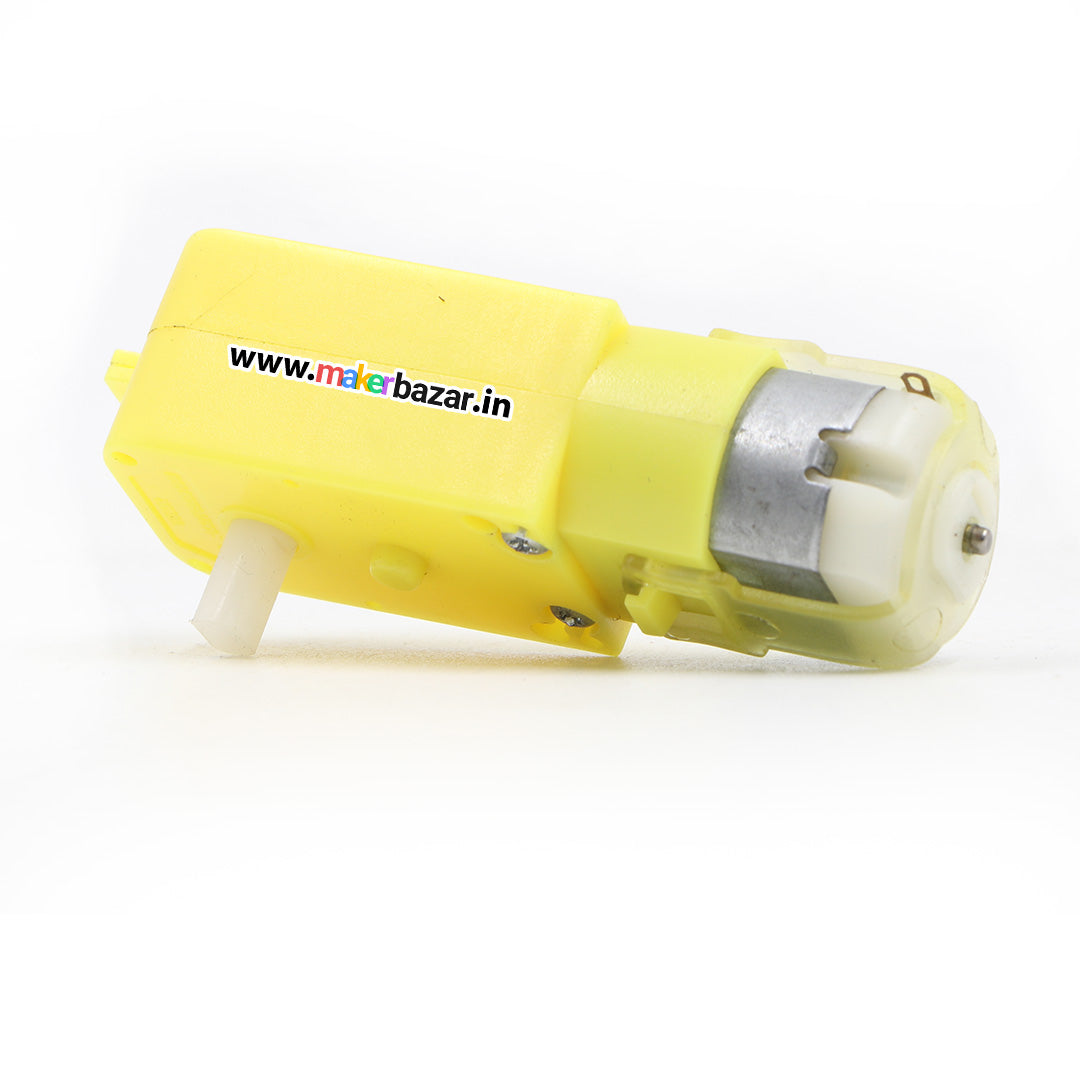

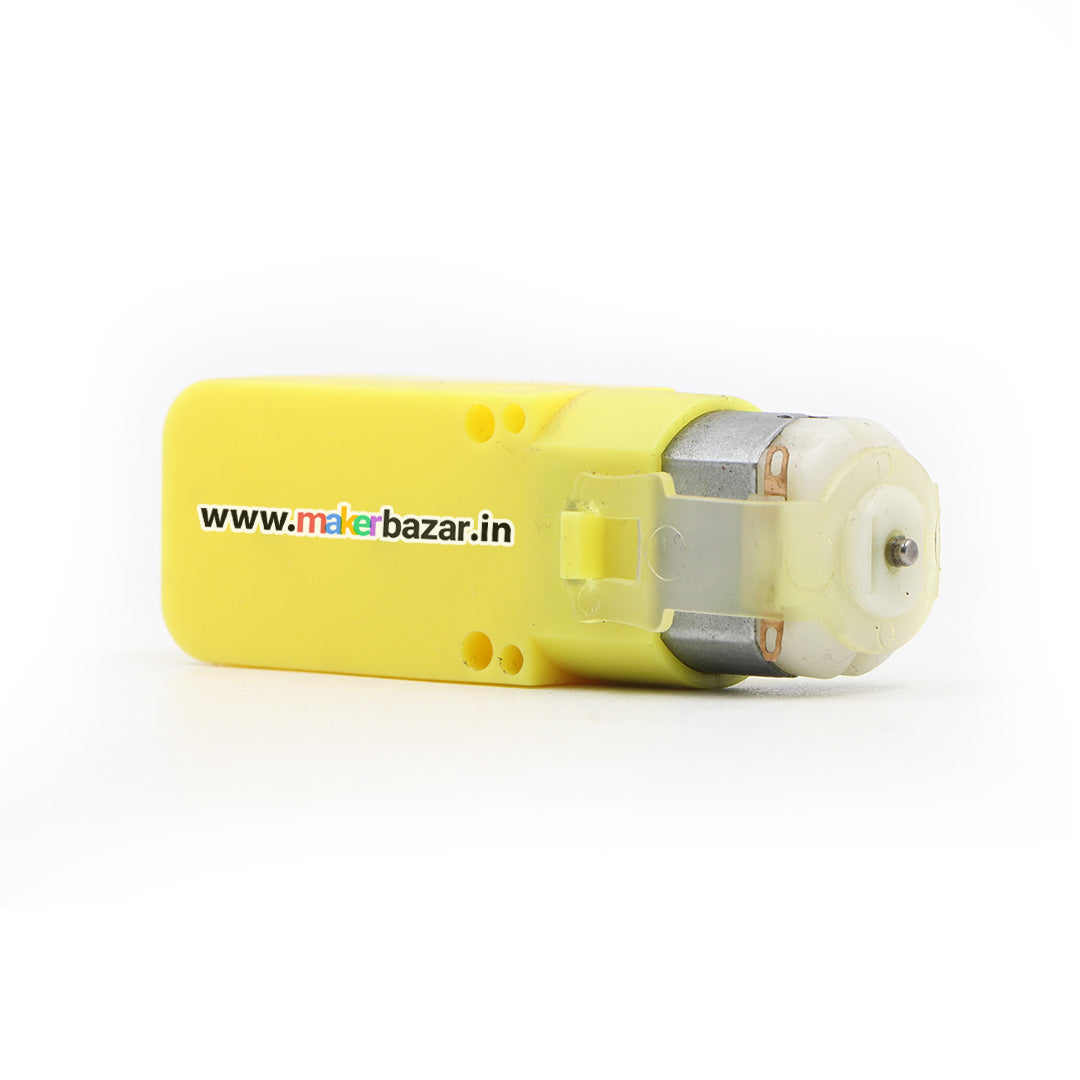

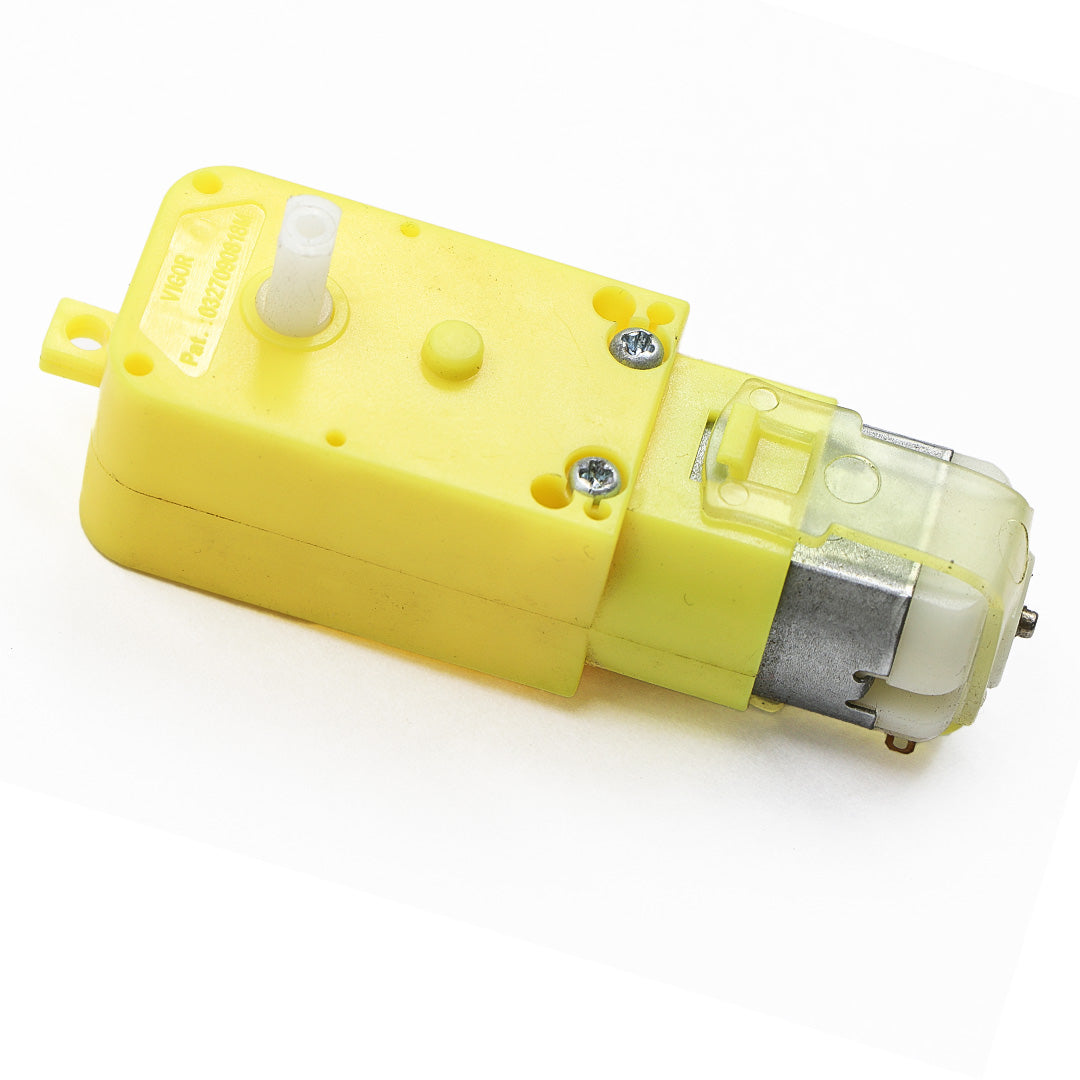

Single Shaft BO Motor - Straight (I Shape)

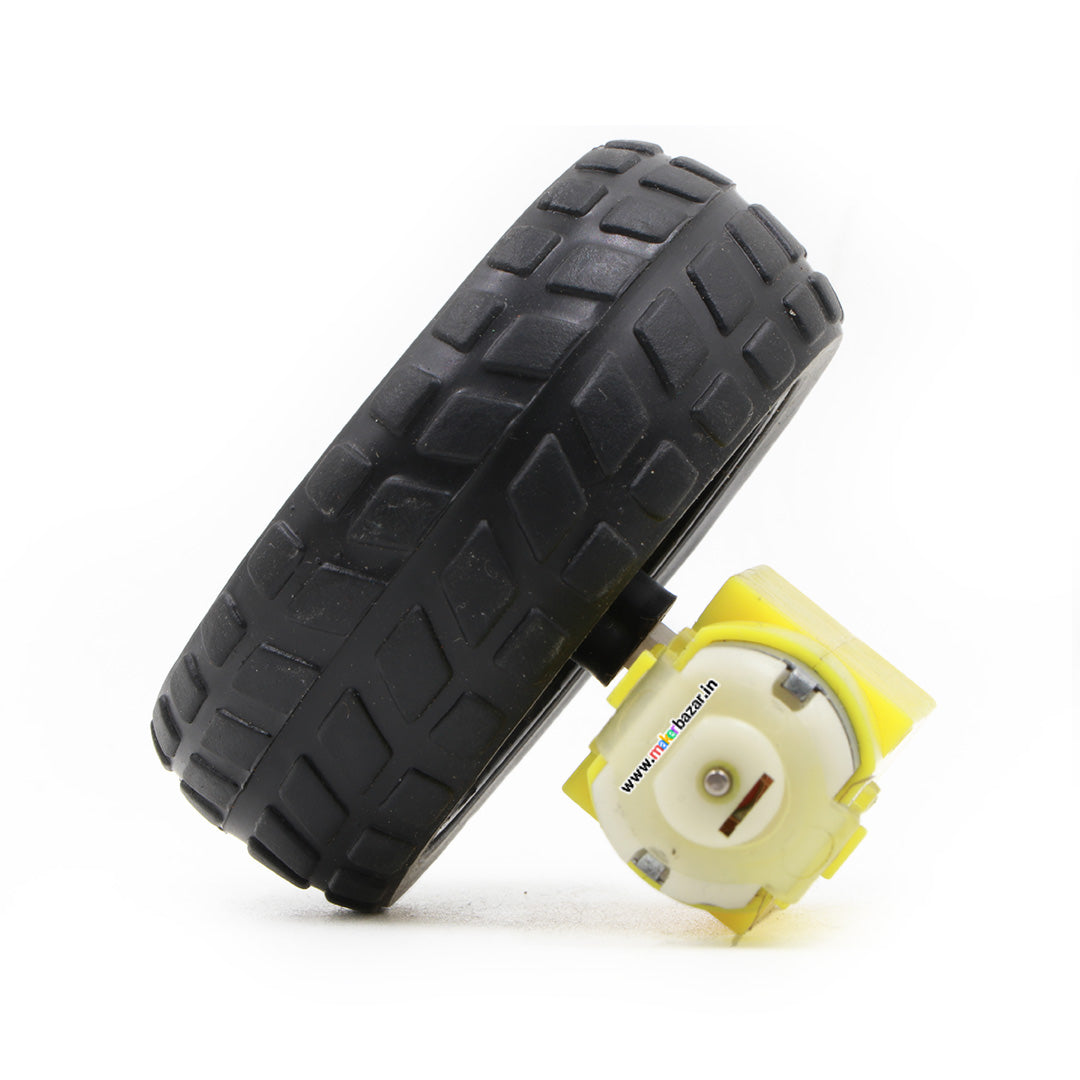

This is an 8mm Single Shaft BO DC Motor Straight "I" Shape. This BO Single Shaft Motor is a Straight motor that provides good torque and rpm at lower operating voltages, which is their main advantage. The combination of a small shaft and matching wheels results in an optimised design for your application or robot. Because of the mounting holes on the body and the light weight, it is suitable for in-circuit placement. This motor is compatible with 69mm Diameter Plastic Gear Motor Wheels.
Features-
- Low density, lightweight, low inertia.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication due to inherent lubricity.
- The relatively low coefficient of friction.
Specification-
| Brand | VIGOR |
| Type | BO Motor Straight |
| Operating Voltage(VDC) | 5~12 V |
| No Load Current | 40-180mA. |
| Material | Plastic |
| Shaft Diameter | 5.2mm |
| Shaft Length | 8mm |
| Rated Speed(After Reduction) | 150 RPM |
| Motor Length | 70mm |
| Width | 22.3mm |
| Depth with shaft | 28mm |
* Product Images are shown for illustrative purposes only and may differ from the actual products.
