Description
12V Thermostat Thermometer Temperature Control Switch Sensor Meter | Range: 50~120 °C

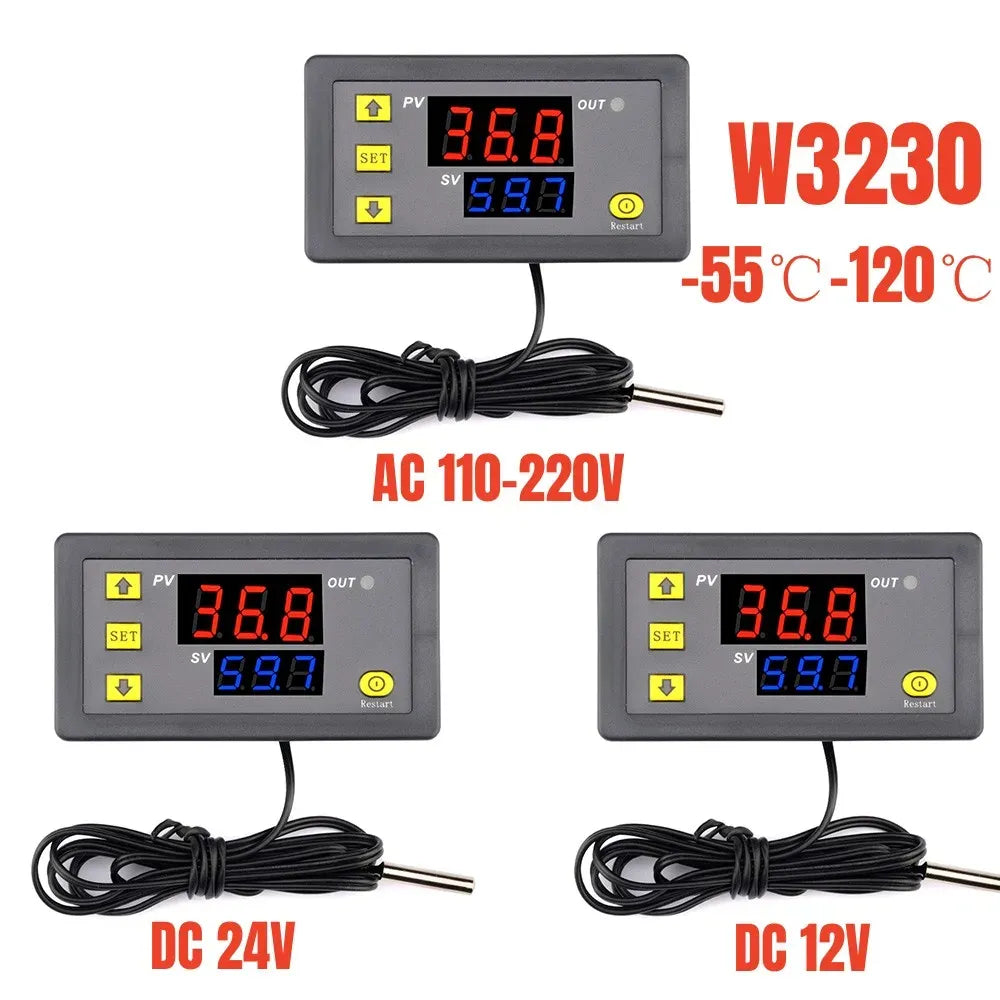

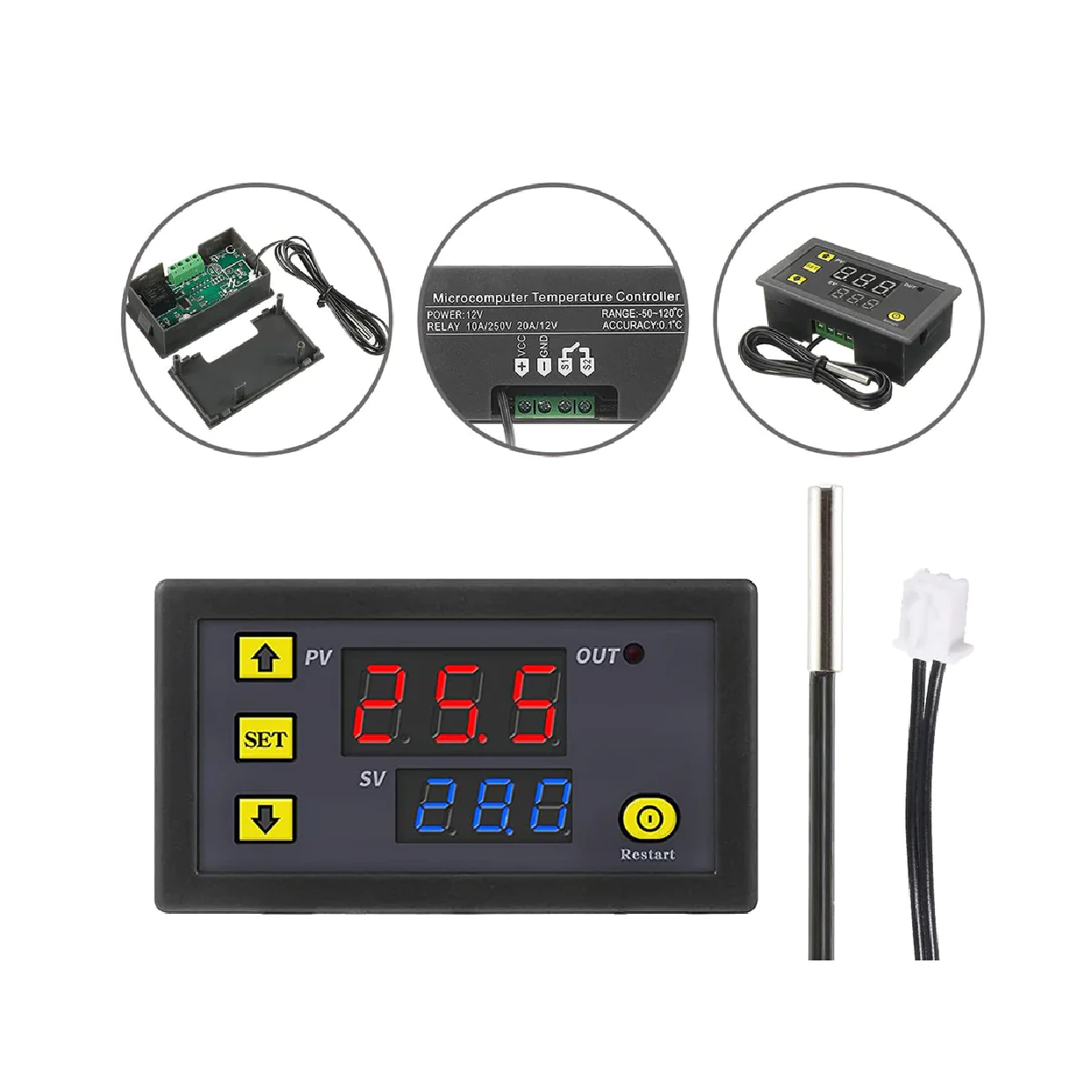

The W3230 AC110-220V Digital Temperature Controller is a versatile microcomputer thermostat switch designed for precision temperature management. It comes equipped with an NTC 10K waterproof temperature sensor. When the temperature of the connected device reaches a pre-set level, the microcomputer activates the relay, thereby powering the connected equipment via the output terminals.
Applications:
- Outdoor Environments: Suitable for use in areas prone to chemical contamination or electrical interference.
- Industrial and Safety Systems: Ideal for nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical equipment, amusement machines, vehicles, and safety equipment.
- Regulated Environments: Compliant with specific industry or government regulations.
- Temperature-Controlled Systems: Applicable for domestic freezers, water tanks, refrigerators, industrial chillers, steamers, and other equipment requiring precise temperature control.
Features:
- Compact temperature controller design.

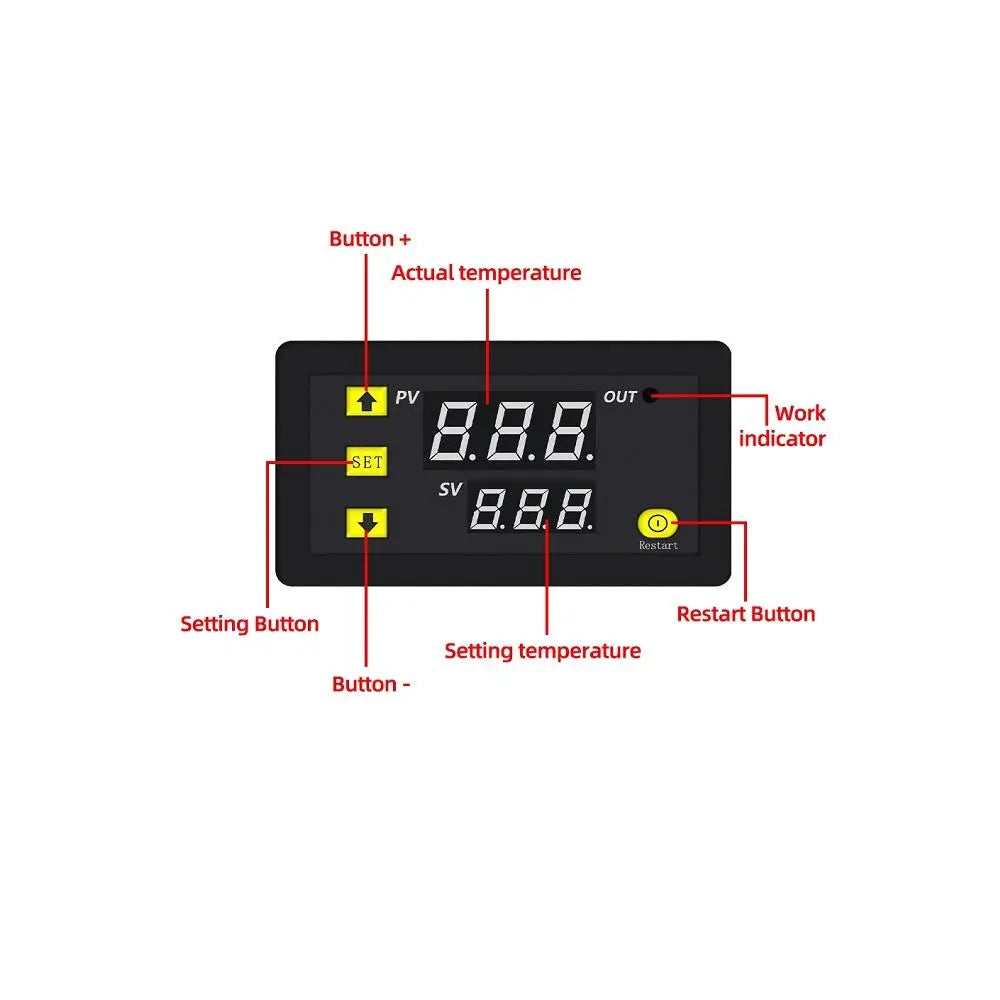

- Clear LED display for easy reading.
- Wide temperature measurement range.
- Capable of controlling both heating and cooling functions.
- Settings are retained even after a power interruption.
- Relay output for reliable operation.
- High control accuracy with a precision of 0.1°C.
Specification:
1. Model: W3230
2. Operating Voltage: AC110-220V
3. Output Relay Contact Capacity:
- 10A at 220V
- 20A at 12V
- 20A at 24V
4. Temperature Control Range: -55°C to 120°C
5. Display Color Options: Red or Blue
6. Resolution: 0.1°C (for temperatures between -9.9°C and 99.9°C)
7. Control Accuracy: ±0.1°C
8. Measurement Accuracy: ±0.1°C
9. Temperature Sensor: NTC10K Waterproof Sensor
10. Operating Temperature Range: -10°C to 60°C
11. Working Humidity Range: 20% to 85%
Package Includes:
1 x W3230 AC110-220V Digital Temperature Controller Microcomputer Thermostat Switch
