Description

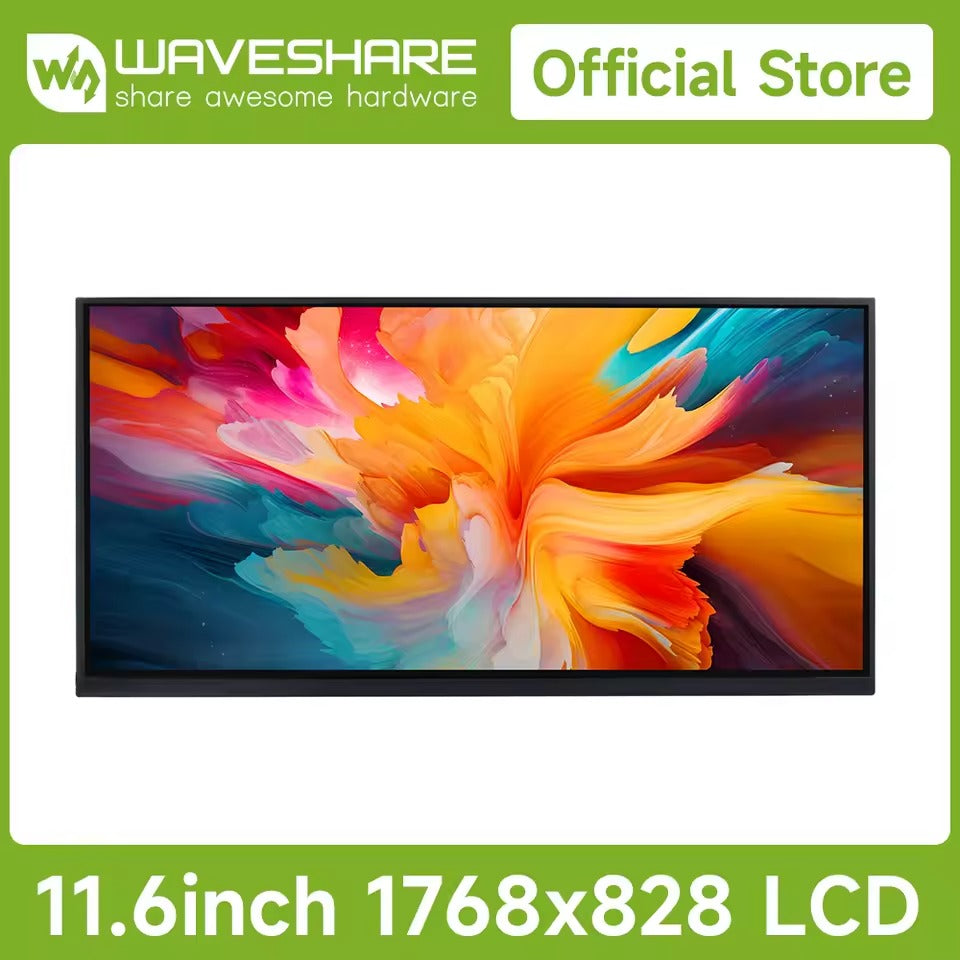

The 11.6-inch Capacitive Touch Display combines sleek design with cutting-edge performance. Featuring a 1768×828 resolution and a 178° wide viewing angle, it delivers sharp visuals and vibrant colors from any angle. Utilizing In-Cell Technology, the touch sensor is seamlessly integrated into the display, resulting in a thinner and more responsive screen. The IPS panel ensures consistent color accuracy and brightness. With 10-point multi-touch support, the display allows for precise and fluid touch interactions. It also offers flexible connectivity with both HDMI and Type-C interfaces, making it suitable for a wide range of devices.
User Manual / Datasheet / Example Codes Etc.
Features
- 11.6-inch IPS screen with 1768x828 hardware resolution.
- 10-point capacitive touch with in-cell touch technique, narrow frame with thin thickness, fast response.
- Supports Raspberry Pi OS/Ubuntu/Kali and Retropie when used with Raspberry Pi.
- Supports Windows 11/10/8.1/8/7 when used as a computer monitor.
- Supports Ubuntu when working with Jetson series.
- Multi-language OSD menu support (can be used for power control, adjusting brightness/contrast, etc.)
- Support software DDC/CI brightness adjustment.
Specifications
- Model: 11.6inch 1768x828 LCD
- Size: 11.6Inch
- Viewing Angle: 178Deg
- Resolution: 1768x828Pixels
- Color Gamut: 72%NTSC
- Maximum Brightness: 300cd/m²
- Contrast: 1200:1
- Refresh Rate: 60Hz
- Display Interface: HDMI/Type-C
IPS Display Panel
Excellent Display Performance With 178° Wide Viewing Angle
Package Includes
Interface Introduction
Dimensions
