Description

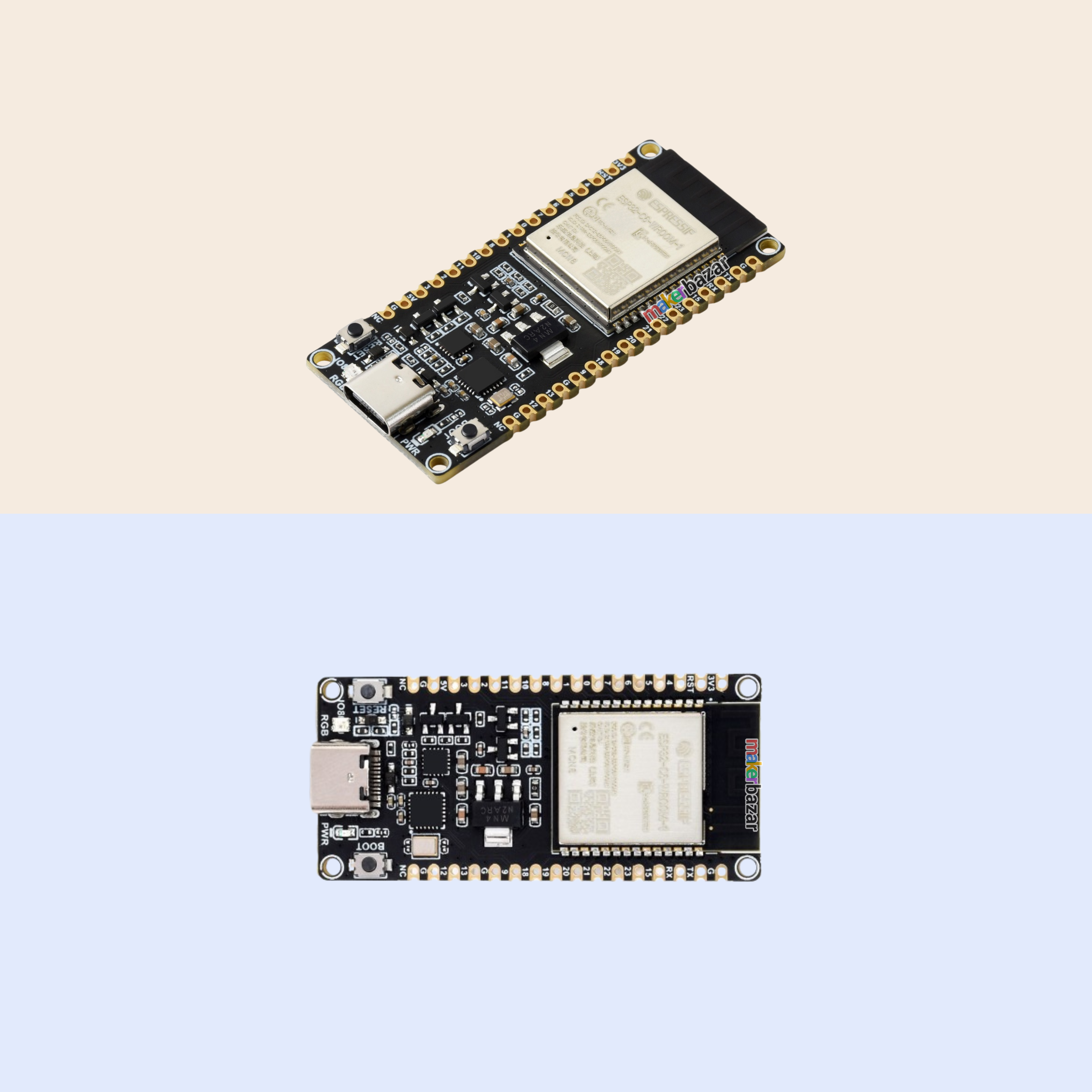

Wave share ESP32-C6-Wroom-1 Development Board – WiFi 6, BLE 5 & Zigbee/Thread (RISC-V)
The Waveshare ESP32-C6 Development Board is a powerful and compact entry-level RISC-V microcontroller platform designed for next-generation IoT, smart home, and industrial applications. Based on the ESP32-C6-WROOM-1-N8/N16 module, it features a 32-bit RISC-V single-core processor running up to 160MHz, delivering efficient performance with low power consumption.
This board integrates advanced wireless connectivity including WiFi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 & Thread), making it ideal for modern connected devices. With 8MB or 16MB Flash options, it provides ample storage for firmware and applications.
Equipped with CH343 and CH334 USB HUB chips, the board supports simultaneous USB and UART development via a USB Type-C port, ensuring easy programming and debugging. It also offers a wide range of interfaces such as SPI, UART, I2C, I2S, PWM, and SDIO, and is fully compatible with the ESP32-C6-DevKitC-1 pinout, allowing seamless expansion.
With online tutorials and ESP-IDF support, this board is perfect for beginners and professionals looking to build advanced wireless and embedded systems.
Key Features

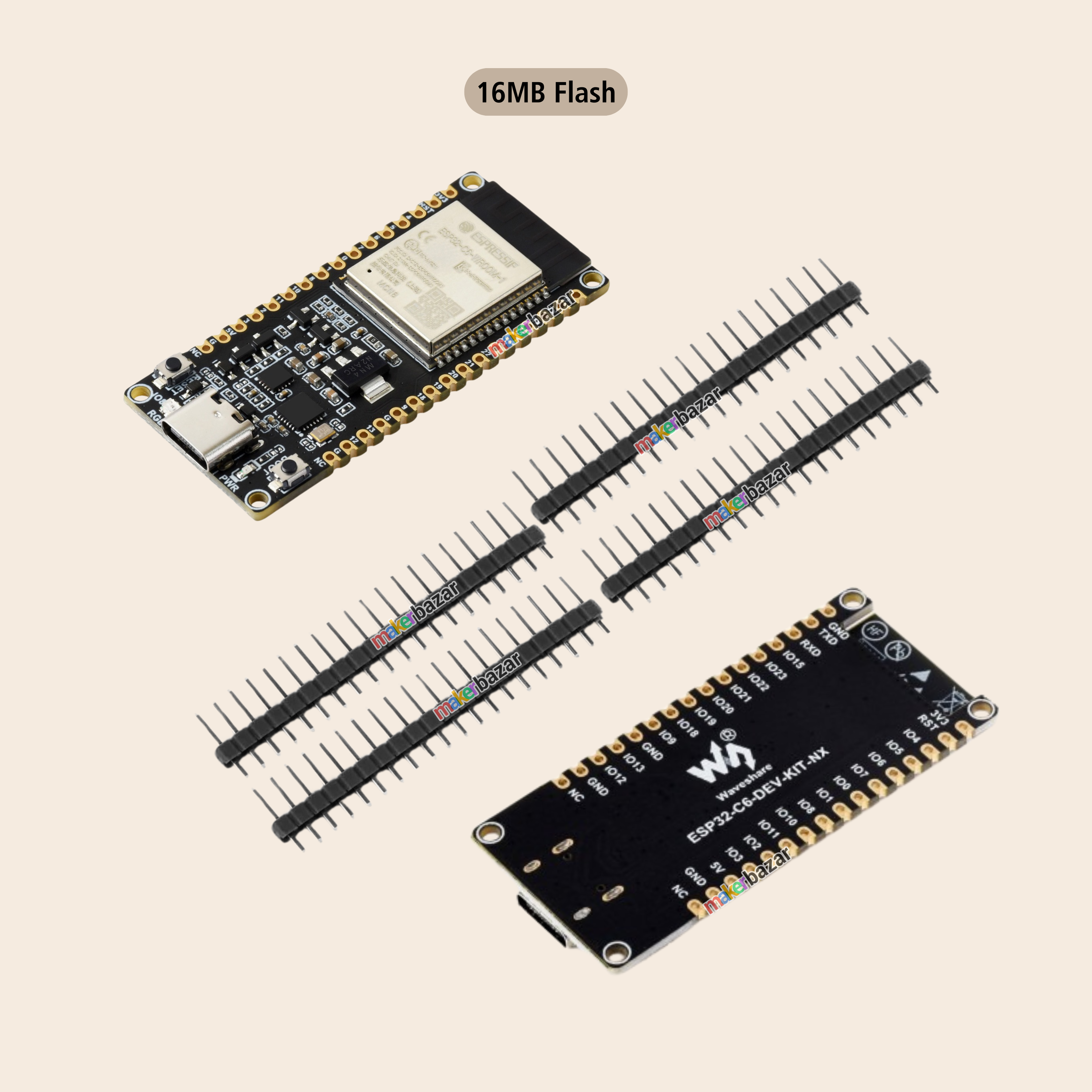

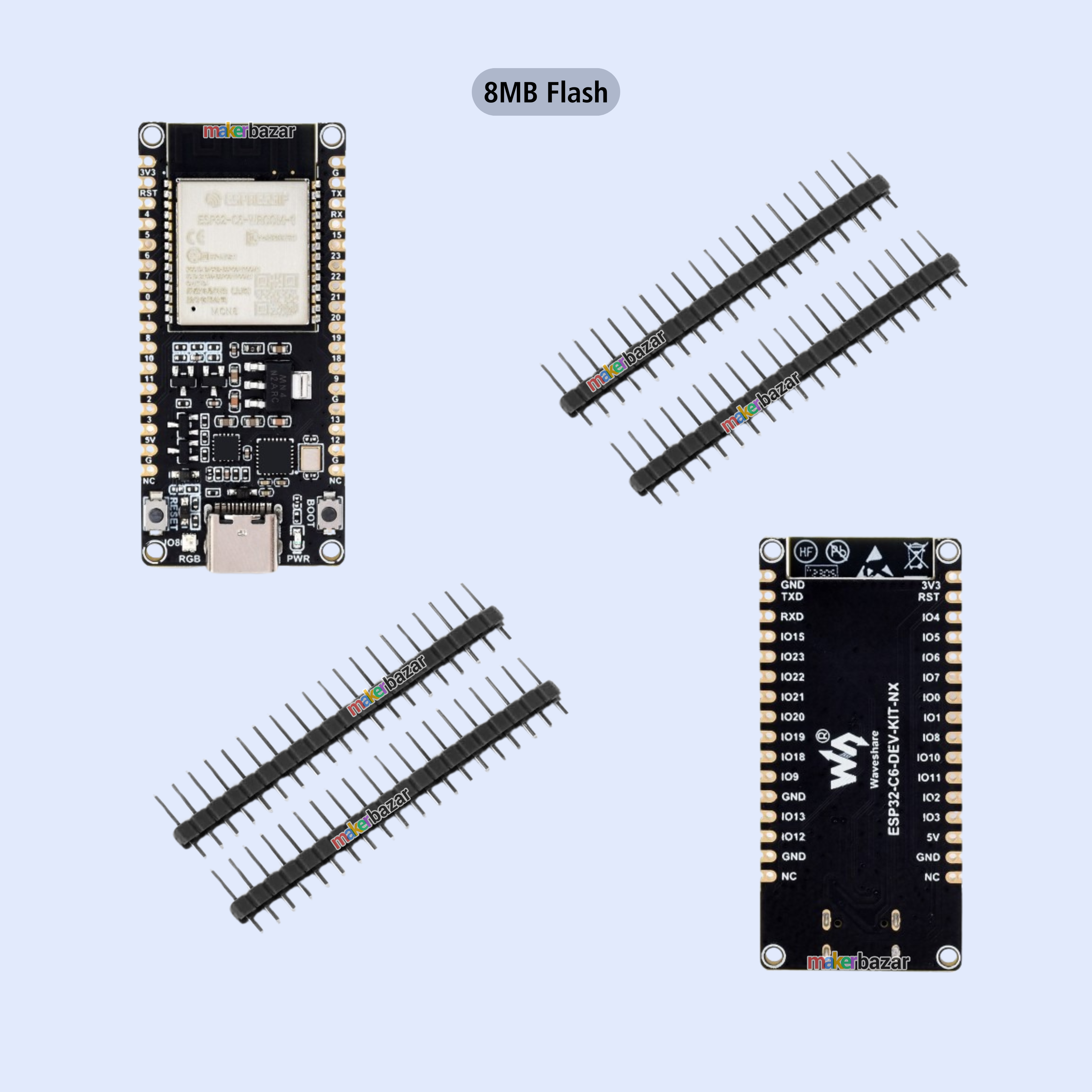

- ESP32-C6-WROOM-1-N8/N16 Module – 8MB / 16MB Flash options.
- RISC-V 32-bit Processor – Up to 160MHz for efficient performance.
- WiFi 6 + BLE 5 + Zigbee/Thread – Multi-protocol wireless connectivity.
- USB Type-C Interface – Easy programming and power supply.

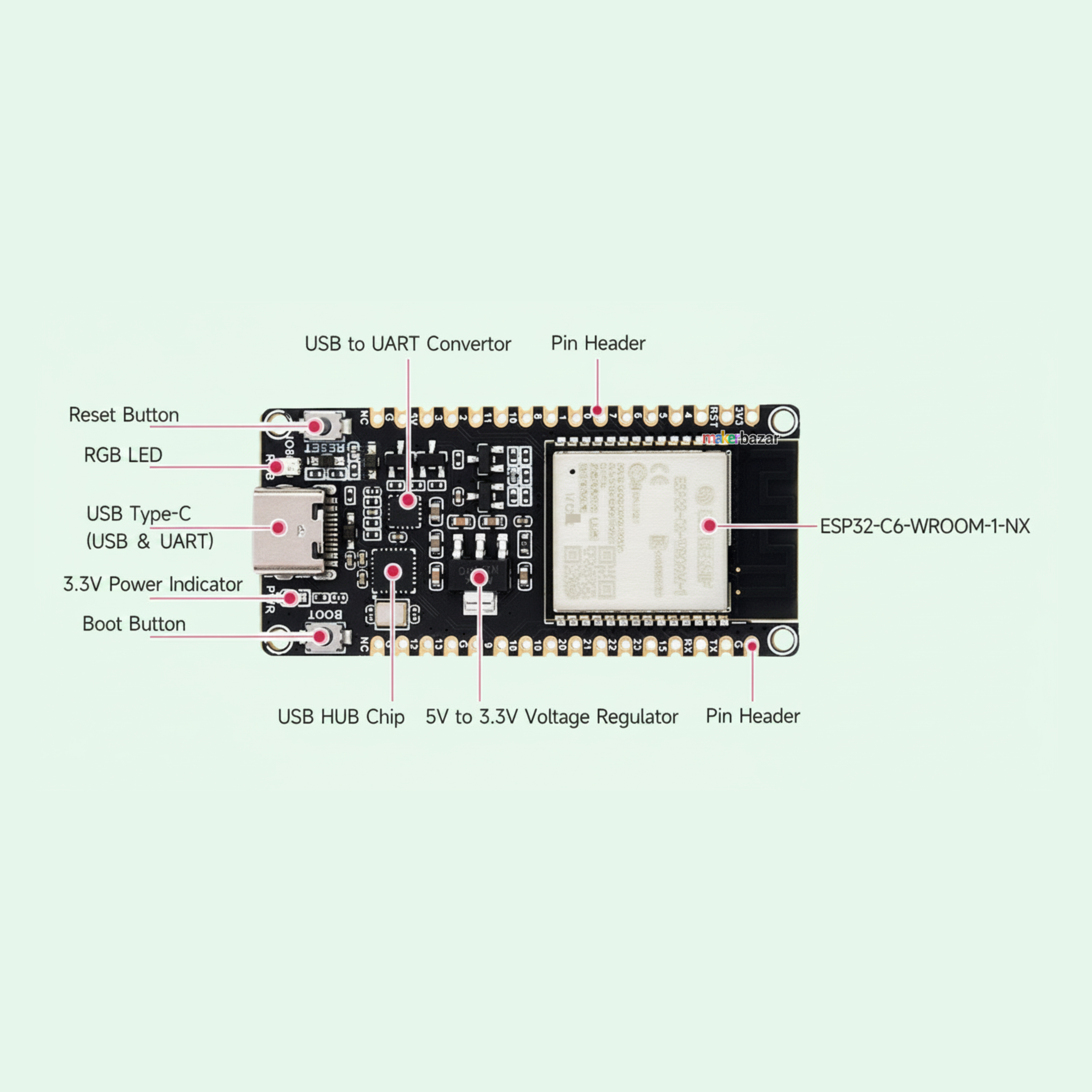

- Dual USB/UART Support – Onboard CH343 & CH334 chips.
- Rich Peripheral Interfaces – SPI, UART, I2C, I2S, PWM, SDIO.

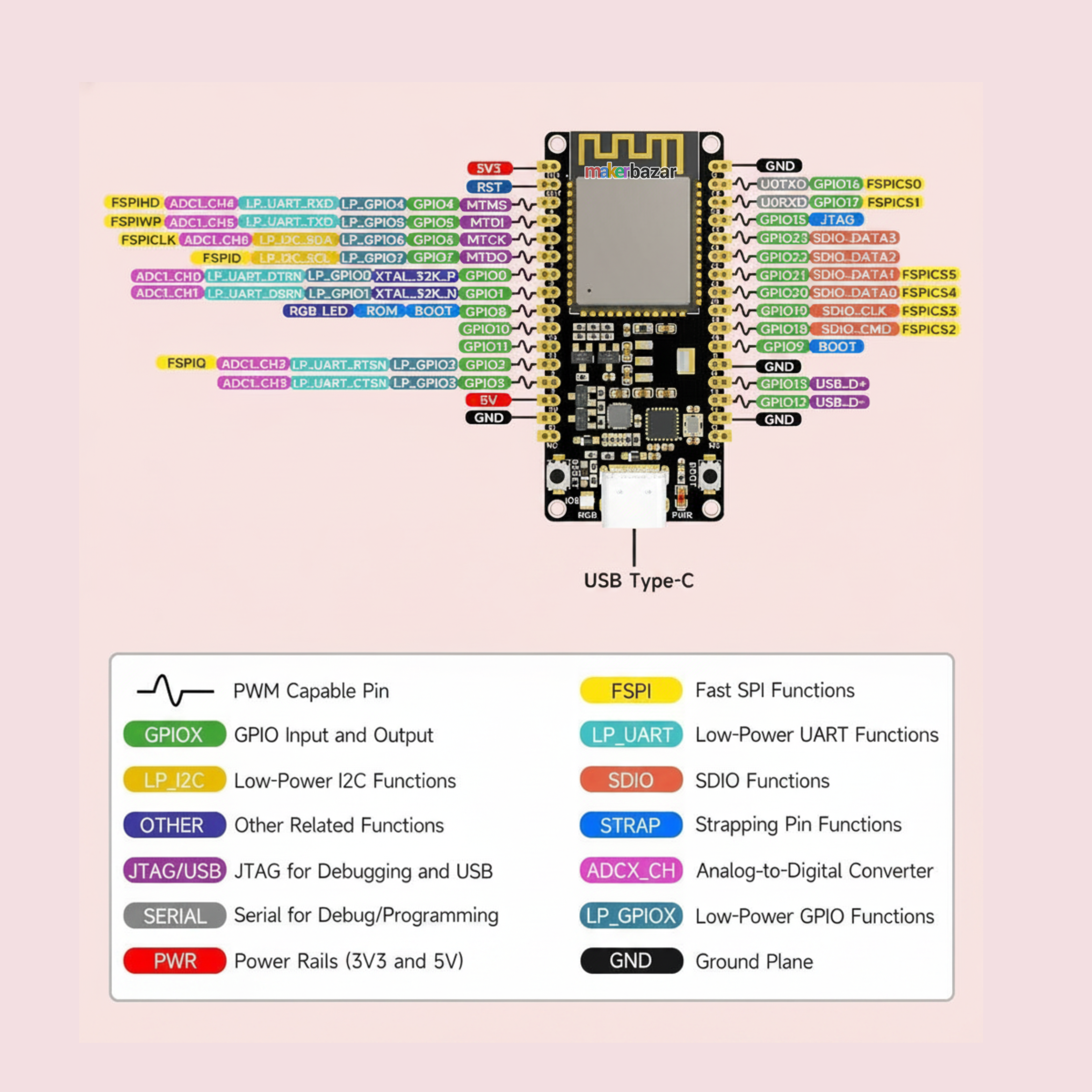

- ESP32 DevKit Compatible Pinout – Easy expansion with modules.
- Castellated Module Design – Suitable for direct PCB soldering.
- Beginner Friendly – Includes tutorials and ESP-IDF examples.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Development Board |
| Model | ESP32-C6-WROOM-1-N8 / N16 |
| Processor | RISC-V 32-bit Single-Core |
| Clock Speed | Up to 160 MHz |
| Flash Memory | 8MB / 16MB |
| SRAM | 400 KB |
| WiFi | WiFi 6 (802.11ax) |
| Bluetooth | Bluetooth 5 (BLE) |
| IEEE Protocol | 802.15.4 (Zigbee 3.0, Thread) |
| USB Interface | USB Type-C |
| USB Chips | CH343 + CH334 |
| Interfaces | GPIO, UART, SPI, I2C, I2S, PWM, SDIO |
Applications
- Smart Home Automation (Zigbee/Thread Devices)
- IoT & Wireless Sensor Networks
- Industrial Automation Systems
- Healthcare Monitoring Devices
- Consumer Electronics
- Embedded Systems Development
- DIY Robotics & Prototyping
Precautions
- Use a stable USB Type-C power source.
- Avoid short circuits on GPIO pins.
- Handle carefully to prevent ESD damage.
- Ensure correct driver installation for USB communication.
- Verify voltage compatibility before connecting peripherals.
