Description
RGB Controller via iOS/Android for WS2811 WS2812B WS2815 WS2813 WS2801 SK6812 WS2815 SK9822 A102 LED Strip Pixel Module Panel Light

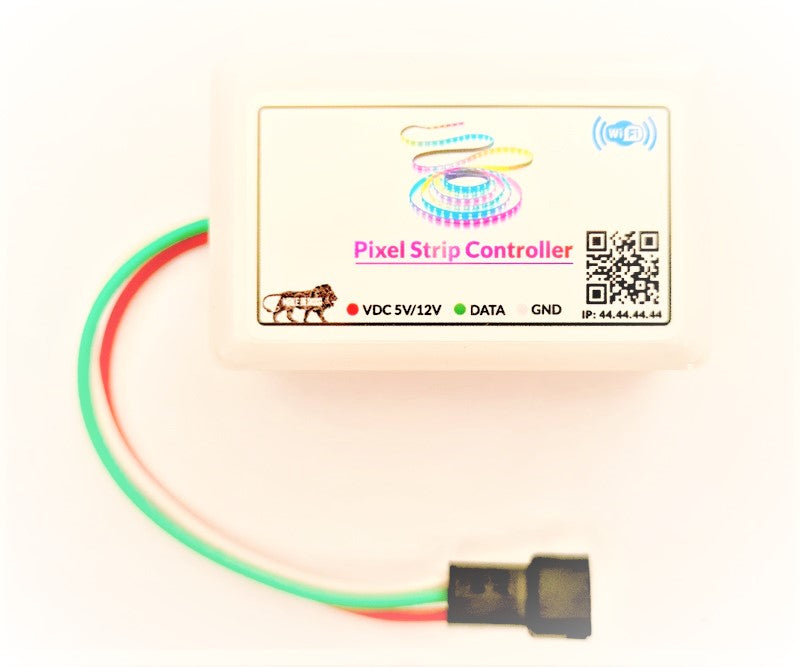

This Pixel Strip controller allows you to control the LED strips. Plenty of colorful modes are available to suit your needs. Can be set and controlled via Wifi App connecting to the controller over Wifi access point which makes it convenient to control LEDs from a long distance.
Voltage range from DC 5V to 12V and includes reverse connection protection of the power supply.
- 118 kinds of pixel effects.
- 71 color palette supported, this helps in playing 118 x 71 (8,378) unique pixel effects.
- Setting pixel number supports up to 1200 pixels.
- Adjustable. The speed, brightness, number of pixels, color order, and sensitivity are adjustable.
- User setting saving.
- One-Year Warranty. Providing technical services
Instructions:
- Make sure you have connected to an Access point (WSPIXEL_) on your phone.
- Open the browser and connect to the controller using 12345678 as the password. once connected you will see the app on the browser to control effects.
- Select RGB order and IC type under the setting tab.
- Adjust the pixel numbers according to the connected strip.
Note: Use 5v Led if the power supply to your RGB controller is 5v | Use 12v Led if the power supply to your RGB controller is 12v | Use 24v Led if the power supply to your RGB controller is 24v
