Description

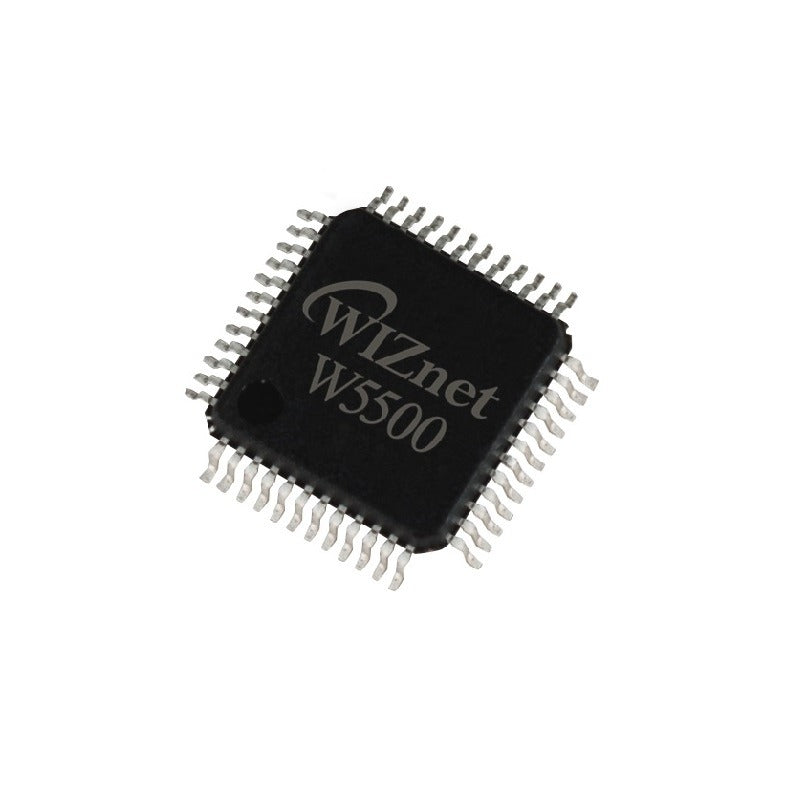

W5500 48-LQFP (7x7) IC CTLR 3-1 ETH TCP/IP 48LQFP

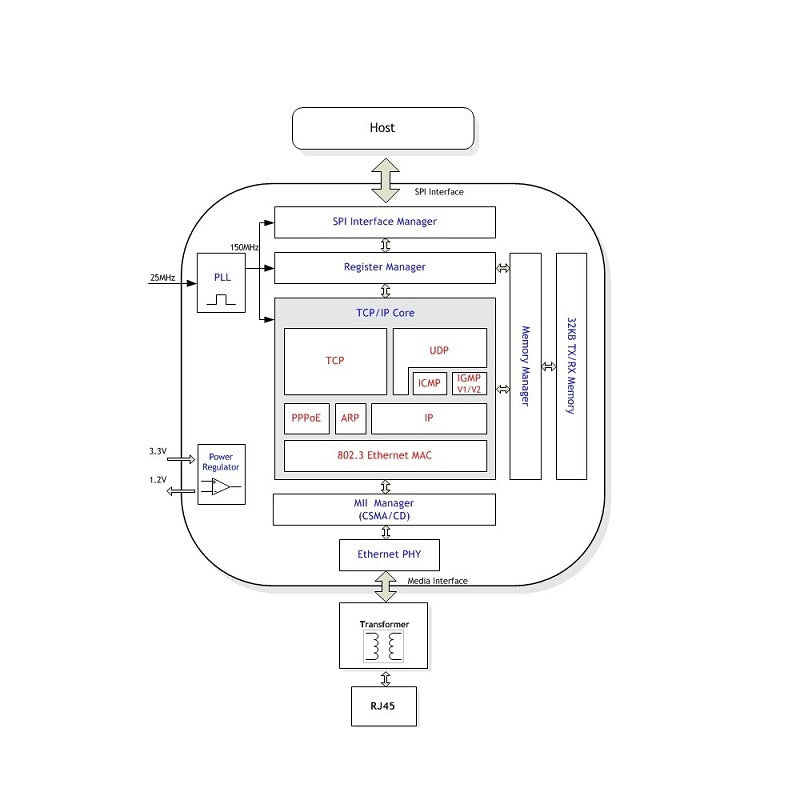

The WIZnet W5500 is a hardwired Ethernet controller IC with an embedded TCP/IP protocol stack, supporting 10/100Mbps Ethernet connectivity via a SPI interface. Built for speed and efficiency, it supports up to 8 simultaneous sockets, ideal for embedded systems, IoT devices, home automation controllers, and industrial networking.
Thanks to its LQFP-48 package, the W5500 is compact and easily integratable into any PCB design.
🌐 Key Features:
-
Built-in Hardwired TCP/IP Stack (IPv4, TCP, UDP, ICMP, ARP, IGMP, PPPoE)
-
High-Speed SPI Interface: Up to 80 MHz SPI for fast data transfers
-
Supports 8 Independent Sockets Simultaneously
-
10/100Mbps Ethernet MAC & PHY Embedded
-
Internal 32 KB Memory for TX/RX Buffers
-
Wake-on-LAN & Power-Down Mode Support
-
Auto Negotiation (Full/Half Duplex) and Auto-MDI/MDIX
⚙️ Specifications:
-
Interface: SPI (4-wire or 3-wire, up to 80 MHz)
-
Operating Voltage: 3.3V (I/O tolerant to 5V)
-

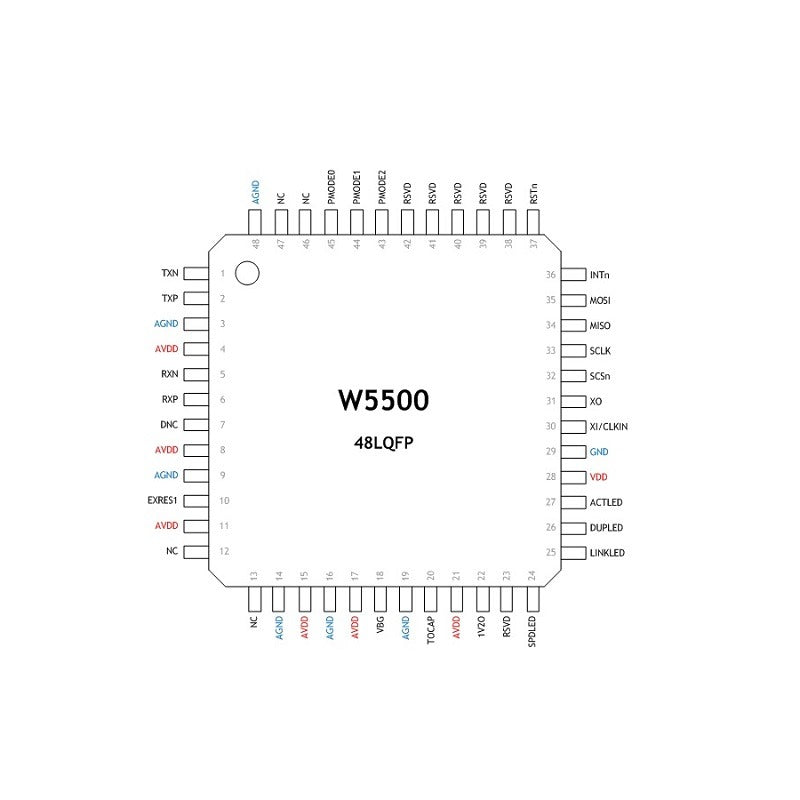

Package Type: LQFP-48 (7 × 7 mm)
-
Internal Memory: 32KB
-
Max. Sockets: 8
-
Ethernet Support: 10Base-T / 100Base-TX
-
Power Saving Modes: Power-down & Wake-on-LAN
-
Operating Temperature: –40 °C to +85 °C (Industrial Grade)
📦 Applications:
-
Embedded Ethernet Devices
-
IoT Controllers and Gateways
-
Industrial Networking Equipment
-
Remote Monitoring & Control Systems
-
Arduino, STM32, and ARM-Based Boards
