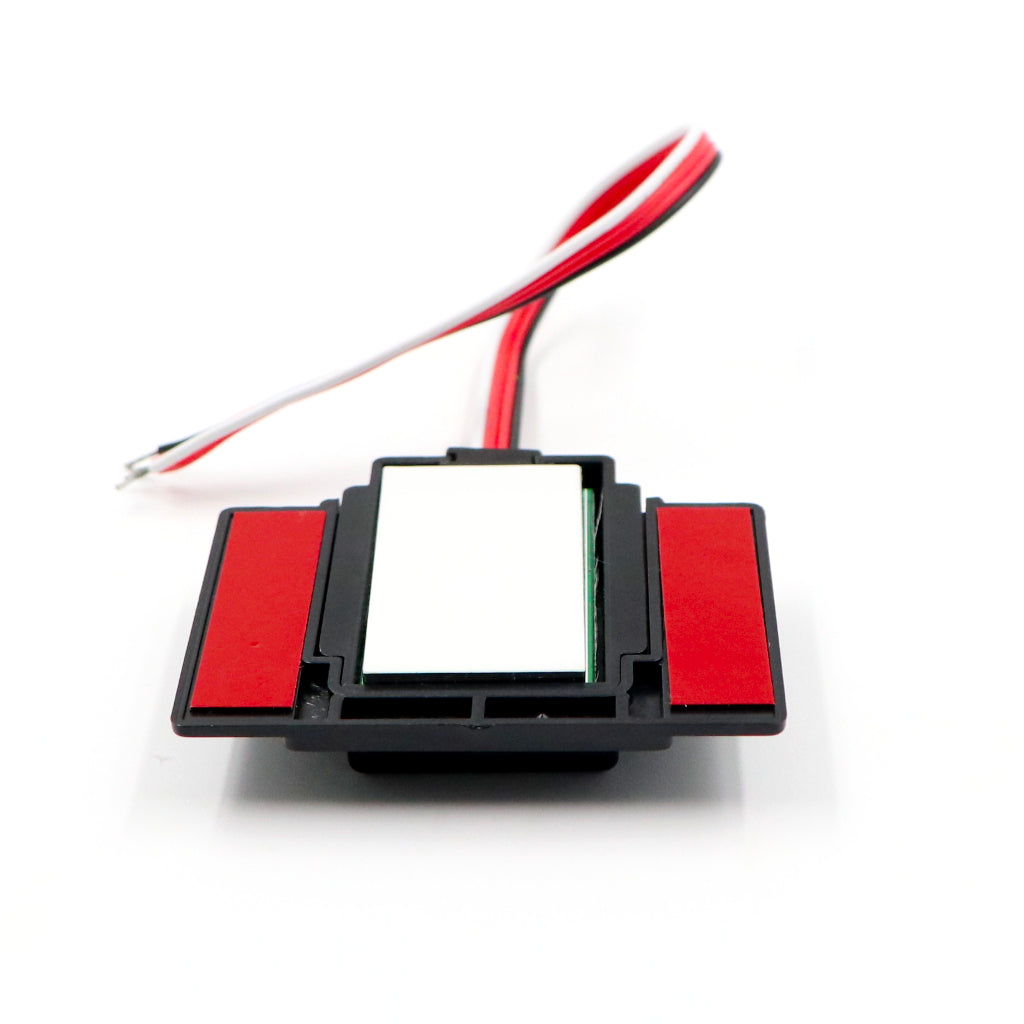

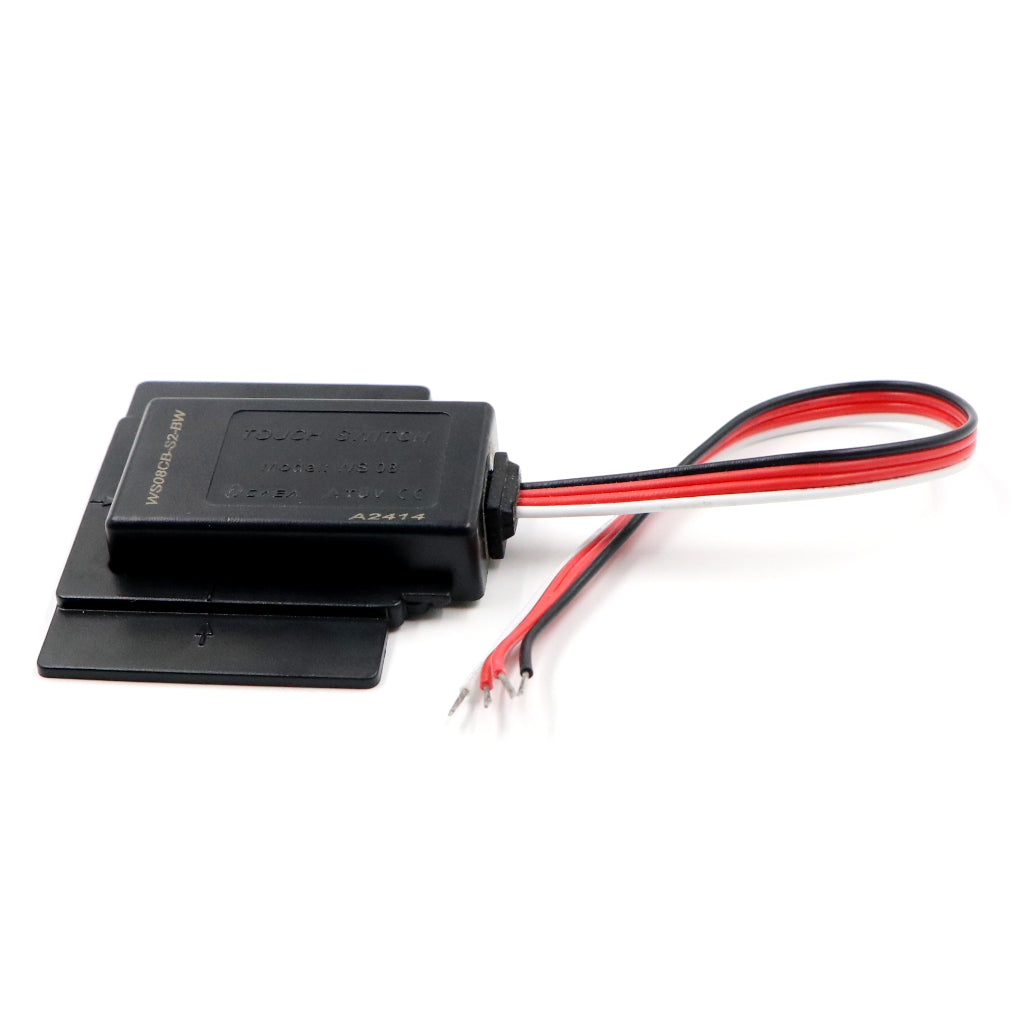

WS08CB-S2-BW WS 08 Single Touch Sensor Mirror Switch For Glass Lamp Mirror Light LED 12VDC 4.5A One Colour

No reviews

Sale price₹ 459.00
( ₹ 388.98 without 18% GST.)

Tax included Shipping calculated at checkout

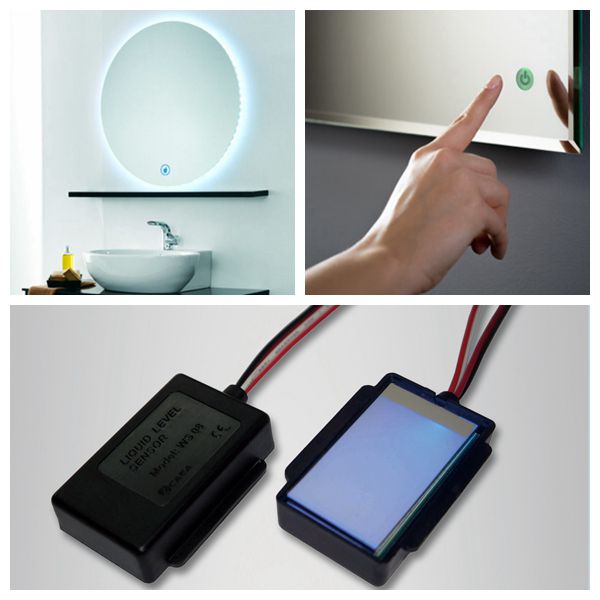

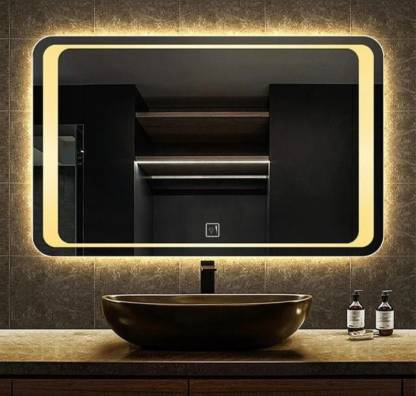

This is a dimmable mirror-touch dimmer switch for the hotel bathroom, smart touch switch, mirror light touch sensor switch. This switch has two 12V outputs which can be used for two different LEDs. On pressing/touching the bottom left side of the switch it will work for one led and it will work for another led on pressing the diagonally opposite end of the switch. It is also capable of dimming for both LED outputs.

Switches Installation Procedure:

1. On the mercury side of the mirror sand beating Or use the laser to carve out the icon of the switch button.

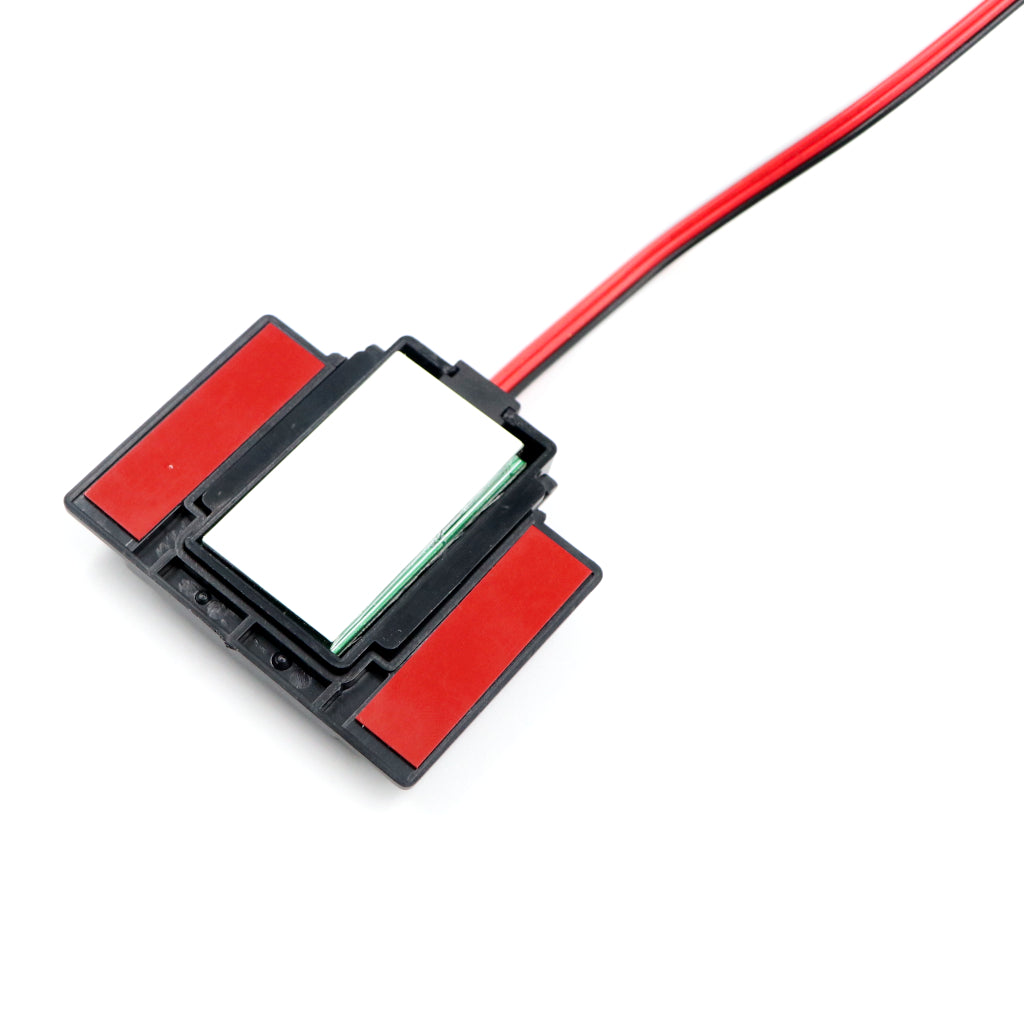

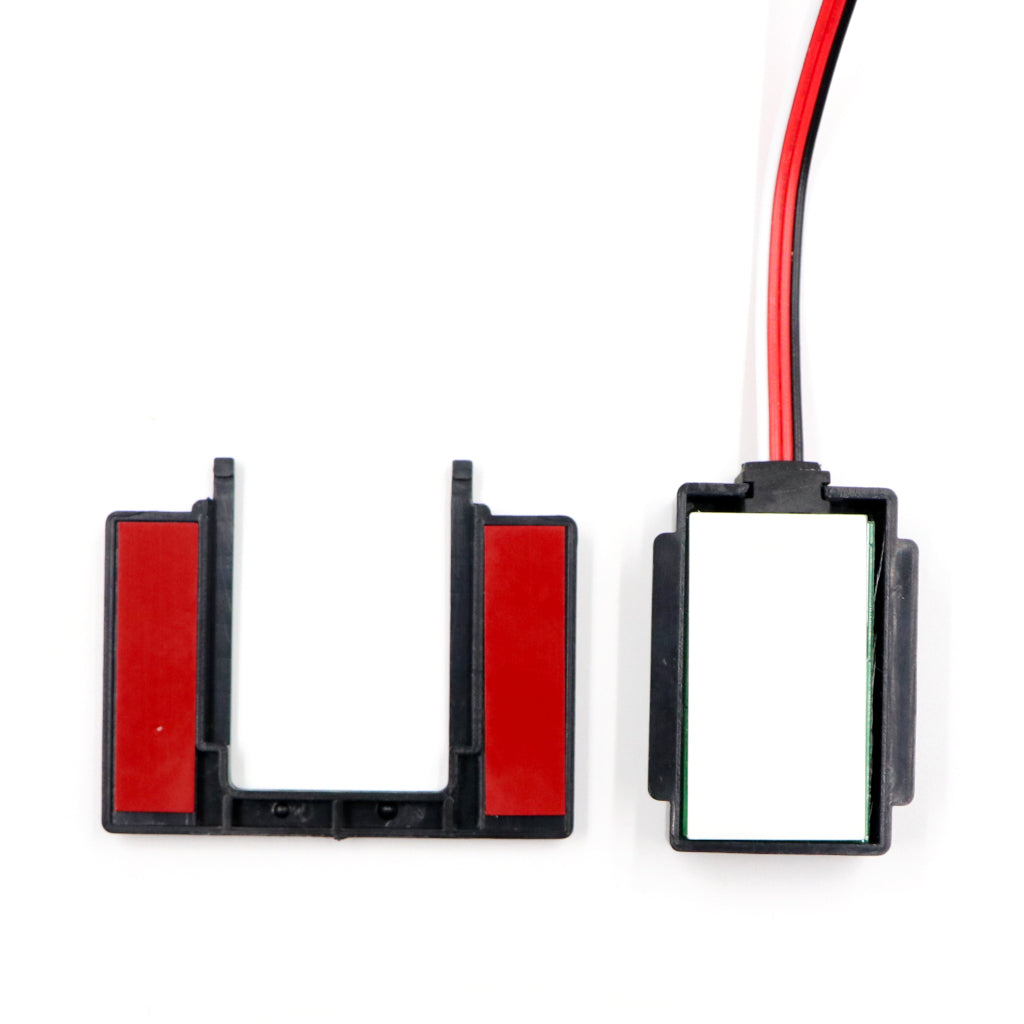

2. Remove the 3M sticker on the back of the bracket to facilitate the next step of pasting fixing installation.
3. Take the icon of the switch button as the center, and stick the touch switch to the icon of the button.
4. After installation, touch the switch to power on, and the mirror can see the backlight icon.

Operating Voltage 12V DC
Operating Current 0-4.5A

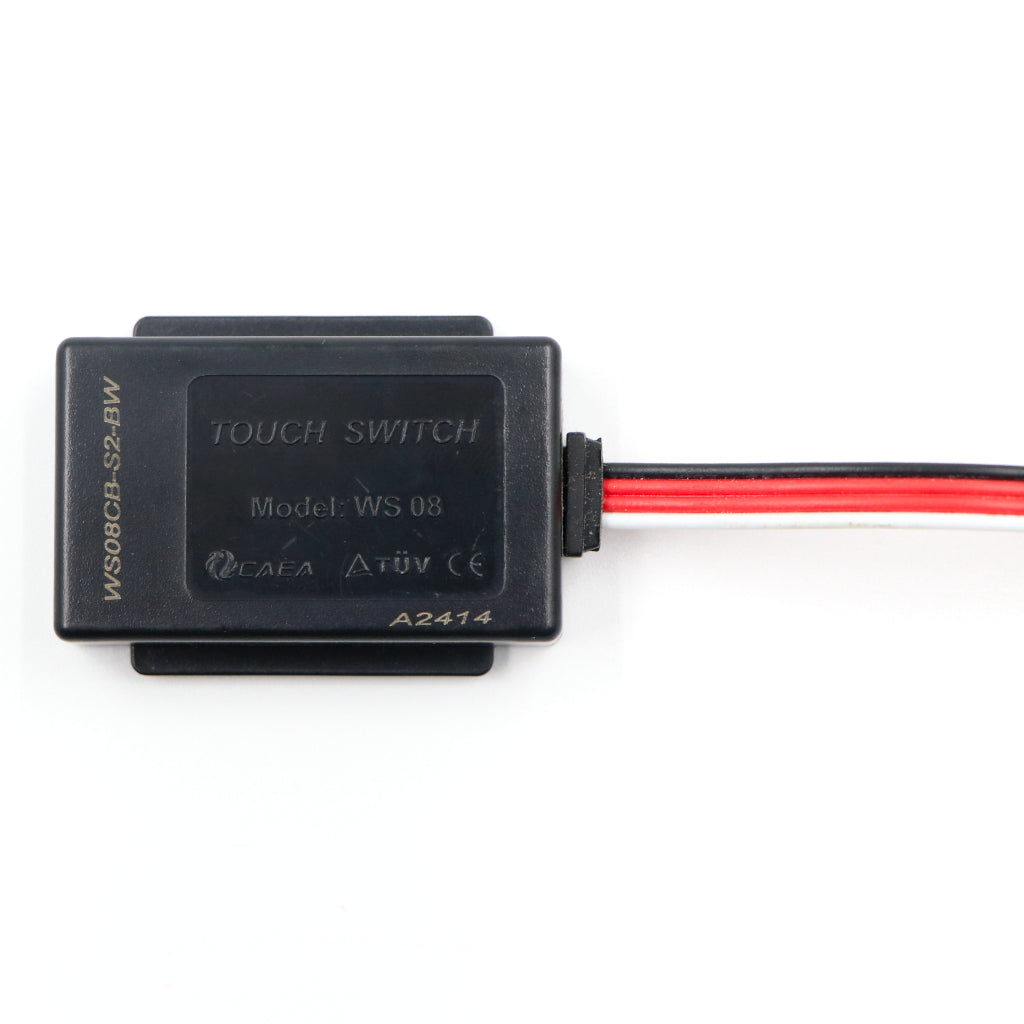

Model WS 08
Dimming Function  Yes
Number of Wires 5

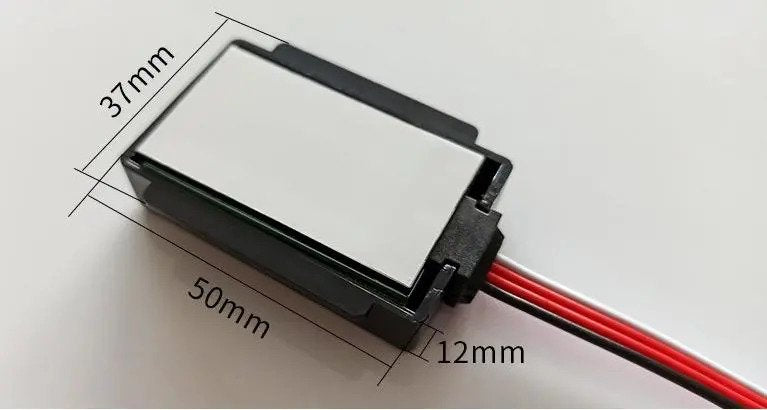

Dimension(LxWxH) 55mm x 35mm x 12mm
Cover Dimension(LxW) 55mm x 63mm
