XH-A901 NE5532 Stereo Tone Board Pre-Amplifier with Bass, Treble & Volume Control
The XH-A901 NE5532 Stereo Tone Board Pre-Amplifier is a high-performance audio preamp module designed to improve sound quality before the power amplifier stage. Built around dual NE5532 low-noise operational amplifiers, it delivers clean, detailed stereo audio with minimal distortion and an excellent signal-to-noise ratio.
Featuring independent Bass, Treble, and Volume controls, the XH-A901 allows precise sound customization to match your speakers and listening preferences. It is ideal for DIY amplifier builds, Bluetooth speaker systems, home theatre projects, multimedia speakers, and Class-D/Class-AB amplifier modules.

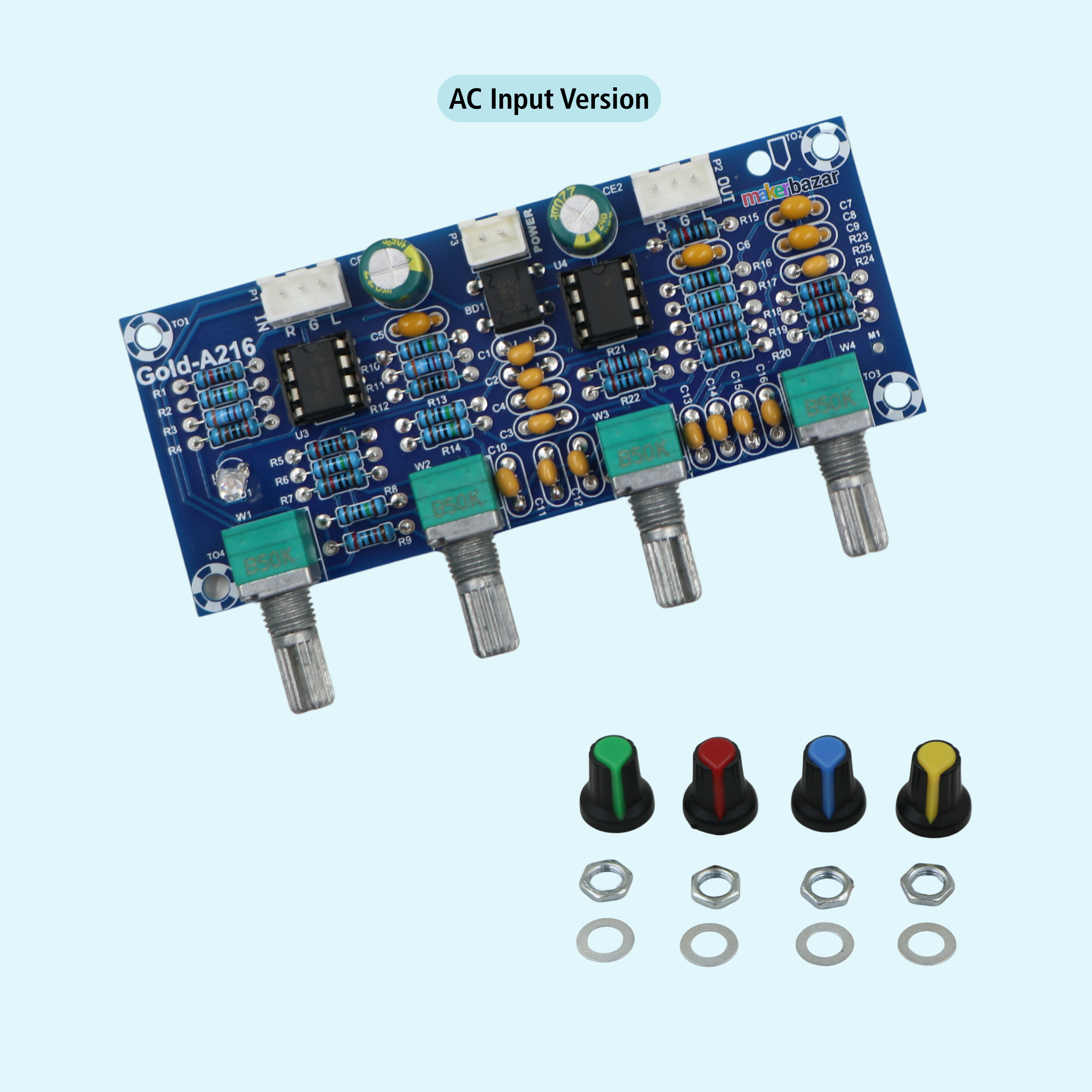

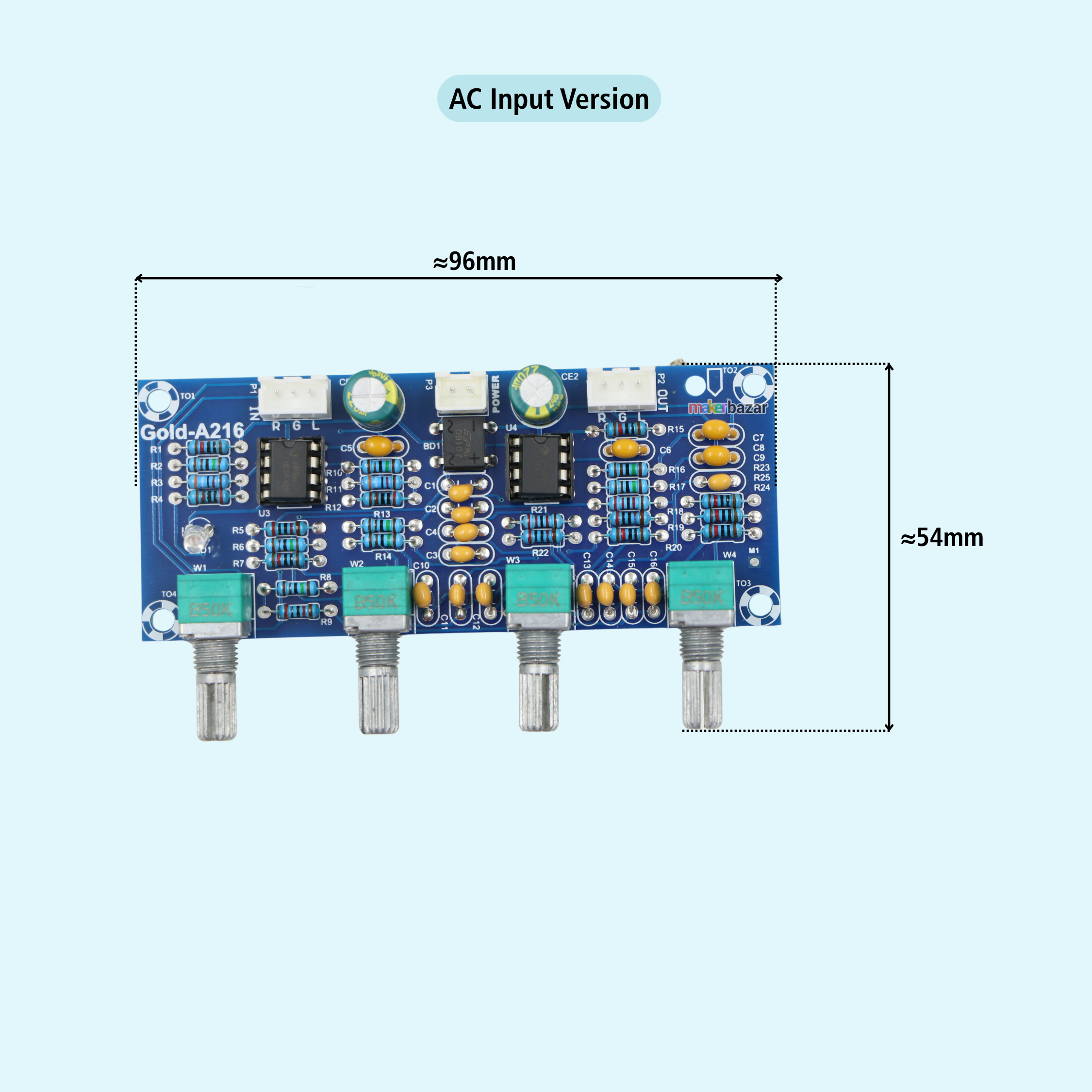

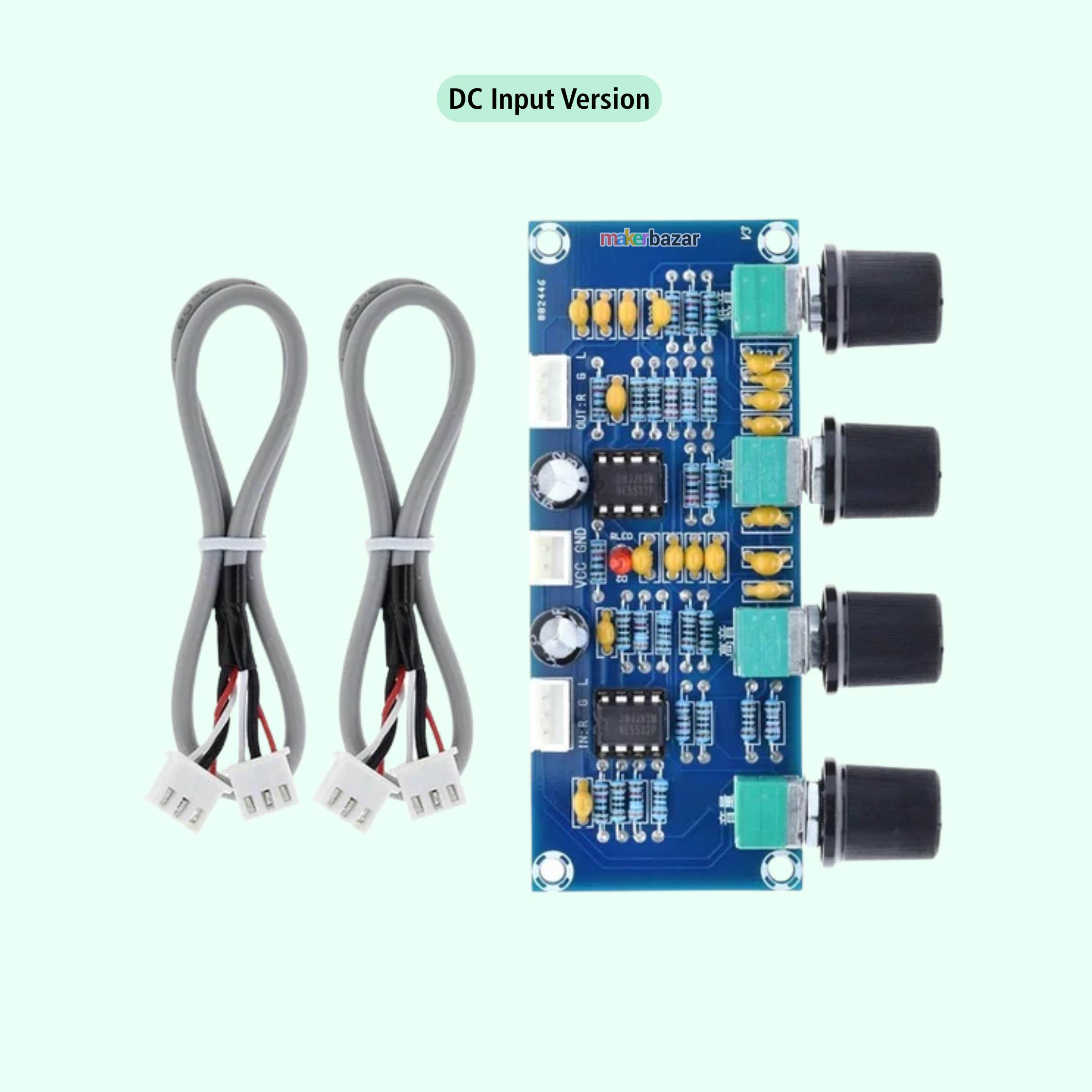

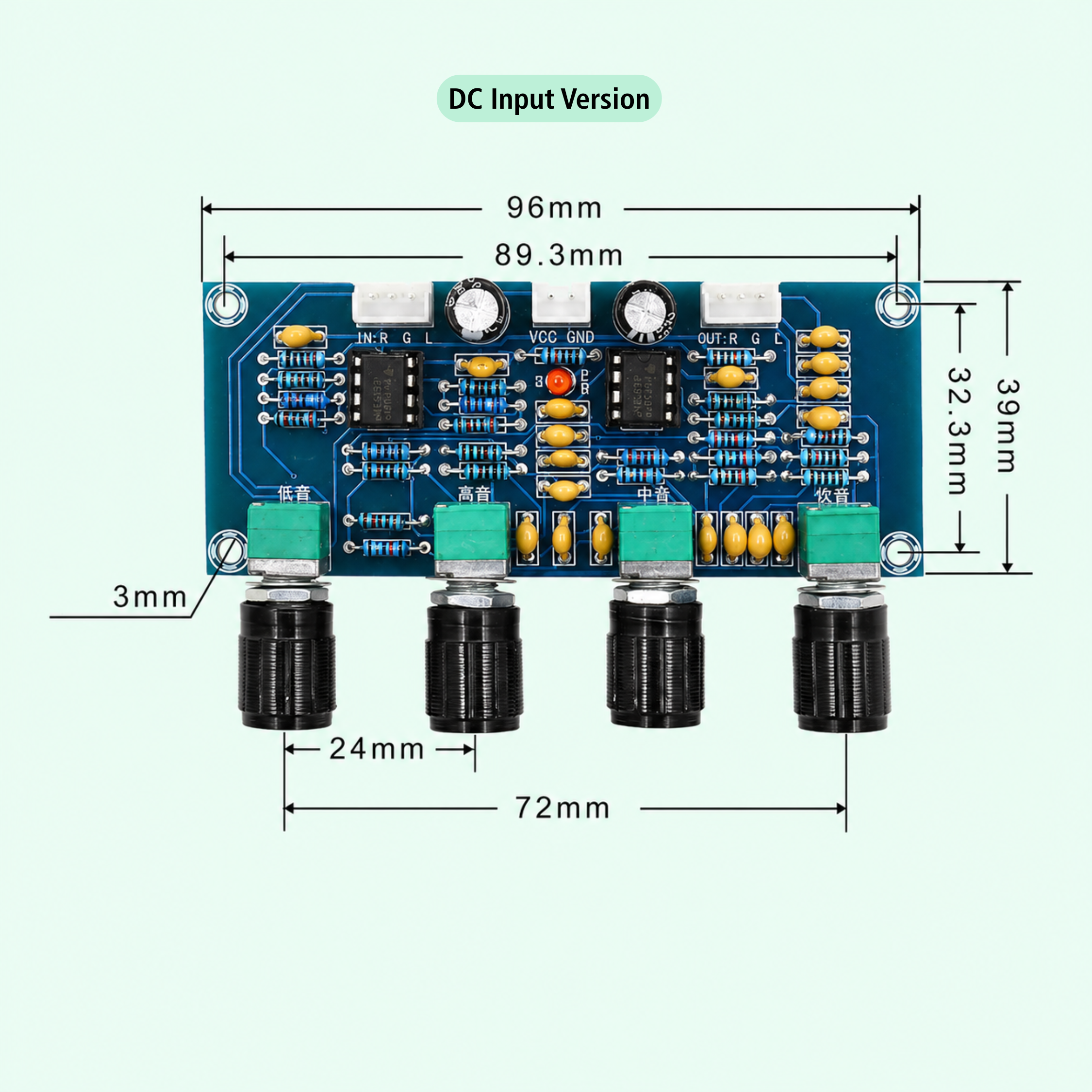

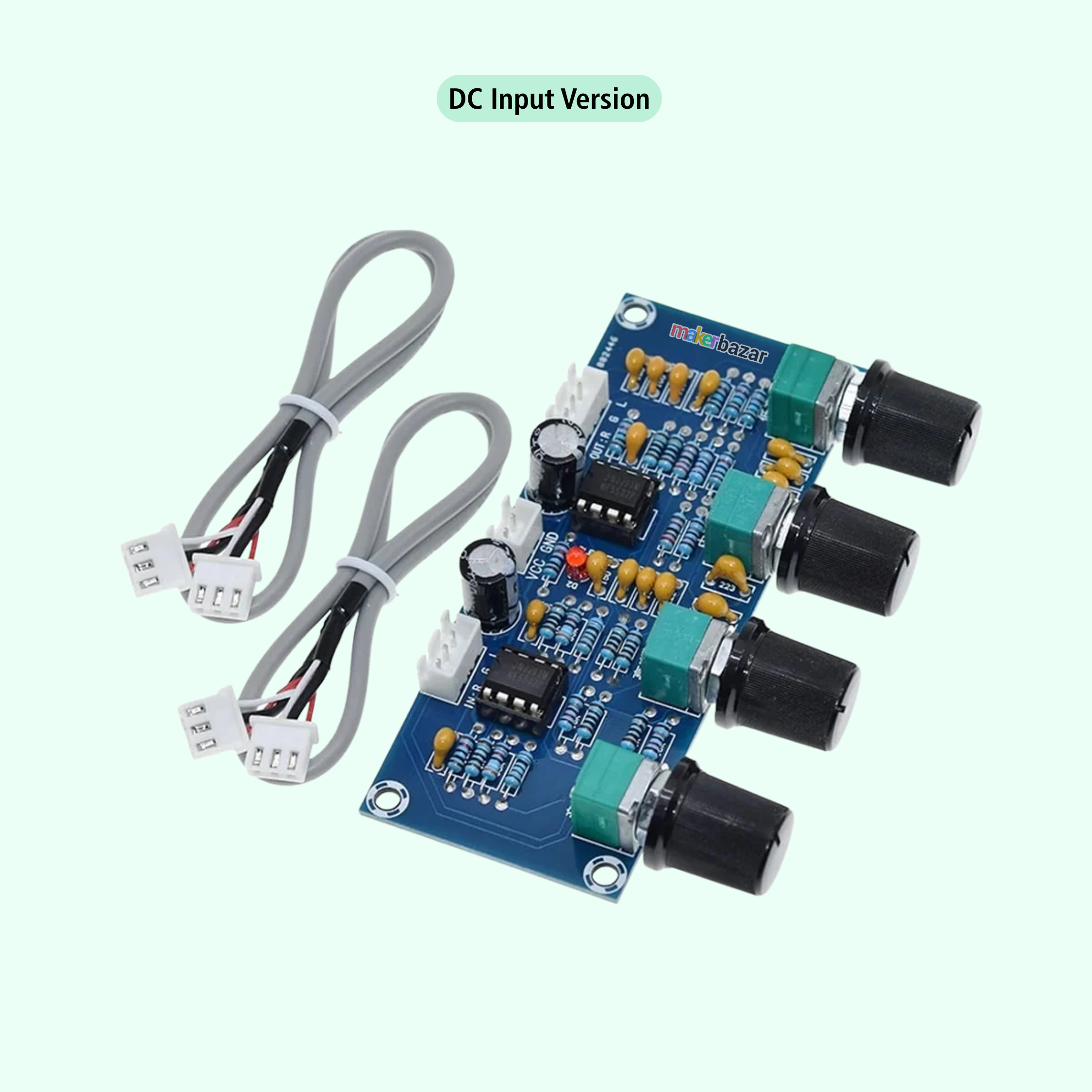

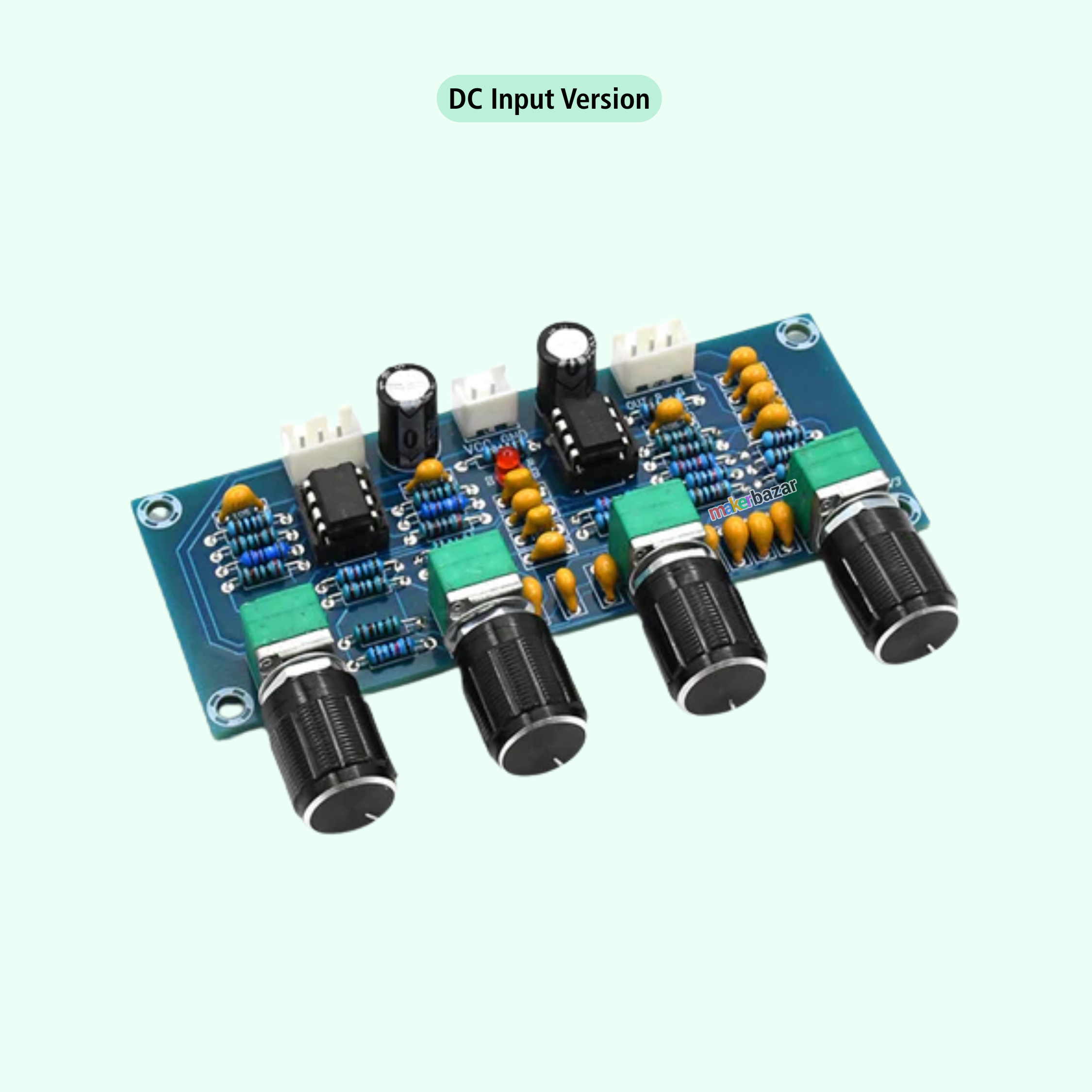

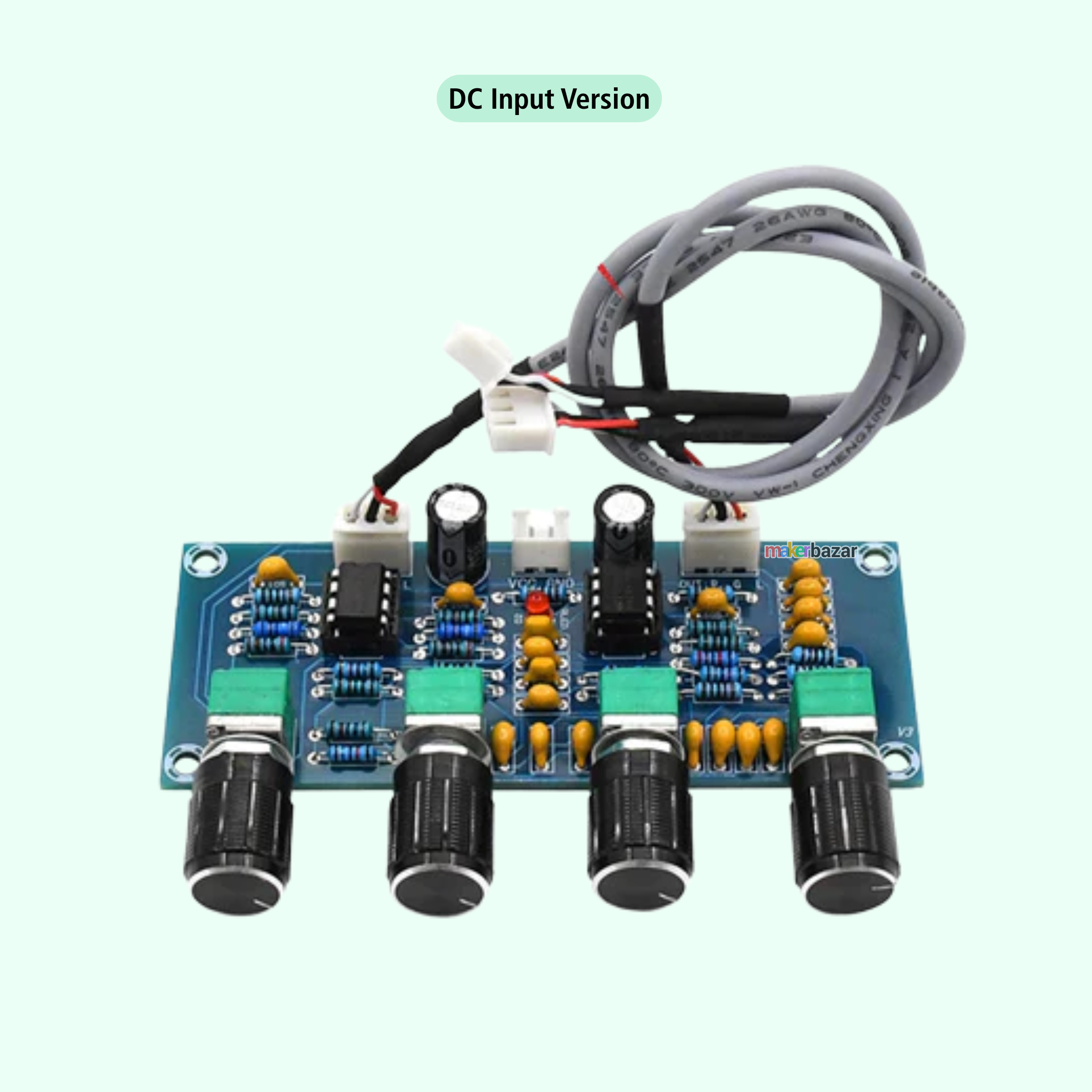

Available in two power input variants, the board supports either 12–24V DC operation or 12–15V AC input. The AC version includes an onboard bridge rectifier for direct transformer connection, while the DC version operates from regulated DC power supplies or batteries.
Compact, reliable, and easy to integrate, the XH-A901 is an excellent choice for audio enthusiasts, makers, repair technicians, and custom amplifier projects.
Key Features
- Dual NE5532 high-performance low-noise operational amplifiers.
- High-fidelity stereo (2-channel) audio pre-amplifier.
- Independent Bass, Treble, and Master Volume controls.
- Available in AC and DC input versions.
- Low distortion with excellent signal-to-noise ratio.
- Improves overall audio clarity and frequency response.
- Compatible with Class-D and Class-AB amplifier boards.
- Wide input voltage support depending on variant.
- Easy wiring through screw terminal connectors.
- Compact PCB suitable for DIY audio projects.
- Stable and reliable analog audio processing.
- Ideal for home, automotive, and custom amplifier systems.
Technical Specifications
| Parameter | Specification |
| Model | XH-A901 |
| Audio IC | Dual NE5532 |
| Amplifier Type | Stereo Tone Control Pre-Amplifier |
| Channels | 2 Channel Stereo |
| Controls | Bass, Treble, Volume |
| Input Variant | AC / DC (Variant Dependent) |
| DC Input Voltage | 12V–24V DC |
| AC Input Voltage | 12V–15V AC |
| Rectifier | Onboard Bridge Rectifier (AC Version Only) |
| Audio Output | Stereo Line Output |
| PCB Type | Audio Tone Control Module |
| Mounting | PCB Board |
| Audio Quality | Low Noise, Low Distortion |
| Compatibility | Class-D & Class-AB Amplifiers |
Applications
- DIY Audio Amplifier Projects.
- Bluetooth Speaker Systems.
- Home Theatre Systems.
- Stereo Audio Systems.
- Multimedia Speakers.
- Active Speaker Projects.
- Class-D Amplifier Modules.
- Class-AB Amplifier Modules.
- Audio Signal Conditioning.
- Educational Electronics Projects.
- Audio Equipment Repair.
- Custom Sound Systems.
Precautions
- Select the correct AC or DC version before installation.
- Never apply DC voltage to the AC transformer input.
- Observe correct polarity on the DC input version.
- Do not exceed the recommended input voltage.
- Use a regulated, low-noise power supply for best performance.
- Disconnect power before connecting audio cables.
- Keep signal cables away from power cables to reduce interference.
- Avoid short circuits on power or audio outputs.
- Mount the PCB securely inside a suitable enclosure.
- Keep away from moisture and conductive dust.
