Description

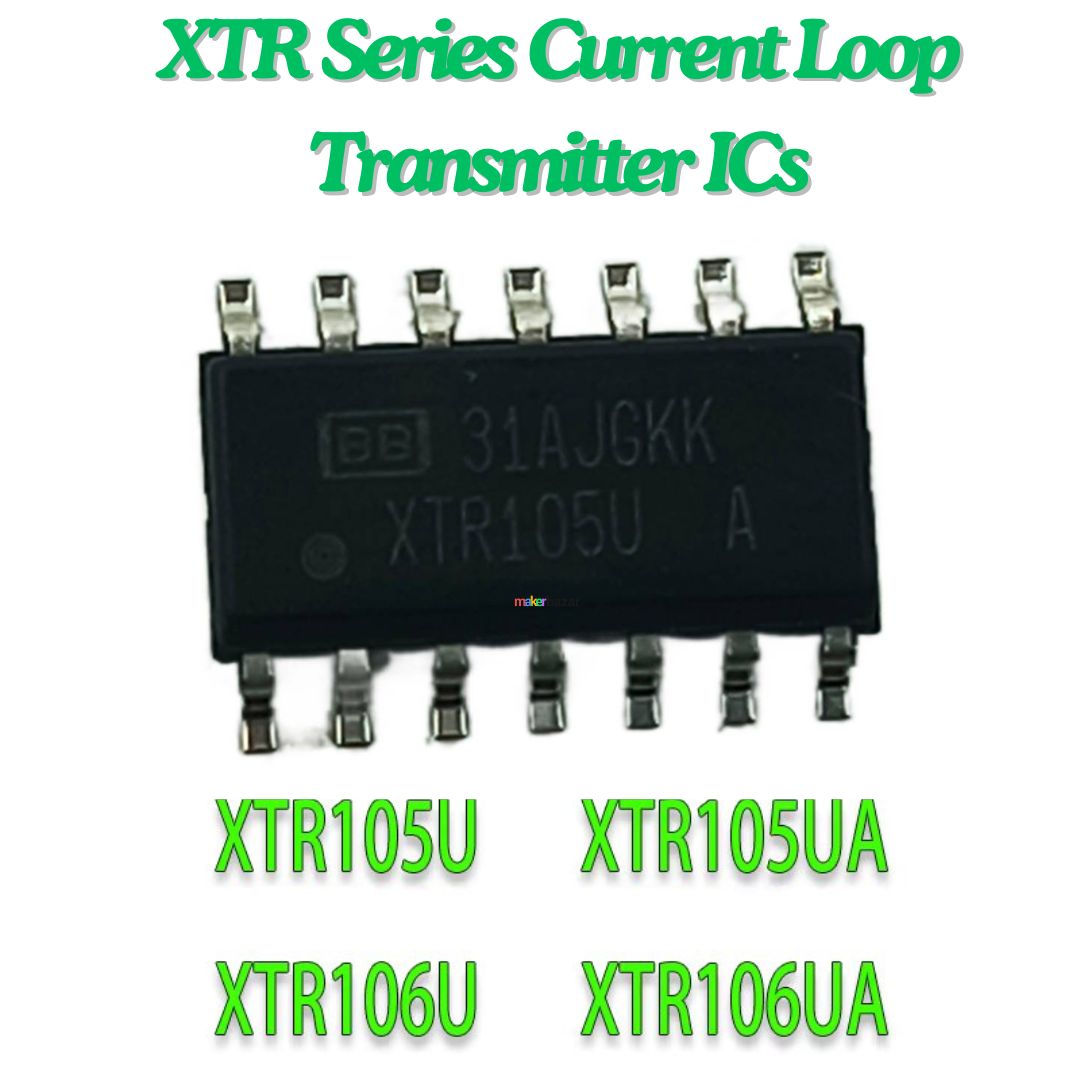

XTR Series 4–20 mA Signal Conditioning Solutions for Industrial Automation and Sensor Applications

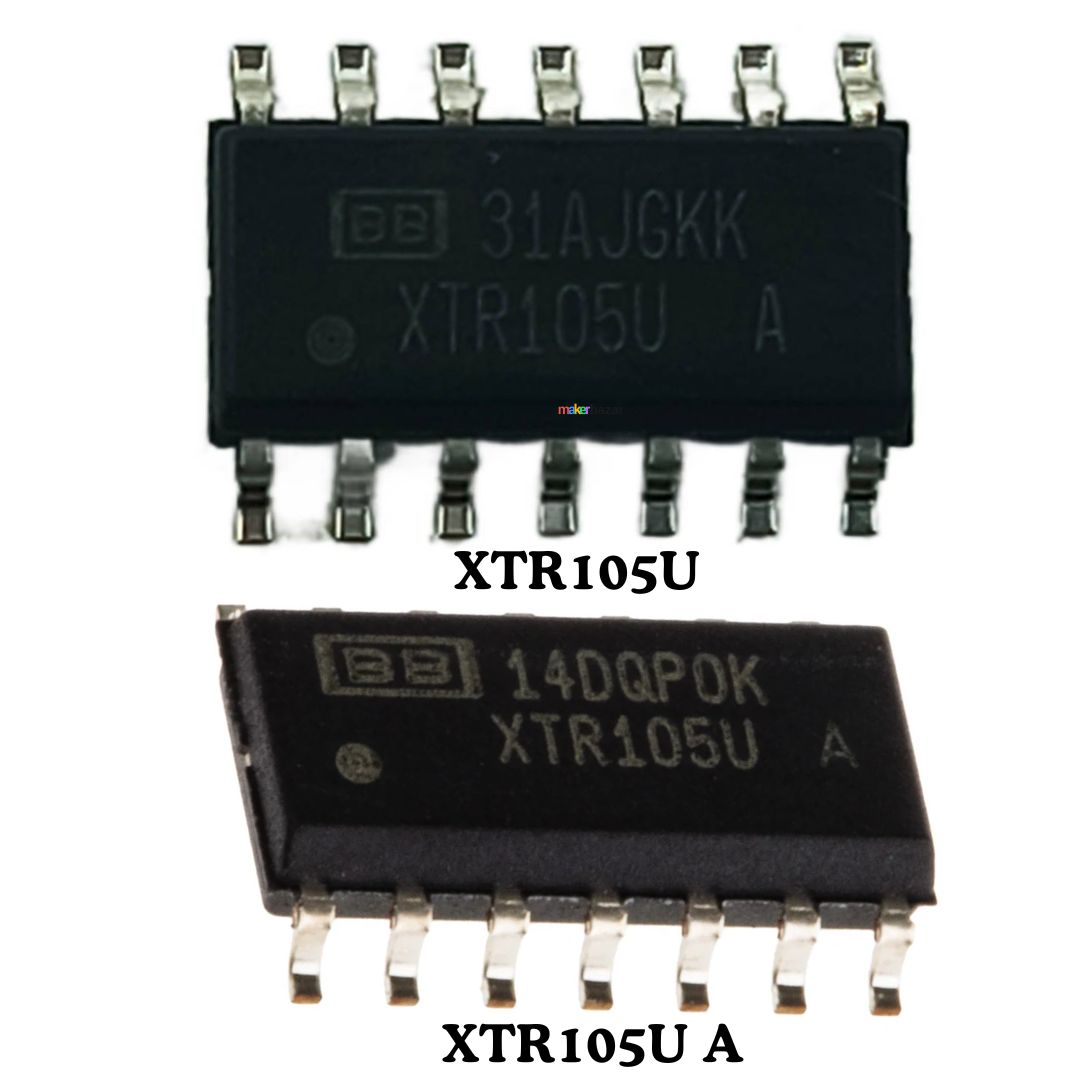

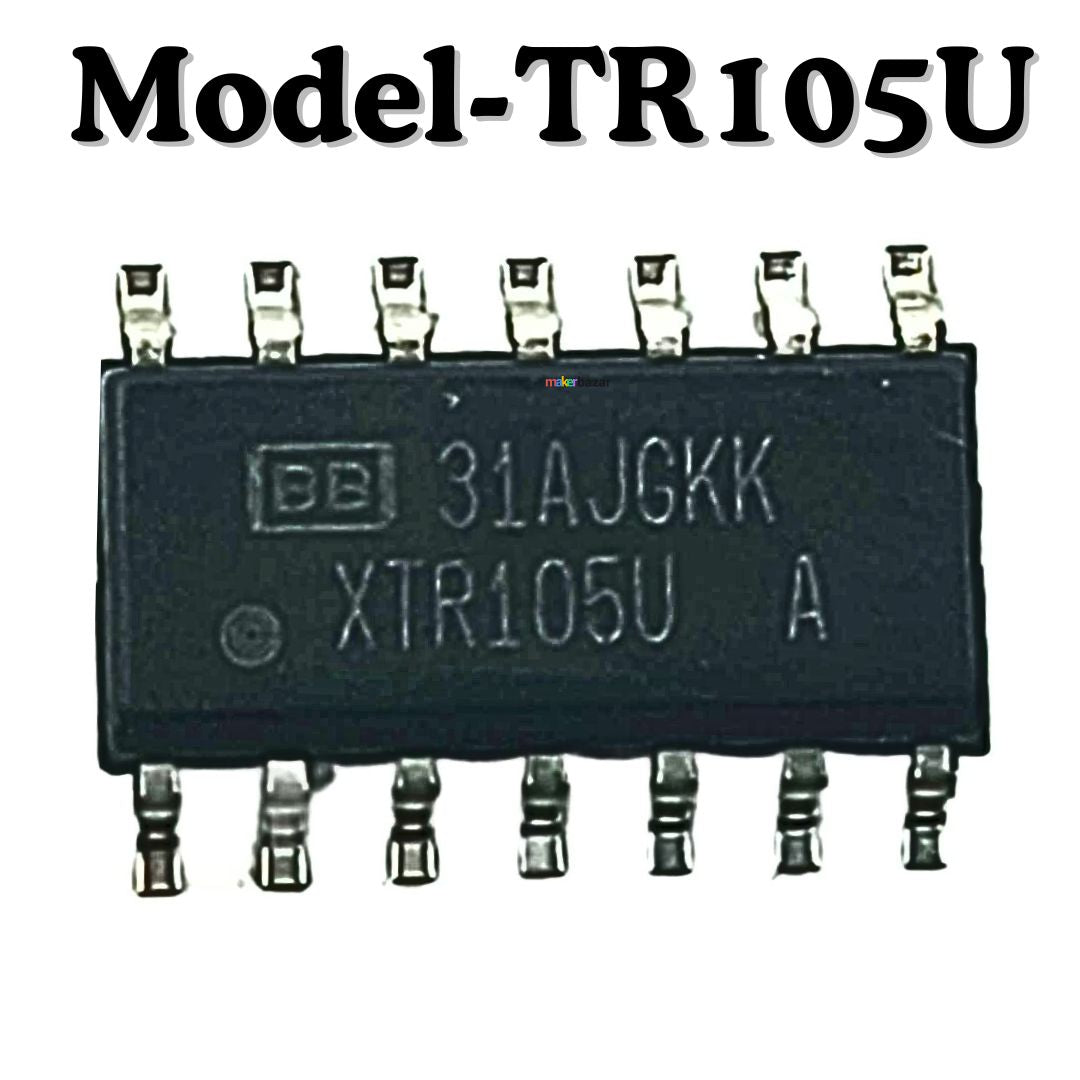

The XTR105U/XTR105UA/XTR106U/XTR106UA are precision, low-drift, 4–20 mA current loop transmitter ICs, ideal for industrial applications requiring reliable and accurate signal transmission over long distances. These devices simplify the design of sensor signal conditioning systems by integrating the necessary components into a compact package.
Features:
-
High Accuracy and Stability
- Provides precise current output with minimal drift, ensuring long-term performance stability.
-
Integrated Voltage Reference
- Built-in voltage reference enhances the reliability and simplifies sensor excitation.
-
Wide Supply Voltage Range:
- Operates efficiently over a broad input voltage range, making it suitable for industrial power supplies.
-
Low-Power Consumption
- Designed for efficient operation, reducing overall system power requirements.
-
Compact Package
- Offered in a standard SOIC-16 package, suitable for space-constrained designs.
-
Temperature Compensation
- Incorporates compensation mechanisms for stable performance across varying environmental conditions.
-
Ease of Use
- Simplifies 4–20 mA current loop designs by integrating critical components into one IC.
-
Applications
- Ideal for pressure, temperature, and humidity sensors in industrial automation, remote monitoring, and process control systems.
