Description

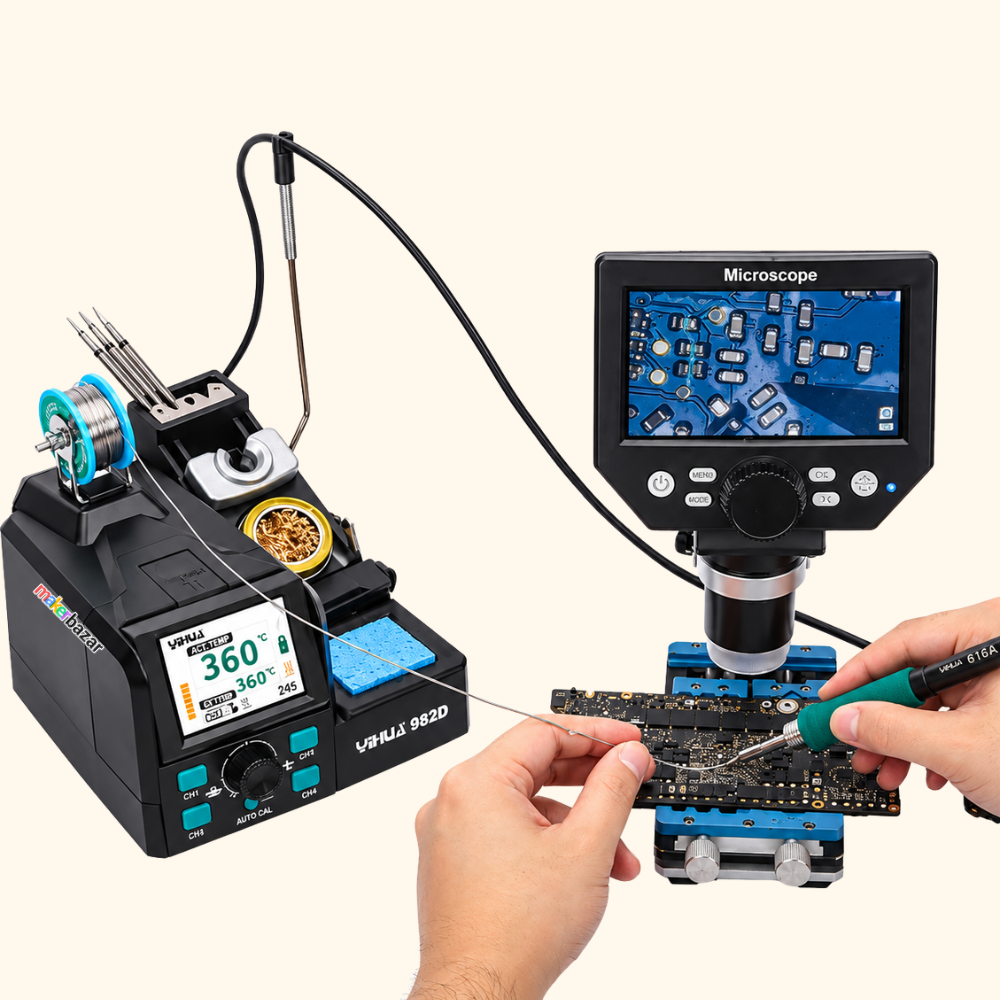

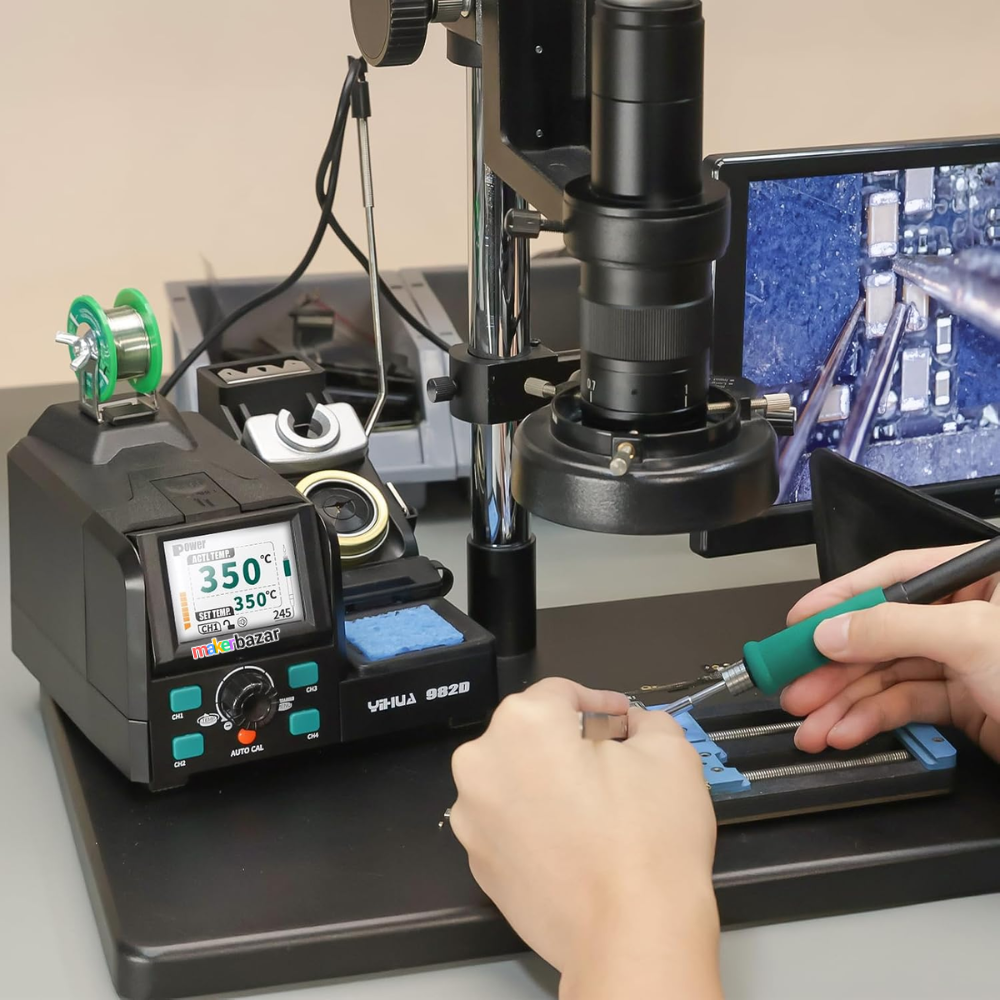

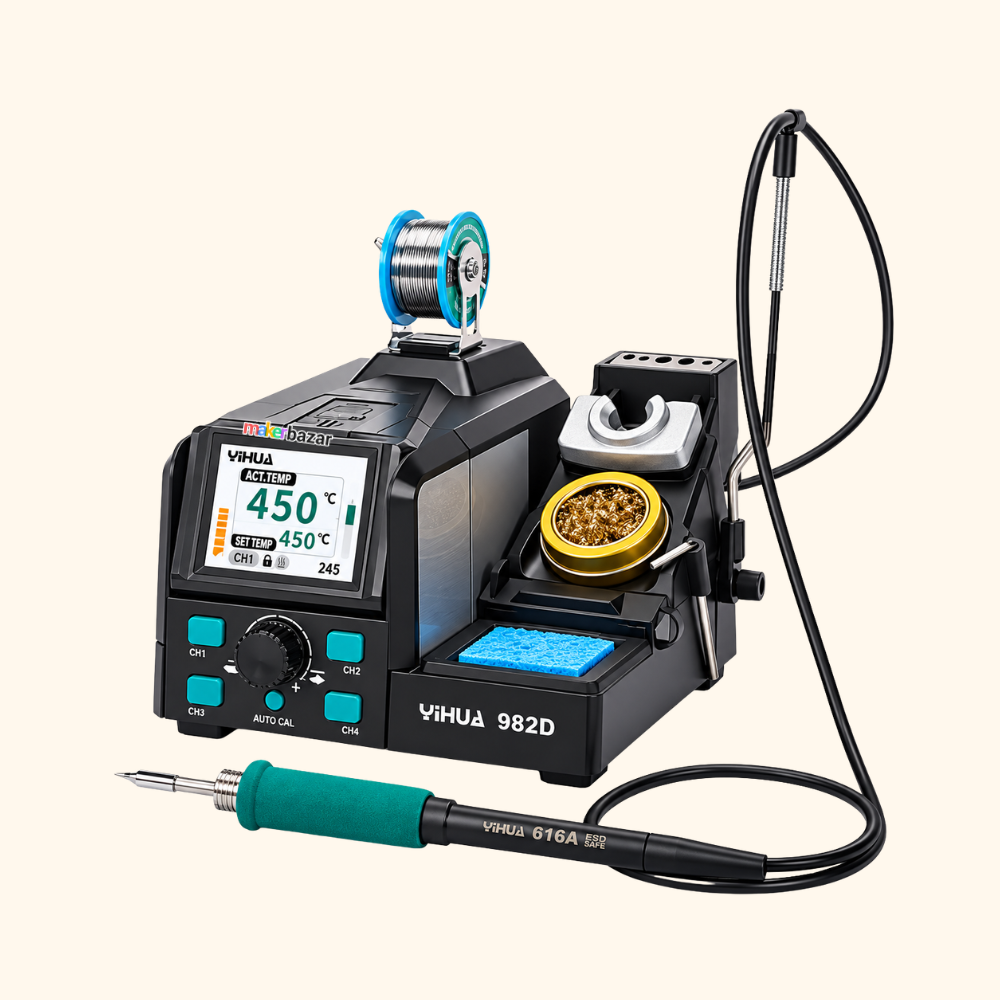

YIHUA 982D 210 210 Compatible C210 Precision Soldering Station with LCD Display
The YIHUA 982D 210 Precision Soldering Station is a high-performance temperature-controlled soldering station designed for precision electronics work, PCB repair, micro-component soldering and detailed assembly tasks. It uses a C210 handpiece suited for working with small and delicate electronic components.

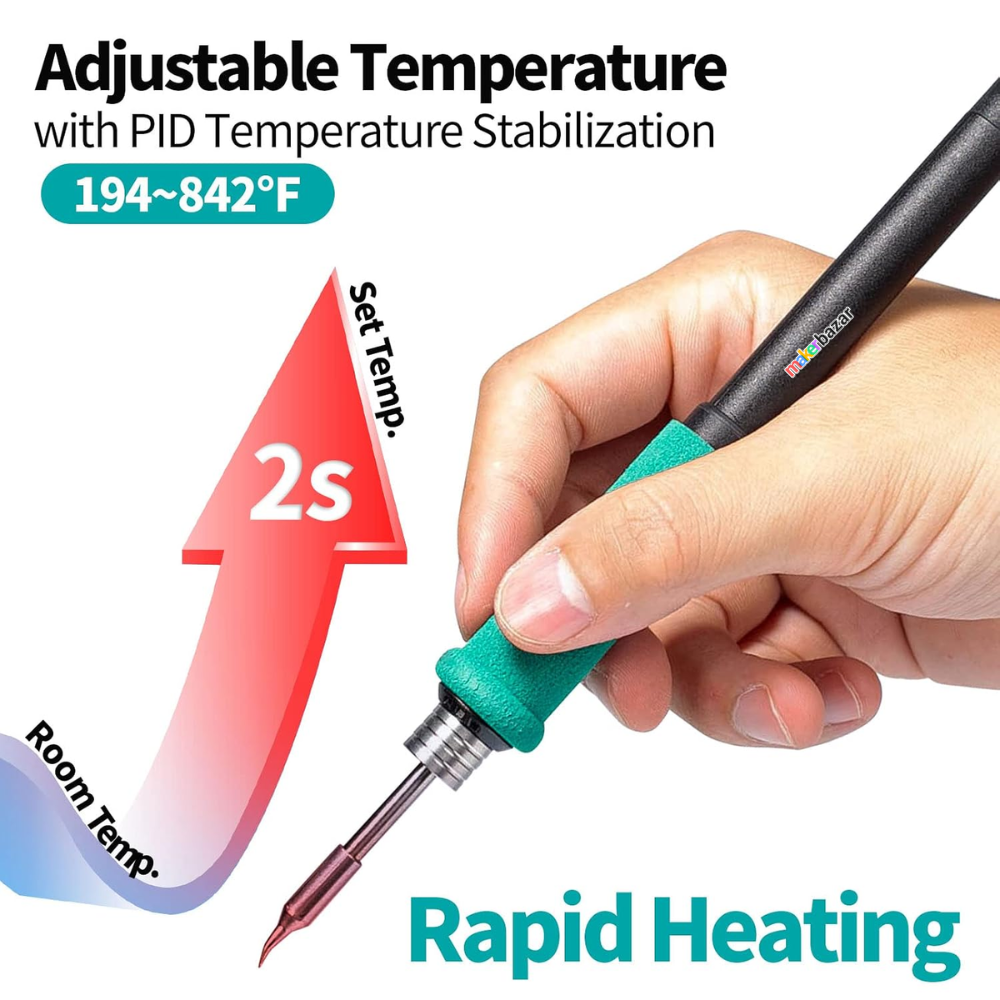

The station provides an adjustable temperature range of 90°C to 450°C and is designed for rapid heating, reaching operating temperature in approximately 2 seconds. An LCD provides convenient temperature monitoring, while automatic temperature calibration helps maintain consistent soldering performance.
With features such as sleep mode, standby function and adjustable LCD viewing angle, the YIHUA 982D 210 is suitable for professional electronics technicians, repair work, makers and hobbyists requiring controlled and precise soldering.
Key Features
- YIHUA 982D 210 model.
- Designed for precision soldering.

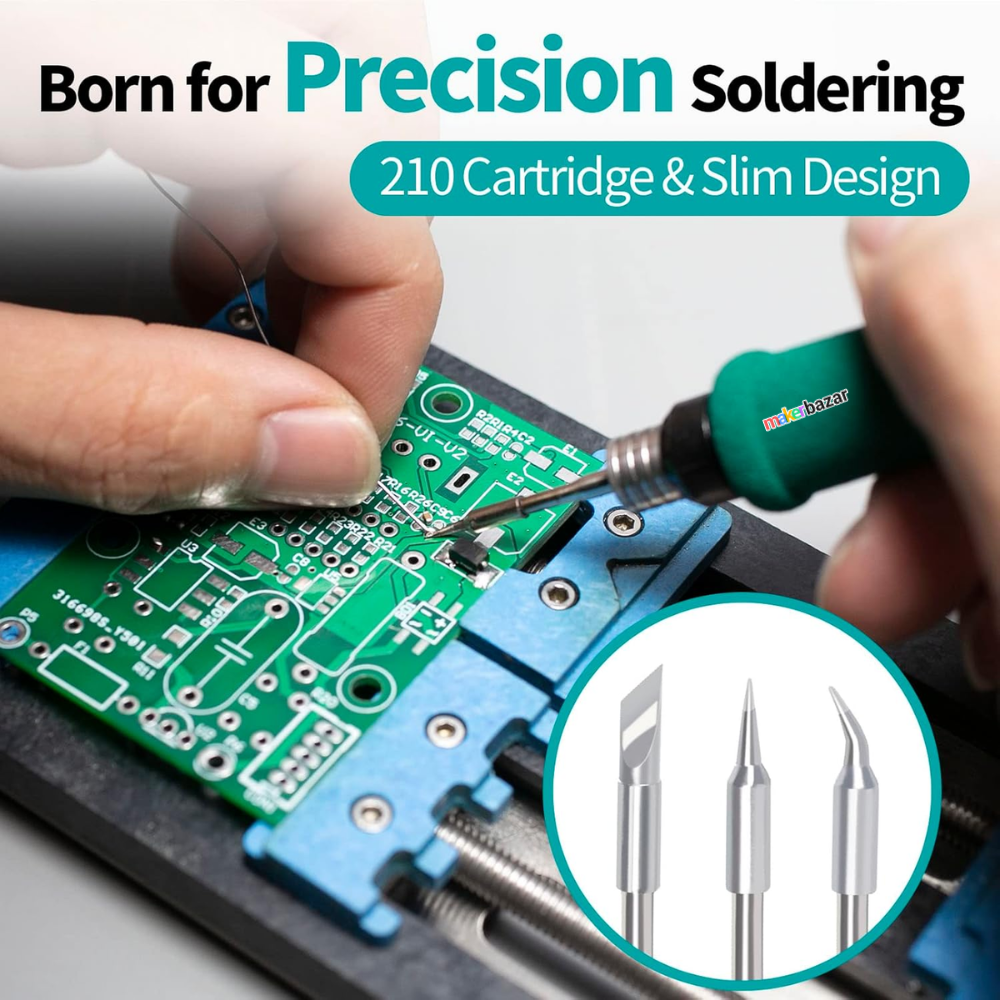

- Compatible with C210 handpiece/tips.
- Temperature range: 90°C–450°C.
- Heats up in approximately 2 seconds.
- Automatic temperature calibration.
- LCD display for convenient temperature monitoring.
- Adjustable LCD display tilt.
- Sleep mode for reduced idle heating.
- Standby function.
- Suitable for micro-component soldering.
- Suitable for PCB repair and electronics assembly.
- Designed for professional and hobbyist use.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | YIHUA |
| Model | 982D 210 |
| Product Type | Precision Soldering Station |
| Handpiece Compatibility | C210 |
| Temperature Range | 90°C–450°C |
| Temperature Range (°F) | 194°F–842°F |
| Heating Time | Approx. 2 seconds |
| Temperature Calibration | Automatic |
| Display | LCD |
| Display Adjustment | Adjustable Tilt |
| Sleep Mode | Yes |
| Standby Function | Yes |
| Application | Precision Soldering |
| Suitable For | Micro-components, PCB Repair & Electronics Assembly |
Note: Input voltage, rated power/wattage, temperature stability, tip grounding specifications and included accessories were not provided, so they have not been assumed.
Applications
- Micro-component soldering.
- PCB repair.
- SMD electronics work.
- Electronics assembly.
- Circuit board prototyping.
- Component replacement.
- Precision electronics repair.
- DIY electronics projects.
- Professional repair work.
- Maker and hobbyist projects.
Precautions
- Use the soldering station in a well-ventilated workspace.
- The soldering tip becomes extremely hot during operation; avoid direct contact.
- Keep the hot handpiece away from flammable materials.
- Use compatible C210 soldering tips/handpieces as specified.
- Do not touch the tip immediately after switching the station off.
- Allow the station and tip to cool before maintenance or replacement.
- Use appropriate ventilation or fume extraction when soldering.
- Disconnect the station from the power source before servicing.
- Keep the equipment away from water and excessive moisture.
- Follow the manufacturer's operating instructions for temperature and safety settings.
