YT-1212 Multi-Length Flashlight Lamp Switch – Plug & Play Button Control

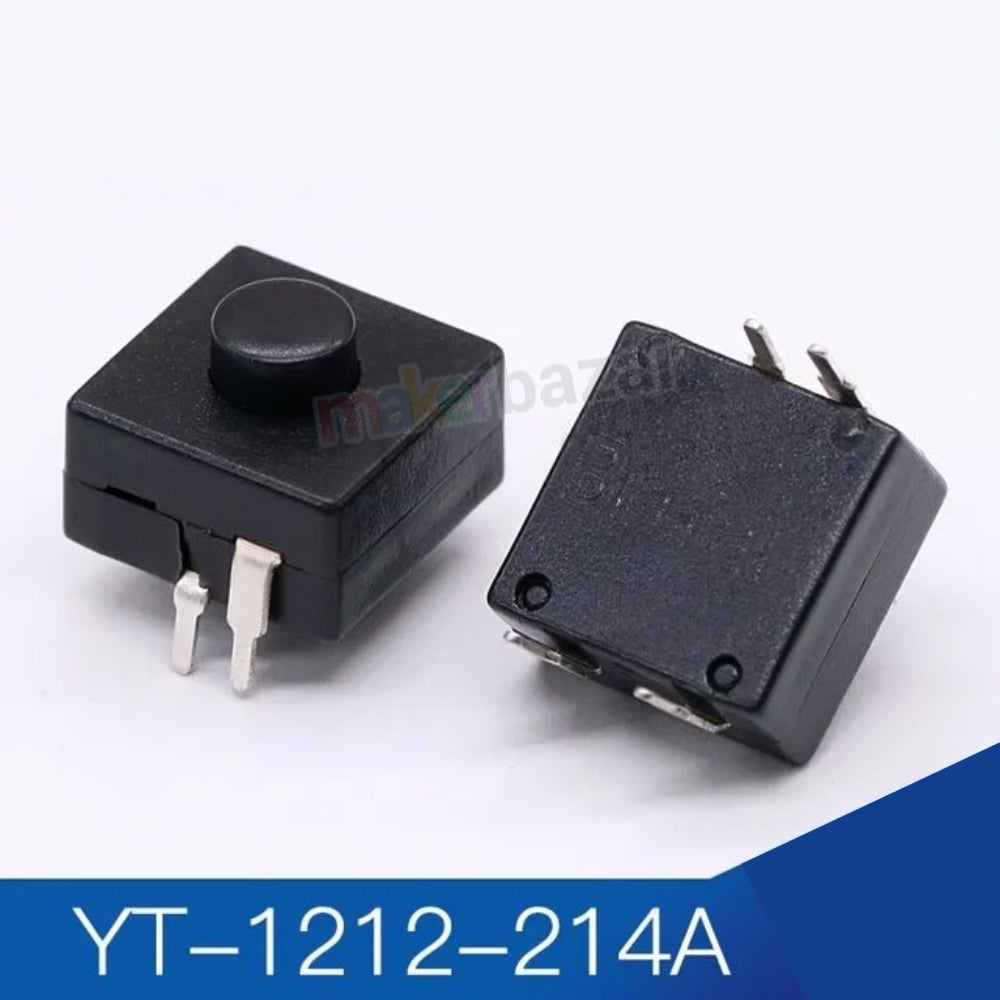

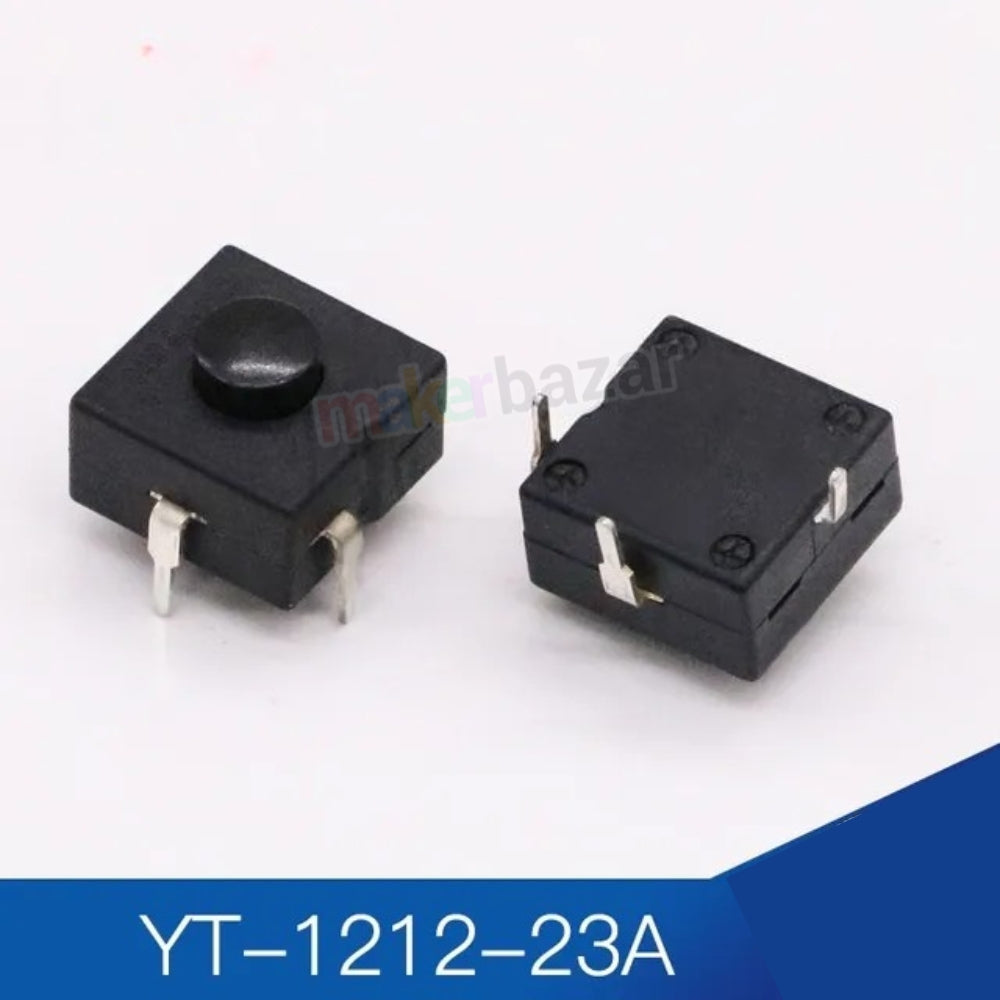

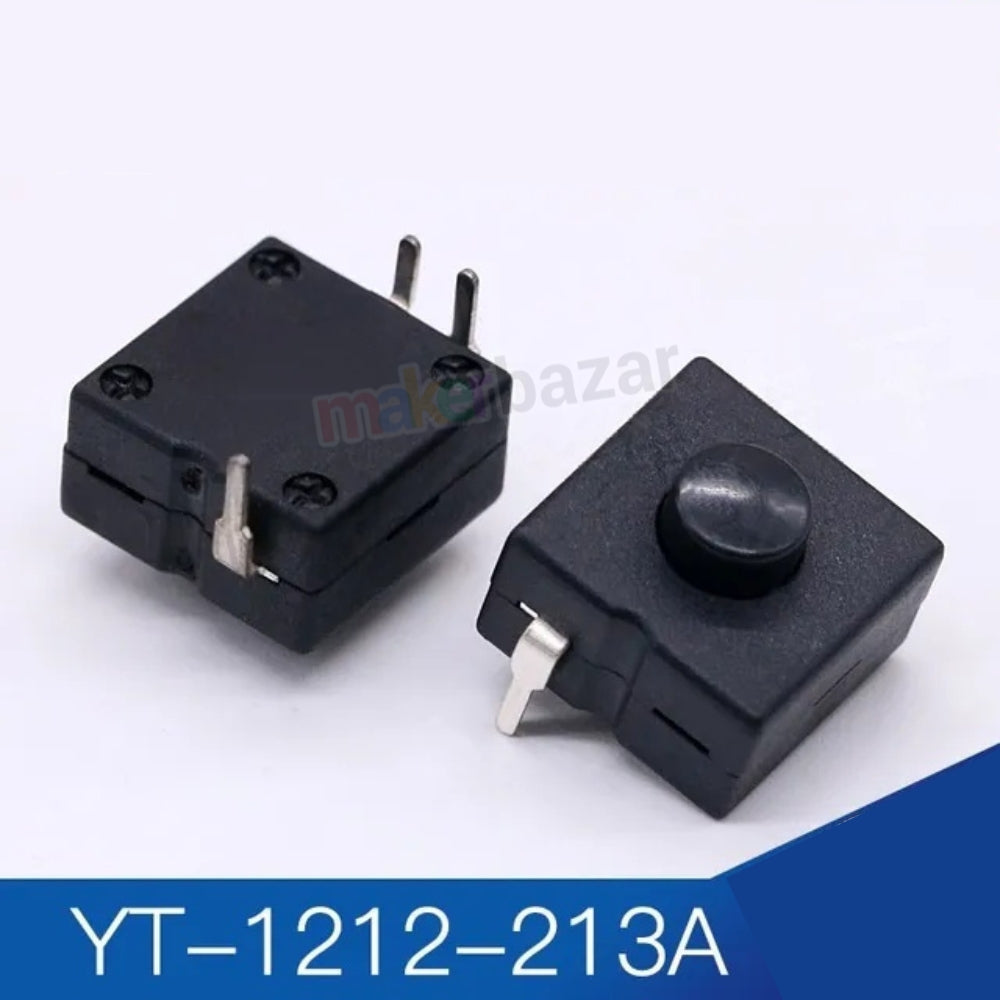

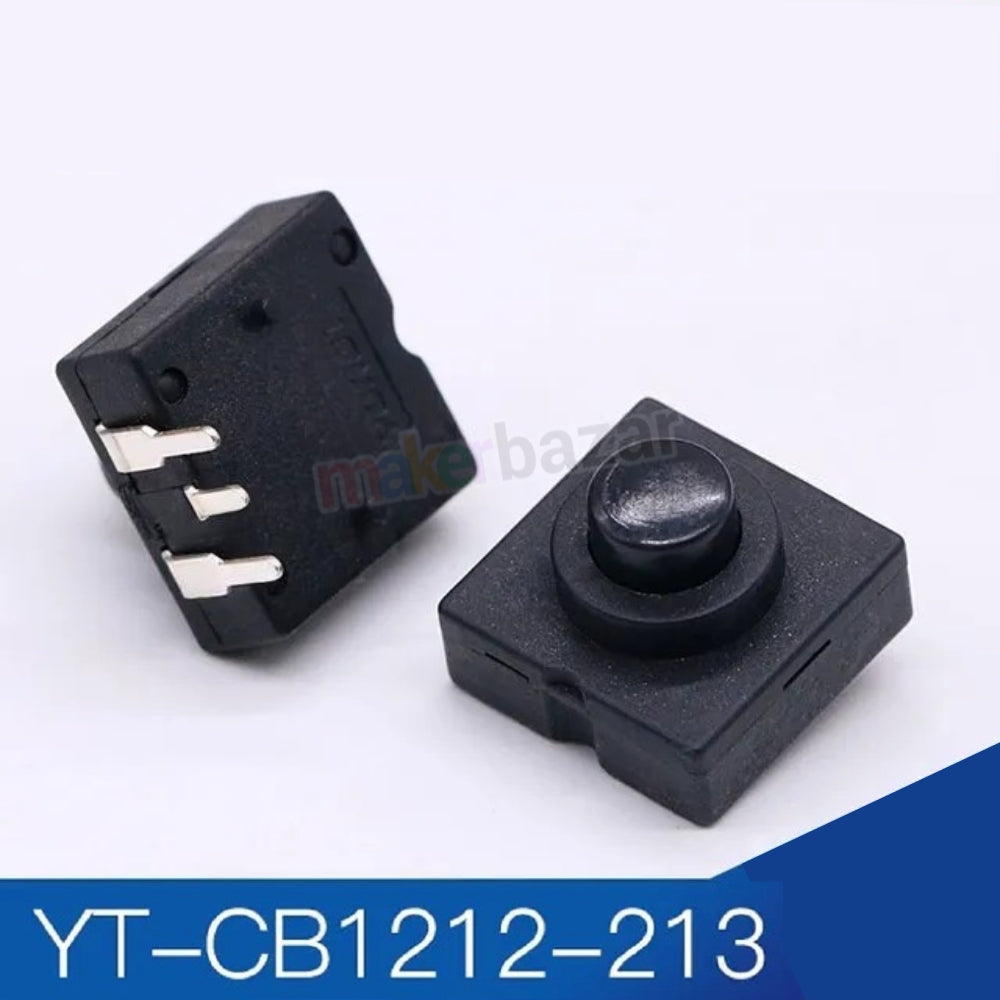

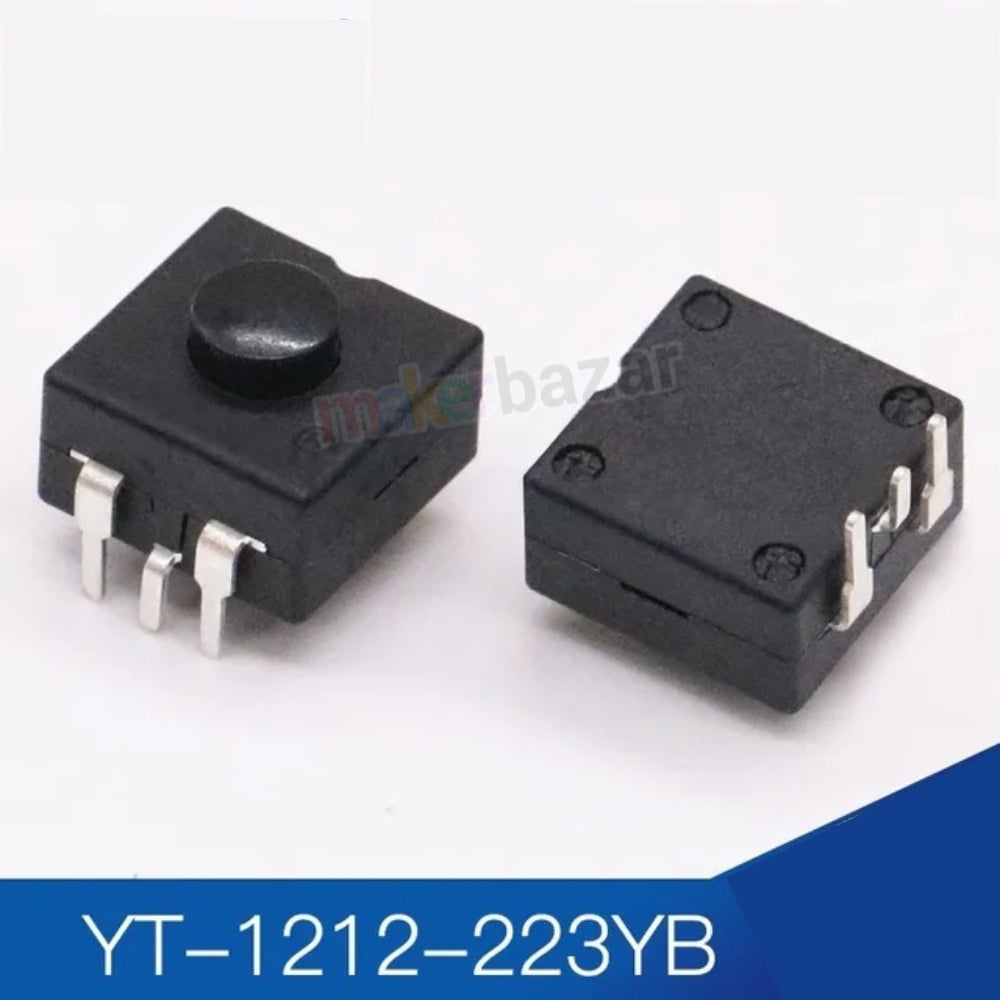

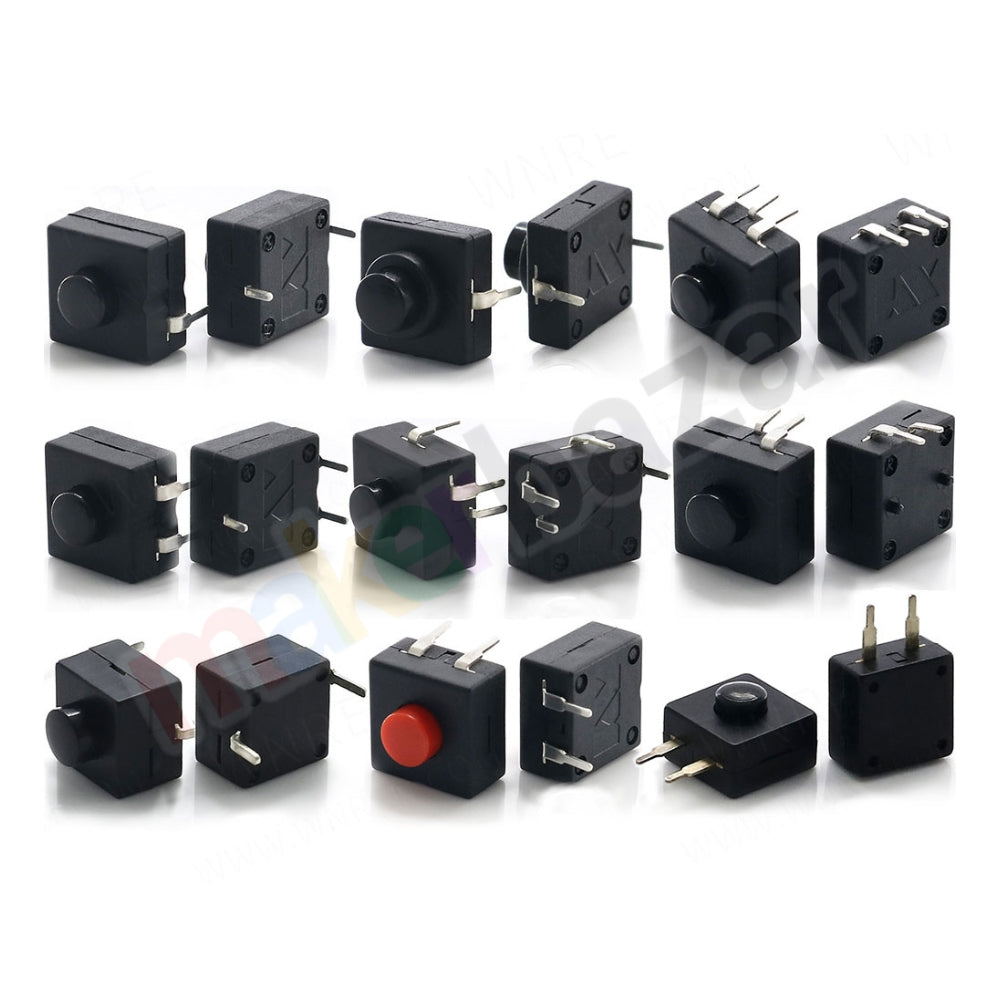

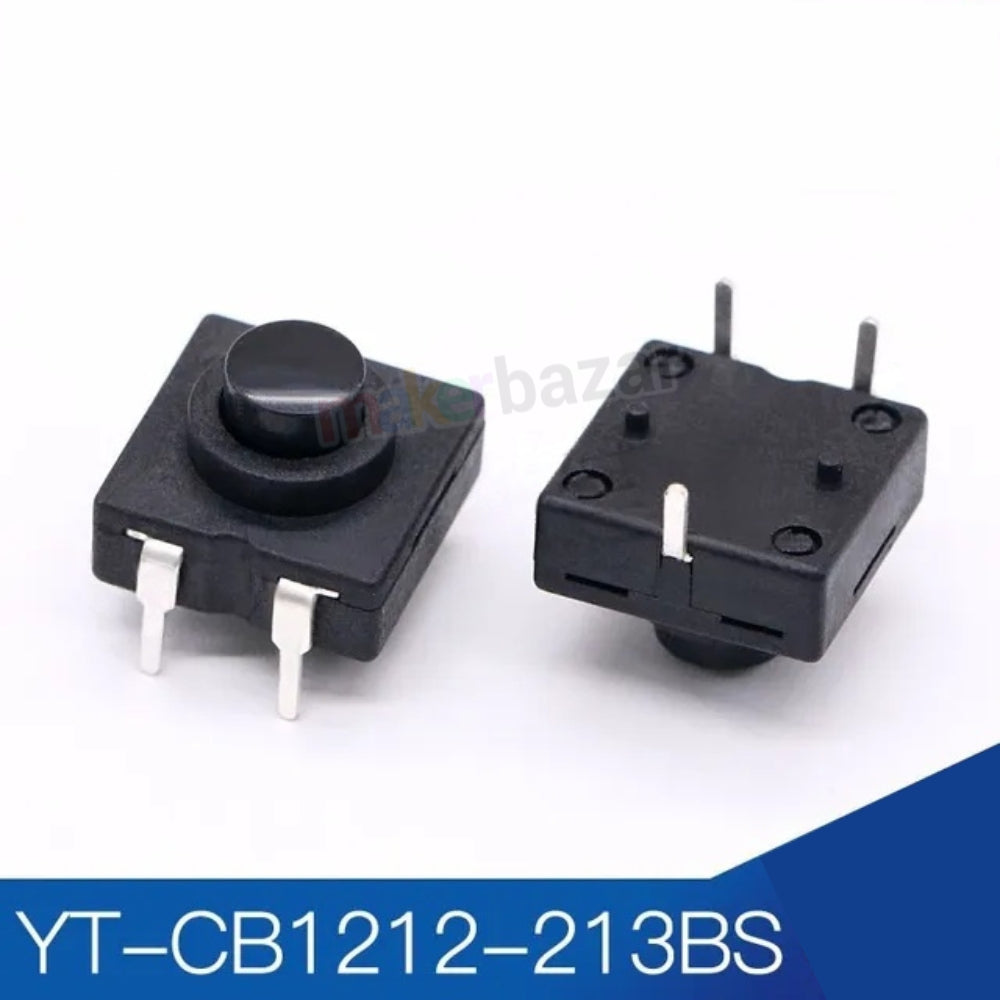

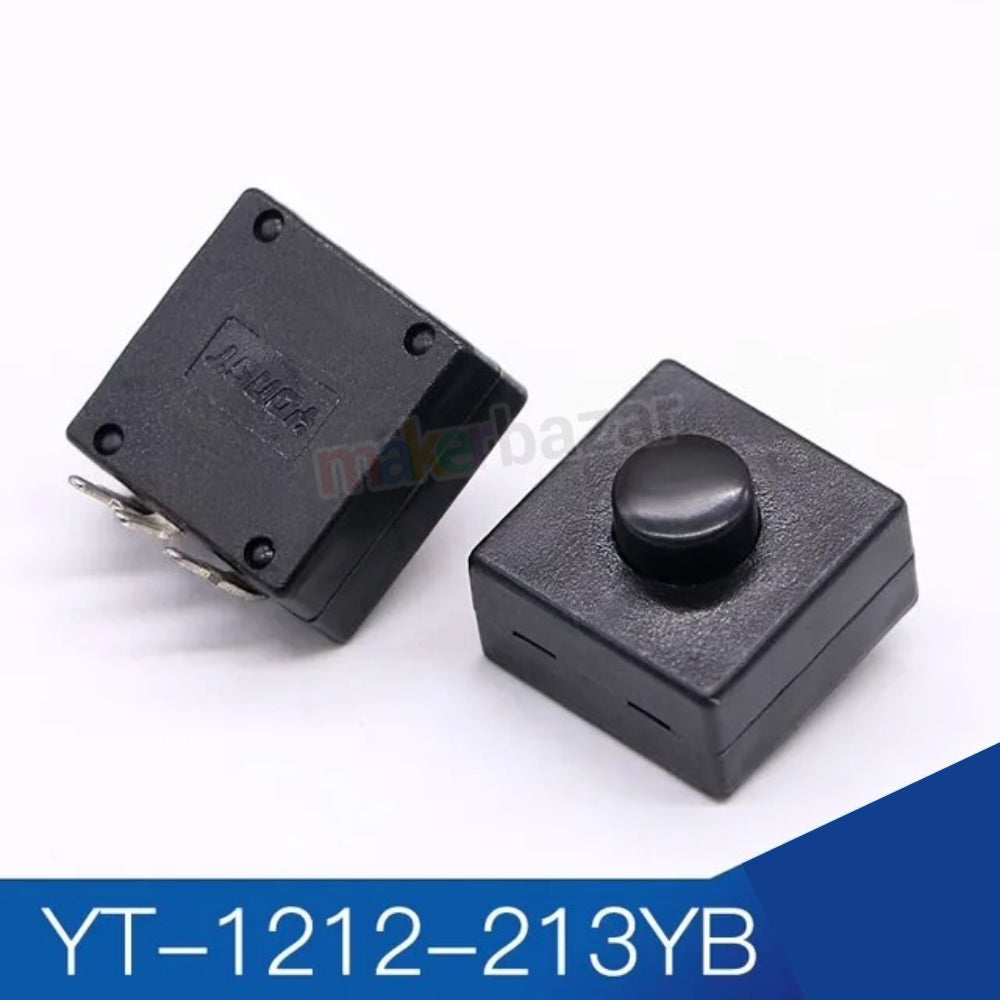

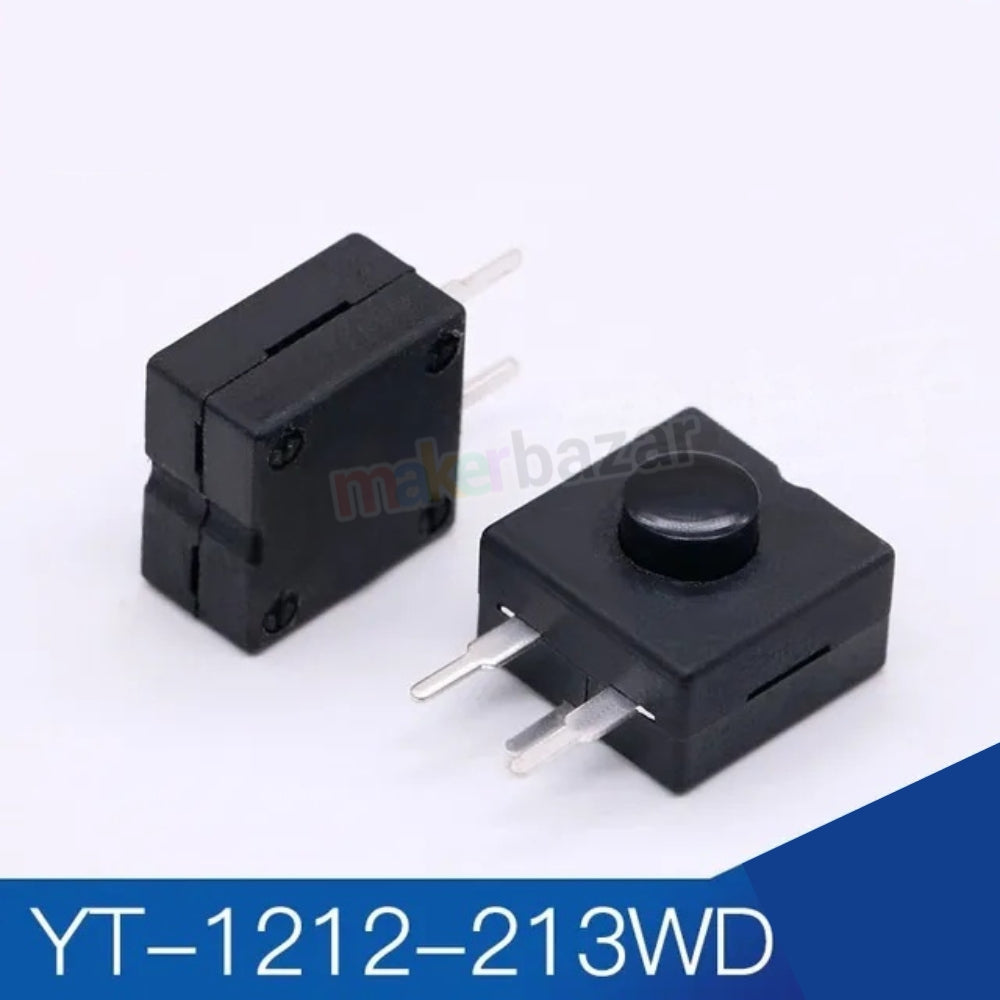

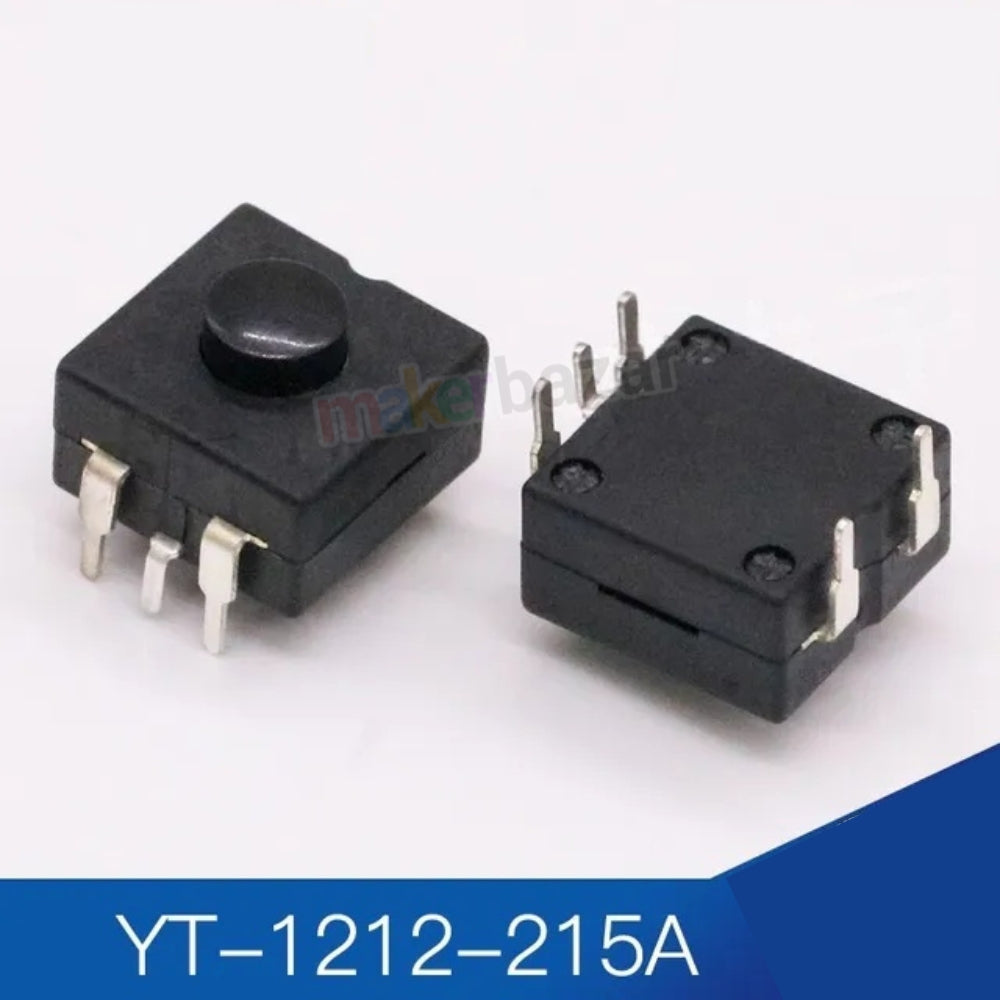

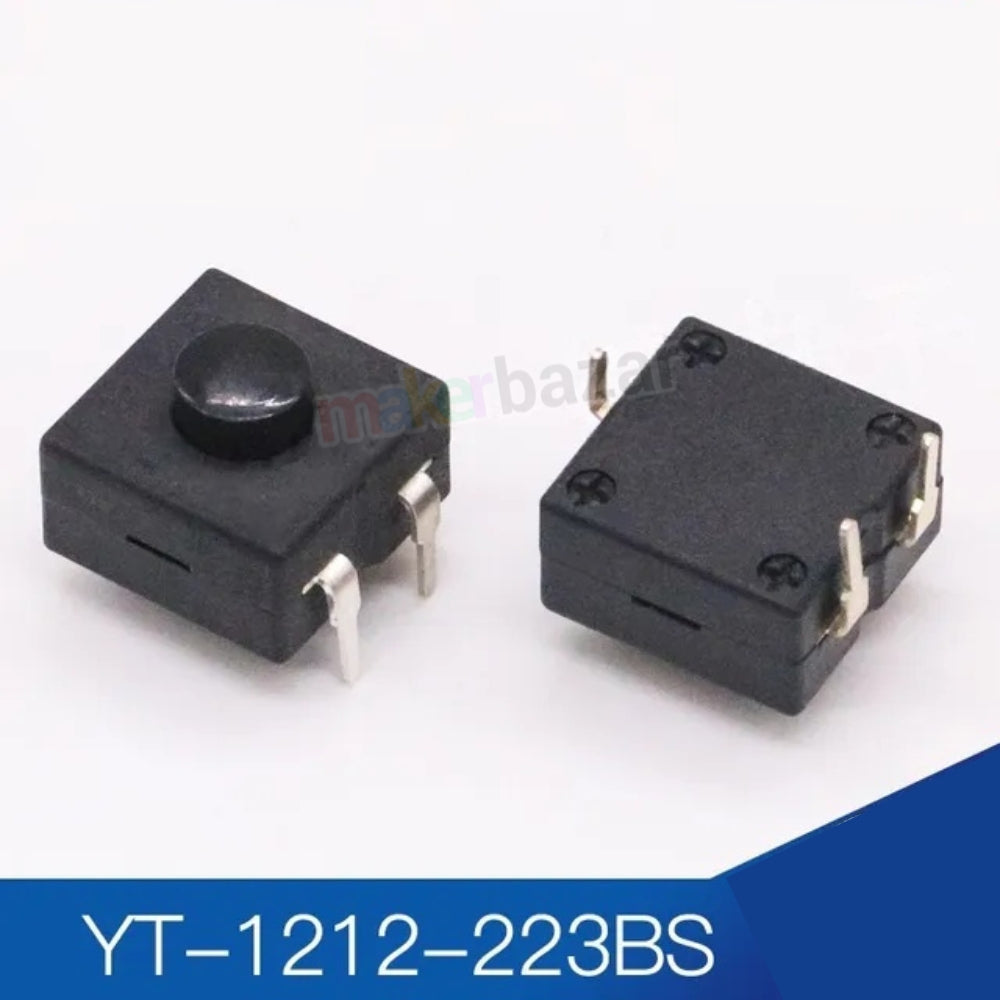

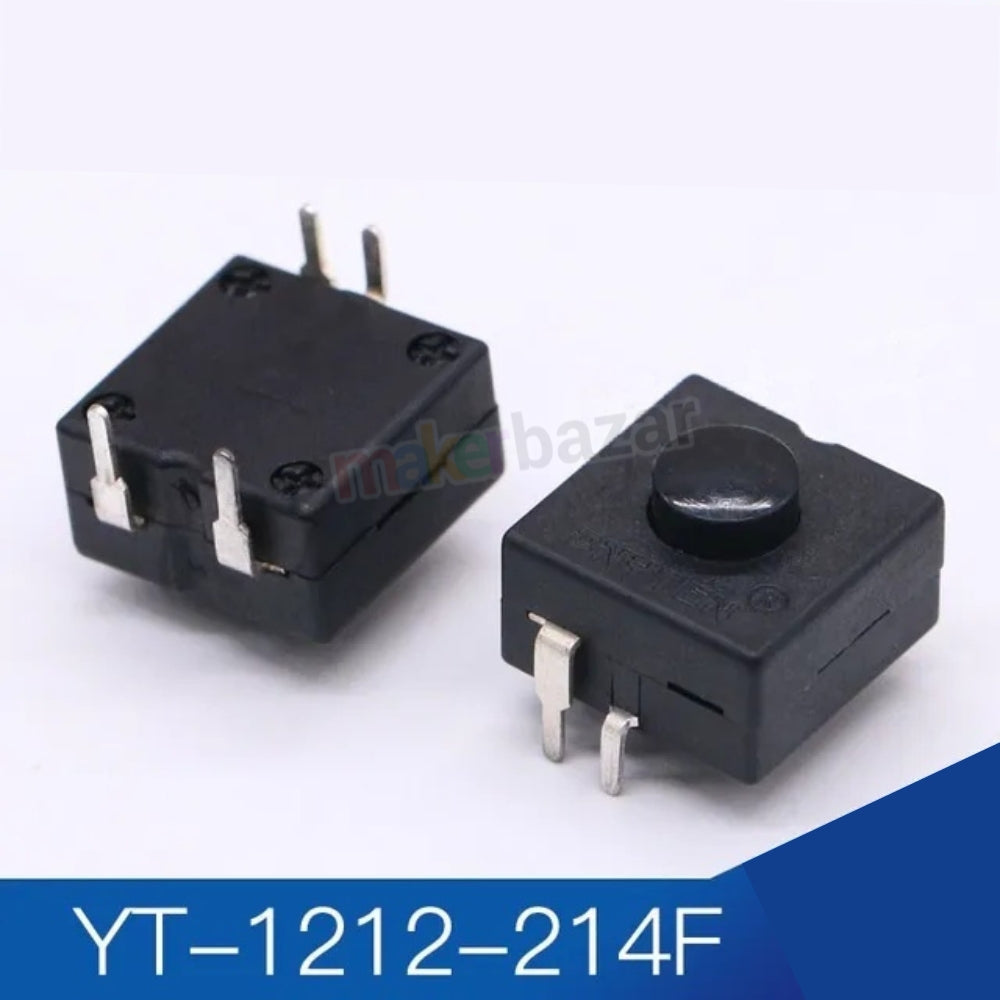

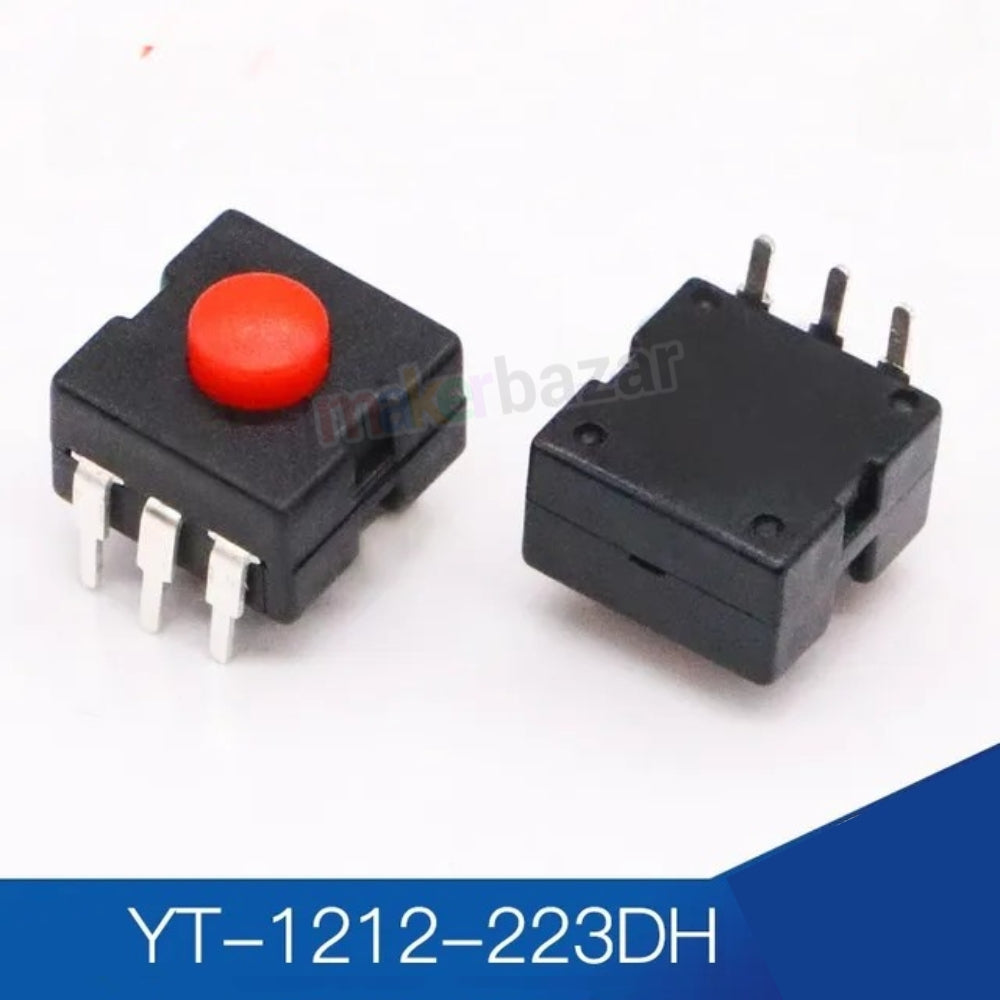

The YT-1212 series push button switches are compact and reliable electronic switches designed for a variety of applications, including LED lighting, DIY electronics, and embedded systems. These 12×12mm tactile switches come in multiple variants offering different actuator shapes, heights, and pin layouts to suit a wide range of design requirements. RoHS certified and manufactured with durable materials, they ensure consistent performance, long life, and ease of installation for both hobbyist and industrial use.
Specifications:
-
Series: YT-1212 / YT-CB1212
-
Switch Type: Tactile Push Button
-
Switch Size: 12mm × 12mm
-
Mounting Type: Through-hole / PCB Mount
-
Actuator Type: Varies by model (round, flat, high, etc.)
-
Operating Force: ~180gF (may vary by variant)
-
Contact Resistance: ≤ 100mΩ
-
Insulation Resistance: ≥ 100MΩ at 500V DC
-
Dielectric Strength: 250V AC for 1 minute
-
Life Span: Up to 100,000 cycles
-
Applications: Flashlight control, LED modules, electronic projects, consumer electronics, embedded systems
