Description

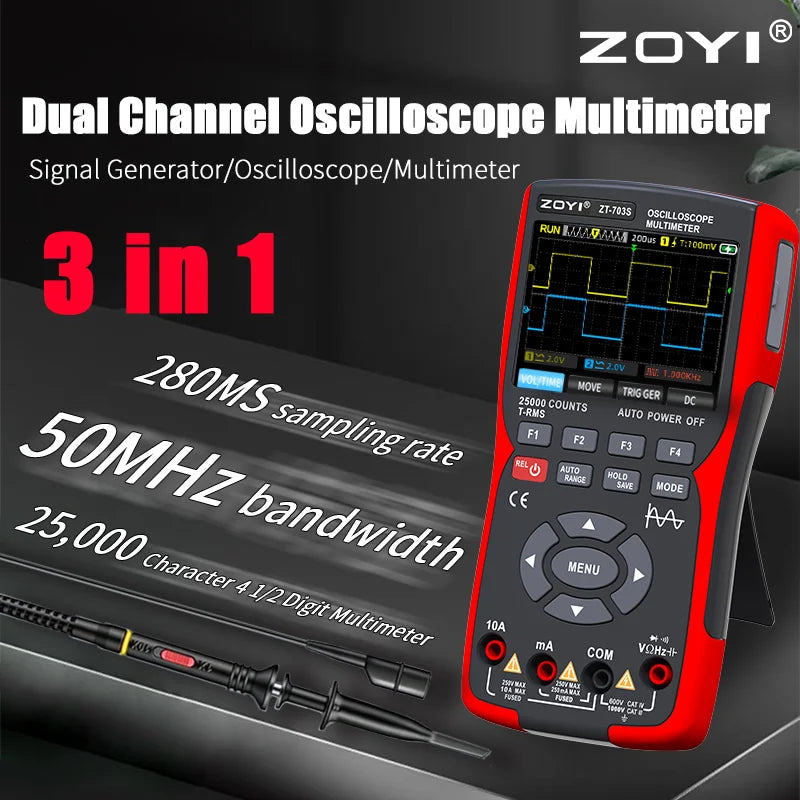

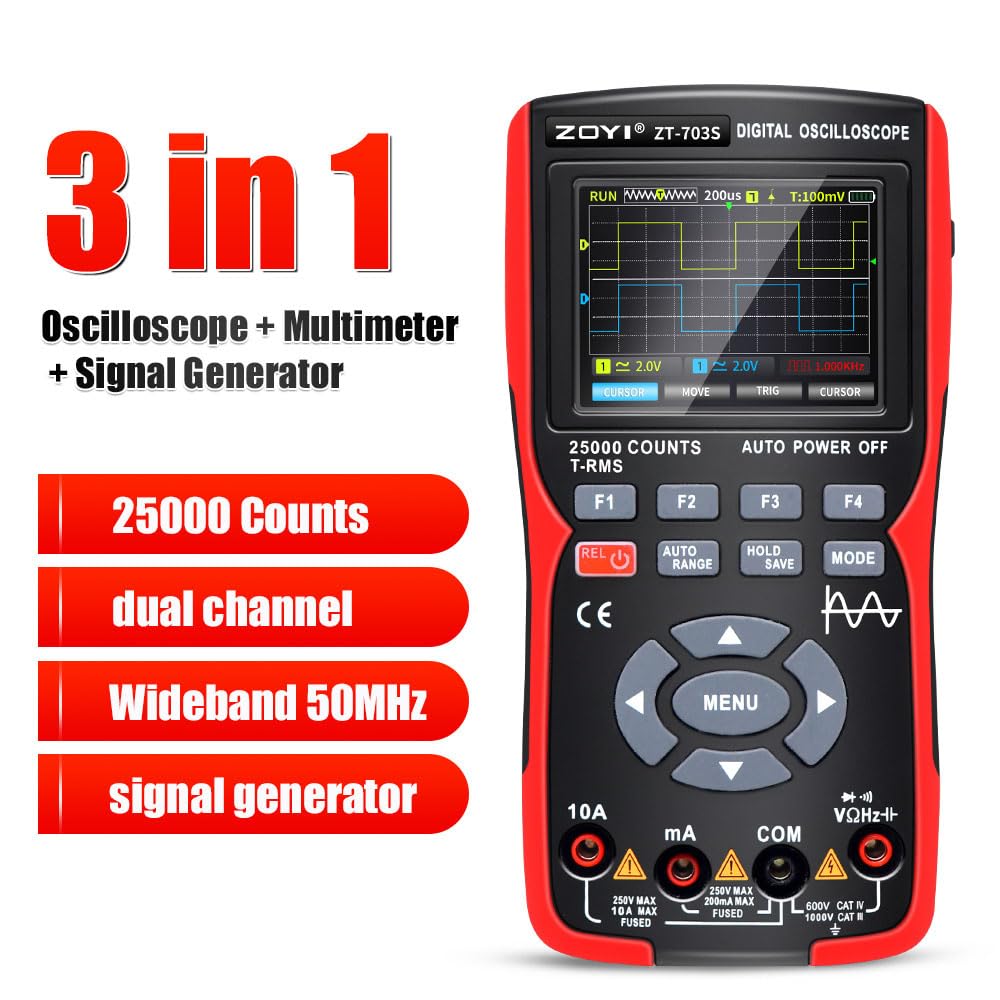

ZT-703S: Automotive Troubleshooting Multimeter and Oscilloscope
General Specifications:
Display:305 inch IPS full viewing angle color screen
Ranging:Auto/Manual
Material:ABS+TPE
Update Rate:3 Times/Second
Ture RMS:yes
Data Hold:yes
Backlight:yes
Low Battery Indication:yes
Auto Power Off:yes
Dimension:177*89*40mm
Weight::345g(NO BATTERY)
Battery Type:18650 Battery * 1
Oscilloscope Specifications:
Bandwidth:50MHZ
Sampling method:real-time sampling
real-time sample rate:280MSa/s
Channels:2
input coupling:AC/DC
input resistance:1MΩ,@16pf
Probe attenuation:X1, X10
Max input voltage:300V (DC+AC peak)
Sample rate range:1.5Sa/s – 280MSa/s
Waveform interpolation:(sinx)x
Sweep speed range:10ns/div – 20s/div
Time Base Accuracy:20ppm
record length:Max 128Kbyte
sensitivity:20mV/div – 10V/div
Displacement range:4 cells (positive and negative)
Analog Bandwidth:50MHZ
low frequency response:>10HZ
Rise Time:<10ns
DC Gain Accuracy:±3%
Multimeter Specifications:
DC Voltage (V):1000.0mV/250.00V/25.000V/2.5000V
DC Voltage (mV):250.00mV/25.00mV
AC Voltage (V):750.0V/250.00V/25.000V/2.5000V
AC Voltage (mV):250.00mV/25.00mV
*Frequency response of ACV: 40Hz-1kHz
DC Current (A):10.000A/2.5000A
DC Current (mA):25.000mA/250.00μA
AC Current (A):10.000A/2.5000A
AC Current (μA/mA):25.000mA/250.00μA
Frequency response of AC Current: 40Hz-1kHz
Resistance:250.00Ω/2.5000kΩ/25.000kΩ/250.00kΩ/2.5000MΩ/25.000MΩ/250.0MΩ
Capacitance: 9.999nF/ 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF
Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/ 999.9kHz
Diode :yes
